5-Bedroom, 3314 Sq Ft Modern Farmhouse Plan with Walk-in Pantry

Modern Farmhouse home (ThePlanCollection: Plan #198-1068)

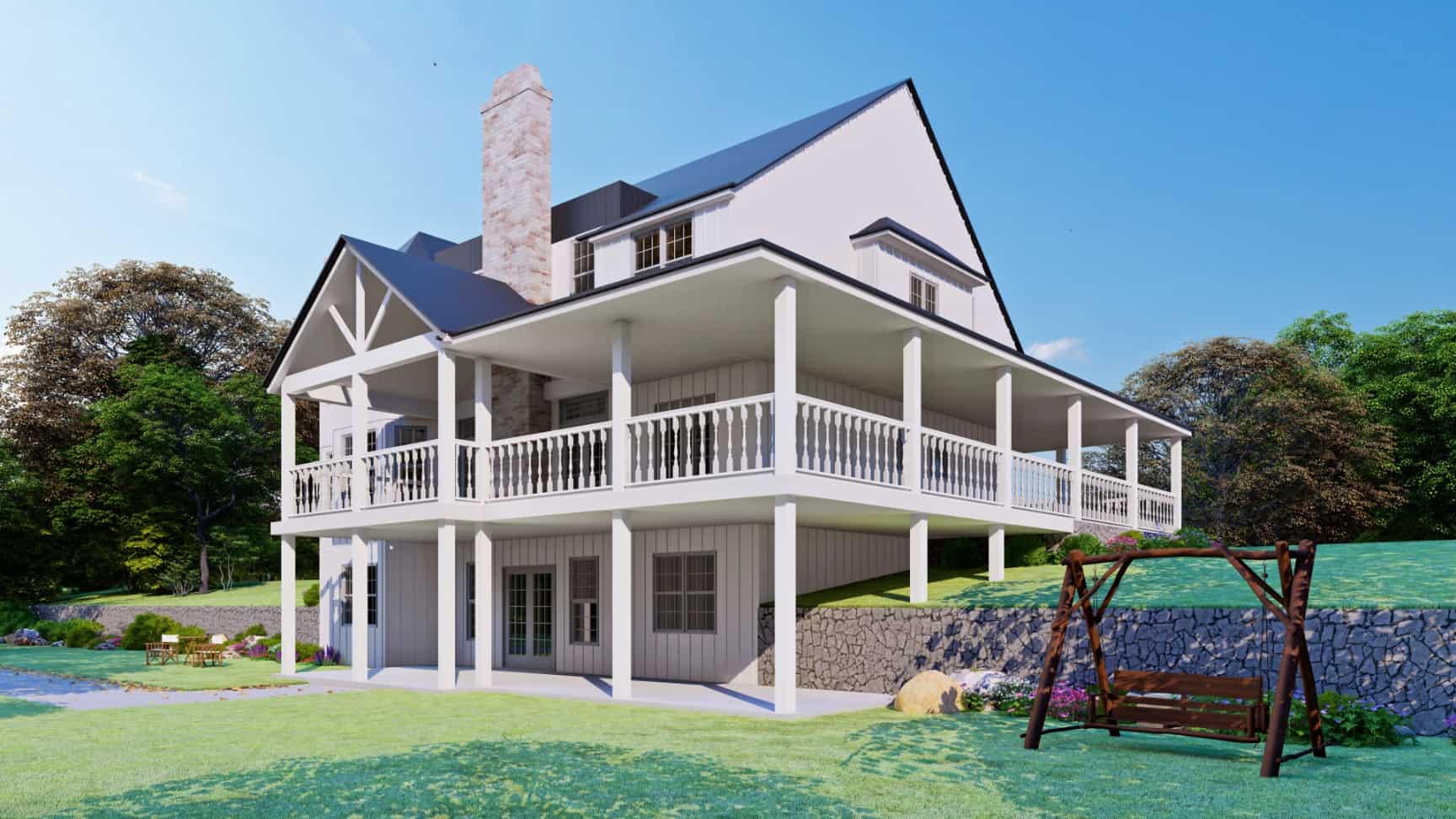

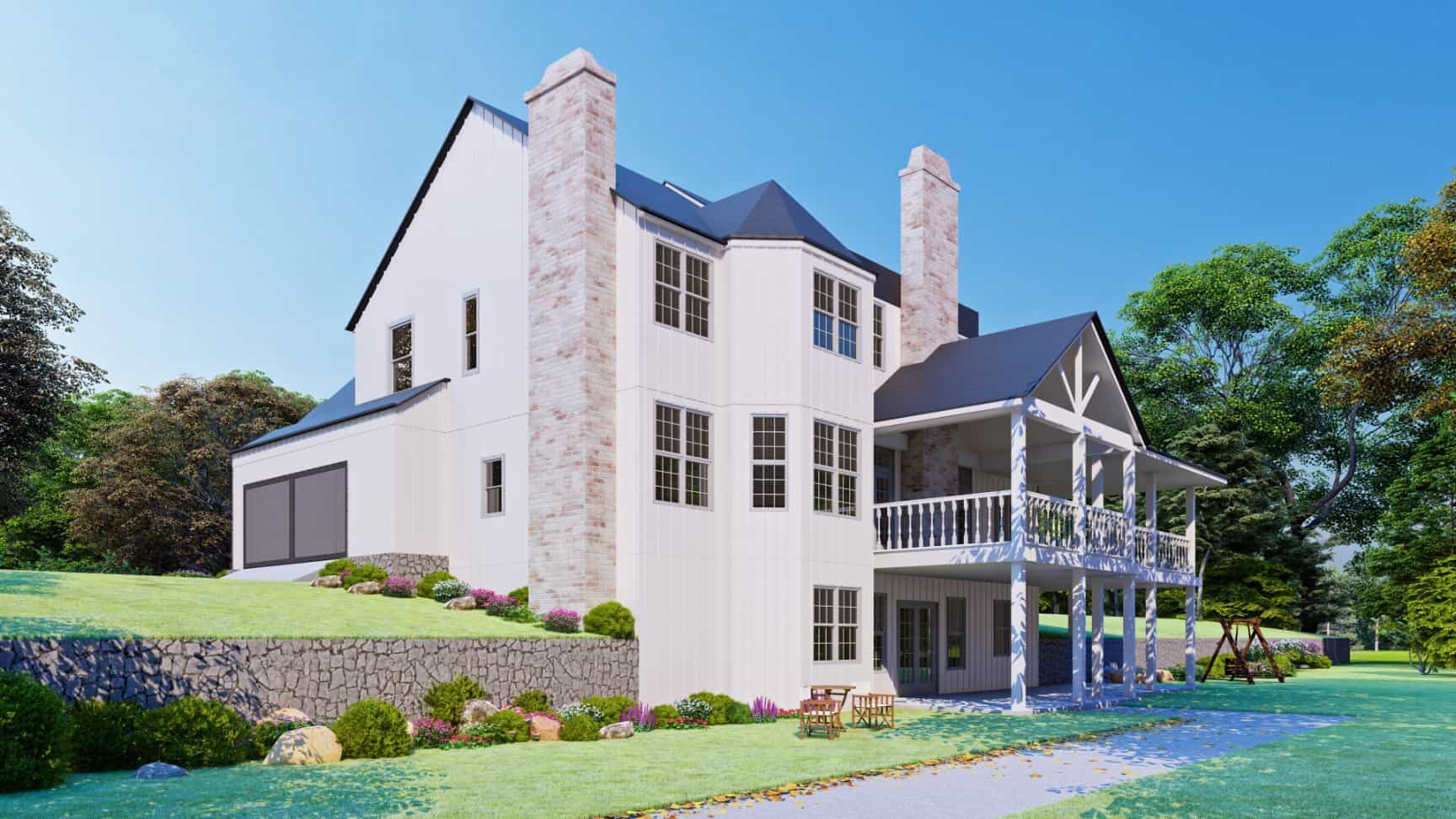

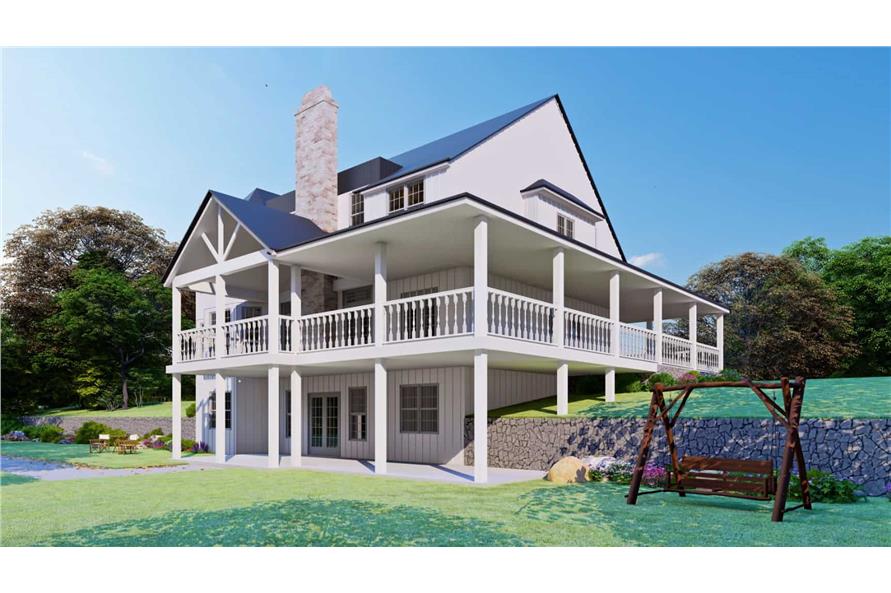

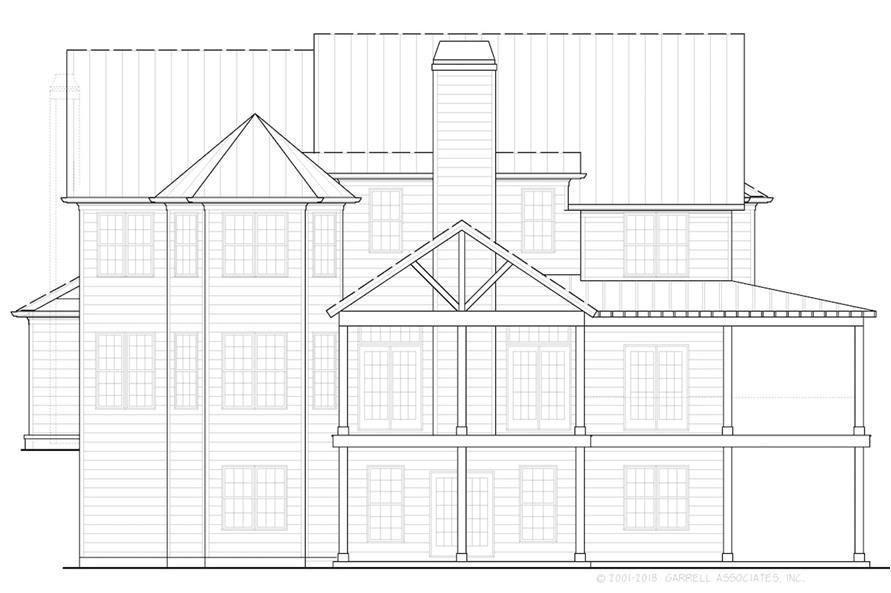

198-1068: Home Plan Rear Elevation

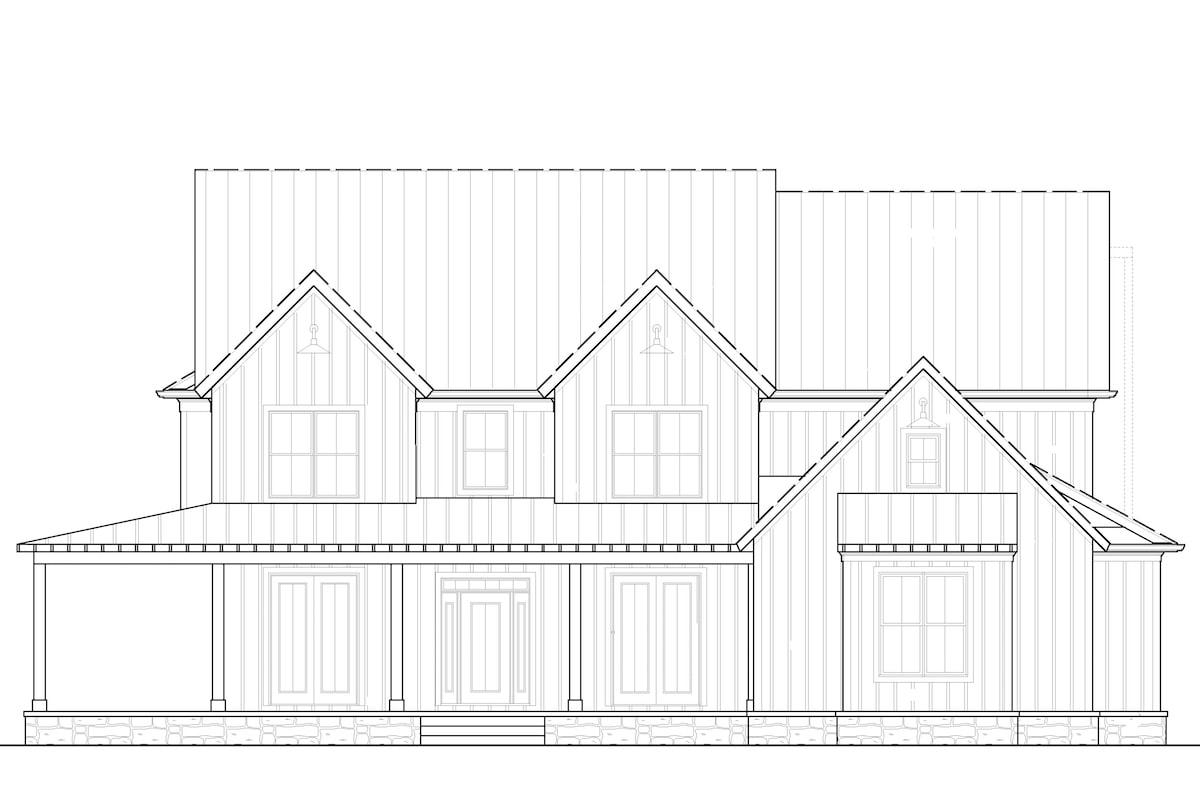

198-1068: Home Plan Front Elevation

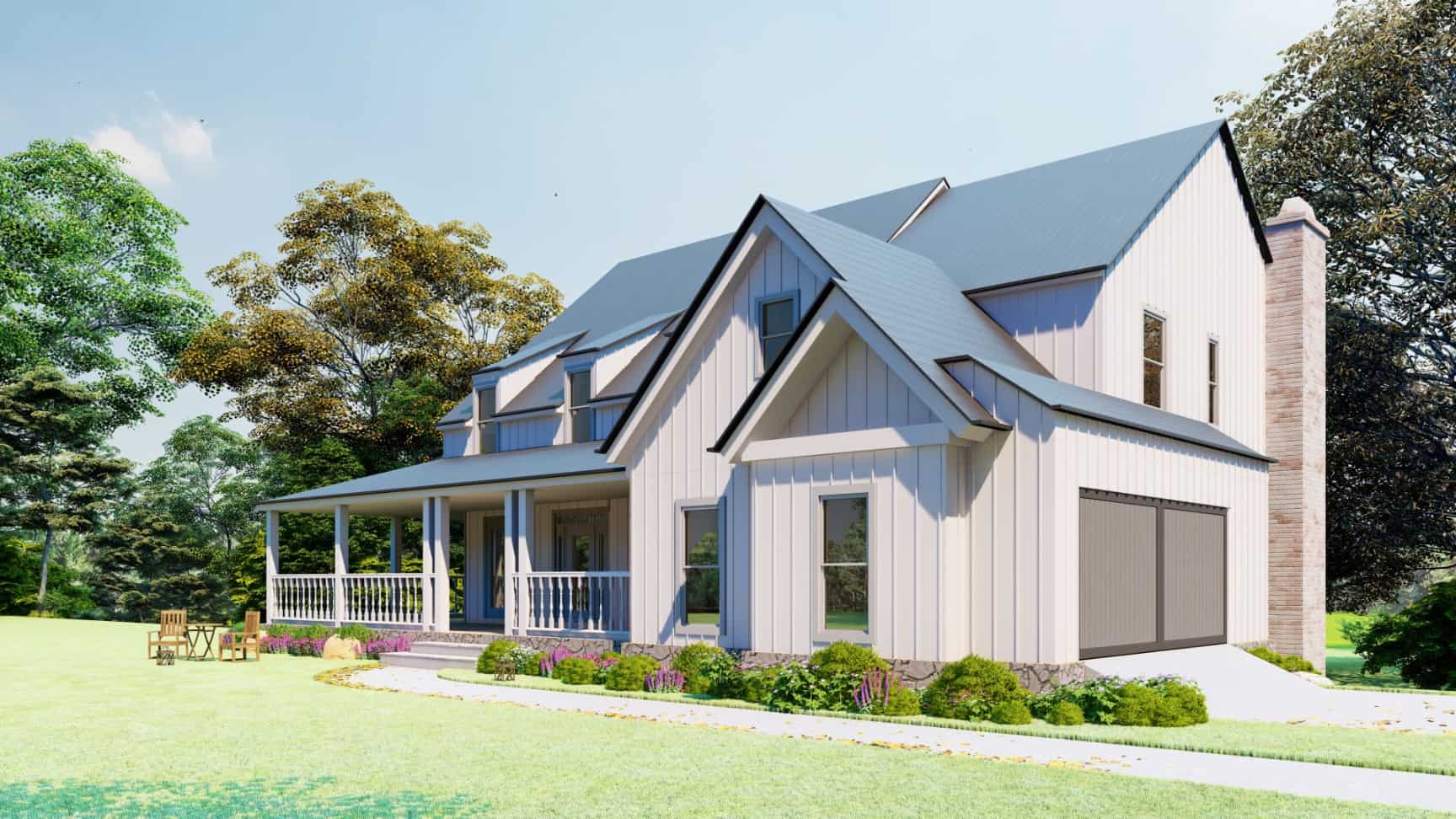

198-1068: Home Plan Rendering

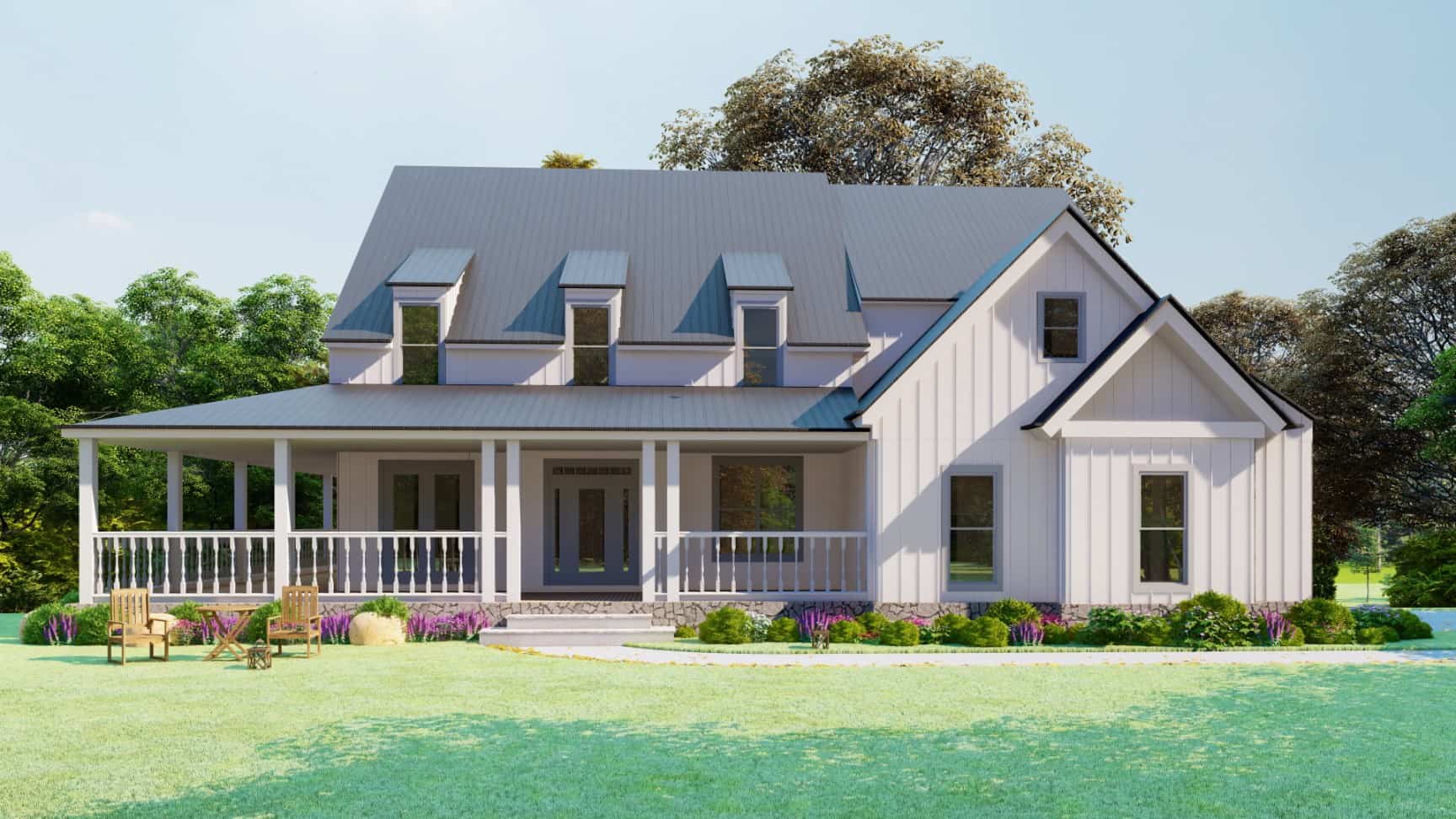

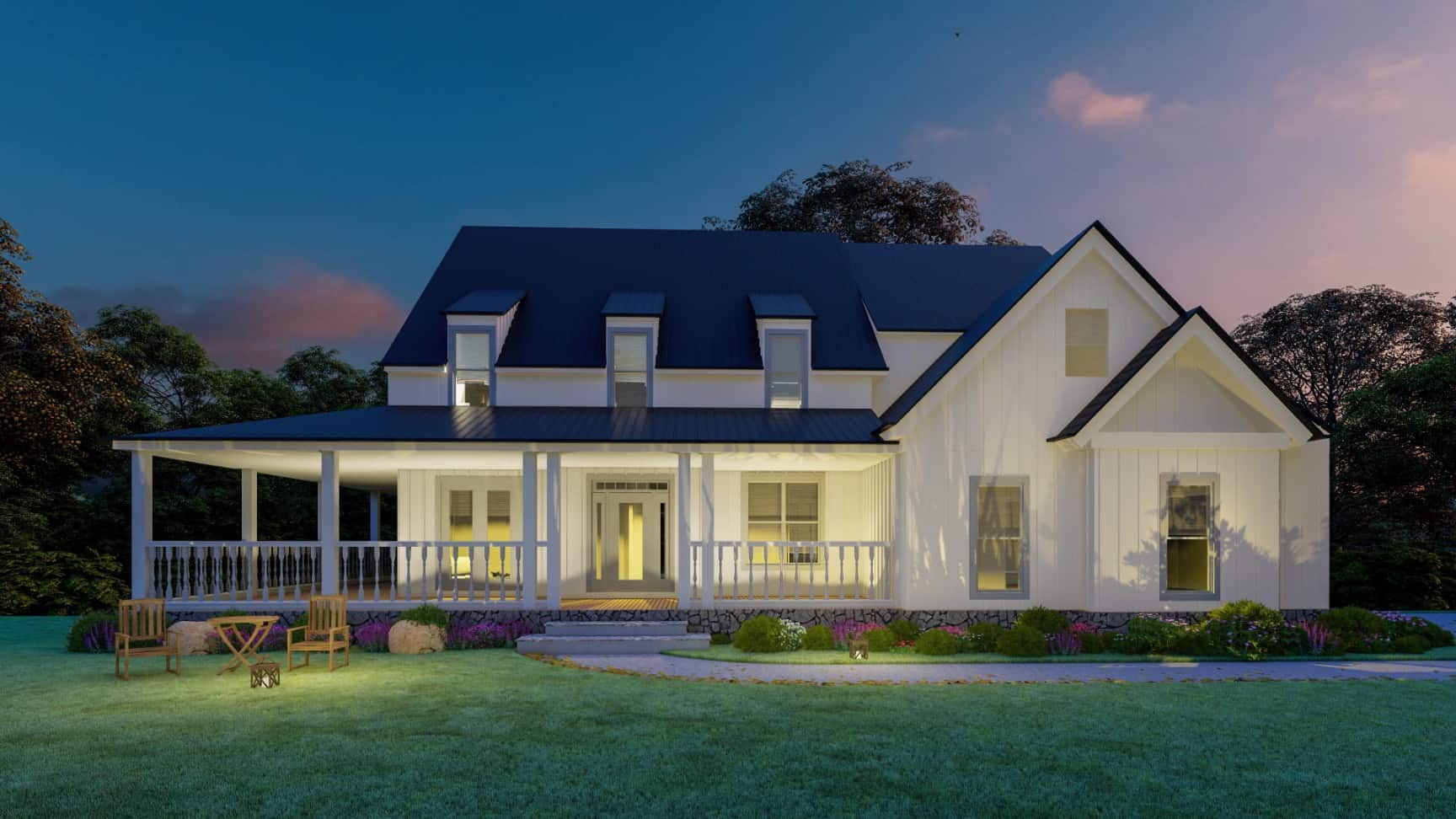

5-Bedroom, 3314 Sq Ft Modern Farmhouse Home - Plan #198-1068 - Main Exterior

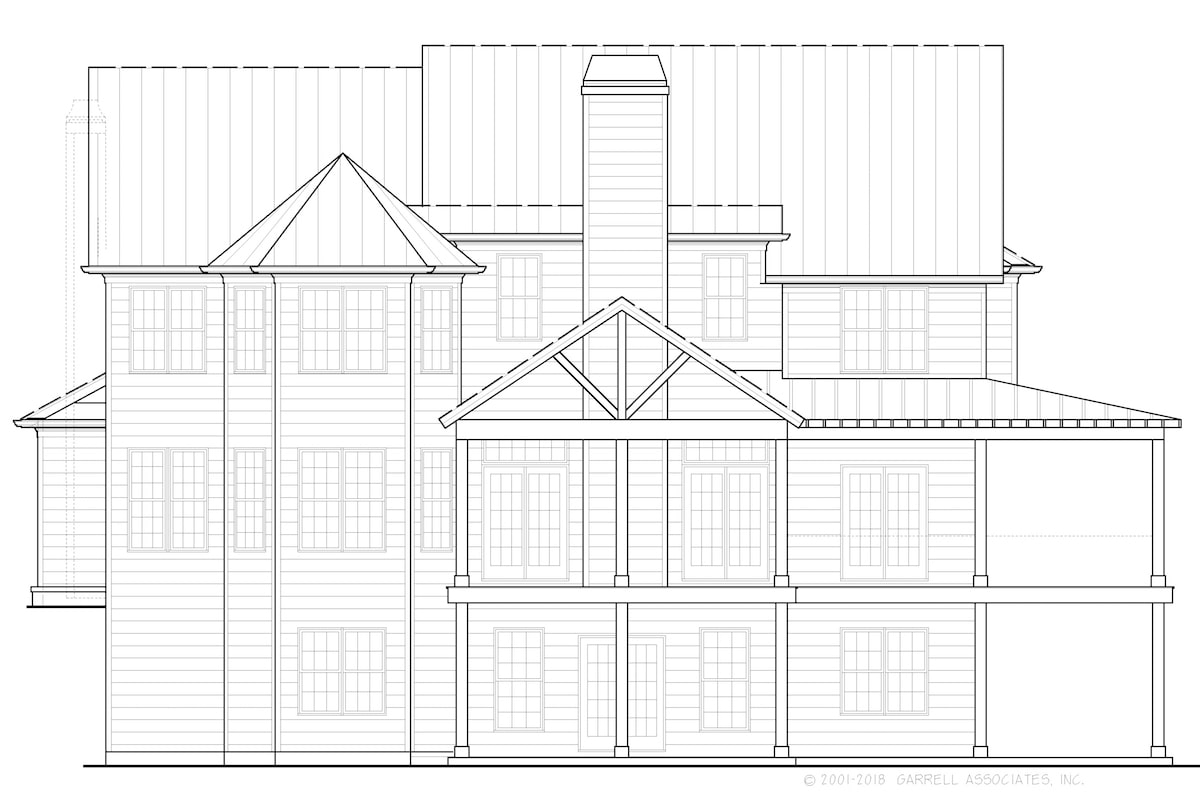

198-1068: Home Plan Rear Elevation
198-1068: Home Plan Front Elevation
198-1068: Home Plan Rendering

About Plan # 198-1068

About Plan # 198-1068

3314 SQUARE FEET 5 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 64' 4" WIDTH 67' 10" DEPTH 2 GARAGE BAY

This stately Farmhouse style home with Contemporary characteristics (Plan #198-1068) has 3314 square feet of heated and cooled living space. The 2-story floor plan includes 5 bedrooms. NOTE: the plan offers the option of a 2-story-tall main-level Grand Room with fireplace OR the fireplace-equipped Grand Room with an 11-foot-tall ceiling and a children's retreat / bedroom 6 above it, which would add 284 square feet of living space for a total of 3598 square feet of heated and cooled living space.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

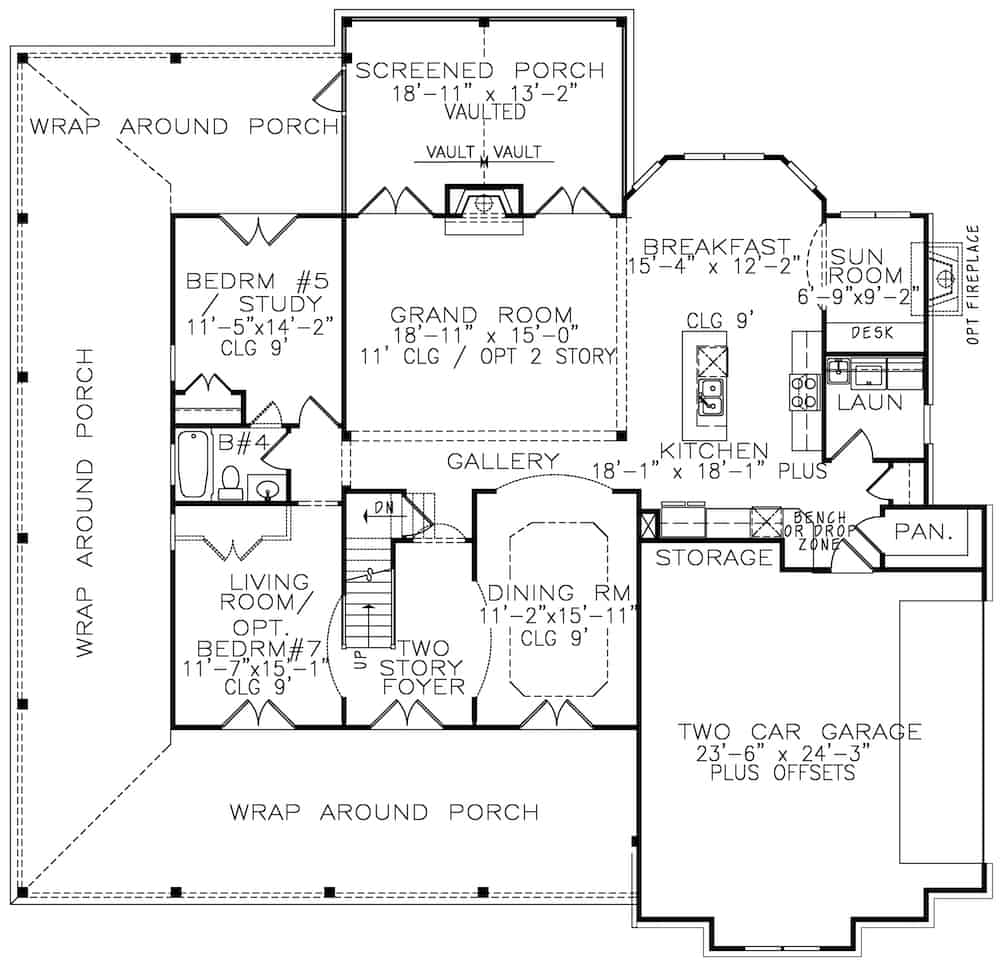

Home Plan: #198-1068 Floor Plan First Story - main level Floor Plan Main Level of Farmhouse Plan #198-1068

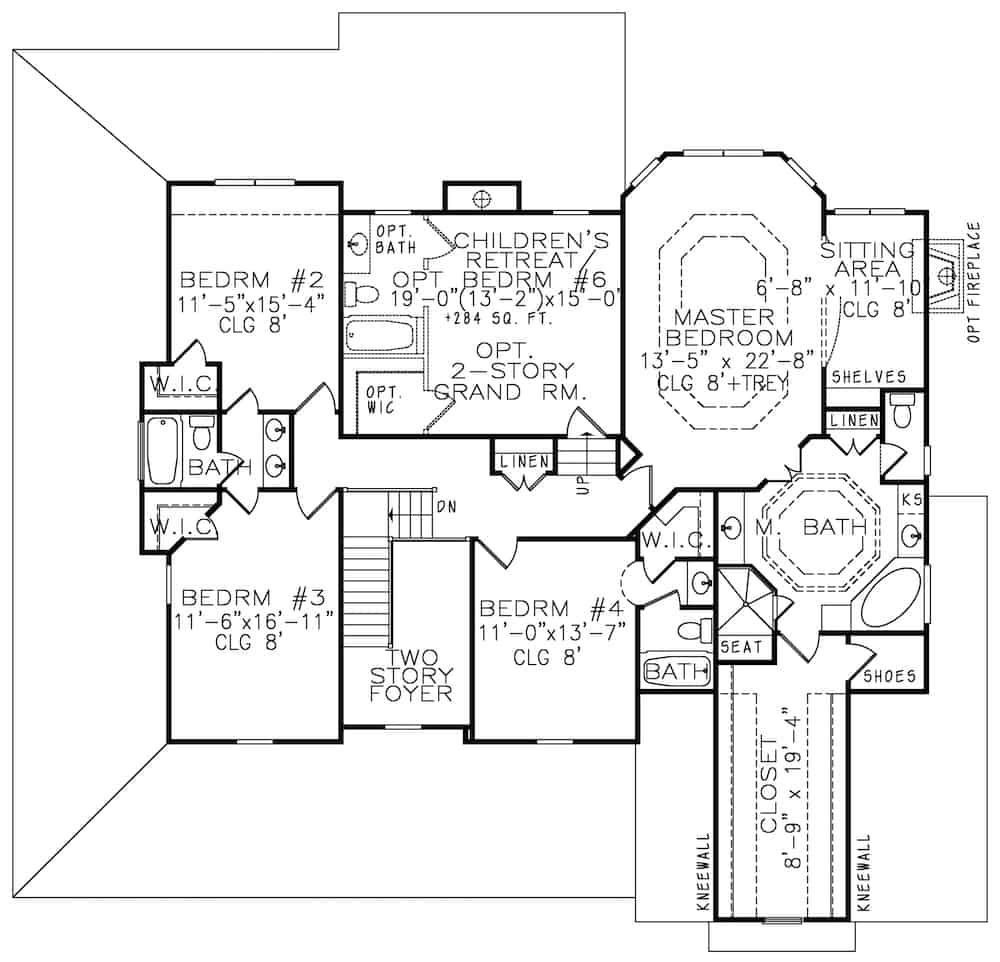

#198-1068 Floor Plan Second Story - upper level Floor Plan Upper Level of Farmhouse Plan #198-1068

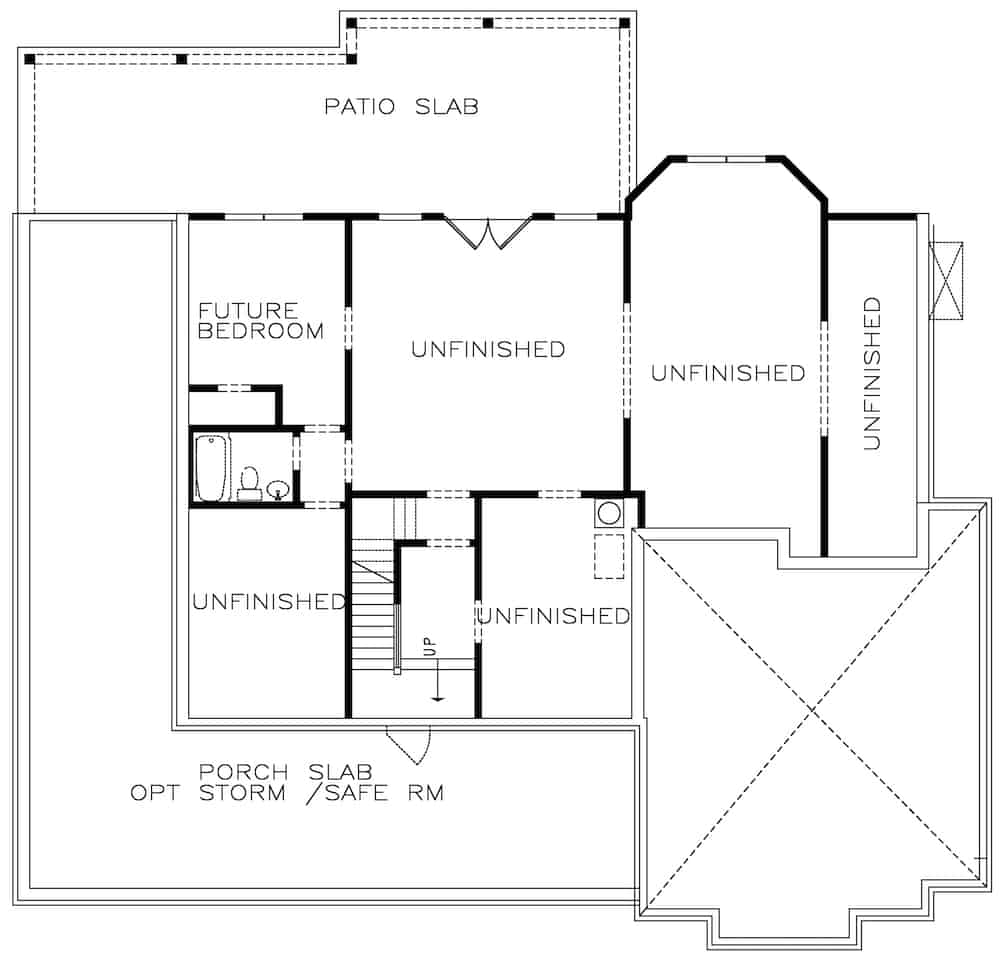

#198-1068 Floor Plan Basement - basement Floor Plan Basement of Farmhouse Plan #198-1068
Home Plan: #198-1068 Floor Plan First Story - main level Floor Plan Main Level of Farmhouse Plan #198-1068
#198-1068 Floor Plan Second Story - upper level Floor Plan Upper Level of Farmhouse Plan #198-1068
#198-1068 Floor Plan Basement - basement Floor Plan Basement of Farmhouse Plan #198-1068
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 198-1068
Floors:
2
Bedrooms:
5
Full Baths:
4
Garage :
2

Square Footage

Heated Sq Feet:
3314
Main Floor:
1672
Upper Floor:
1642
Unfinished Sq Ft:

Dimensions

Width:
64' 4"
Depth:
67' 10"

Architectural Styles

Barn Style
Contemporary
Farmhouse
Luxury
Modern Farmhouse
Traditional

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Metal

Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Dining Room
Family Room
Fireplace
Main Level Laundry
Open Floor Plan
Split Bathroom
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace
Optional Fireplace

Building Lot Type

Corner Lot

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Screened Porch/Sunroom
Wrap Around Porch

Master Suite Features

Master Bathroom
Second Floor Master
Sitting Area
Walk In Closet

Additional Notes from Designer

NO Material lists. All plans can be converted to 2x6 ($850 for 10-15 days) Standard slab, crawlspace $350 with a 7-10 day lead time. Basement foundations require a quote. Fees to Reverse plans $350 (7-10days)

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
