This is a colorful rendering for these Ranch House Plans.
3-Bedroom, 2318 Sq Ft Ranch Home Plan - 108-1506 - Main Exterior

About Plan # 108-1506

About Plan # 108-1506

2318 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 72' 0" WIDTH 66' 0" DEPTH 3 GARAGE BAY
Ranch home plans. Vaulted ceilings give an expansive feel to the entry, the study/office, and the great room/dining area at the rear. The richly windowed great room is open to the roomy kitchen across the wrap-around eating and conversation bars. A gas fireplace nestles into the great room's rear corner, while a built-in hutch fills one wall of the dining area. Graceful pairs of slender posts highlight the plan's open and inviting front porch. Being all on one level, this ranch-style plan is easily adaptable for aging in place. But the home is equally well-suited to families with youngsters or teens. Vaulted ceilings give an expansive feel to the entry, the study to the right of the entry, and the great room/dining area at the rear. A bench for shoe removal nestles into a rectangular alcove just inside the front door, where sidelights provide natural light. Double doors on the right open into the study, which is in an ideal location for a home office. An arched opening on the left leads to secondary bedrooms and a full bathroom. A 10-foot-high plant shelf marks the transition from the entry to the great room, but the vaulted ceiling overhead is open to both. With a trio of wide windows filling more than half of the rear wall, the great room is as bright as it is spacious. Still more light washes in through windows and an atrium door in the dining area. A lengthy hutch fills the right wall, while the door at the rear leads out onto an easy-to-screen covered patio. Workers in the spacious kitchen can keep an eye on everything in the great room, patio, and back yard. Raised eating and conversation bars wrap around the window side, and a roomy walk-in pantry fills one corner. The owners' suite and a large utility room fill the plan's right wing. The suite has a large walk-in closet and a private bathroom with twin vanities. Cabinets and counters line the utility room, which also serves as a pass-through to the three-car garage.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

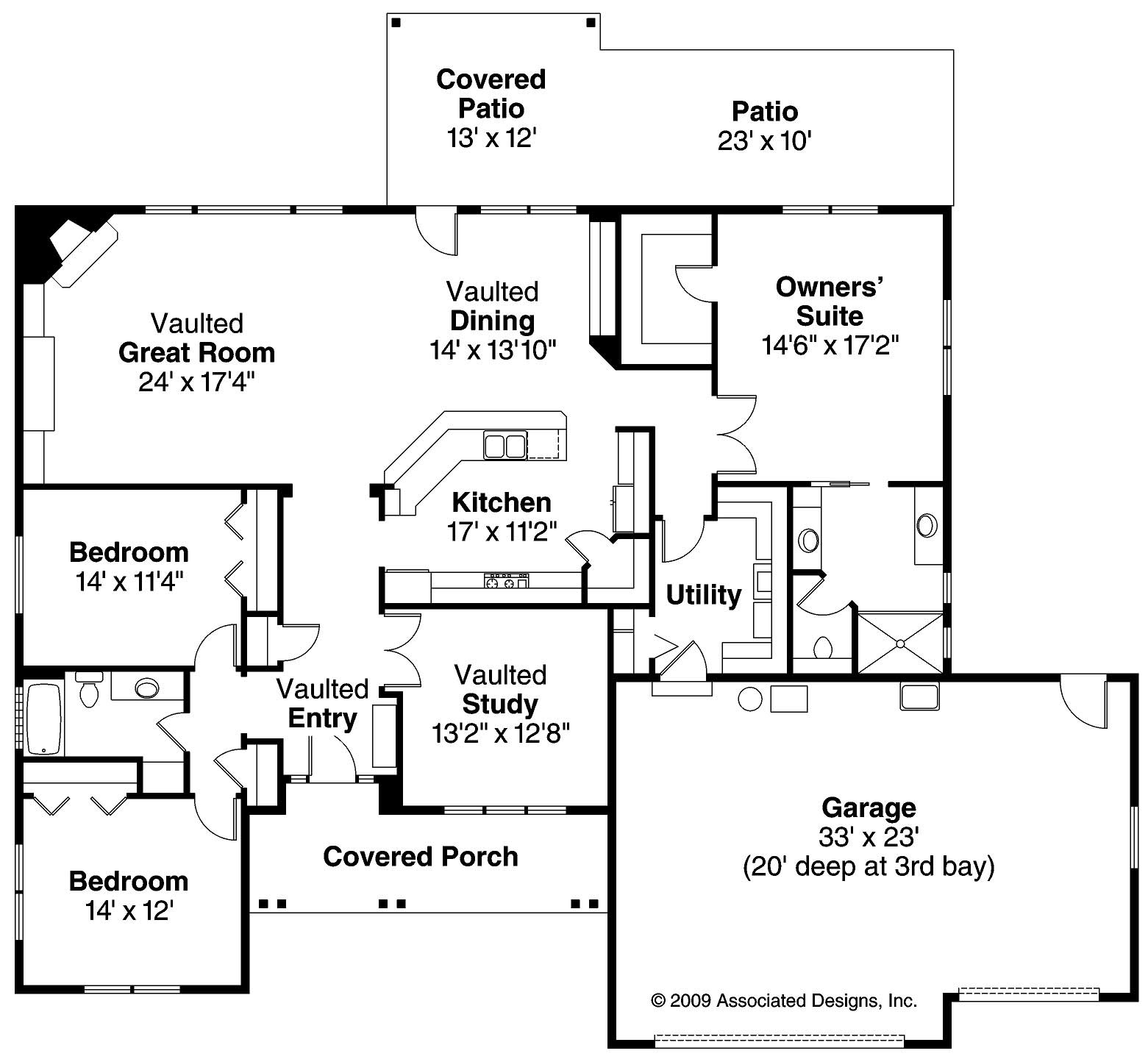

Home Plan: #108-1506 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #108-1506
Home Plan: #108-1506 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #108-1506
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1506
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
2318
Main Floor:
2318
Unfinished Sq Ft:
Garage :
765

Dimensions

Width:
72' 0"
Depth:
66' 0"
Ridge Height:
22-1' 0"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Mud Room
Main Level Laundry
Den
Vaulted Ceilings

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x6

Kitchen Features

Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
