2136 Sq Ft, 4-Bedroom Split-Level Plan with Covered Front Porch

Front elevation of Multi-Level home (ThePlanCollection: House Plan #126-1081)

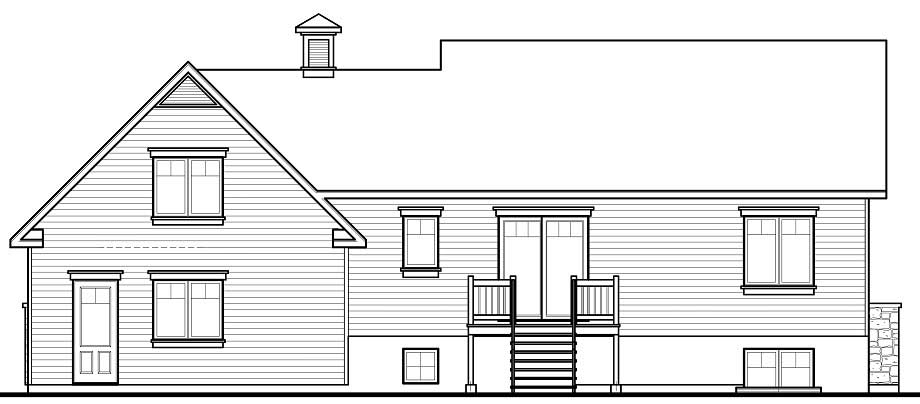

Home Plan Rear Elevation
4-Bedroom, 2136 Sq Ft Multi-Level Home Plan - 126-1081 - Main Exterior
Home Plan Rear Elevation

About Plan # 126-1081

About Plan # 126-1081

2136 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1.5 FLOOR 56' 0" WIDTH 32' 4" DEPTH 2 GARAGE BAY

Do you like the feel of a split level home? Do you enjoy a quality country home design? this house plan: it's a perfect combination of split-level home design and traditional, country style. It also includes many popular modern design elements such as an open kitchen / family area. The smaller footprint and split level design offers a more affordable house plan design on a per square foot basis.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

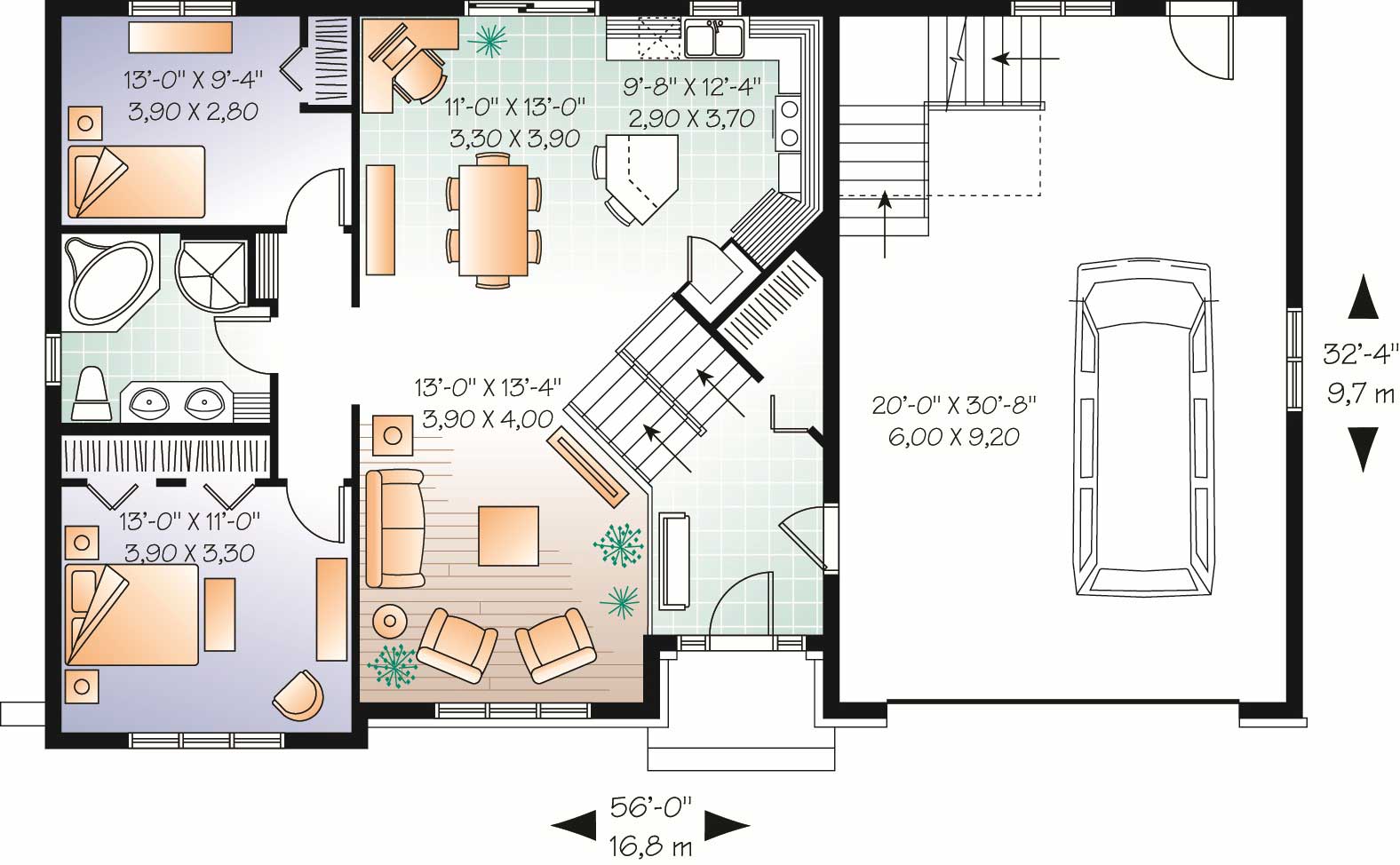

Home Plan: #126-1081 Floor Plan First Story - first story Floor Plan First Story of Multi-Level Plan #126-1081

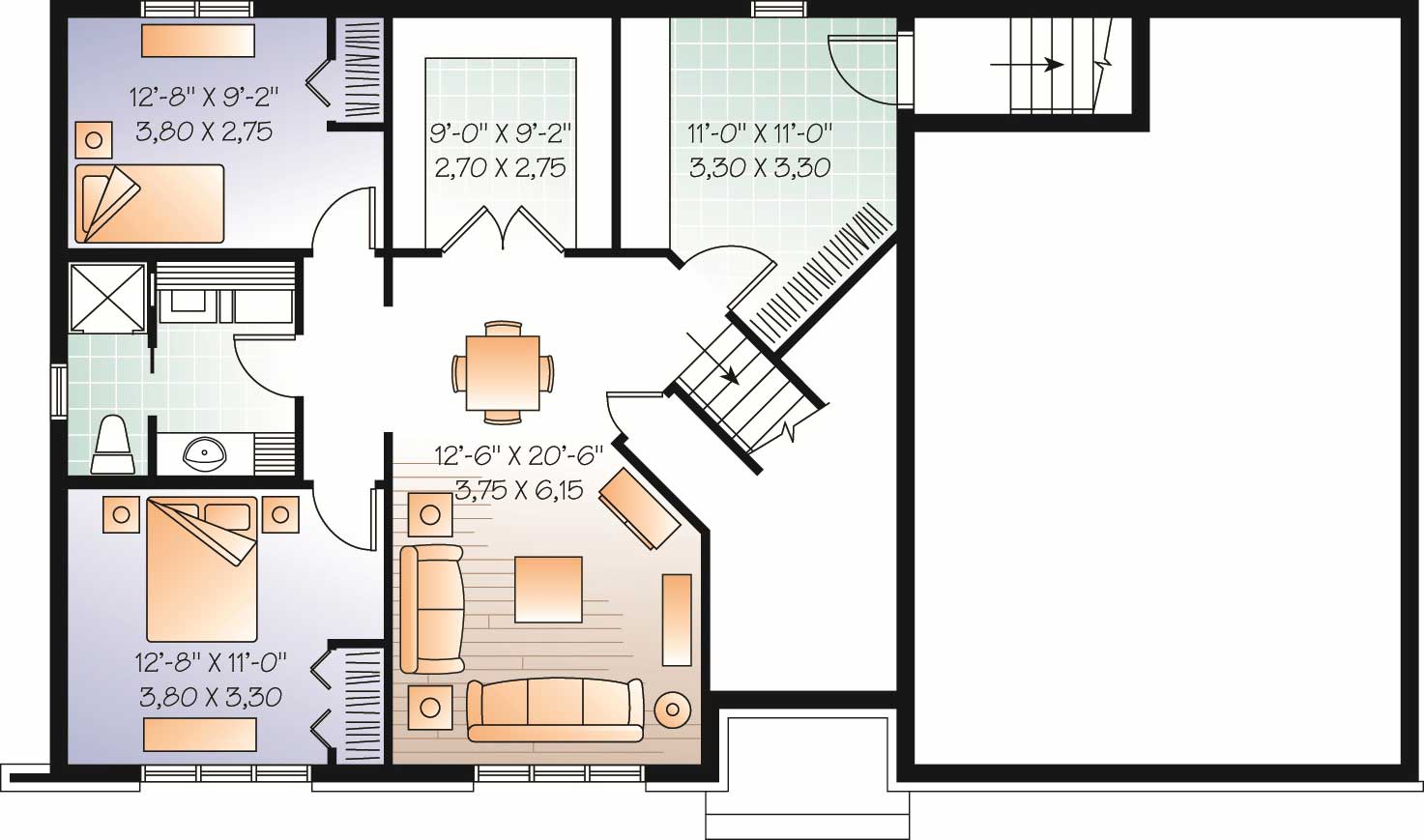

#126-1081 Floor Plan Basement - basement Floor Plan Basement of Multi-Level Plan #126-1081
Home Plan: #126-1081 Floor Plan First Story - first story Floor Plan First Story of Multi-Level Plan #126-1081
#126-1081 Floor Plan Basement - basement Floor Plan Basement of Multi-Level Plan #126-1081
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 126-1081
Floors:
1.5
Bedrooms:
4
Full Baths:
2

Square Footage

Heated Sq Feet:
2136
Main Floor:
1002
Upper Floor:
1134
Unfinished Sq Ft:
Bonus Room:
359

Dimensions

Width:
56' 0"
Depth:
32' 4"
Ridge Height:
22' 11"

Architectural Styles

Country
Multi-Level
Traditional

Exterior Wall Material

Rock/Stone
Shakes
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Special Feature

Bonus Room
Main Level Laundry
Mud Room
Open Floor Plan
Split Bathroom
Storage

Garage Type

Attached Garage
Front Entry

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar

Additional Notes from Designer

ATTENTION!! For this designer ONLY - if you place your order after 7/14/2021 - it will not be fulfilled until AFTER 8/2/2021. PLEASE NOTE!! Due to COVID-19, this designer may take 5-7 additional business days BEFORE plans are sent out, regardless of the type of delivery (express, email, etc). Please keep this in mind when ordering. PLEASE NOTE! This designer's plans do NOT come with an electrical layout. They will provide an electrical layout for an additional fee. Thank you. BCIN is available - Please allow 10 business days to complete!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
