4-Bedroom, 2250 Sq Ft Southern Country Plan with Expansion

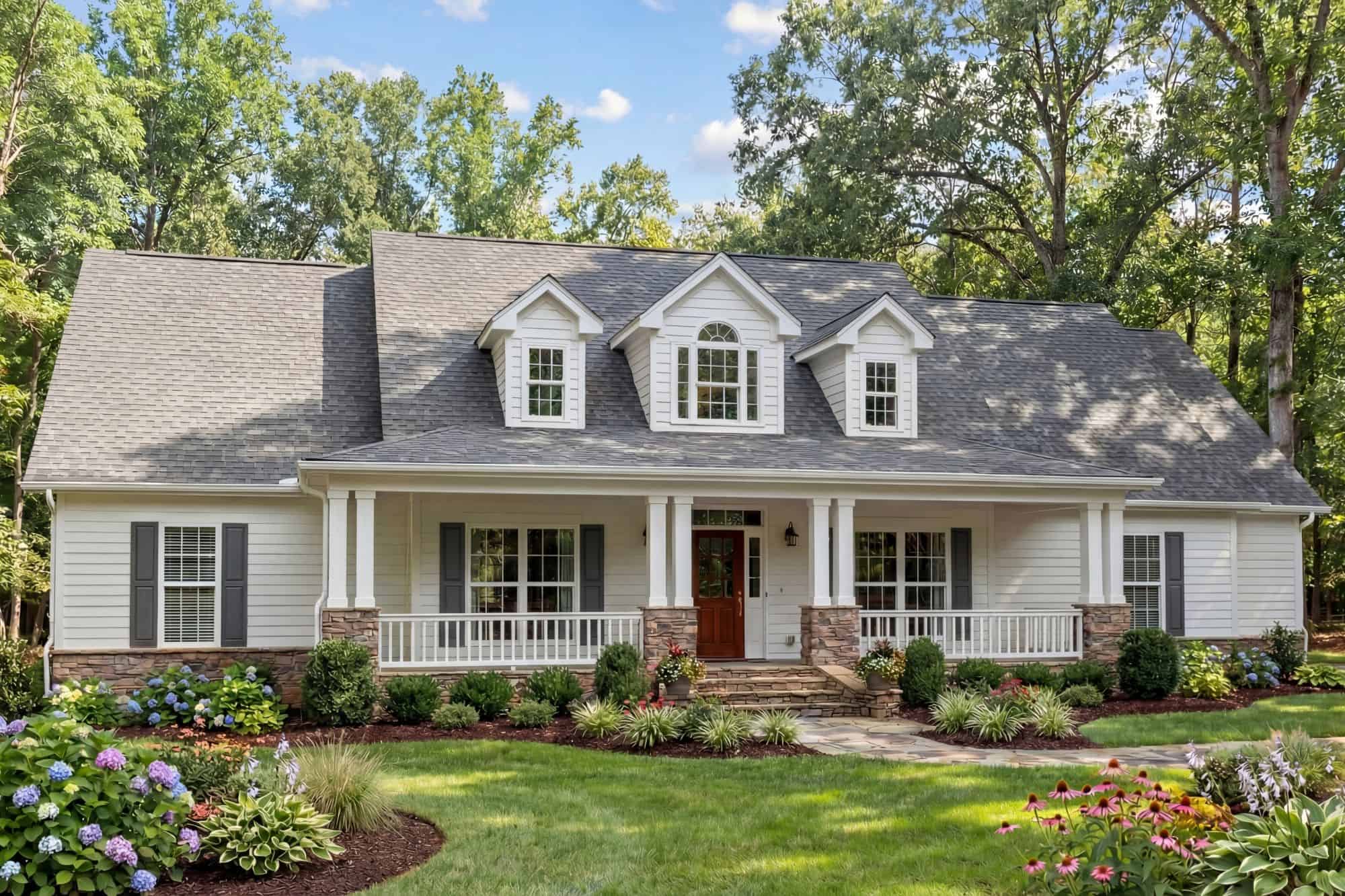

Front elevation of Country home (ThePlanCollection: House Plan #142-1040)

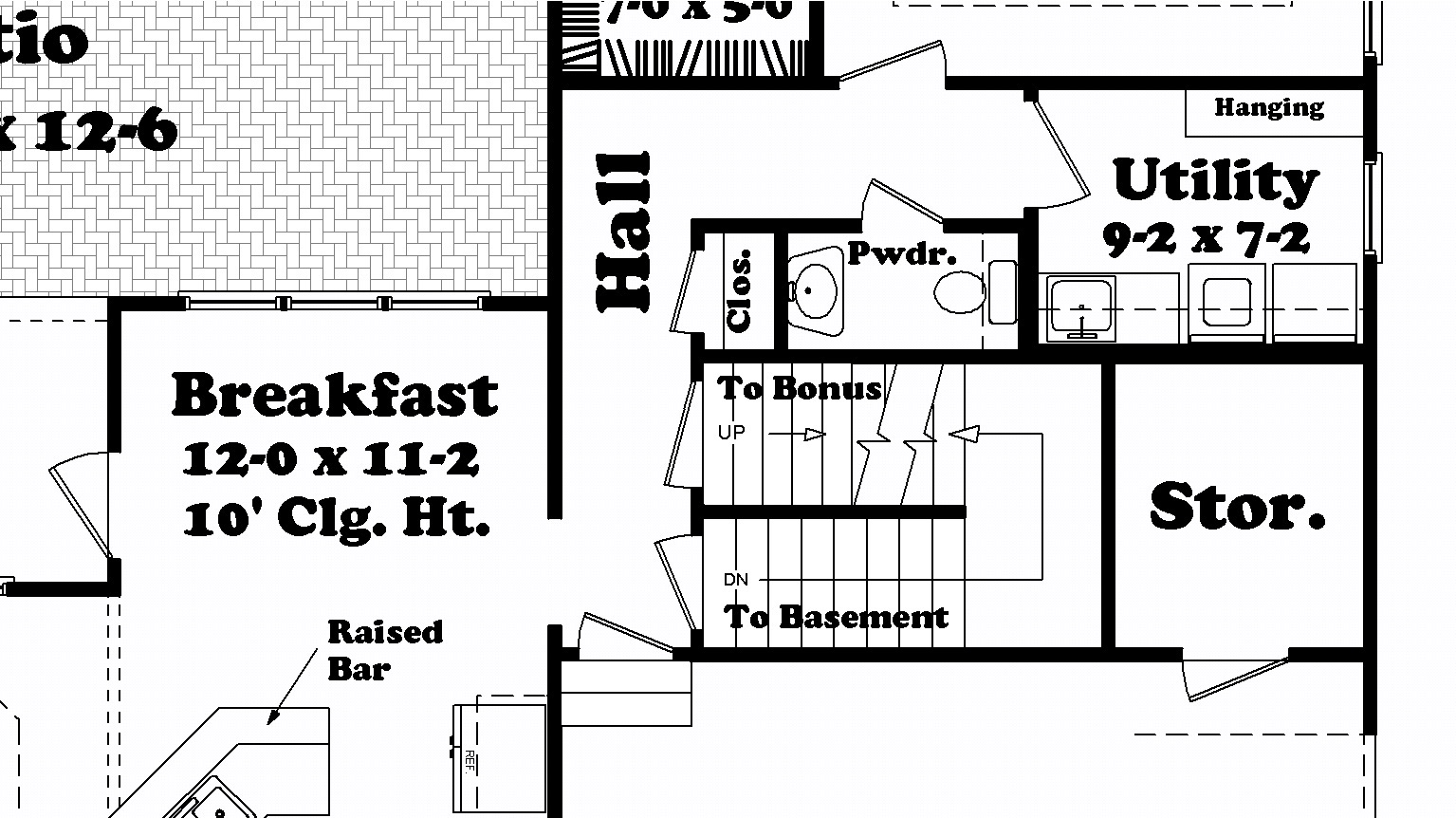

142-1040: Optl Basement Stairs Location

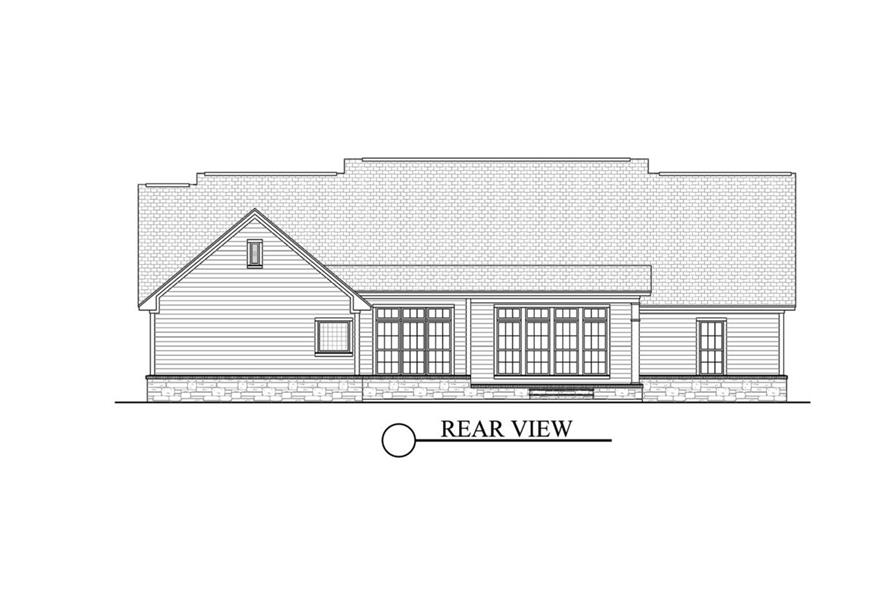

142-1040: Home Plan Rear Elevation

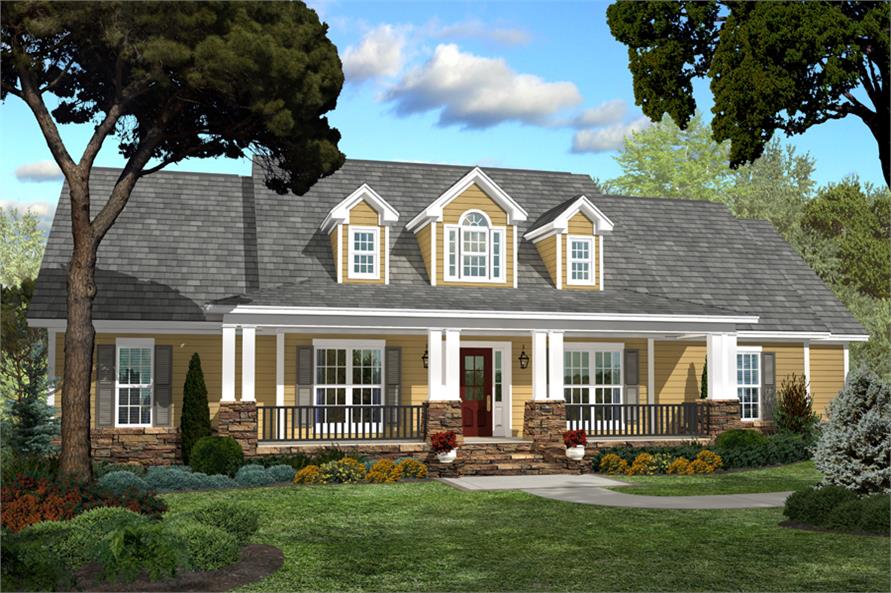

4-Bedroom, 2250 Sq Ft Country Home Plan - 142-1040 - Main Exterior
142-1040: Optl Basement Stairs Location
142-1040: Home Plan Rear Elevation

About Plan # 142-1040

About Plan # 142-1040

2250 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1.5 FLOOR 70' 2" WIDTH 67' 0" DEPTH 2 GARAGE BAY

Designed with the wants and needs of a growing family in mind, this impressive Southern country home is truly a special home design. From the outside, the home's symmetry with its substantial double-columned front porch, double windows and roof dormers creates enviable curb appeal. Step through the front door and into the foyer which is flanked by the formal dining room and the study or bedroom #4 as the family grows. The great room is the central hub of the home with its large size, raised ceiling, fireplace and built-in shelves. A wall of windows faces the rear porch and fill the great room with light. Adjacent to the great room is the breakfast nook and kitchen which enjoys an eating bar and efficient layout.

The split bedroom floor plan creates a private oasis for the owners' suite with its large bedroom, his-and-her walk-in closets and spacious master bath (including his-and-her vanities, soaking tub, shower and water closet). On the other side of the home, bedrooms #2 and #3 share a full bath with a double-sink vanity and a split design for the toilet and tub. Need more space down the road? There is an optional bonus room over the two-car garage that can also be designed with a walk-in closet and additional full bathroom.

Each plan set includes the following:

  • COVER SHEET: Artist’s rendering of the residence to provide an idea of what the house would look like once built. May include index and definitions.
  • FOUNDATION PLAN: Dimensioned foundation plan detailing the location and size of footings and construction details.
  • FLOOR PLAN(S): Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • ROOF PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Displays lighting fixtures, outlets, and other necessary electrical items. These items may be shown on the floor plan(s). Switches are NOT shown and should be located by the contractor on site.
  • WALL SECTION(S): Detail of wall materials and assembly.
  • BUILDING SECTION(S): Section through the home displaying necessary information about framing and other miscellaneous data. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • CABINET ELEVATIONS: Displays the interior kitchen cabinet views.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

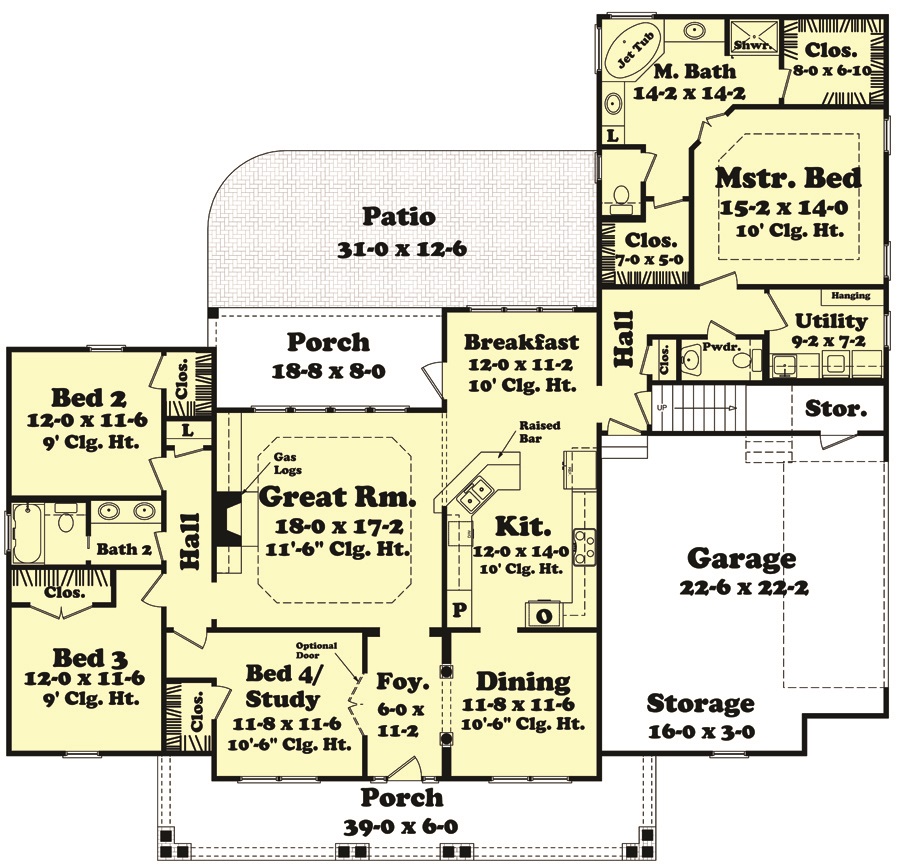

Home Plan: #142-1040 Floor Plan First Story - main level Floor Plan First Story of Country Plan #142-1040

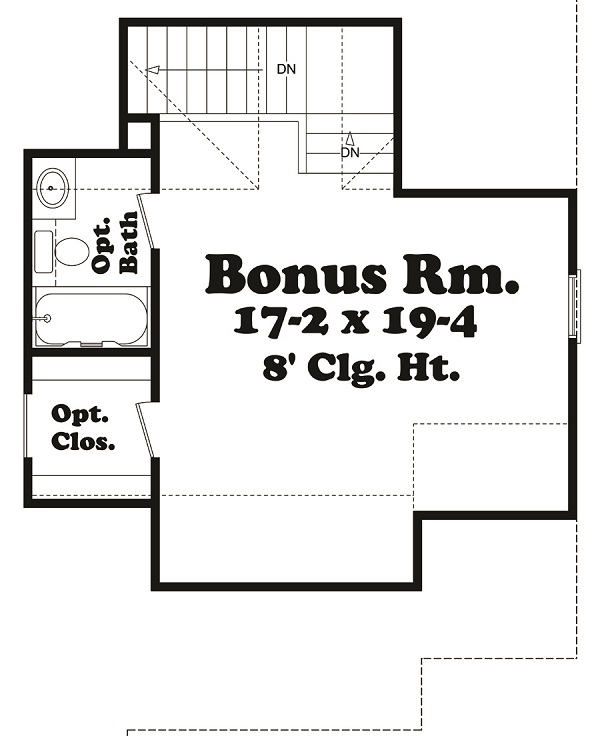

#142-1040 Floor Plan Second Story - bonus second story Floor Plan Second Story of Country Plan #142-1040
Home Plan: #142-1040 Floor Plan First Story - main level Floor Plan First Story of Country Plan #142-1040
#142-1040 Floor Plan Second Story - bonus second story Floor Plan Second Story of Country Plan #142-1040
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 142-1040
Floors:
1.5
Bedrooms:
4
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2250
Main Floor:
2250
Unfinished Sq Ft:
Bonus Room:
442
Garage :
514
Porch :
396

Dimensions

Width:
70' 2"
Depth:
67' 0"
Ridge Height:
24' 7"

Architectural Styles

Arts and Crafts
Country
Craftsman
Farmhouse
Southern

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

10/12
4/12

Ceiling Height

9 Foot Ceiling

Special Feature

Bonus Room
Den
Dining Room
Fireplace
Main Level Laundry

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! On some plans, Basement Foundations, Walkout Basement Foundations & 2x6 Conversions could take up to ONE WEEK to produce. Materials Lists could take up to FOUR WEEKS to produce and they will be for the ORIGINAL plan! Any modifications will NOT be reflected on the Materials List. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license - no need to purchase separately!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
