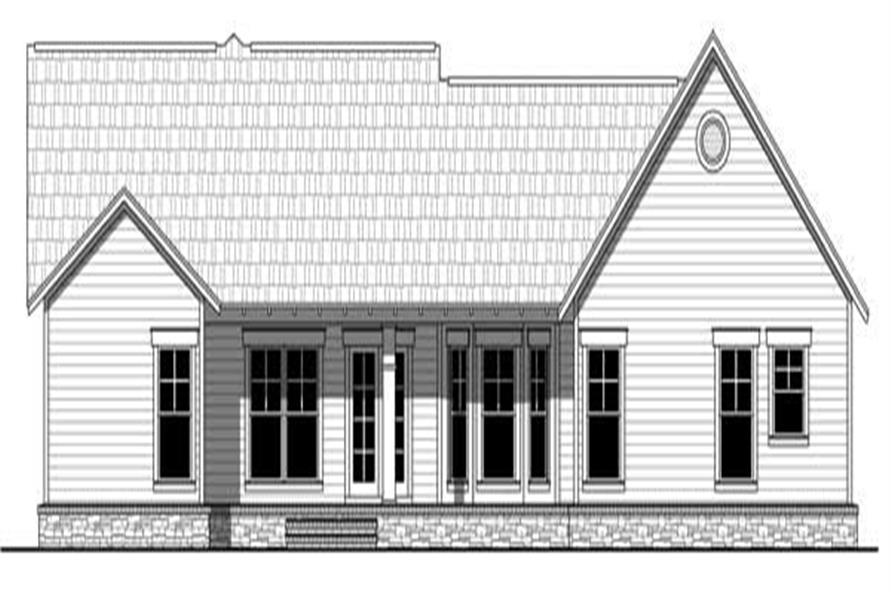

Home Plan Rear Elevation
141-1096 house plan kitchen

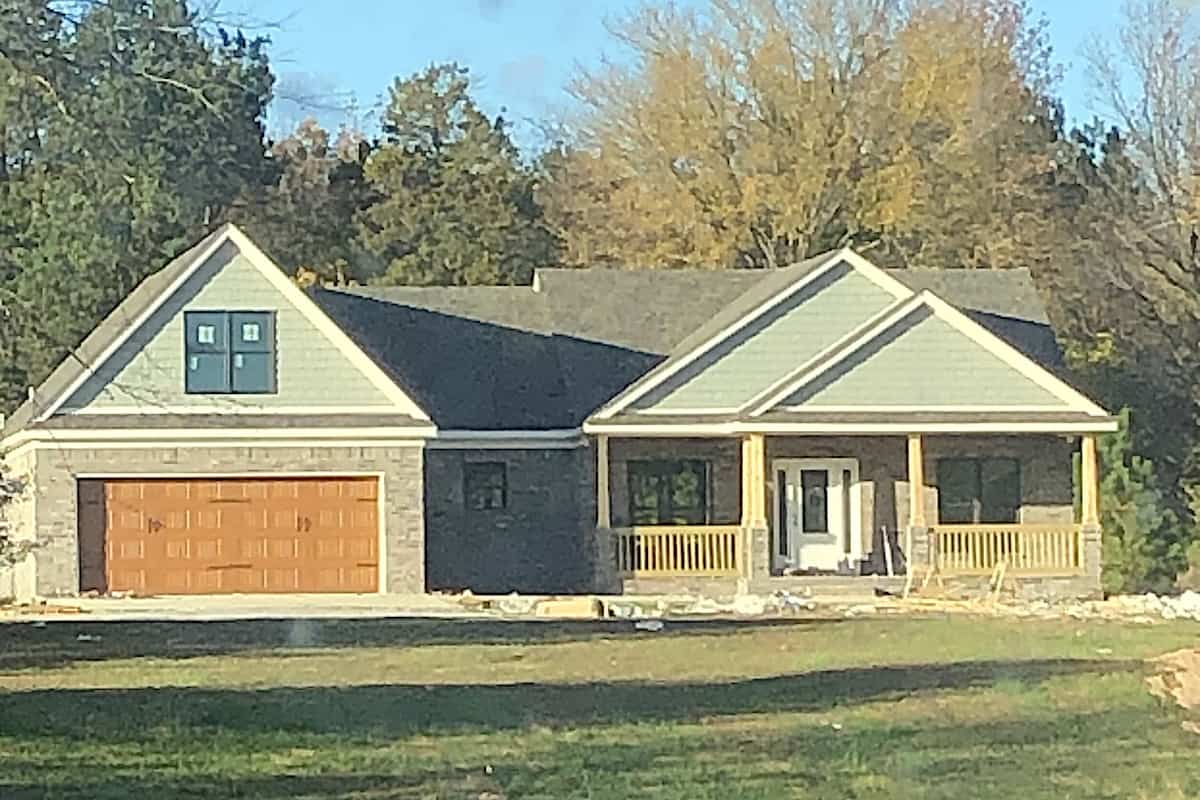

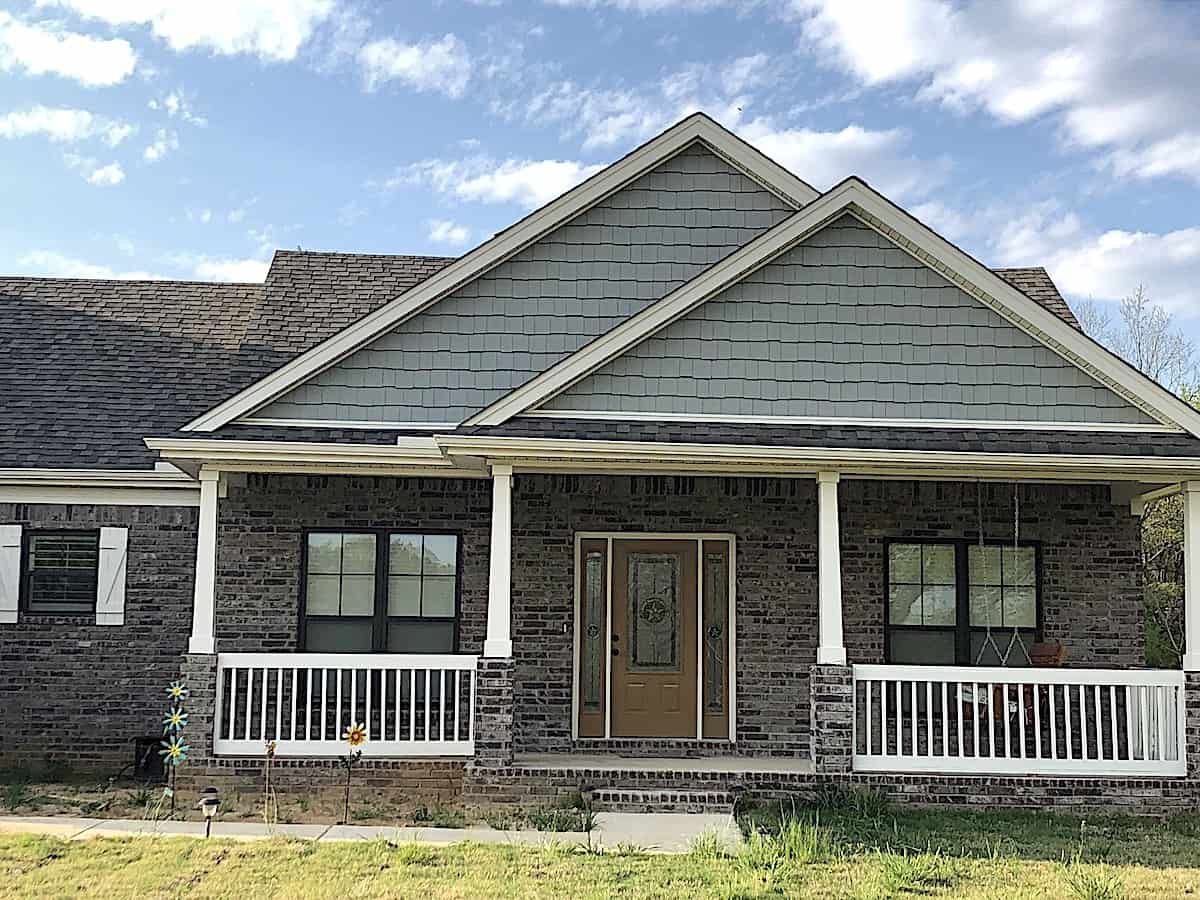

141-1096: Home Exterior Photograph-Front Door

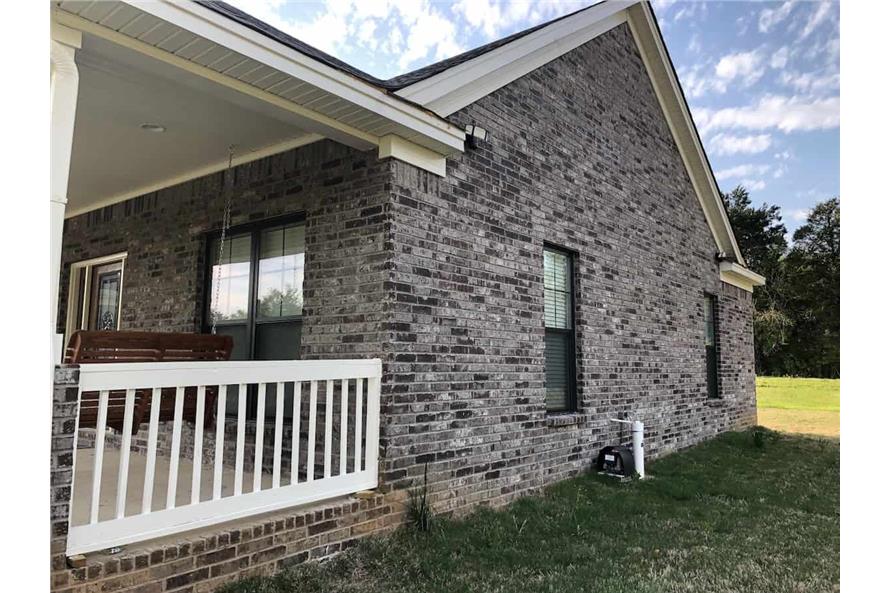

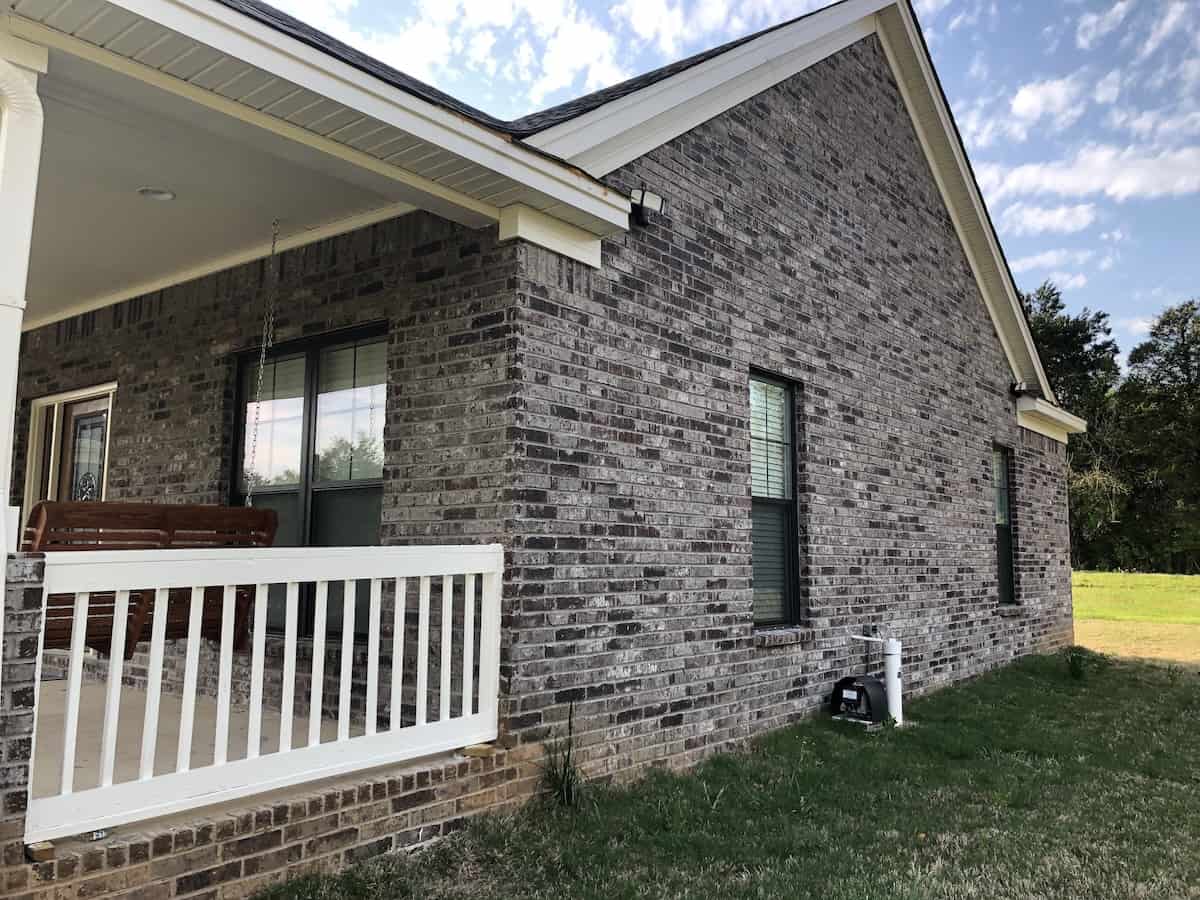

141-1096: Home Exterior Photograph-Right Side View

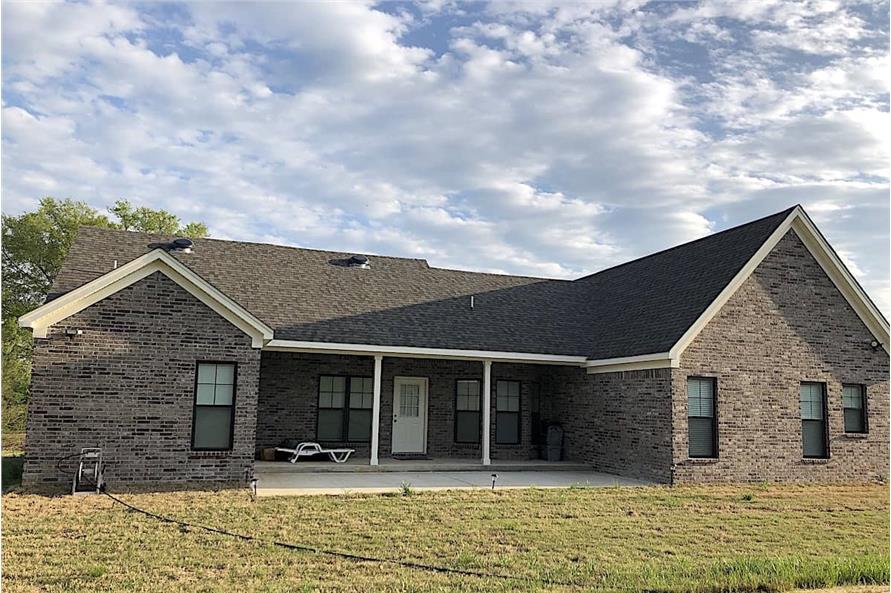

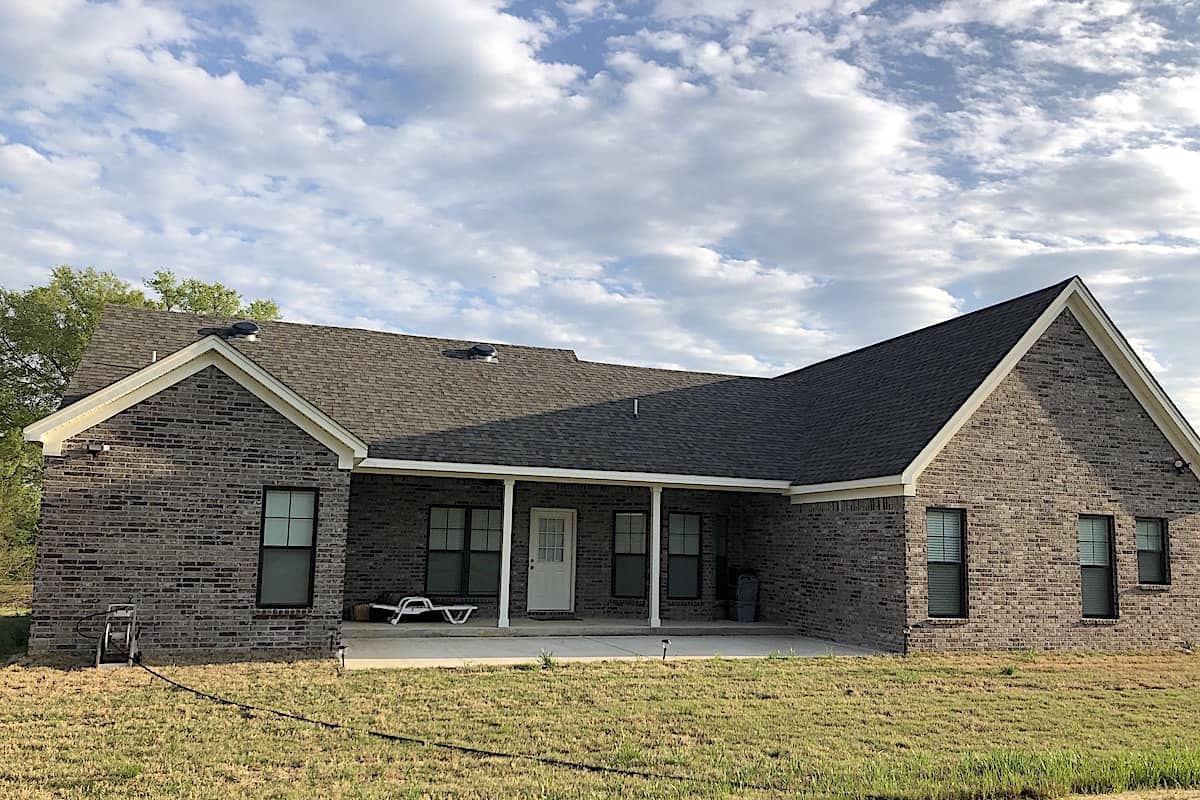

141-1096: Home Exterior Photograph-Rear View

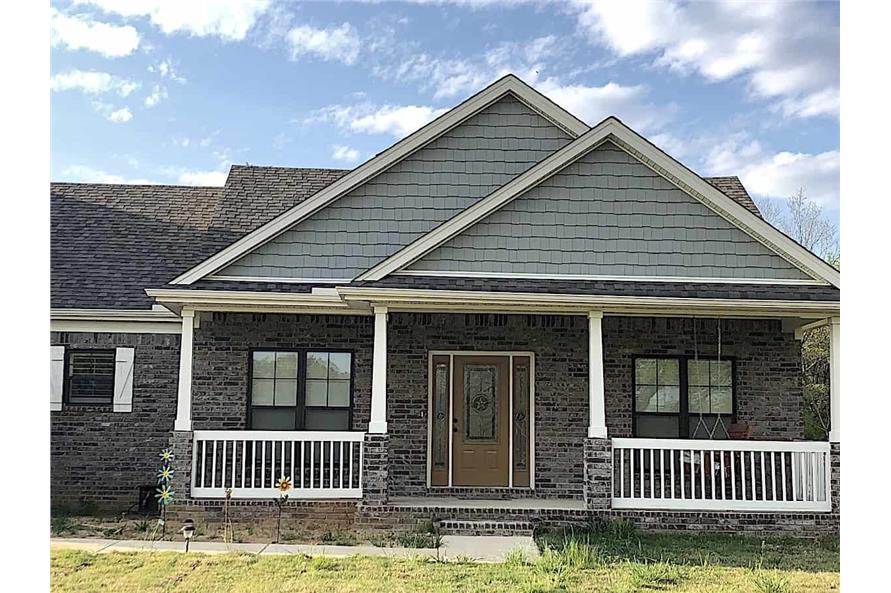

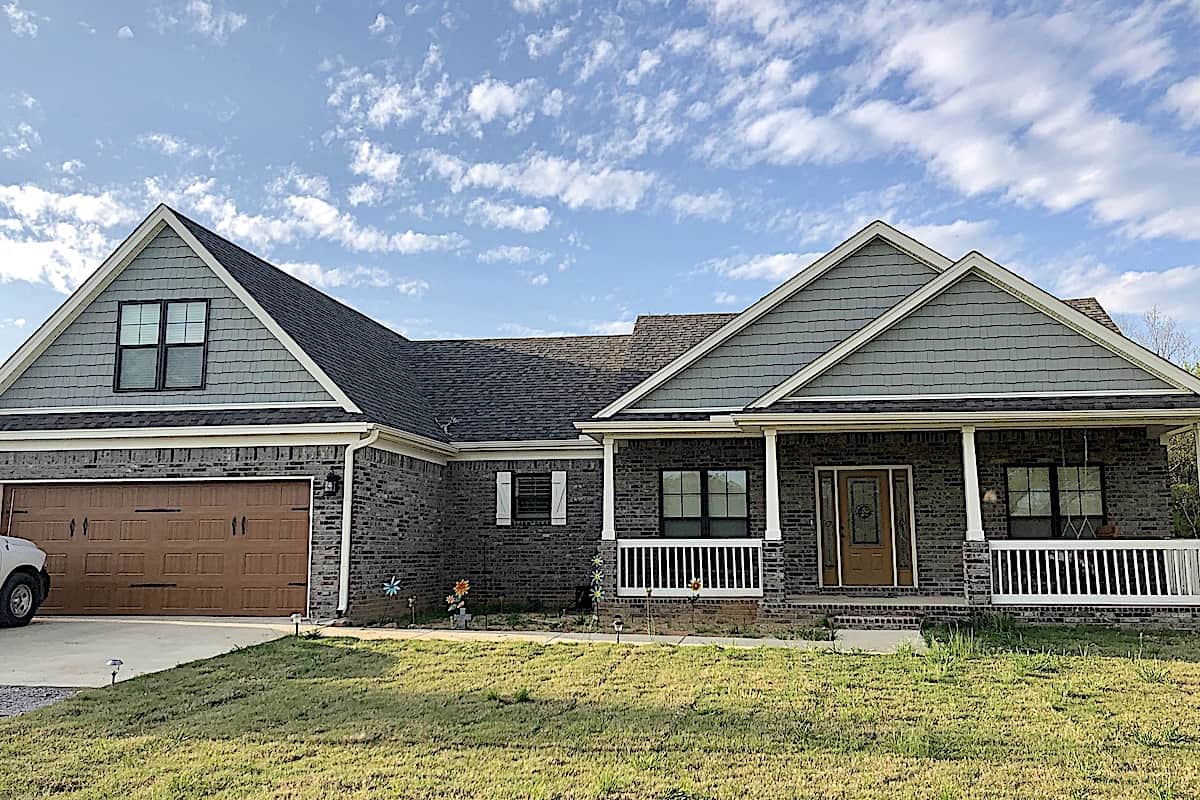

141-1096: Home Exterior Photograph-Front View
141-1096: Home Exterior Photograph-Front View

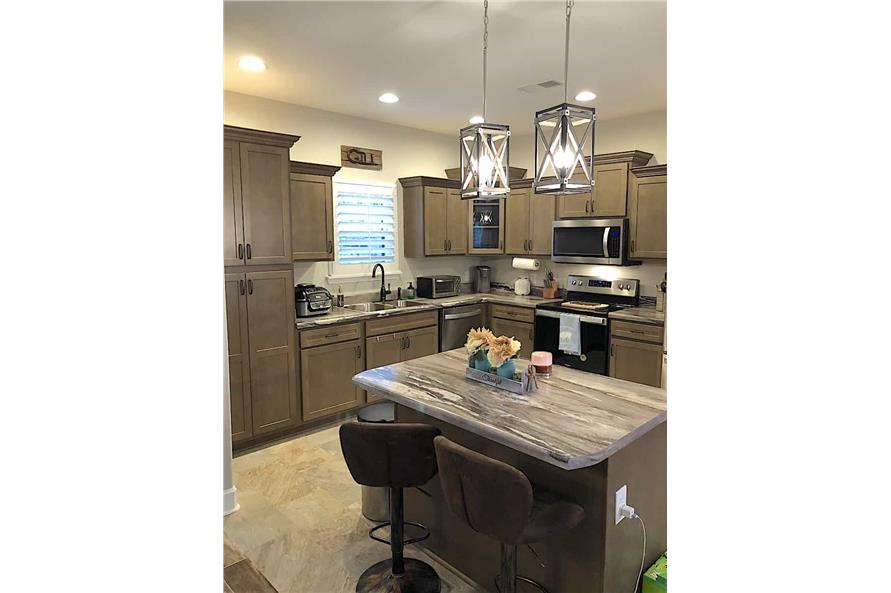

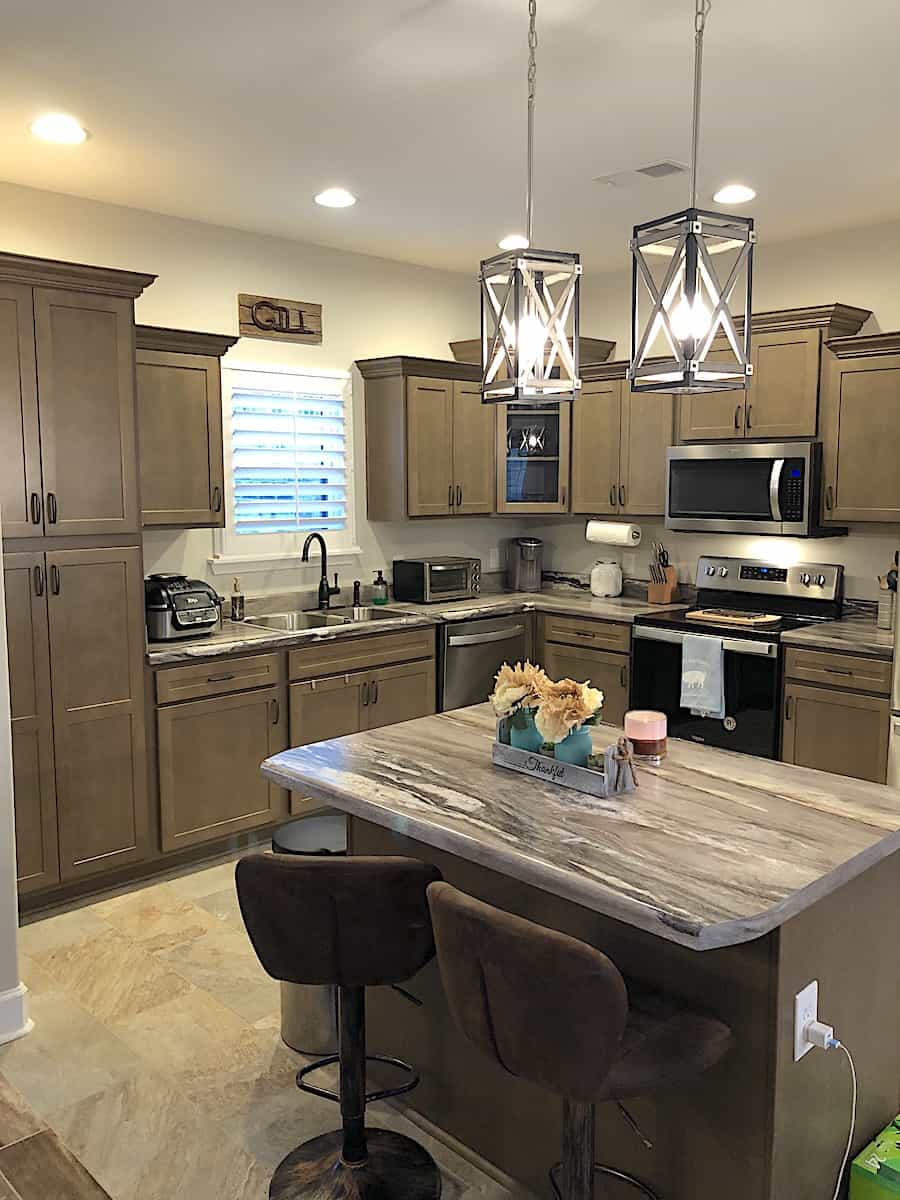

141-1096: Home Interior Photograph-Kitchen: Kitchen Island

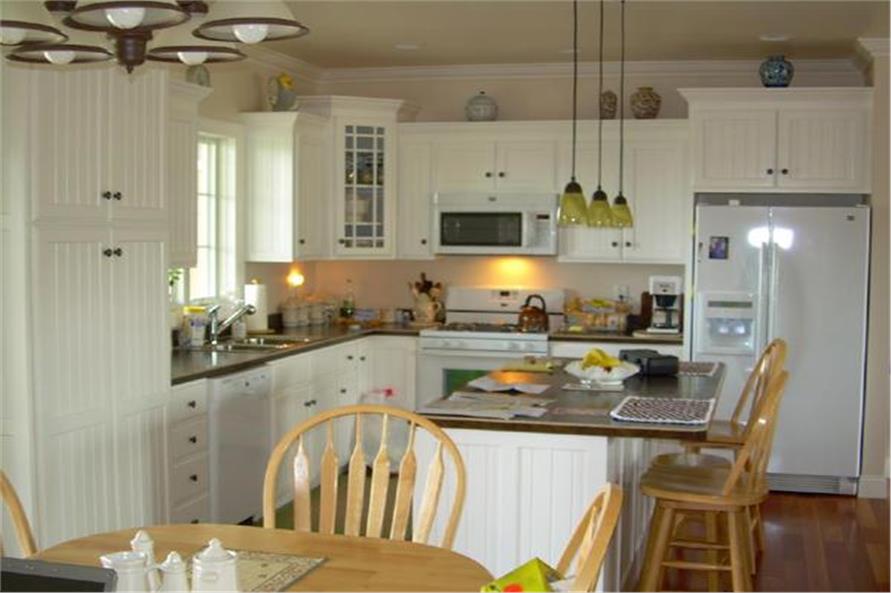

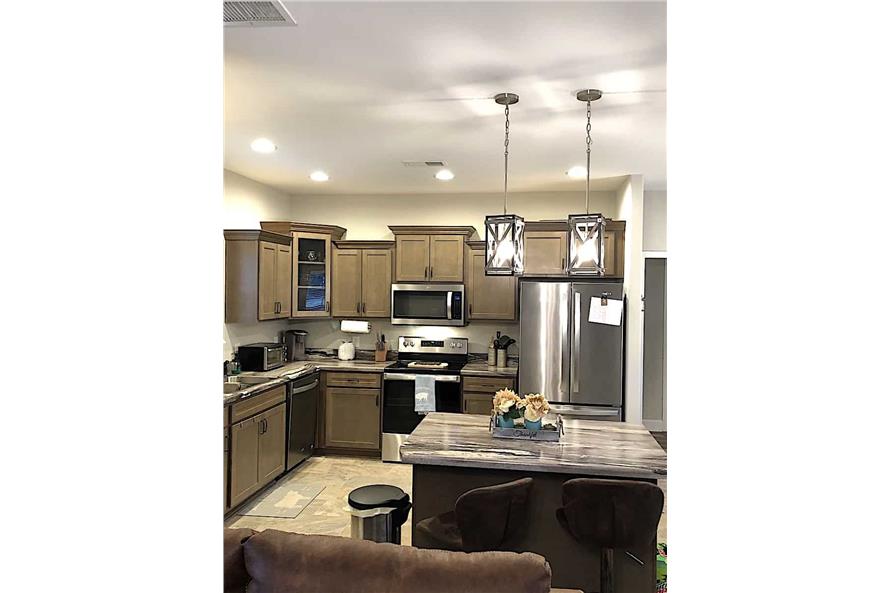

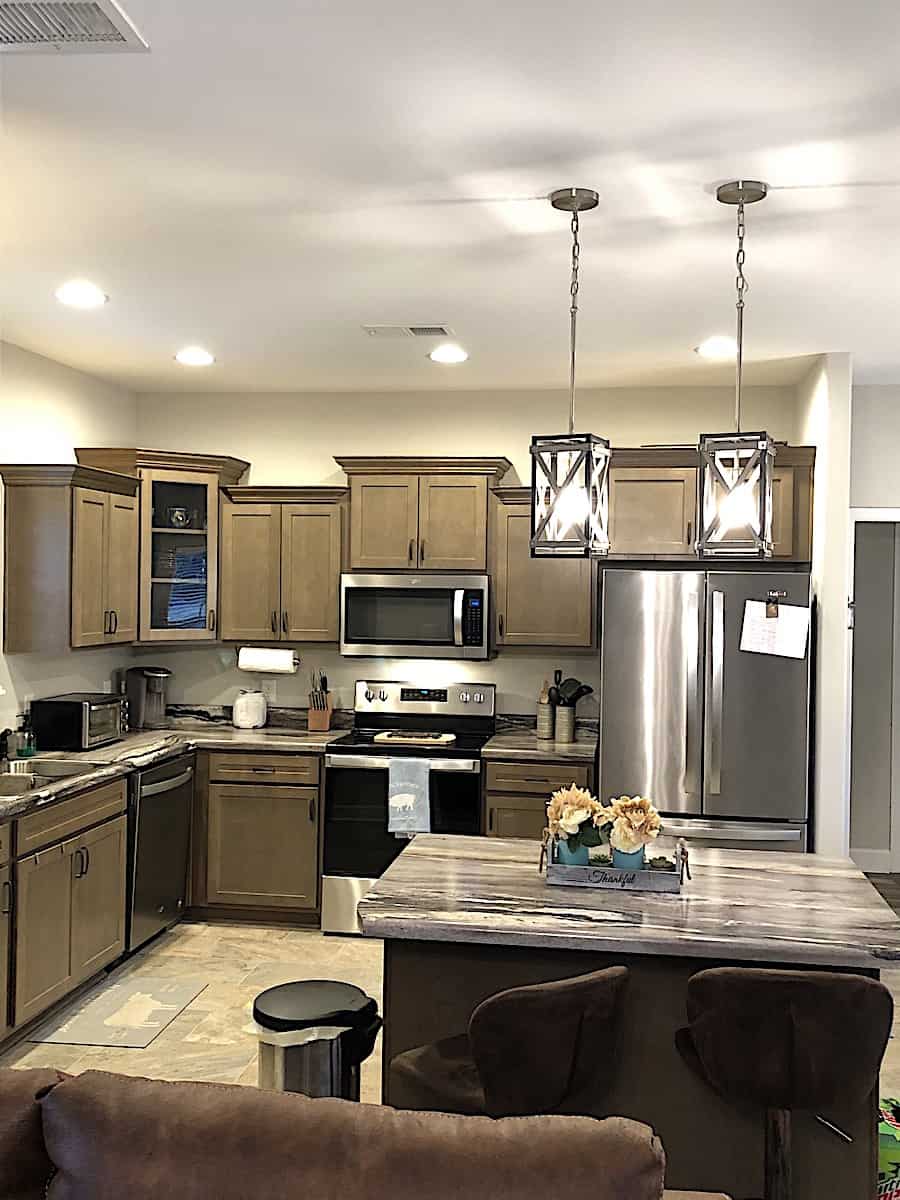

141-1096: Home Interior Photograph-Kitchen

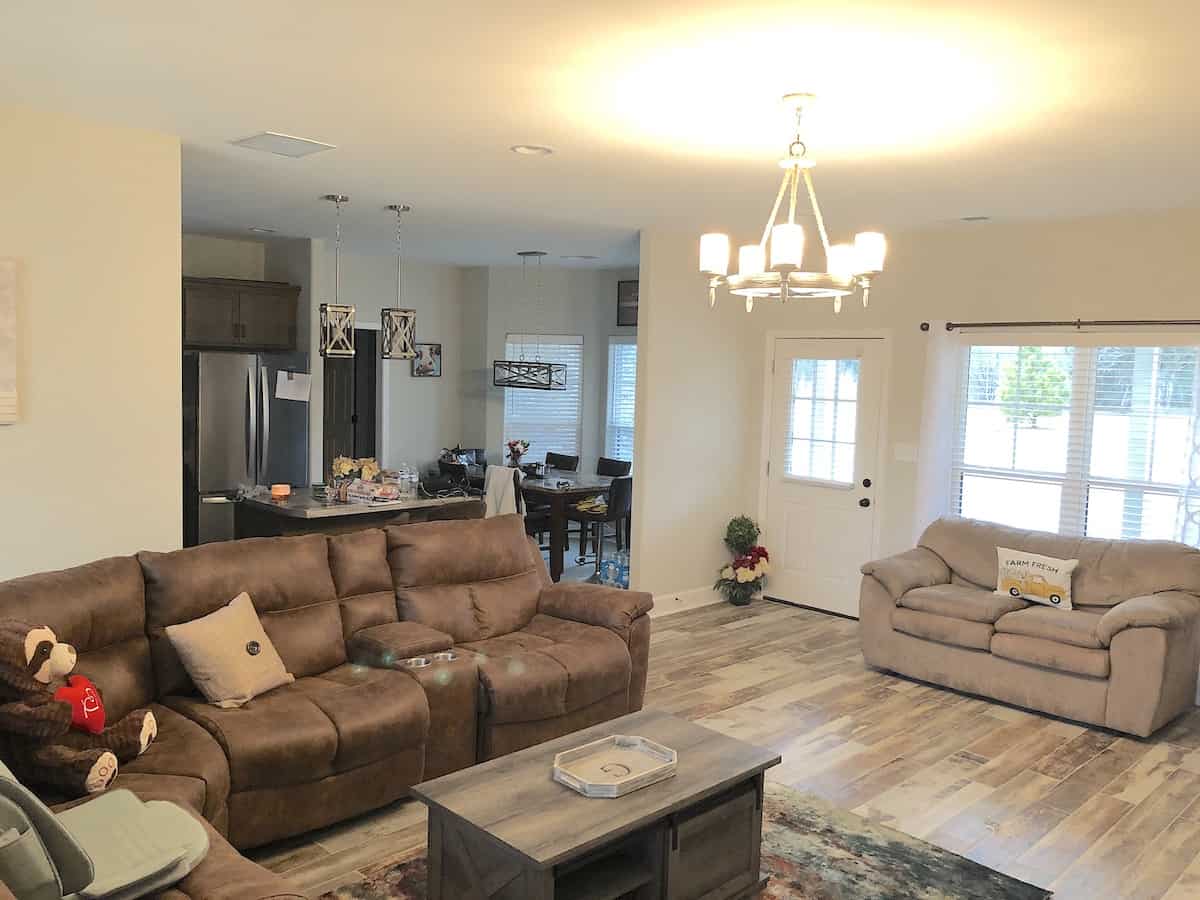

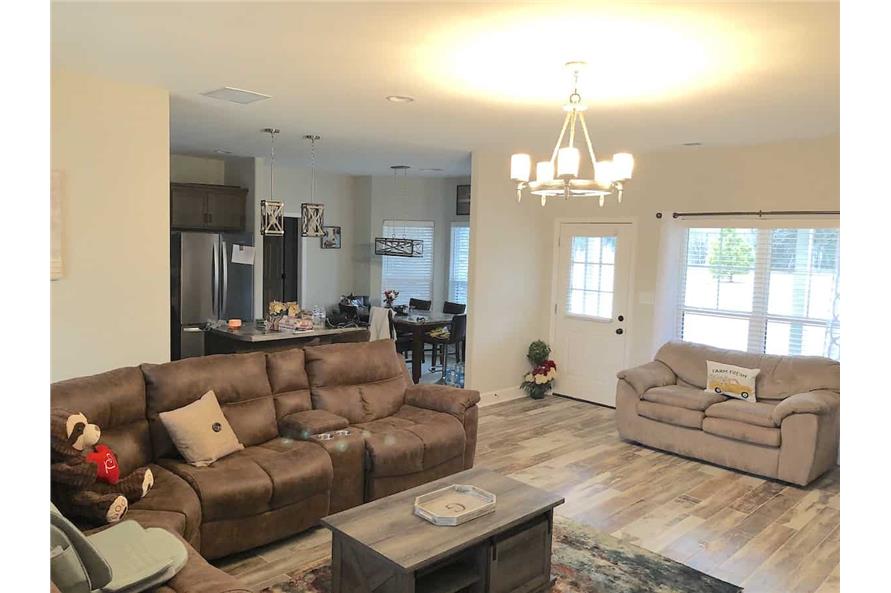

141-1096: Home Interior Photograph-Great Room

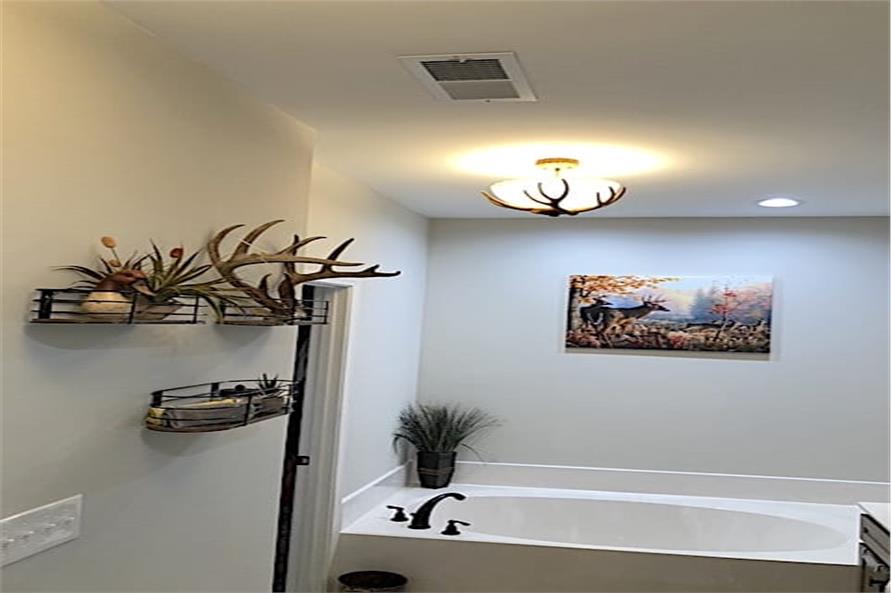

141-1096: Home Interior Photograph-Bathroom

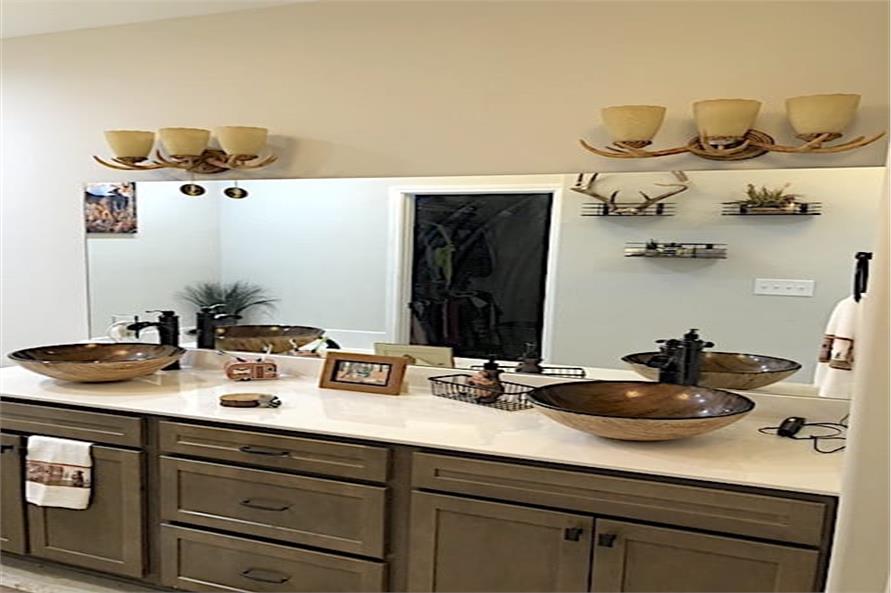

141-1096: Home Interior Photograph-Master Bathroom: Sink/Vanity
141-1096: Home Interior Photograph-Great Room
3-Bedroom, 1619 Sq Ft Craftsman Home - Plan #141-1096 - Main Exterior
Home Plan Rear Elevation
141-1096 house plan kitchen
141-1096: Home Exterior Photograph-Front Door
141-1096: Home Exterior Photograph-Right Side View
141-1096: Home Exterior Photograph-Rear View
141-1096: Home Exterior Photograph-Front View
141-1096: Home Exterior Photograph-Front View
141-1096: Home Interior Photograph-Kitchen: Kitchen Island
141-1096: Home Interior Photograph-Kitchen
141-1096: Home Interior Photograph-Great Room
141-1096: Home Interior Photograph-Bathroom
141-1096: Home Interior Photograph-Master Bathroom: Sink/Vanity
141-1096: Home Interior Photograph-Great Room

About Plan # 141-1096

About Plan # 141-1096

1619 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 64' 0" WIDTH 52' 2" DEPTH 2 GARAGE BAY

This attractive Craftsman ranch home has many features that your family and friends will love. The front porch is large and leads to the foyer with 10 foot ceilings. Just off the foyer, the flex space gives you an option for another bedroom or home office. The great room is vaulted giving it a much more spacious feel. A beautiful archway opens the great room to the kitchen area. Plenty of storage and counterspace are just some of the benefits of the design. The kitchen also has an island and eating bar. This home has 1619 living square feet, 3 bedrooms and 2 baths – in a split bedroom layout. On one side is the master bedroom suite which has a tray ceiling and large walk-in closet. The master bathroom has a jetted tub with stand-in shower. The dual vanities and linen closet allow for more storage and space. The water closet in the master bath allows great privacy. The rear porch gives the family another way to enjoy to the outdoors.

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • Cover page with rendering
  • foundation plan with typical details
  • floor plans with ceiling framing notes
  • four exterior views of exterior
  • roof plan, and rafter layout plan
  • full cross section through house, and typical wall sections
  • stair section (if there are stairs)
  • Bonus room/garage section if there is a bonus room/garage
  • Interior cabinet drawings
  • Misc. structural details
  • Electrical plan with lighting, outlets, switches, etc..

Not Included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

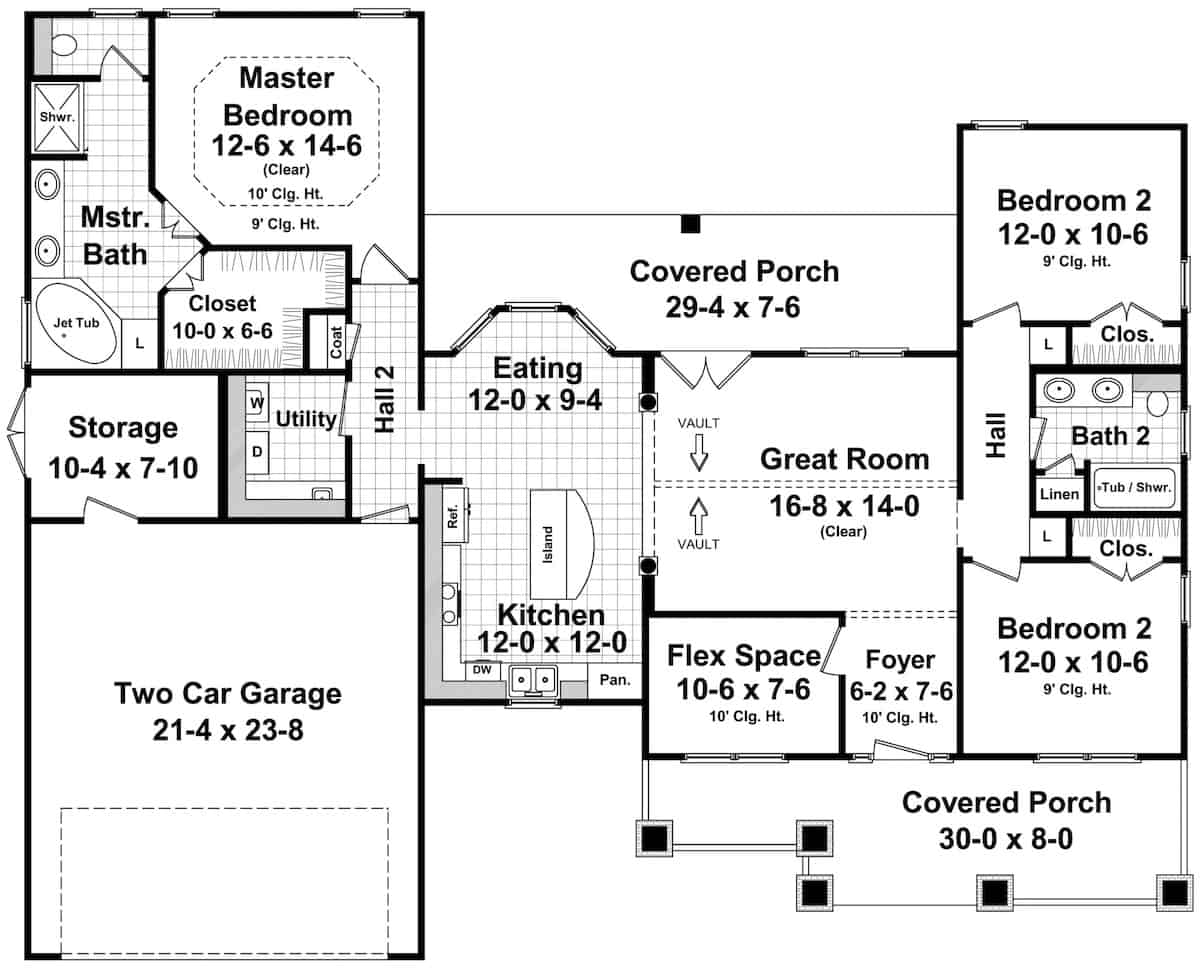

Home Plan: #141-1096 Floor Plan First Story - main level Main Level of Craftsman Plan #141-1096
Home Plan: #141-1096 Floor Plan First Story - main level Main Level of Craftsman Plan #141-1096
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 141-1096
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1619
Main Floor:
1619
Unfinished Sq Ft:
Garage :
612
Porch :
418

Dimensions

Width:
64' 0"
Depth:
52' 2"
Ridge Height:
20' 6"

Architectural Styles

Country
Ranch
Traditional
Craftsman
Transitional

Exterior Wall Material

Rock/Stone
Wood Siding
Shakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Special Feature

Main Level Laundry
Energy Efficient
Color Photos
Split Bathroom
Storage
Den
Vaulted Ceilings
Open Floor Plan
Interior Photos
L-Shaped

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Please Note! This designer does NOT ship paper copies to Canada. Please order your plans in electronic format (PDF or CAD)! USDA Approval is available for this plan. If interested, submit a modification request for a free quote. What is USDA Approval? Certification that a particular house plan meets the housing requirements of the US Department of Agriculture's Rural Housing Service. This is one of the requirements if you intend to apply for a loan through the Rural Housing Service.
