3-Bedroom, 2296 Sq Ft Cape Cod House Plan - 109-1052 - Front Exterior

About Plan # 109-1052

About Plan # 109-1052

2296 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 40' 0" WIDTH 68' 0" DEPTH 2 GARAGE BAY

This surprisingly spacious 2,296 sq. ft. narrow lot design is accented with stone, cedar shakes and carriage style garage doors. An irresistible wrap-around porch makes a great first impression. Just beyond the entry is a dining room with a dramatic 18 vaulted ceiling which continues to the hearth-warmed 178 x 233 family room. Across from the dining room is a feature sure to please baby boomers and guests of all ages, a residential elevator. There is also a traditional staircase to access the upper level. Pleasant breezes await on the large screened porch with two ceiling fans. The highly functional kitchen offers double snack bars, a pantry and an adjacent breakfast nook. Located off of the breakfast nook is an oversized laundry room with plenty of space for a washer and dryer as well as a laundry sink and upright freezer. Tucked away peacefully in the back corner of this main level is the spacious master suite. With its bowed window, tray ceiling, sitting area, luxurious bath and abundant closet, this suite is truly an owners retreat. Completing this main level is a powder room and coat and linen closets. The upper level features 2 secondary bedroom suites, each featuring a walk-in closet and private bath. A book nook with a balcony overlooks the soaring two-story family room.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

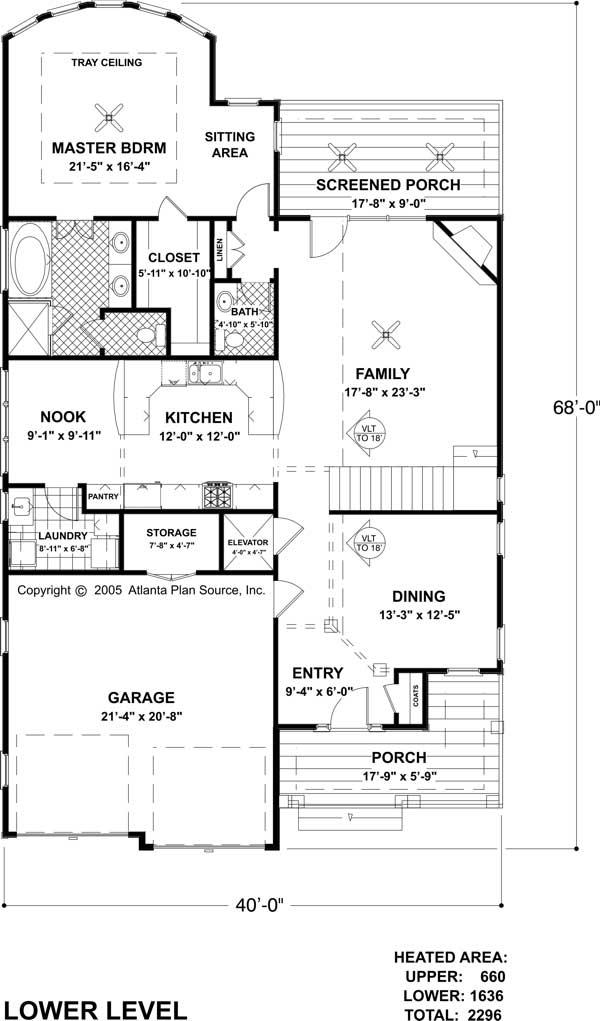

Home Plan: #109-1052 Floor Plan First Story - first story Floor Plan First Story of Cape Cod Plan #109-1052

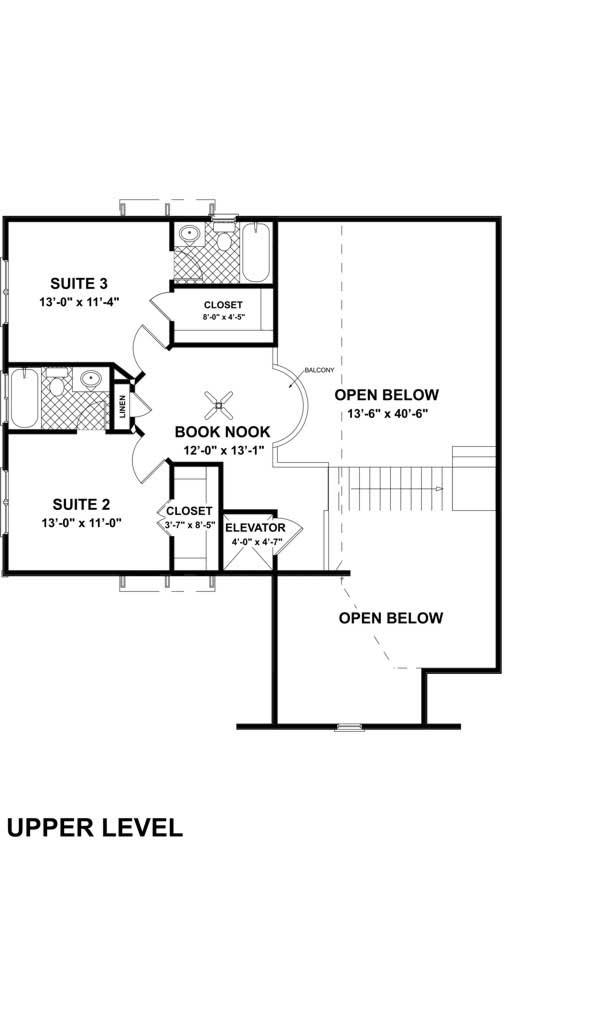

#109-1052 Floor Plan Second Story - second story Floor Plan Second Story of Cape Cod Plan #109-1052
Home Plan: #109-1052 Floor Plan First Story - first story Floor Plan First Story of Cape Cod Plan #109-1052
#109-1052 Floor Plan Second Story - second story Floor Plan Second Story of Cape Cod Plan #109-1052
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1052
Floors:
2
Bedrooms:
3
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
2296
Main Floor:
1636
Upper Floor:
660
Unfinished Sq Ft:

Dimensions

Width:
40' 0"
Depth:
68' 0"
Ridge Height:
28-6' 0"

Architectural Styles

Bungalow
Arts and Crafts
Craftsman
1 1/2 Story
Barndominium

Exterior Wall Material

Rock/Stone
Wood Siding
Shakes

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

5/12
8/12

Special Feature

Fireplace
Dining Room
Mud Room
Family Room
Main Level Laundry
Loft
Split Bathroom
Storage
Elevator

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area
Private Deck

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you! PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
