2-Bedroom, 2380 Sq Ft Coastal Plan with Peninsula/Eating Bar

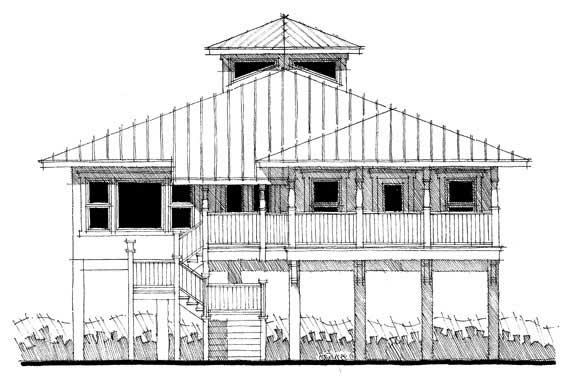

This is the front elevation of these Florida Coastal House Plans.
2-Bedroom, 2380 Sq Ft Coastal House Plan - 116-1006 - Front Exterior

About Plan # 116-1006

About Plan # 116-1006

2380 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 45' 0" WIDTH 85' 0" DEPTH 0 GARAGE BAY

The Sea Grass. This waterfront home showcases dramatic views from the second floor living area and master suite. Beautiful winding stairs down the front and rear of the home provide access to waterfront activities. On the interior, the elevator provides complete handicap access to all areas of the house. The charm of Key West coastal styling is evident throughout. The central tower provided a birds-eye view of the landscape, and a private retreat.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

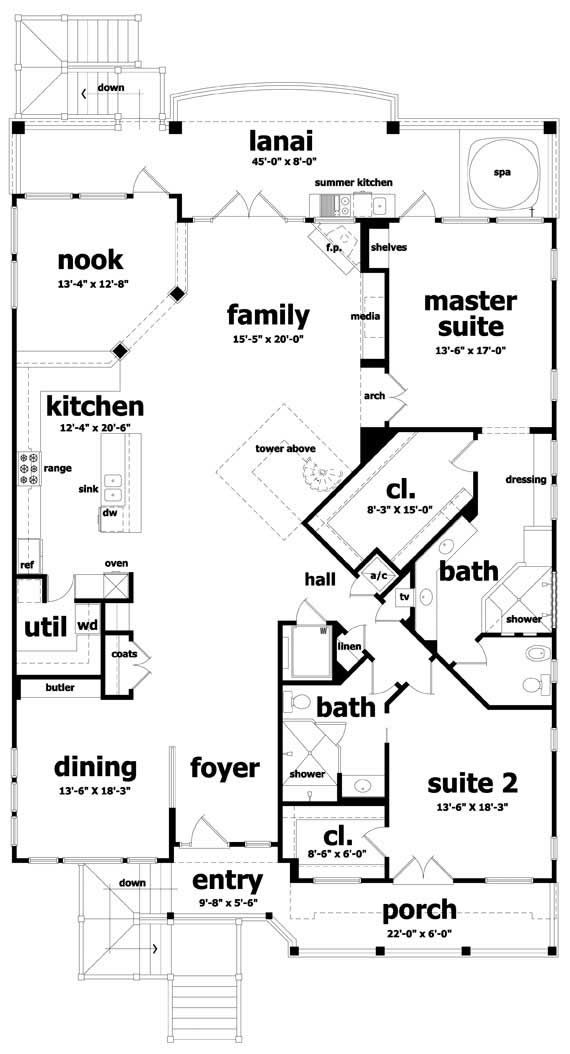

Home Plan: #116-1006 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #116-1006

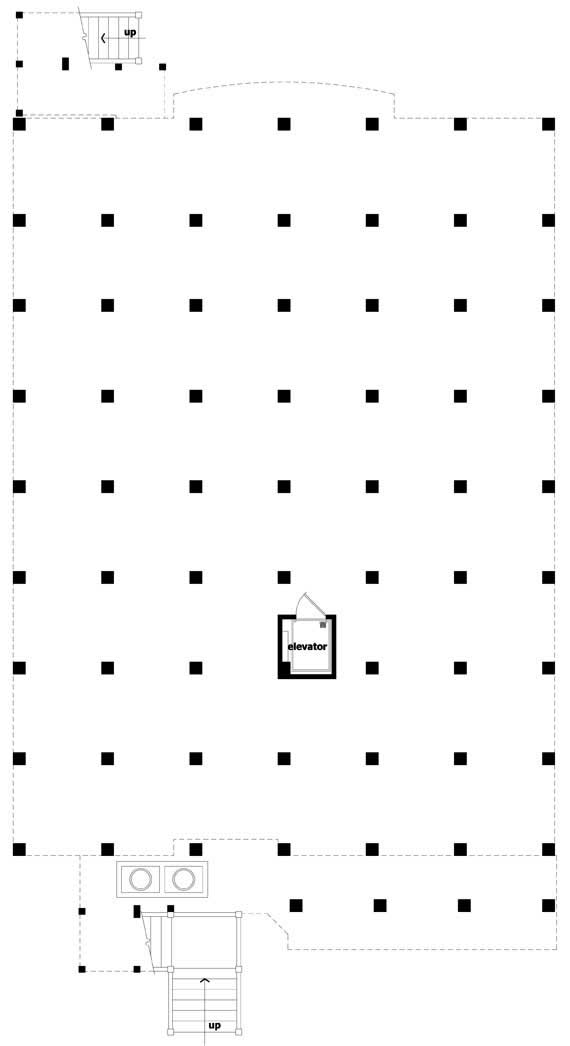

#116-1006 Floor Plan Basement - basement Floor Plan Basement of Coastal Plan #116-1006
Home Plan: #116-1006 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #116-1006
#116-1006 Floor Plan Basement - basement Floor Plan Basement of Coastal Plan #116-1006
