2-Bedroom, 1859 Sq Ft European Plan with Walk In Closet

Colored front elevation image for Mediterranean Homeplans LS-B-92002.
2-Bedroom, 1859 Sq Ft European Home Plan - 146-1863 - Main Exterior

About Plan # 146-1863

About Plan # 146-1863

1859 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 54' 0" WIDTH 57' 0" DEPTH 2 GARAGE BAY
Mediterranean Home Plans LS-B-92002 use a very European approach to style. This home's elegant double-door entry opens into the entry, which leads into an enormous Great Room. In the nearby kitchen, an island cooktop, a built-in desk and a sunny breakfast area make the most of the available space. A quiet den at the front of the plan could also serve as an additional bedroom.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

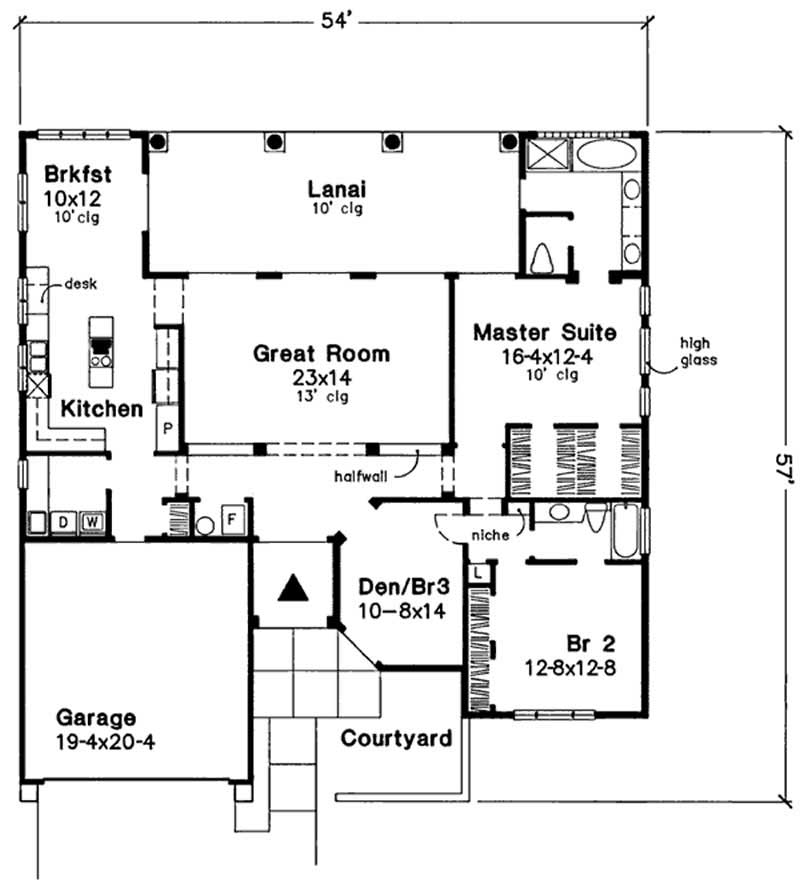

Home Plan: #146-1863 Floor Plan First Story - first story Floor Plan First Story of European Plan #146-1863
