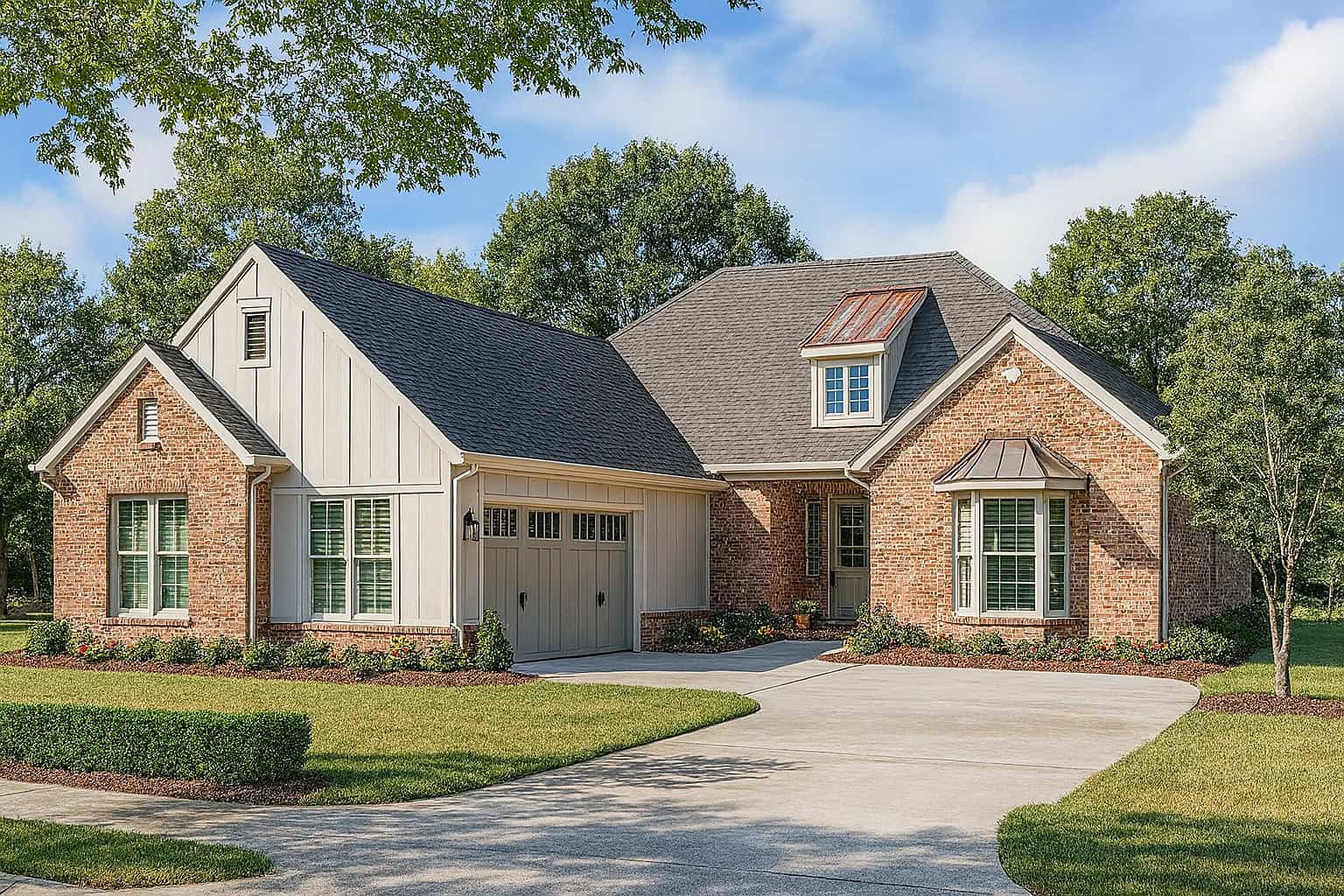

Front elevation of Craftsman home (ThePlanCollection: House Plan #153-1571)

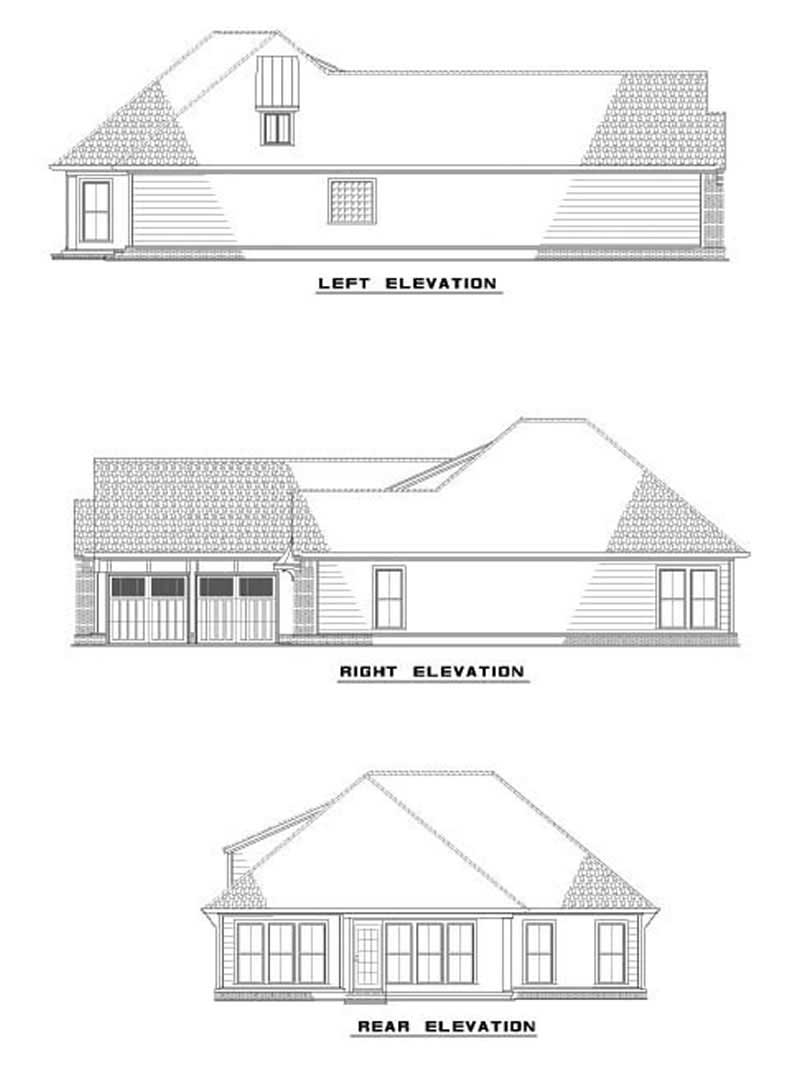

153-1571: Home Plan Elevations-

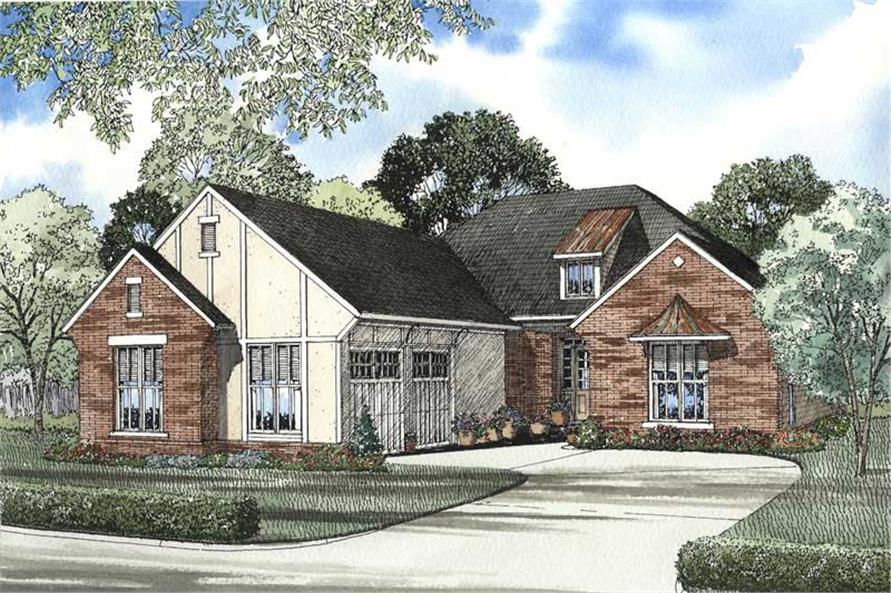

2-Bedroom, 1474 Sq Ft Craftsman Home Plan - 153-1571 - Main Exterior

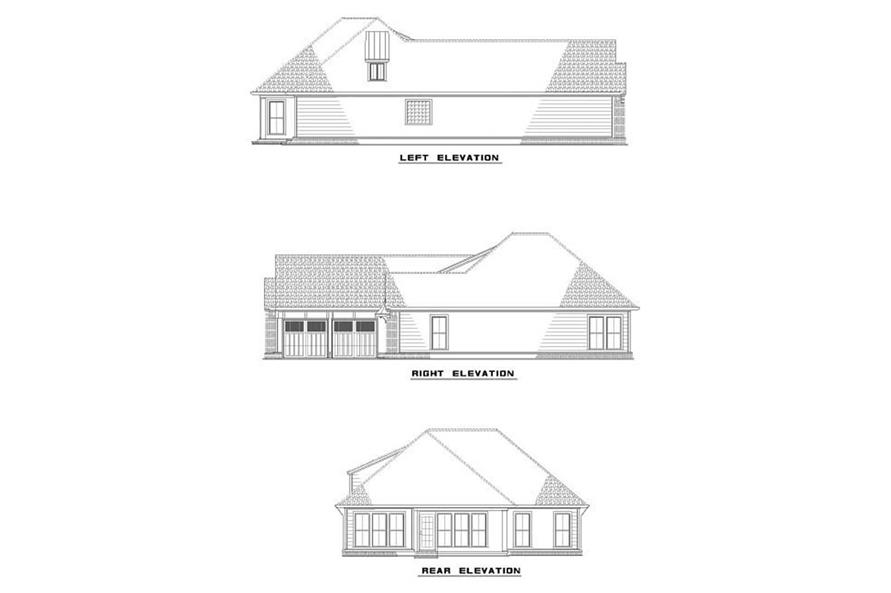

153-1571: Home Plan Elevations-

About Plan # 153-1571

About Plan # 153-1571

1474 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 43' 0" WIDTH 66' 6" DEPTH 2 GARAGE BAY

We have created an elegant design reflective of the Arts and Crafts era. Copper roofing and carriage style garage doors warmly welcome guests into this split bedroom plan. Ten-foot ceilings and an abundance of windows allow natural light to flow throughout. An elegant Master suite is fully suited as a private hideaway while the opposite side of the home includes a large kitchen and dining room with large bar island for additional seating. A courtyard entry garage allows for the utmost in security and convenience.

For a similar Arts and Crafts House Plan, check out this House Plan For a similar Arts and Crafts House Plan, check out this House Plan For a similar Country House Plan, check out this House Plan

Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

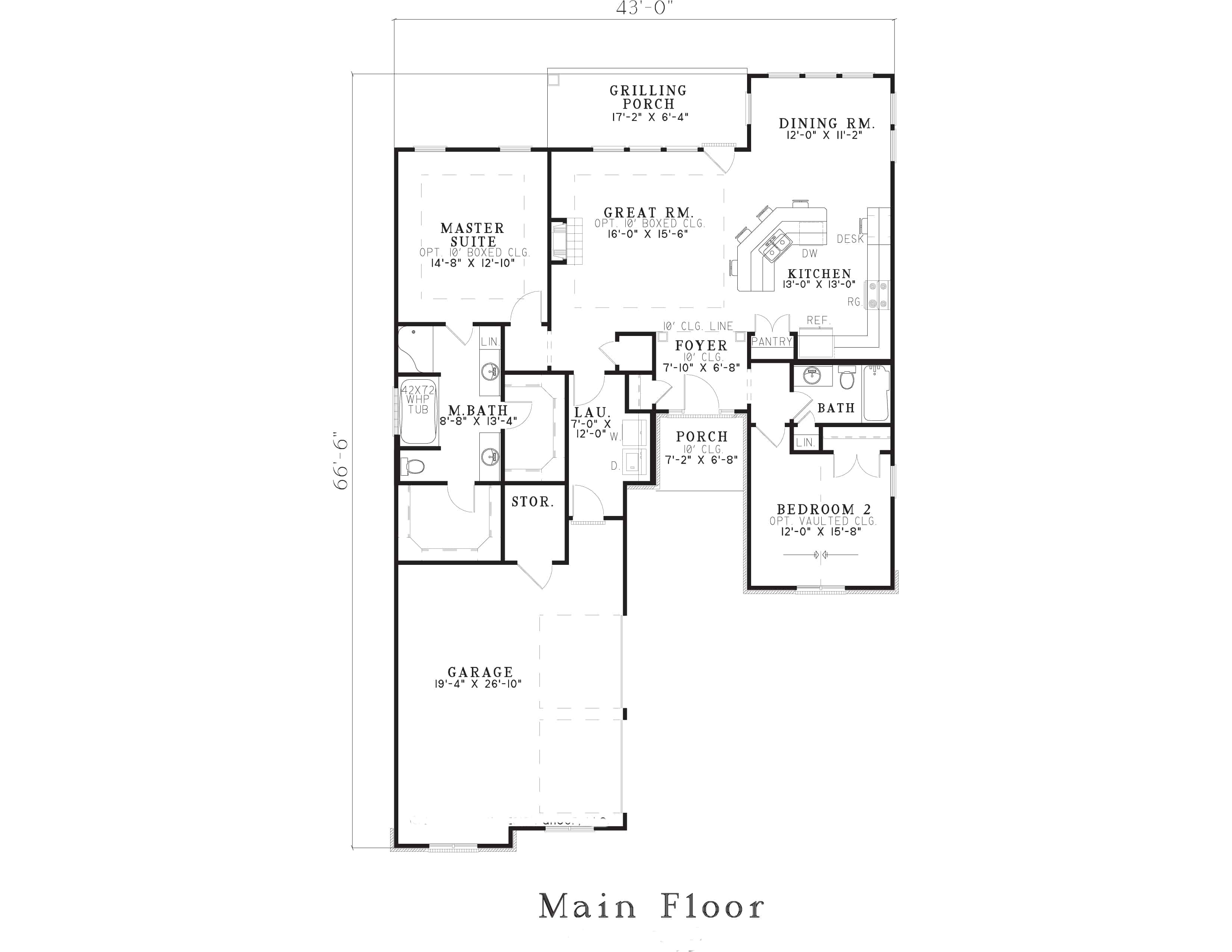

Home Plan: #153-1571 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #153-1571
Home Plan: #153-1571 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #153-1571
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1571
Floors:
1
Bedrooms:
2
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1474
Main Floor:
1474
Unfinished Sq Ft:

Dimensions

Width:
43' 0"
Depth:
66' 6"
Ridge Height:
23' 0"

Architectural Styles

Country
European
Arts and Crafts
Traditional
Craftsman
Small House Plans

Exterior Wall Material

Brick
Stucco

Roofing Type

Hip

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Guest Room
Main Level Laundry
Storage

Garage Type

Attached Garage

Fireplaces

One Fireplace

Building Lot Type

Narrow Lot Design

Porches and Exterior Features

Courtyard

Master Suite Features

Split Master Bedroom

Additional Notes from Designer

Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. The plans do not come with ICF specifications. If ICF construction method is desired, the CAD plan can be purchased and then forwarded to the ICF dealer and they’ll do a takeoff to assist with that specific projec

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
