4-Bedroom, 3564 Sq Ft House Plan - 117-1086 - Front Exterior

About Plan # 117-1086

About Plan # 117-1086

3564 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 39' 0" WIDTH 90' 0" DEPTH 2 GARAGE BAY

Home Plan The Pantego is a great two story house plan with 3564 total square feet. Some of the special features of this plan include: Two Master Bedrooms/Bathes Open Family/Kitchen/Nook complete with plenty of natural light Sizable secondary bedrooms Second Story Game Room Comfortable Lanai and Porch

Each plan set includes the following:

  • Detailed floor plans
  • Exterior elevations
  • Cabinet elevations
  • Sections/Details
  • Framing plans
  • Foundation plans
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

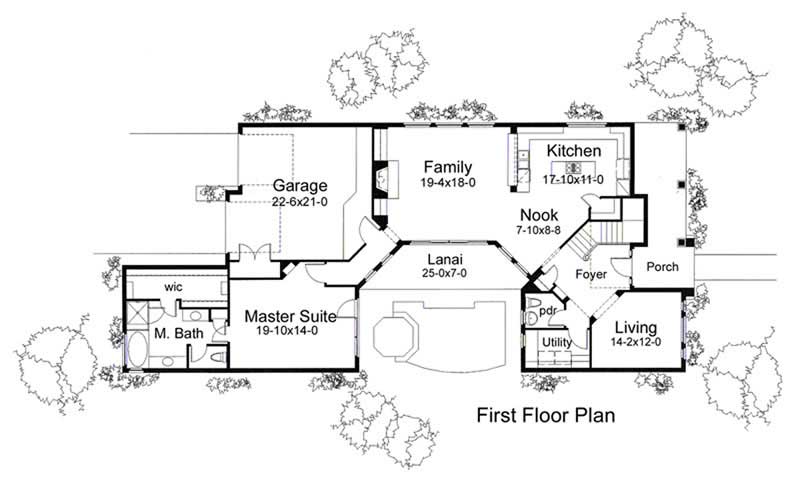

Home Plan: #117-1086 Floor Plan First Story - main Floor Plan First Story of Plan #117-1086

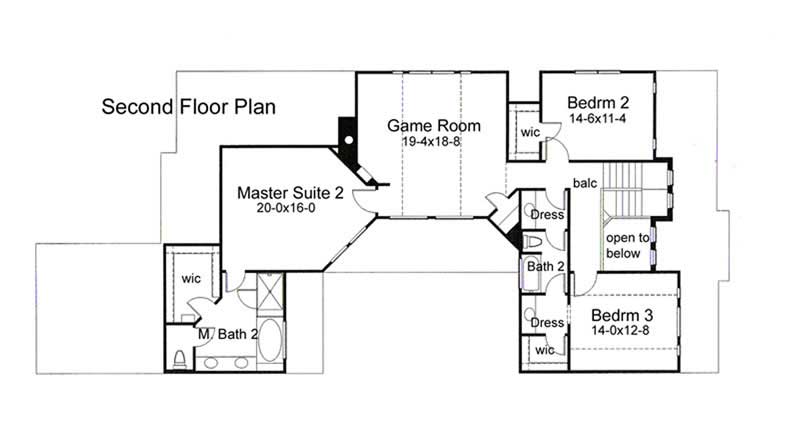

#117-1086 Floor Plan Second Story - second Floor Plan Second Story of Plan #117-1086
Home Plan: #117-1086 Floor Plan First Story - main Floor Plan First Story of Plan #117-1086
#117-1086 Floor Plan Second Story - second Floor Plan Second Story of Plan #117-1086
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1086
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
3564
Main Floor:
1972
Upper Floor:
1592
Unfinished Sq Ft:

Dimensions

Width:
39' 0"
Depth:
90' 0"
Ridge Height:
33-1' 0"

Architectural Styles

Colonial
Traditional
Texas Style

Special Feature

Game Room

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
