4-Bedroom, 2460 Sq Ft European Plan with Main Floor Master

Main image for house plan # 14477
4-Bedroom, 2460 Sq Ft European Home Plan - 109-1105 - Main Exterior

About Plan # 109-1105

About Plan # 109-1105

2460 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 56' 0" WIDTH 30' 6" DEPTH 0 GARAGE BAY
This is a truly extraordinary traditional home. The full-brick exterior is accented with multi-level stucco trim and copper roofing returns. It includes a daylight basement and master suite on the main level. Painstaking design provides today's most requested features and countless amenities in a modest 2460 square feet. Just beyond the striking recessed entry is a bridge which traverses the dramatic two-story foyer and family room. To the right and left are the living and dining rooms which measure 13' x 14' with their bay windows. The family room feels enormous with its two stories of glass and is open to the kitchen and breakfast room. Just off the breakfast room is a luxurious master's retreat. Spacious his and hers closets, a bath highlighted by a 5' x 6' whirlpool tub with decorative columns, and a vaulted ceiling with fixed glass above make this the most inviting area of the house. There's also a second staircase when the optional bonus is chosen. Lower level rooms which are not two-story or vaulted have 9' ceilings.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

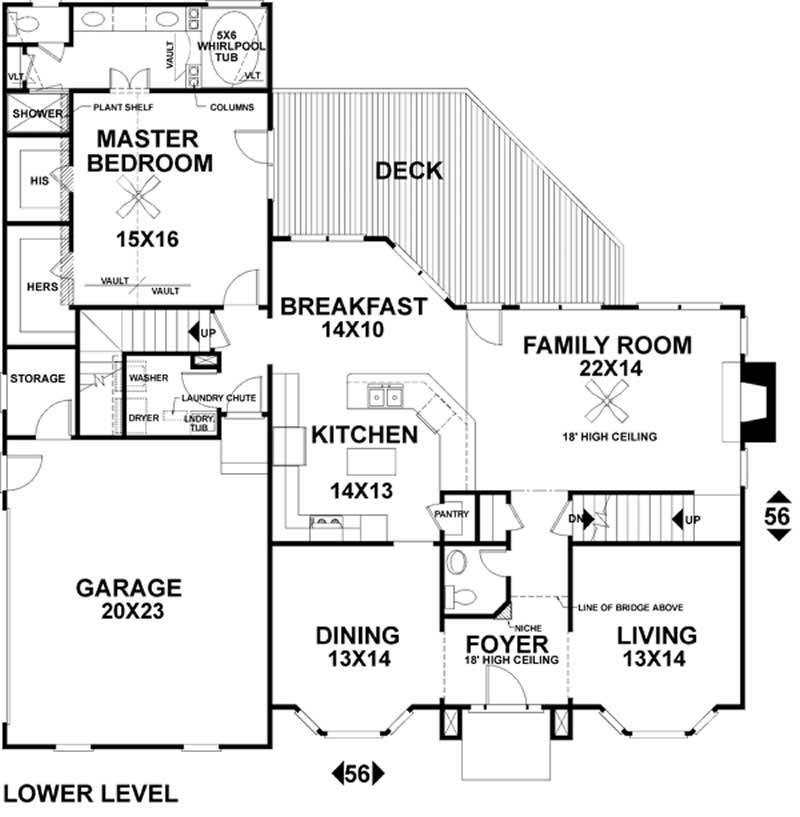

Home Plan: #109-1105 Floor Plan First Story - main Floor Plan First Story of European Plan #109-1105

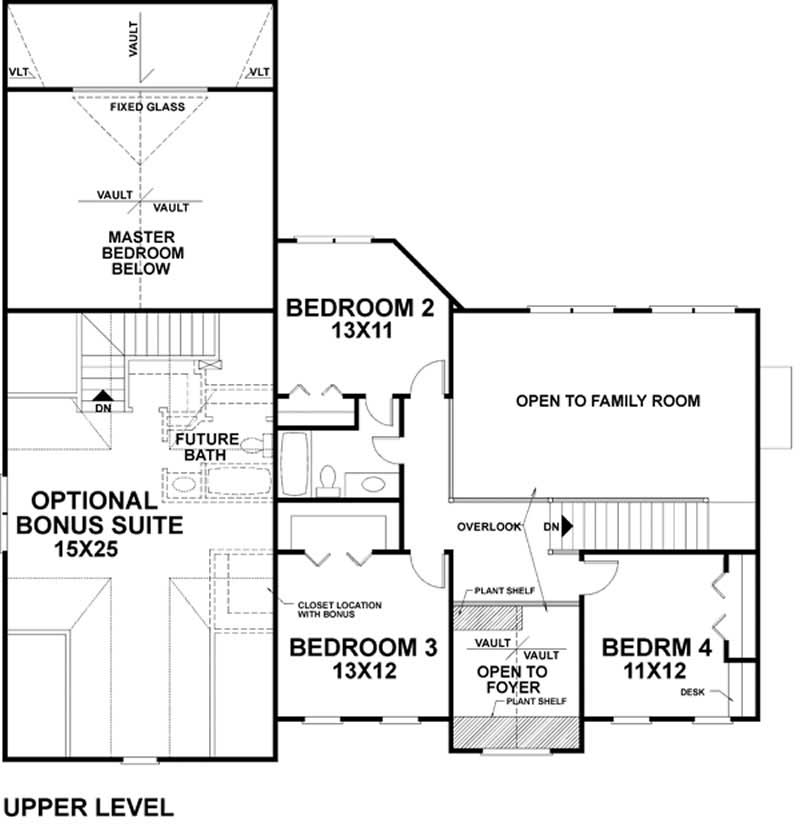

#109-1105 Floor Plan Second Story - second Floor Plan Second Story of European Plan #109-1105
