6-Bedroom, 6024 Sq Ft Mediterranean Plan with Guest House

Front elevation of Mediterranean home (ThePlanCollection: House Plan #117-1066)
6-Bedroom, 6024 Sq Ft Home Plan - 117-1066 - Main Exterior

About Plan # 117-1066

About Plan # 117-1066

6024 SQUARE FEET 6 BEDROOMS 6 FULL BATH 1 HALF BATH
2 FLOOR 111' 5" WIDTH 109' 0" DEPTH 2 GARAGE BAY

This is a great luxury two-story house plan with 6024 total square feet. Some of the special features of this luxury home include: Additional Guest House, Perfect for Visiting Relatives Luxurious Breezeway, Courtyard and Lanai Secluded Master Suite Fit for Royalty, Complete with Enormous Walk-In Shower Glorious Second Story Balcony Overlooking Formal Living Additional Rooms Include Study, Game, Galleries, and Dining.

Each plan set includes the following:

  • FLOOR PLANS: ¼”=1’-0” scale floor plan indicating the location of frame and masonry walls, support members, doors, windows, plumbing fixtures, kitchen appliance locations, cabinet locations, tags to cross-section details, shelving, ceiling conditions, and notes deemed relevant to this plan.
  • EXTERIOR ELEVATIONS: All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate the overall configuration of the home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and the extent to which they are used, and enlargement of any details deemed necessary to explain the construction.
  • BUILDING SECTIONS: ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • FOUNDATION PLAN: ¼” = 1’-0” scale foundation plans. The slab foundation comes with both interior and exterior beams. Dimensioned and noted foundation layout, including references to support walls, excavated and unexcavated areas. Basement foundation plans may show additional walls, grade beams, reinforcing steel, and structural columns. Structural information for all foundation types should be obtained by a locally licensed engineer for your specific site location.
  • FRAMING PLANS: ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted. Includes floor, ceiling, and roof framing schematics.
  • CABINET ELEVATIONS: 3/8” = 1’-0” scale elevations indicating the configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, and appliances.
  • ELECTRICAL PLAN: ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of A/C equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

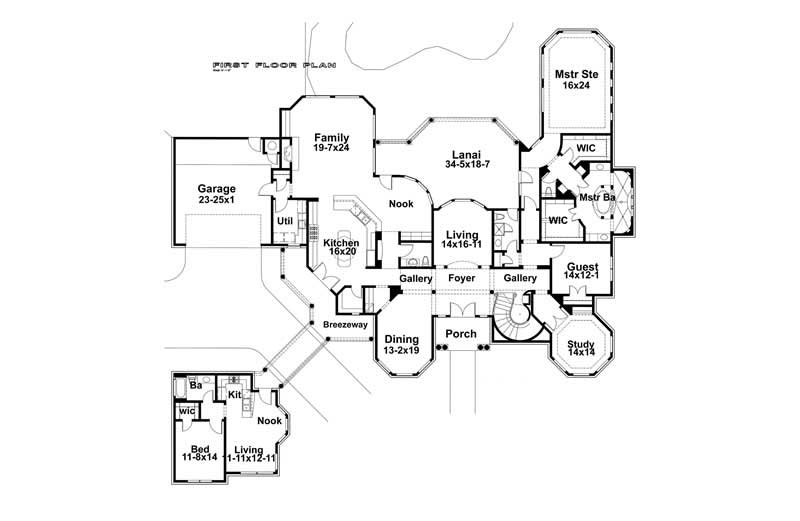

Home Plan: #117-1066 Floor Plan First Story - main level Floor Plan Main Level of Mediterranean Plan #117-1066

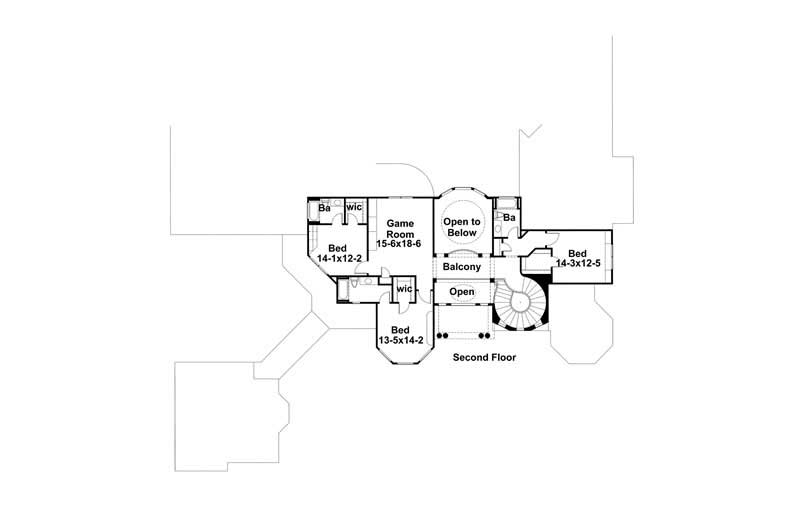

#117-1066 Floor Plan Second Story - upper level Floor Plan Upper Level of Mediterranean Plan #117-1066
Home Plan: #117-1066 Floor Plan First Story - main level Floor Plan Main Level of Mediterranean Plan #117-1066
#117-1066 Floor Plan Second Story - upper level Floor Plan Upper Level of Mediterranean Plan #117-1066
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1066
Floors:
2
Bedrooms:
6
Full Baths:
6
Half Baths:
1

Square Footage

Heated Sq Feet:
6024
Main Floor:
3963
Upper Floor:
1442
Unfinished Sq Ft:
Bonus Room:
619

Dimensions

Width:
111' 5"
Depth:
109' 0"
Ridge Height:
34' 4"

Architectural Styles

Florida Style
Luxury
Mediterranean
Spanish
Texas Style

Special Feature

Family Room
Fireplace
Game Room
Guest Room
Library
Main Level Laundry
Mother in law apartment
Open Floor Plan

Garage Type

Attached Garage
Courtyard Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Breezeway
Courtyard
Covered Lanai
Porte-Cochere

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
