6-Bedroom, 6140 Sq Ft French Plan with Walk In Closet

Luxury homeplans color front elevation.

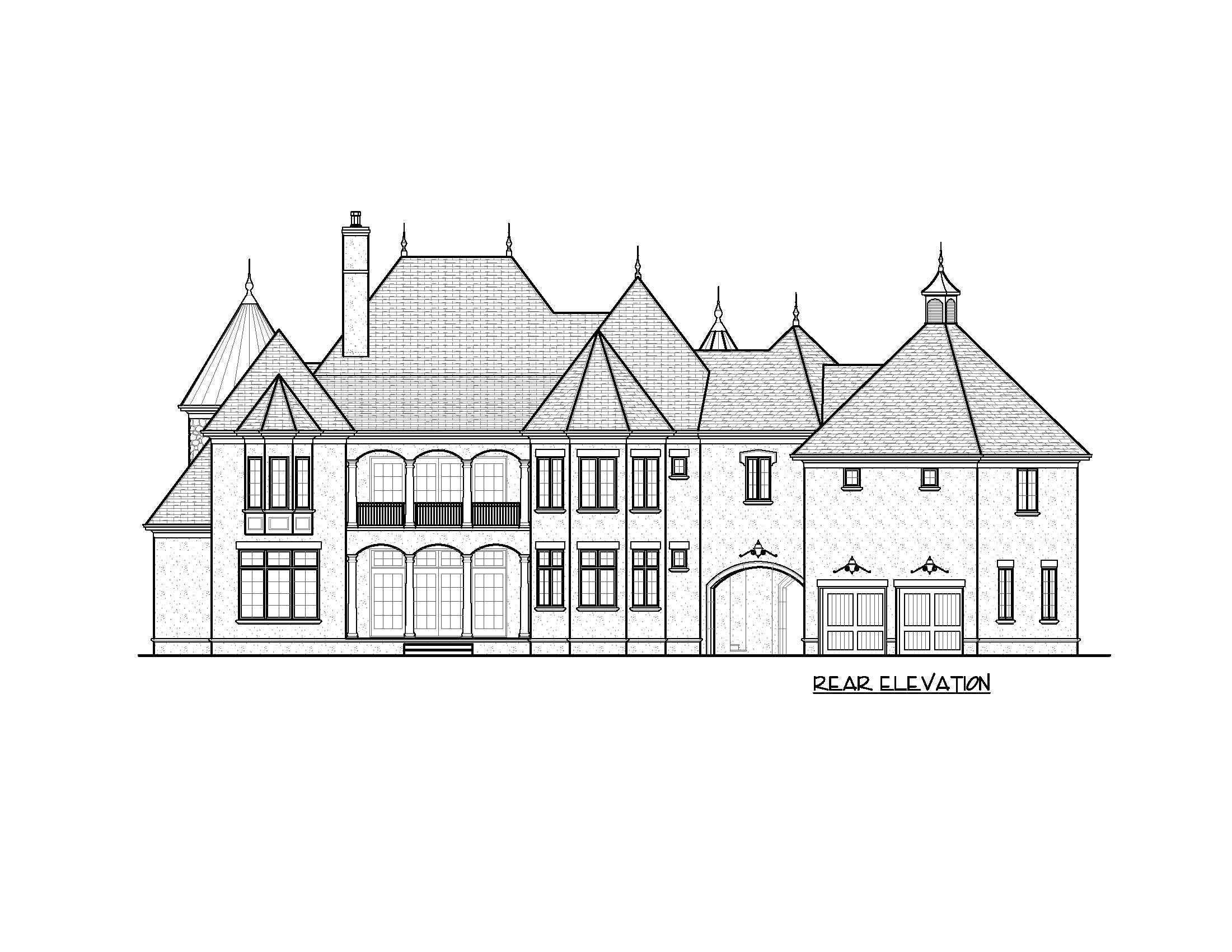

Home Plan Rear Elevation for this set of luxury houseplans.
6-Bedroom, 6140 Sq Ft French House Plan - 127-1045 - Front Exterior
Home Plan Rear Elevation for this set of luxury houseplans.

About Plan # 127-1045

About Plan # 127-1045

6140 SQUARE FEET 6 BEDROOMS 6 FULL BATH 1 HALF BATH
2 FLOOR 110' 2" WIDTH 128' 0" DEPTH 2 GARAGE BAY
Luxury House Plans EDG-6140 have a majestic exterior and floor plan! With 6140 total living square feet, this home plan provides space and comfort which can be found in the smallest of details. Check out the main levels floor plan, how it separates the living and dining areas into a more open and relaxing feel. The second story is where the fun is, having the large play rooms and game rooms respectively. The master suite is also on this floor, along with a future guest room. The EDG-6140 has all the features for what makes Luxury Plans amazing!

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

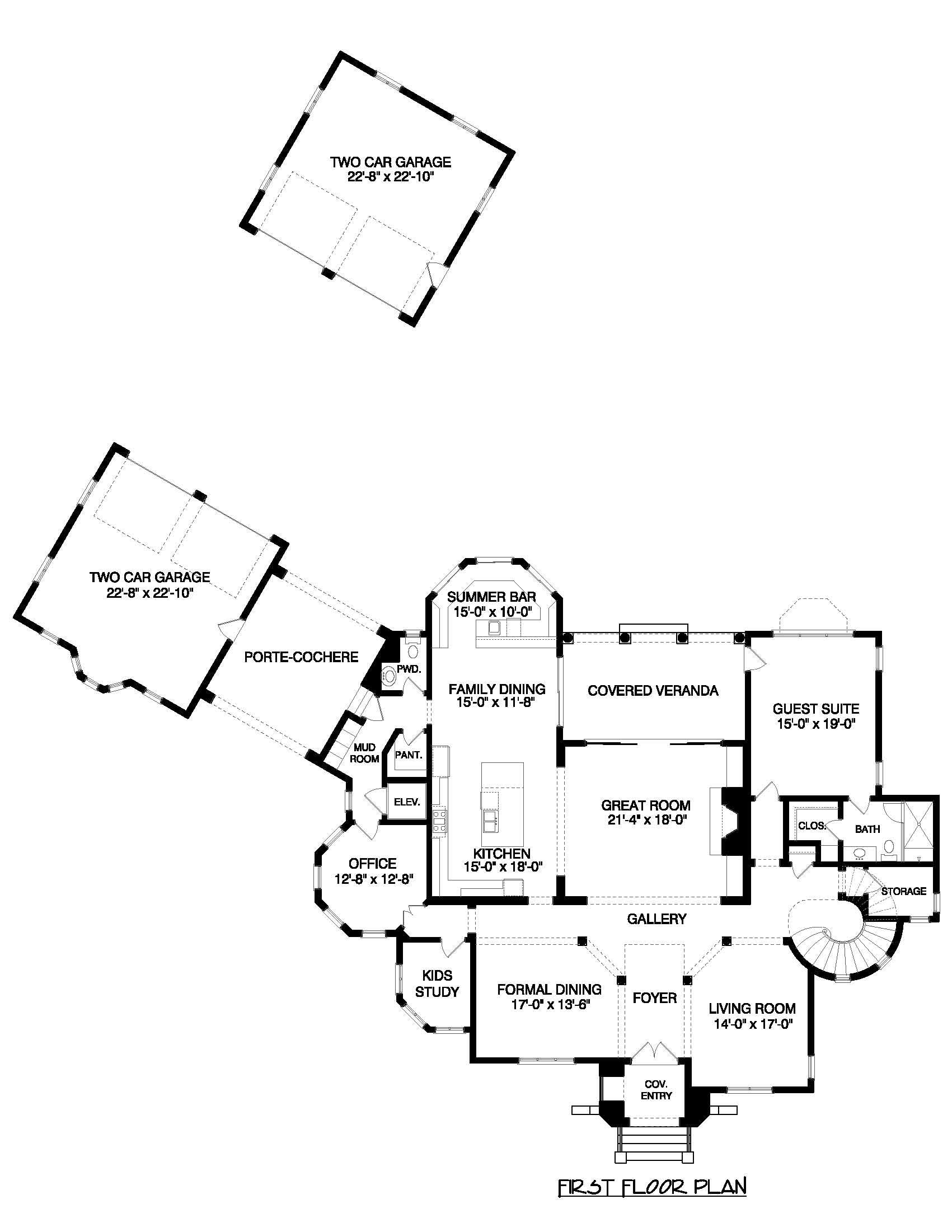

Home Plan: #127-1045 Floor Plan First Story - first story Floor Plan First Story of French Plan #127-1045

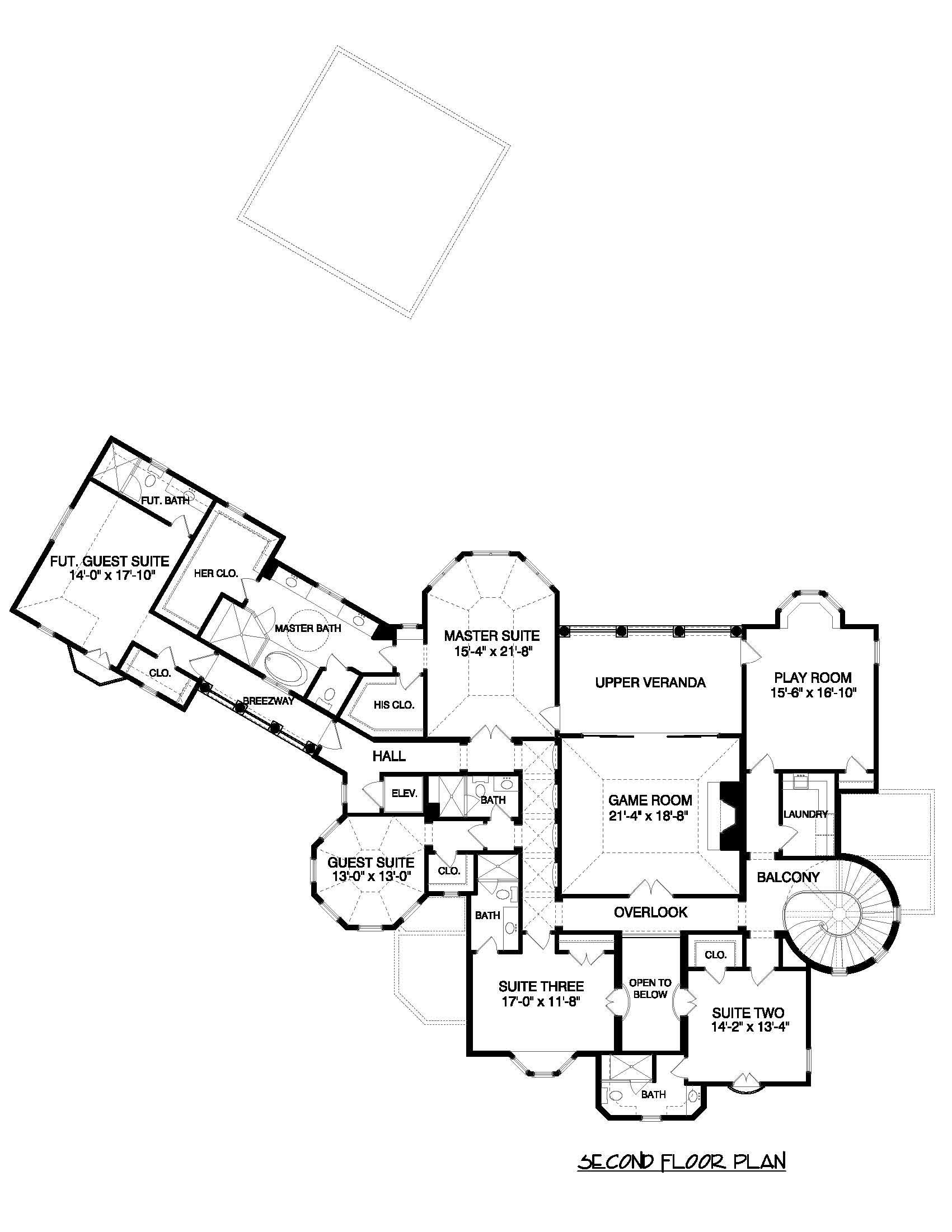

#127-1045 Floor Plan Second Story - second story Floor Plan Second Story of French Plan #127-1045
Home Plan: #127-1045 Floor Plan First Story - first story Floor Plan First Story of French Plan #127-1045
#127-1045 Floor Plan Second Story - second story Floor Plan Second Story of French Plan #127-1045
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 127-1045
Floors:
2
Bedrooms:
6
Full Baths:
6
Half Baths:
1

Square Footage

Heated Sq Feet:
6140
Main Floor:
3076
Upper Floor:
3064
Unfinished Sq Ft:

Dimensions

Width:
110' 2"
Depth:
128' 0"
Ridge Height:
45.3' 0"

Architectural Styles

French
Luxury

Roof Pitch

Other

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Balcony
Dining Room
Elevator
Game Room
Guest Room
Home Office
Media Room
Second Level Laundry
Storage

Garage Type

Detached Garage

Exterior Wall Framing

2x4
2x6

Kitchen Features

Kitchen Island
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Porte-Cochere

Master Suite Features

Master Bathroom
Second Floor Master
Walk In Closet

Additional Notes from Designer

NO MODS currently as of 2/9/2021

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
