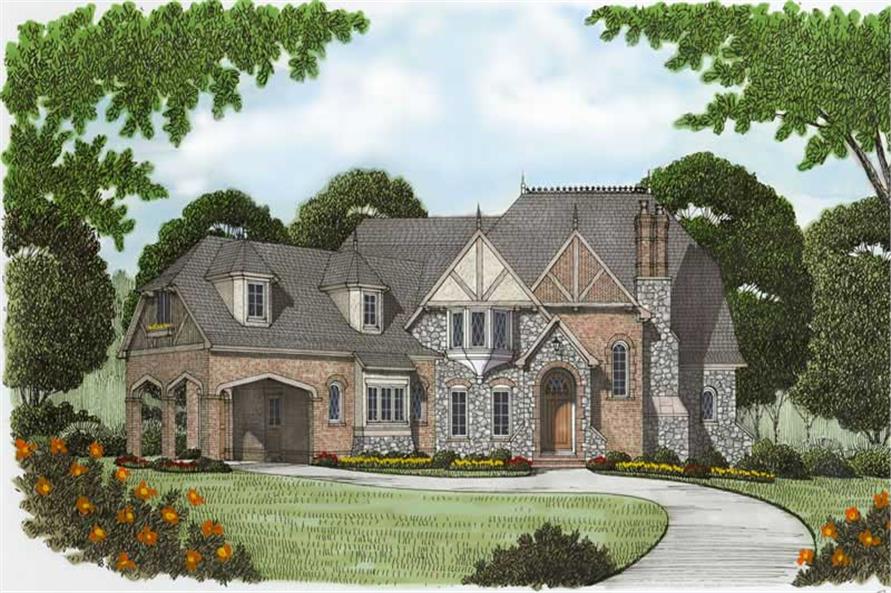

Front elevation of Tudor home (ThePlanCollection: House Plan #127-1034)

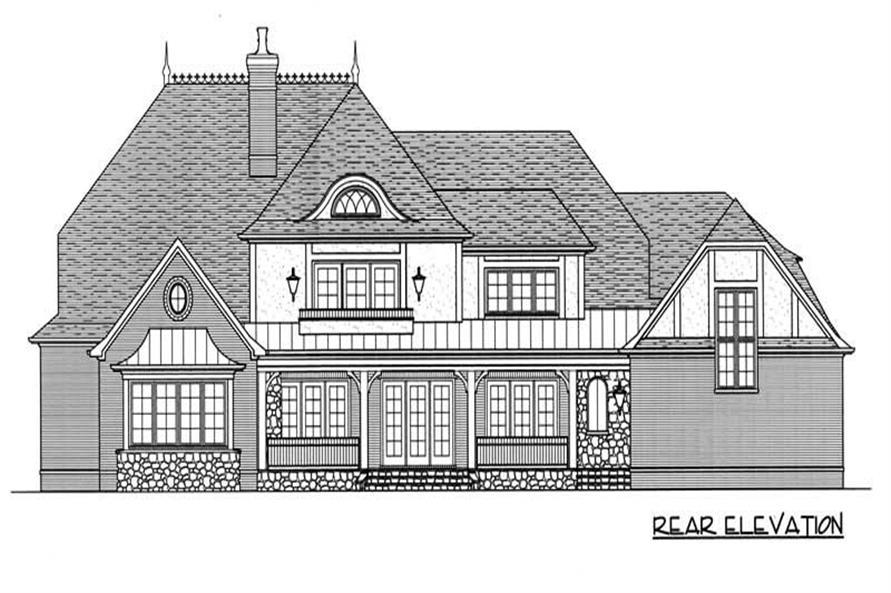

127-1034: Home Plan Rear Elevation

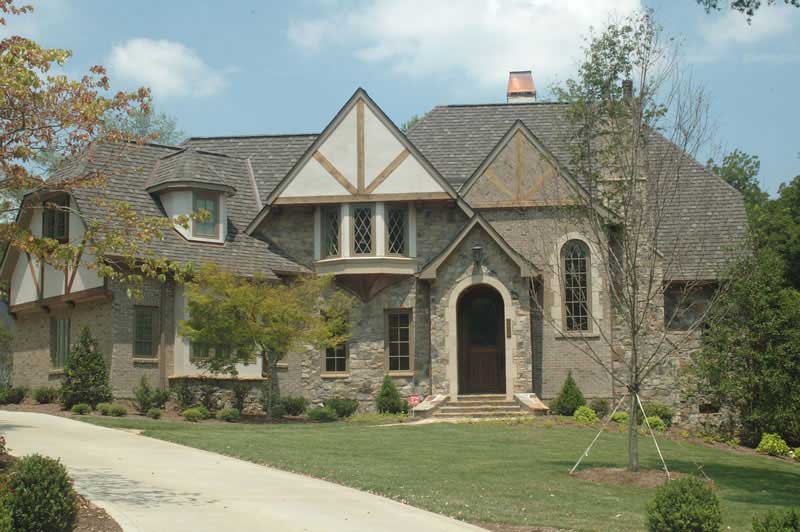

127-1034: Home Other Image-Front View
4-Bedroom, 5796 Sq Ft European Home Plan - 127-1034 - Main Exterior
127-1034: Home Plan Rear Elevation
127-1034: Home Other Image-Front View

About Plan # 127-1034

About Plan # 127-1034

5796 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 89' 2" WIDTH 93' 1" DEPTH 4 GARAGE BAY

this impressive Tudor-style manor features elegance in a fairly open floor plan. The covered entry brings you in past the spiral staircase and formal dining room, into the gallery and great room beyond. The kitchen and informal dining area are to the left and the garage is beyond. A large fireplace warms the space and makes a great centerpiece. The master suite is secluded to the right with a gorgeous master bath and plenty of closet space. The quiet study is secluded behind the stairs and features a fireplace of its own. The upper floor is packed with more bedrooms, a media room, a game room, and a separate bonus room above the garage.

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

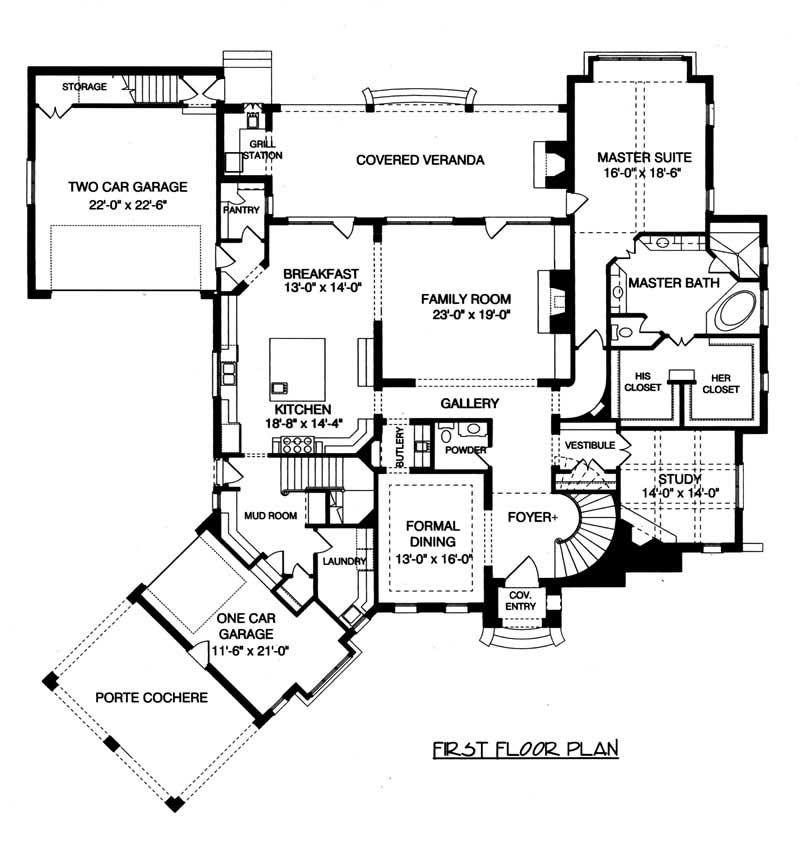

Home Plan: #127-1034 Floor Plan First Story - main level Floor Plan Main Level of Tudor Plan #127-1034

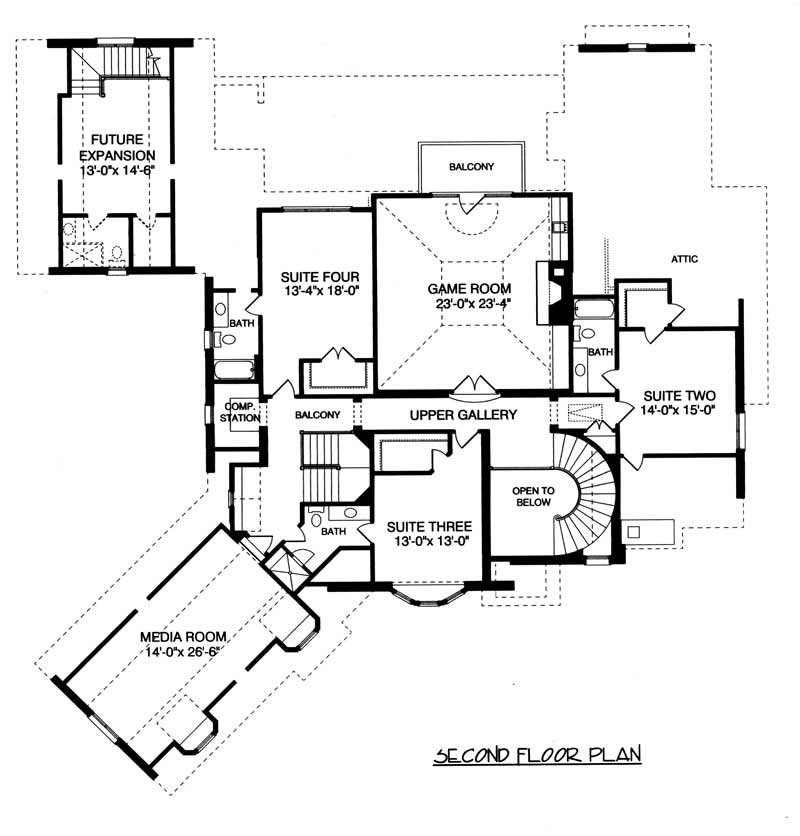

#127-1034 Floor Plan Second Story - upper level Floor Plan Upper Level of Tudor Plan #127-1034
Home Plan: #127-1034 Floor Plan First Story - main level Floor Plan Main Level of Tudor Plan #127-1034
#127-1034 Floor Plan Second Story - upper level Floor Plan Upper Level of Tudor Plan #127-1034
