4-Bedroom, 7404 Sq Ft Craftsman Plan with Walk-in Pantry

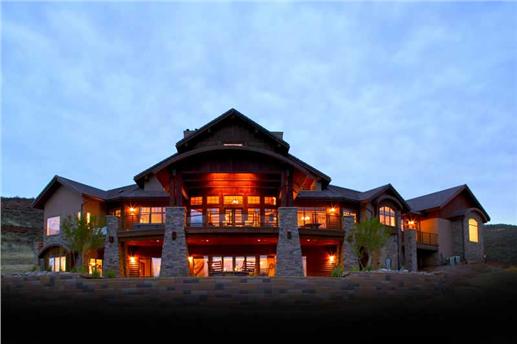

Photograph of Craftsman Luxury Home Plan #161-1017

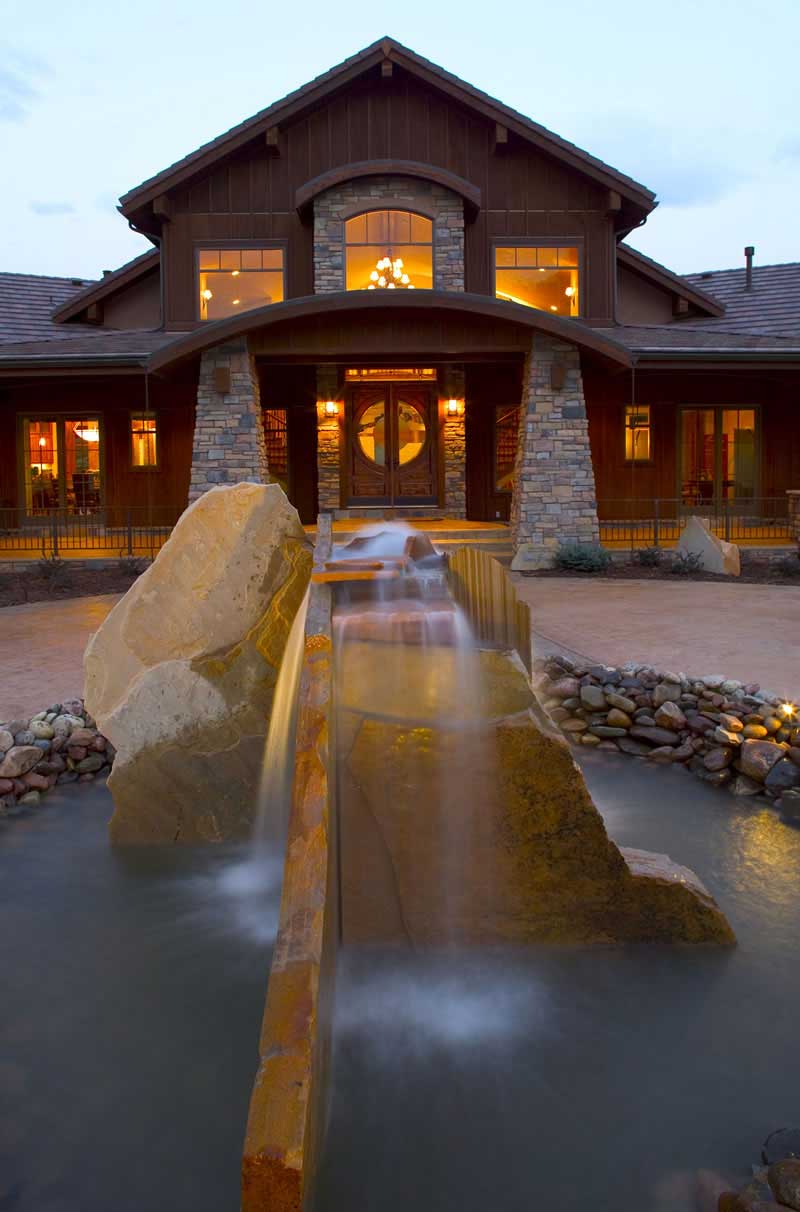

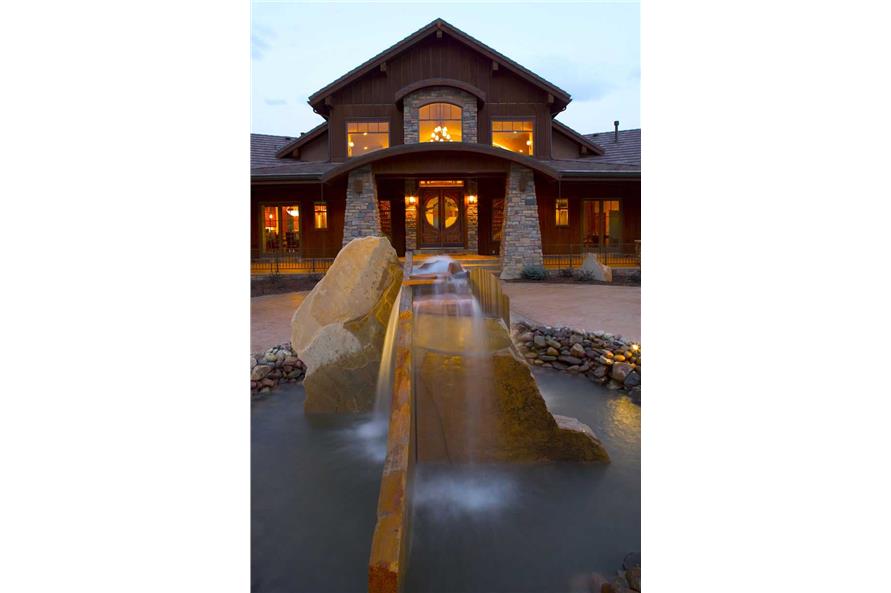

161-1017: Home Exterior Photograph-Front Door
161-1017: Home Interior Photograph-Media Room - Bar

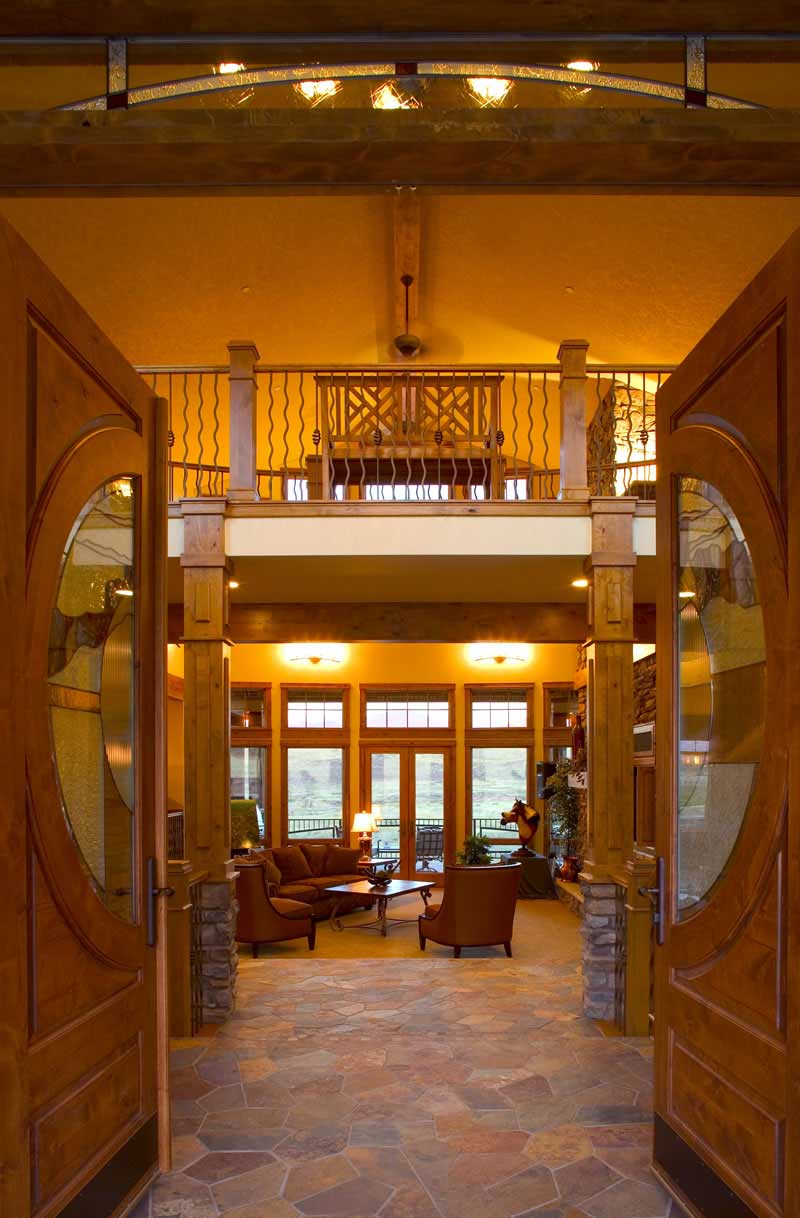

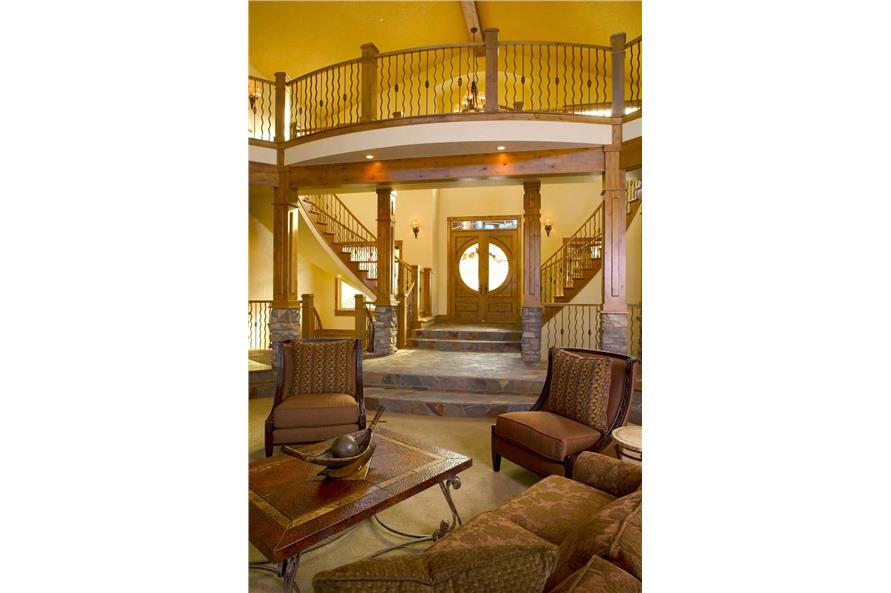

161-1017: Home Interior Photograph-Entry Hall: Foyer
161-1017: Home Exterior Photograph-Front Door
161-1017: Home Interior Photograph-Kitchen
161-1017: Home Interior Photograph-Great Room
4-Bedroom, 7404 Sq Ft Craftsman House Plan - 161-1017 - Front Exterior
161-1017: Home Exterior Photograph-Front Door
161-1017: Home Interior Photograph-Media Room - Bar
161-1017: Home Interior Photograph-Entry Hall: Foyer
161-1017: Home Exterior Photograph-Front Door
161-1017: Home Interior Photograph-Kitchen
161-1017: Home Interior Photograph-Great Room

About Plan # 161-1017

About Plan # 161-1017

7404 SQUARE FEET 4 BEDROOMS 4 FULL BATH 2 HALF BATH
2 FLOOR 154' 8" WIDTH 87' 9" DEPTH 4 GARAGE BAY

Featured April 5, 2013 in The Wall Street Journal. Astounding 7404 total living square foot Luxury House Plan. This plan has 4 bedrooms, 4 bathrooms, 2 half-baths, and 4 garage bays. The main event of this floor plan is its spacious covered decks which can be found on more than just one level.

But first, let's talk about the front exterior and its rustic vibe -- stonework, exposed timbers, and wood siding come together to make a lasting impression. Step through the double doors and into the two-story foyer with matching curved staircases on either side leading up to the loft. Straight ahead is the sunken great room with a double-height ceiling, large fireplace, views to the rear, and access to the covered deck. The open-concept kitchen is truly impressive -- ideal for a serious chef or for some serious entertaining. A formal dining room is only steps away. For more relaxed times, there is the kitchen island and the breakfast nook. Between the kitchen and the 4-car garage is the "nanny's quarters" -- perfect as an in-law suite. For a quieter setting, there is the library with its double doors right off the foyer.

When its time to retire for the evening, the master suite is on the main floor. It includes a large bathroom with separate his-and-her vanities and a walk-in closet. The master bedroom also has a fireplace and access to the covered deck. Completing the main floor is another bedroom with a full bath and its own private deck.

The walk-out basement is perfect for parties and hosting guests, with a large bar in the center of the floorplan along with a media area, billiards, and a home theater. A wine cellar and tasting area can also be found in this basement. Guests staying the night? There is the guest suite with its own private bath.

If you are in search of a Luxury, Craftsman House Plan, look no further!

Each plan set includes the following:

  • COVER SHEET
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • TYPICAL WALL SECTION & DETAILS: Explain certain special conditions more appropriately. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

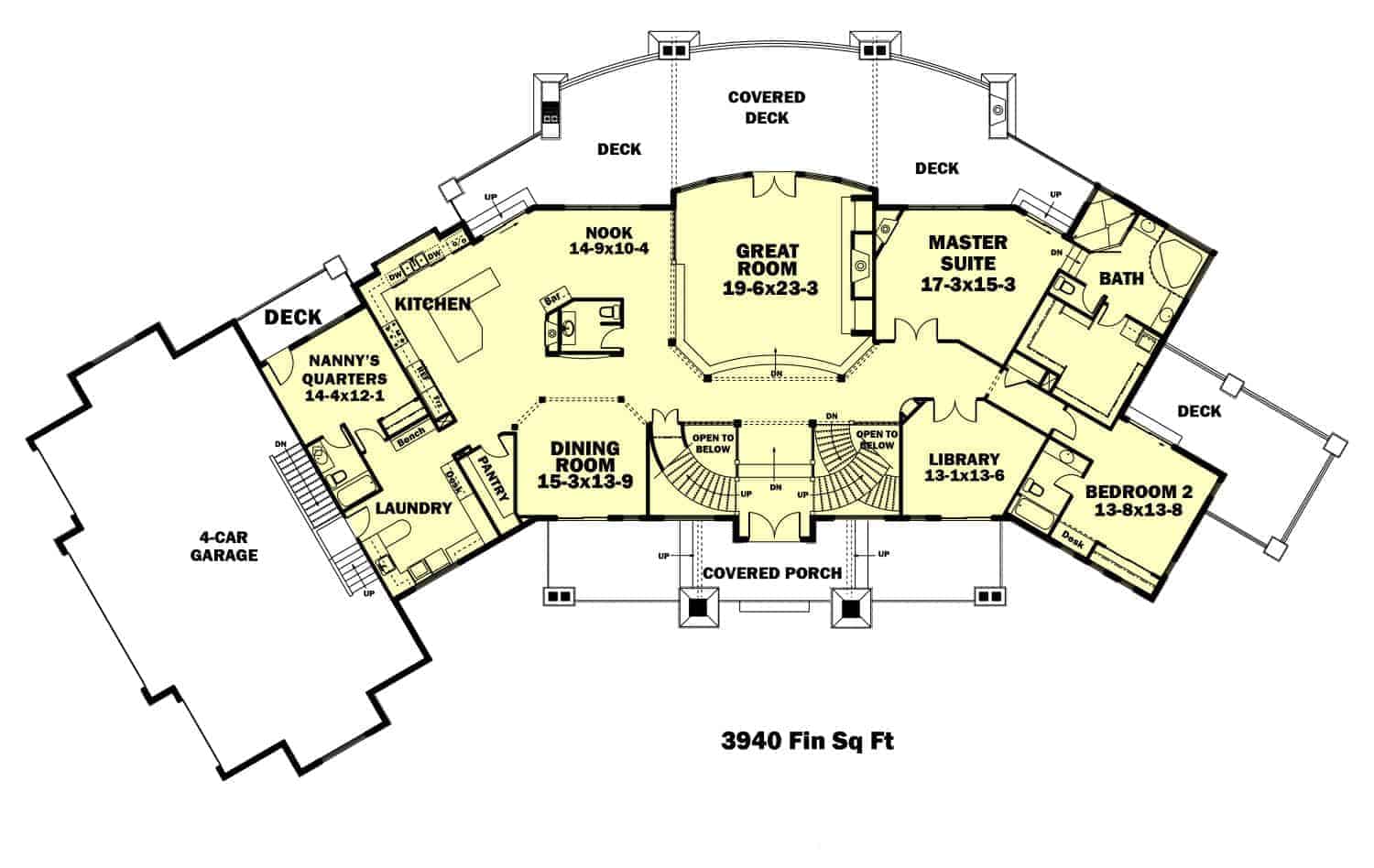

Home Plan: #161-1017 Floor Plan First Story - main level Floor Plan Main Level of Craftsman Plan #161-1017

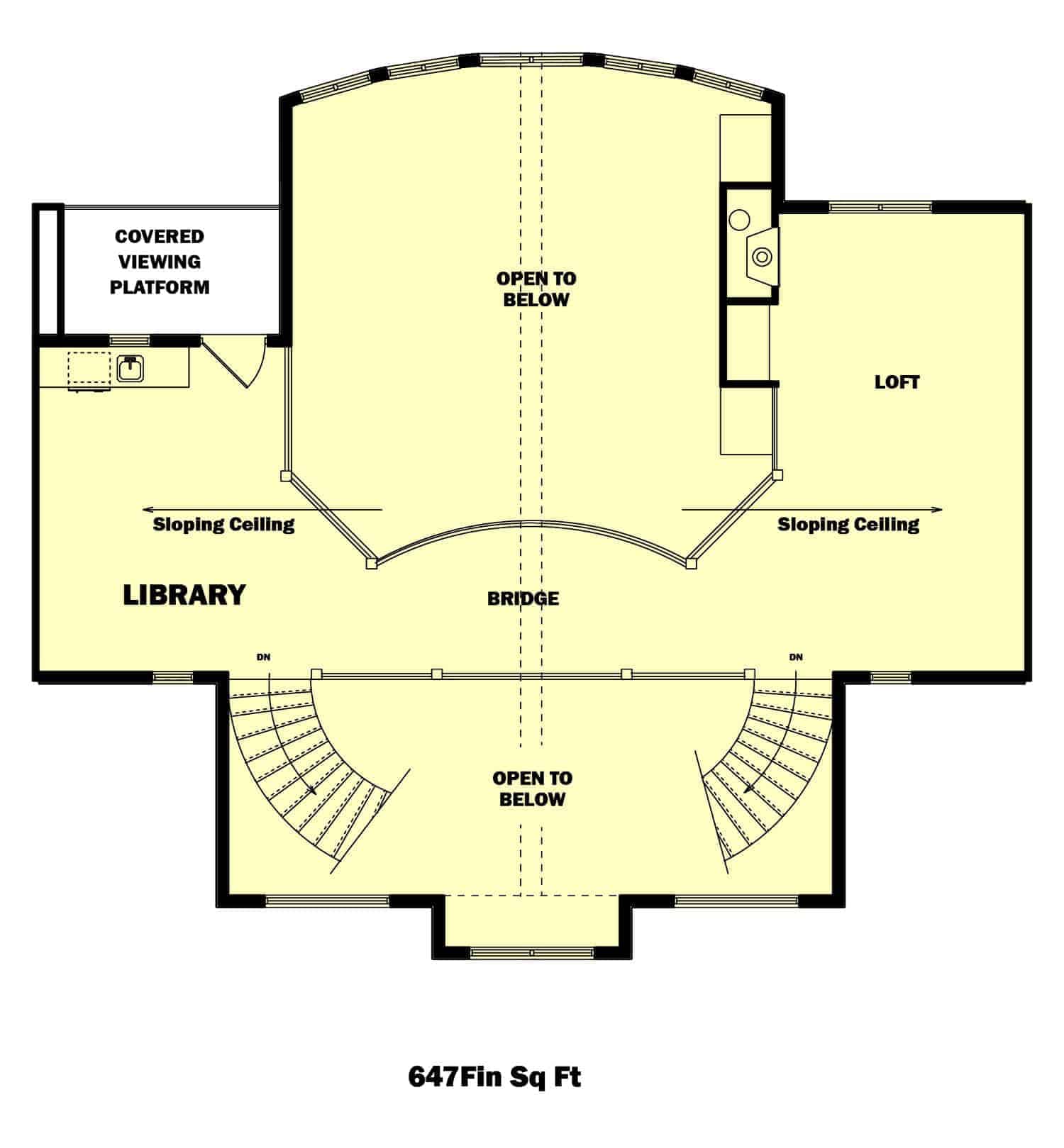

#161-1017 Floor Plan Second Story - upper level Floor Plan Upper Level of Craftsman Plan #161-1017

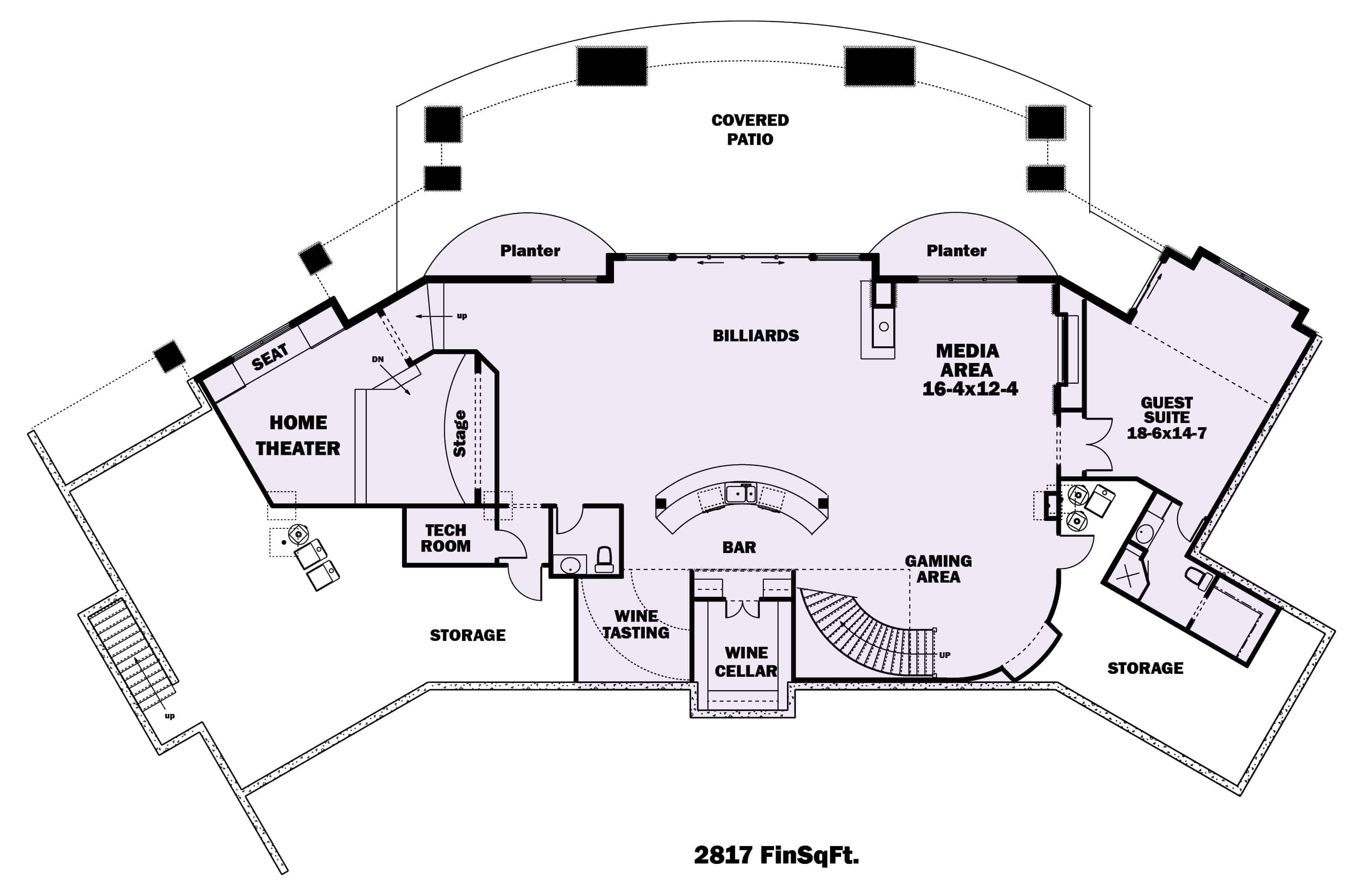

#161-1017 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #161-1017
