About Plan # 175-1064

About Plan # 175-1064

5841 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 89' 4" WIDTH 139' 10" DEPTH 3 GARAGE BAY

This luxury home's rear-oriented view reveals a gracious courtyard with a fountain view from the dining room and bedrooms so whether dining or waking, you'll enjoy the benefits of a pastoral courtyard. The master suite features a built-in TV hutch and drawers as well as a large sitting area, giving a feel of roomy elegance. A luxurious six-foot radial tub with a pass-through shower adds to the suite's design. Elsewhere, the house's amenities continue with an outdoor kitchen, wet bar, mitered glass in the living room and dinette, oversized media room, grand fireplace, and bookshelves combining to add personality.

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

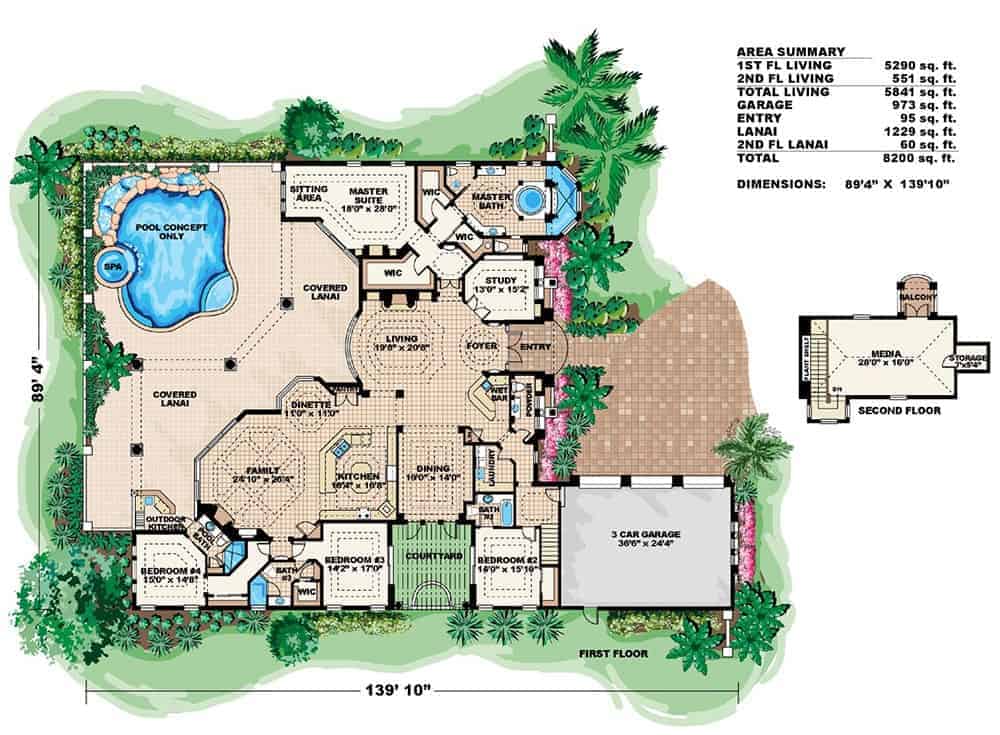

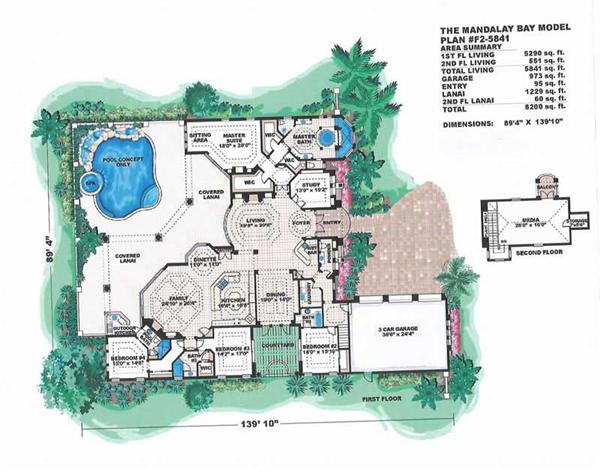

Home Plan: #175-1064 Floor Plan First Story - main level Main Level of Coastal Plan #175-1064
Home Plan: #175-1064 Floor Plan First Story - main level Main Level of Coastal Plan #175-1064
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1064
Floors:
2
Bedrooms:
4
Full Baths:
4
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
5841
Main Floor:
5290
Upper Floor:
551
Unfinished Sq Ft:

Dimensions

Width:
89' 4"
Depth:
139' 10"
Ridge Height:
33-4' 0"

Architectural Styles

Mediterranean
Luxury
Beachfront
Coastal
Spanish
Concrete Block/ ICF Design
California Style
Florida Style

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Fireplace
Swimming Pool
Dining Room
Home Office
Bonus Room
Family Room
Main Level Laundry
Library
Media Room
Color Photos
Color Photos
Loft
Storage
Den
Vaulted Ceilings
Balcony
Open Floor Plan
Interior Photos
Interior Photos

Garage Type

Attached Garage
Courtyard Entry

Fireplaces

Three Fireplaces

Exterior Wall Framing

Concrete

Building Lot Type

View Lot

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Outdoor Kitchen

Porches and Exterior Features

Courtyard
Covered Rear Porch
Screened in Lanai
Covered Lanai
Portico

Master Suite Features

Main Floor Master
Fireplace in Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!
