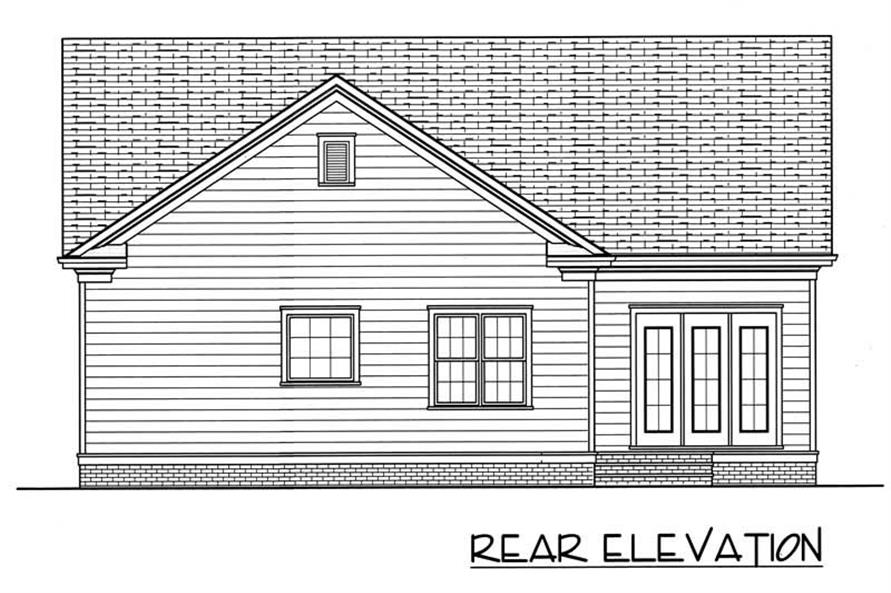

House Plan EDG-1728-B3 Rear Elevation
3-Bedroom, 1728 Sq Ft Farmhouse House Plan - 127-1038 - Front Exterior
House Plan EDG-1728-B3 Rear Elevation

About Plan # 127-1038

About Plan # 127-1038

1728 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 44' 0" WIDTH 69' 0" DEPTH 2 GARAGE BAY
House EDG-1728-B3, Myers, has a simple and open floor plan. The main rooms are together, eliminating walls and creating more space. The dining room is enclosed with columns. The kitchen has a large pantry. The master suite has a private bath and a large walk-in closet. Other features are an optional fireplace, a big laundry room, and walk-in closets for the secondary bedrooms. See also home plans EDG-1728-B1 and EDG-1728-B2. Note, this plan is not available within a 50 mile radius of Charlotte, NC.

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

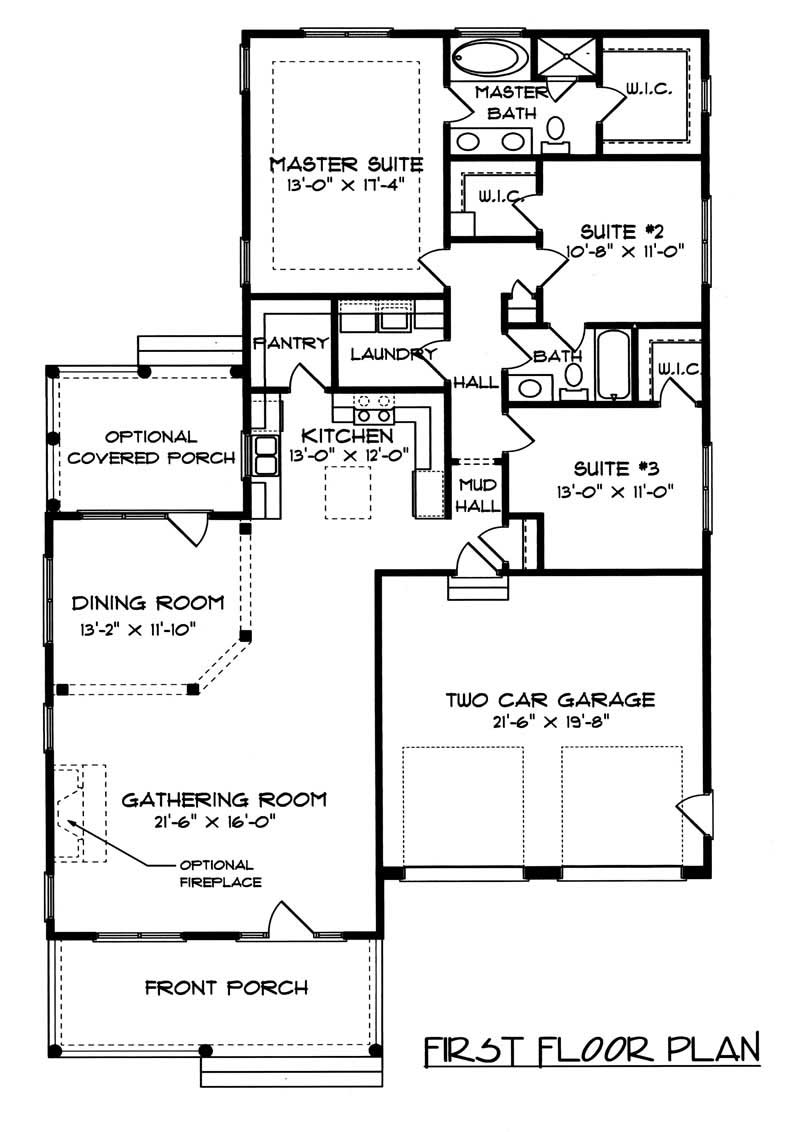

Home Plan: #127-1038 Floor Plan First Story - main Floor Plan First Story of Farmhouse Plan #127-1038
Home Plan: #127-1038 Floor Plan First Story - main Floor Plan First Story of Farmhouse Plan #127-1038
