5-Bedroom, 5966 Sq Ft Coastal Plan with Second Floor Master

Luxury homeplans AA5966-0267 color rendering.
107-1183: Home Plan Rendering-Pool
107-1183: Home Plan Rendering
5-Bedroom, 5966 Sq Ft Coastal Home Plan - 107-1183 - Main Exterior
107-1183: Home Plan Rendering-Pool
107-1183: Home Plan Rendering

About Plan # 107-1183

About Plan # 107-1183

5966 SQUARE FEET 5 BEDROOMS 6 FULL BATH 1 HALF BATH
2 FLOOR 77' 4" WIDTH 90' 5" DEPTH 3 GARAGE BAY

Luxury Home Plans #107-1183 are made with Concrete block exterior. The Covered Entry Foyer opens to the grand staircases. The Living Room has a fireplace and a Vestibule with columns, while The family room has a Bar and access to the Rear Library and/or Den which has French doors. The Dining Room has a Butler's Pantry to the Kitchen and the Kitchen has an island and snack bar. master Suite has a Sitting area and two walk-in closets, while the Master Bath has a whirlpool tub, split vanities and a walk-in shower. The Upper Floor plan has all of the bedrooms with a walk-in closet.

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #107-1183 Floor Plan First Story - first level Floor Plan First Story of Coastal Plan #107-1183
#107-1183 Floor Plan Second Story - second level Floor Plan Second Story of Coastal Plan #107-1183

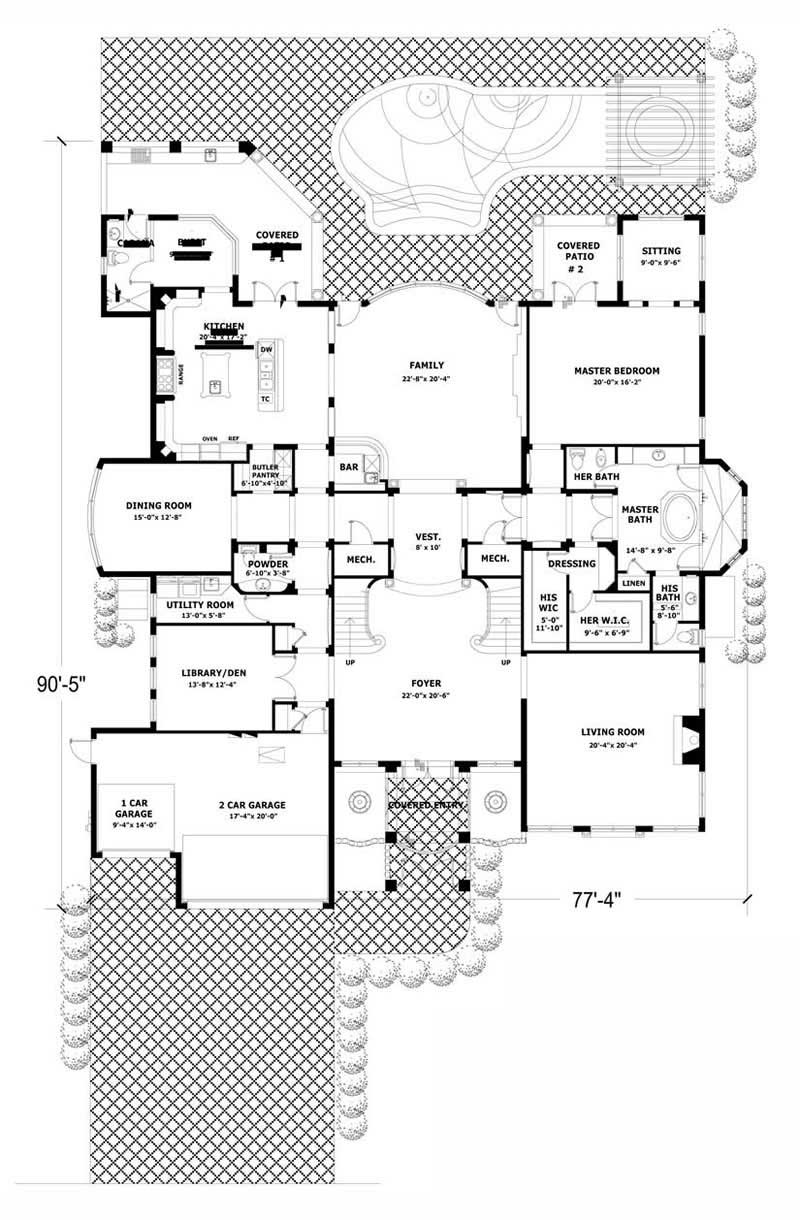

Home Plan: #107-1183 Floor Plan First Story - first level Floor Plan First Story of Coastal Plan #107-1183

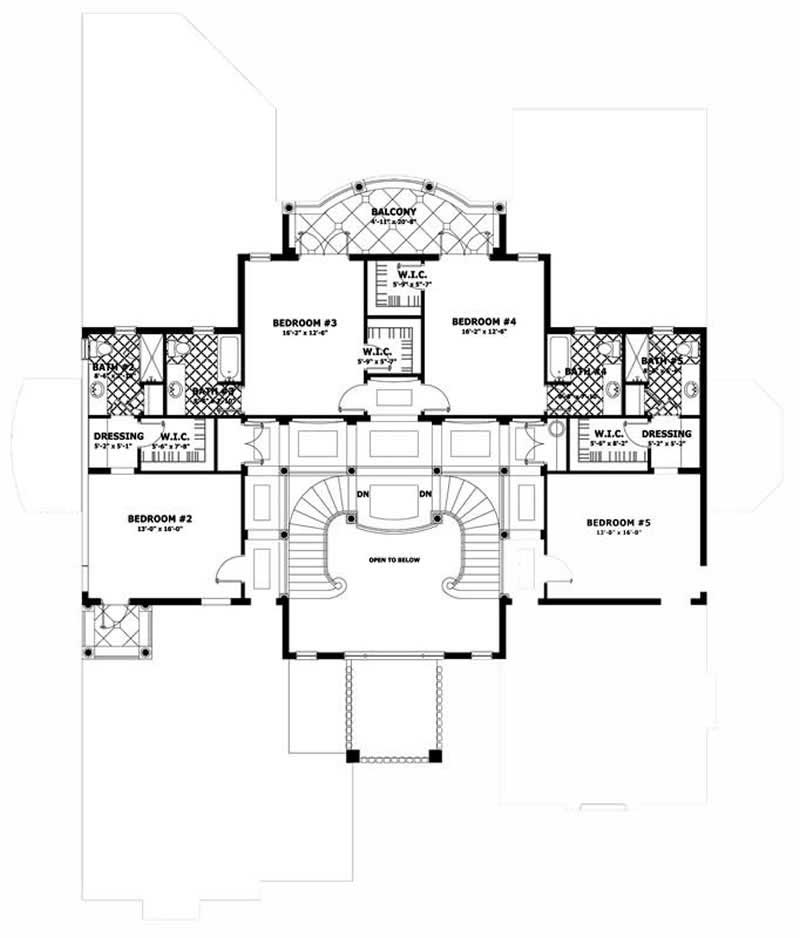

#107-1183 Floor Plan Second Story - second level Floor Plan Second Story of Coastal Plan #107-1183
