5-Bedroom, 5690 Sq Ft In-Law Suite Plan with Nook/Breakfast Area

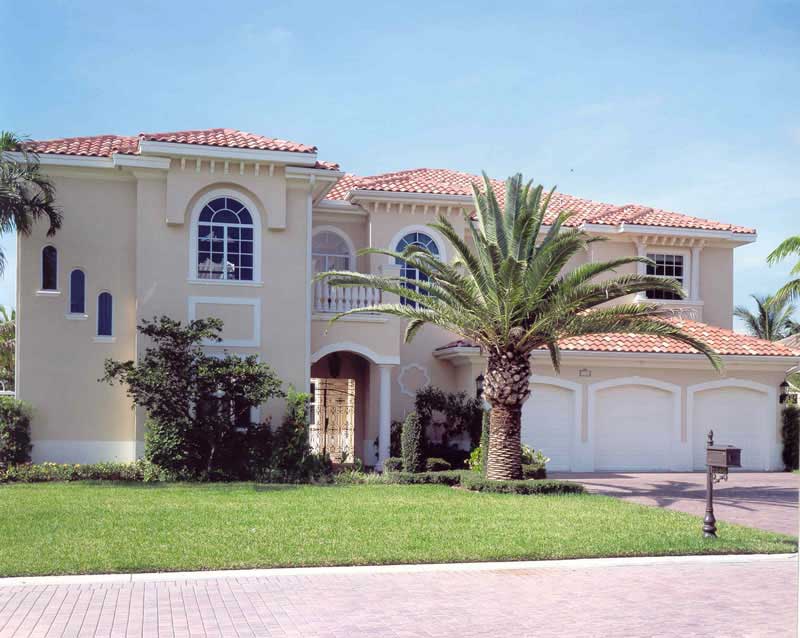

Front elevation of In-Law Suite home (ThePlanCollection: House Plan #107-1215)

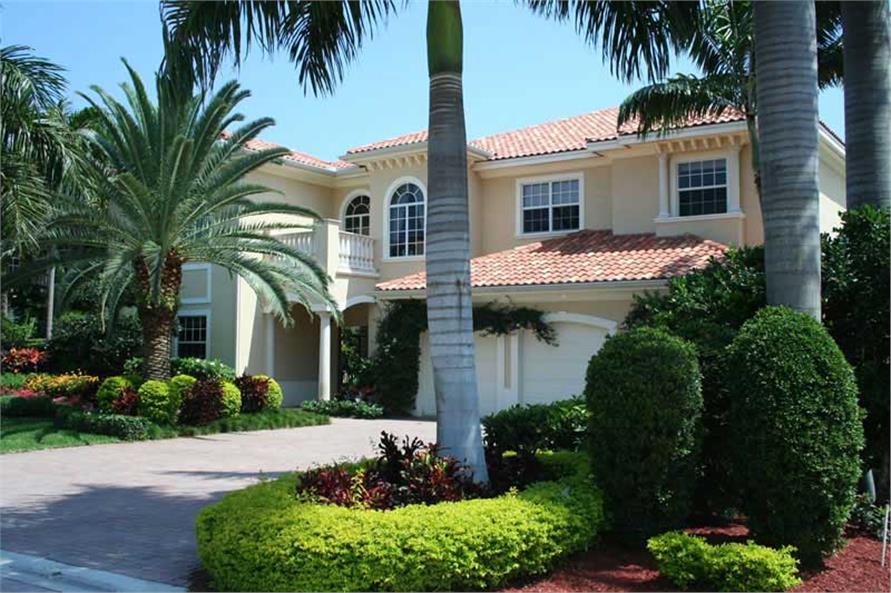

Exterior Photo #1

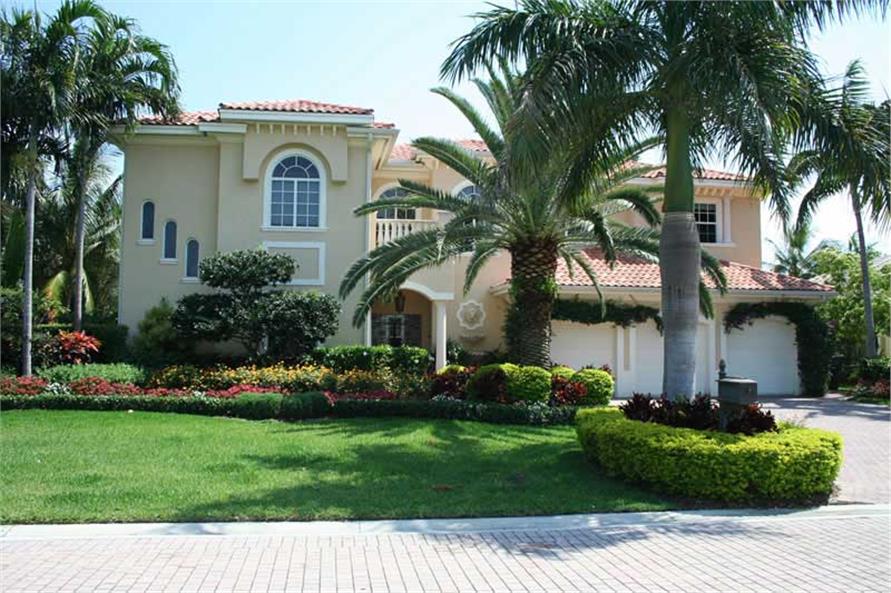

Exterior Photo #2
ELEVATION
5-Bedroom, 5690 Sq Ft In-Law Suite Home Plan - 107-1215 - Main Exterior
Exterior Photo #1
Exterior Photo #2
ELEVATION

About Plan # 107-1215

About Plan # 107-1215

5690 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 67' 6" WIDTH 85' 0" DEPTH 3 GARAGE BAY

House Plans feature Round columns on a Covered Entry Courtyard/Covered Patio to French doors at Foyer with coffered ceiling and open to Living and Dining Rooms Billiard Room with access to Rear Covered Patio master Suite with coffered ceiling and access to outside master Bath with two walk-in closets, corner whirlpool tub, and corner shower Cafe open to Kitchen with island work area family room with French doors to Courtyard and Media Room Lower Cabana with full bath Upper Floor Loft Bedroom 2 with walk-in closet and private bath Bedrooms 3 and 4 with private baths Bedroom 5 with walk-in closet Upper Cabana with closet

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

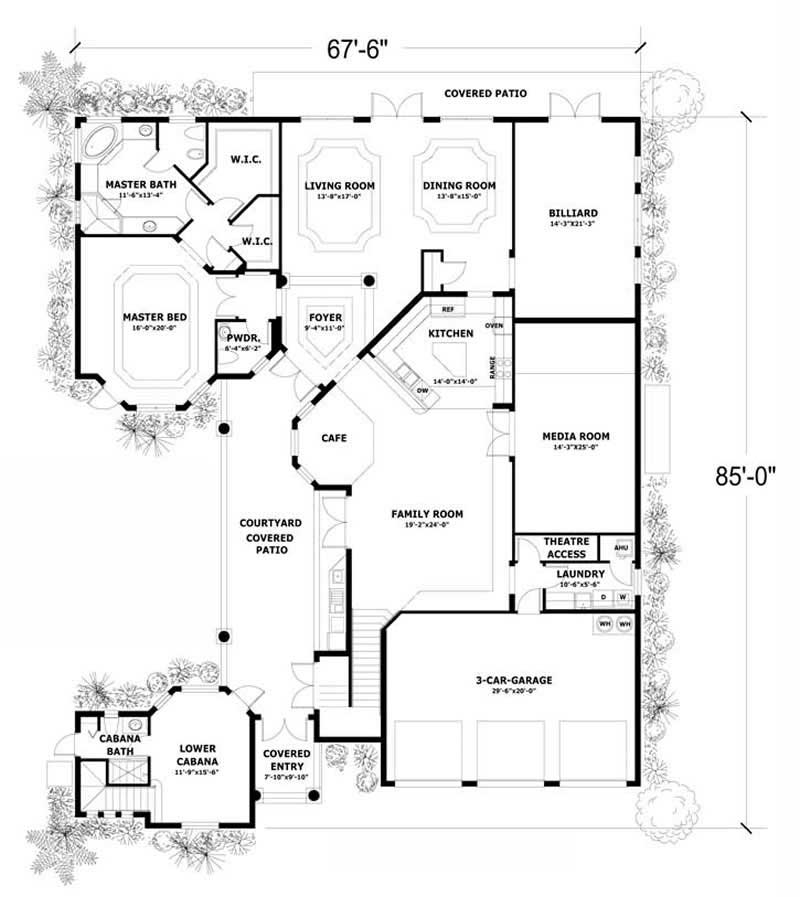

Home Plan: #107-1215 Floor Plan First Story - main Floor Plan First Story of In-Law Suite Plan #107-1215

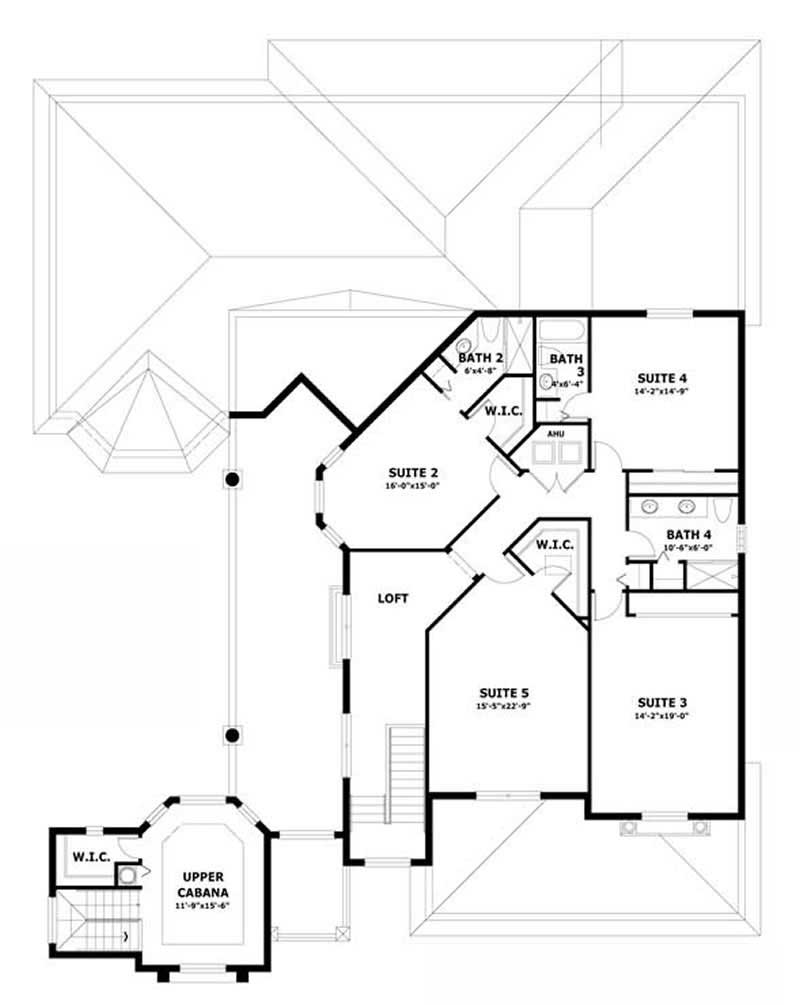

#107-1215 Floor Plan Second Story - second Floor Plan Second Story of In-Law Suite Plan #107-1215
Home Plan: #107-1215 Floor Plan First Story - main Floor Plan First Story of In-Law Suite Plan #107-1215
#107-1215 Floor Plan Second Story - second Floor Plan Second Story of In-Law Suite Plan #107-1215
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1215
Floors:
2
Bedrooms:
5
Full Baths:
5

Square Footage

Heated Sq Feet:
5690
Main Floor:
3592
Upper Floor:
2098
Unfinished Sq Ft:
Garage :
629

Dimensions

Width:
67' 6"
Depth:
85' 0"

Architectural Styles

In-Law Suite
Luxury
Mediterranean
Spanish

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Family Room
Home Theater
Loft
Main Level Laundry
Media Room

Garage Type

Attached Garage
Front Entry

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island

Porches and Exterior Features

Courtyard
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
