4-Bedroom, 5110 Sq Ft Craftsman Plan with Eat-In Kitchen

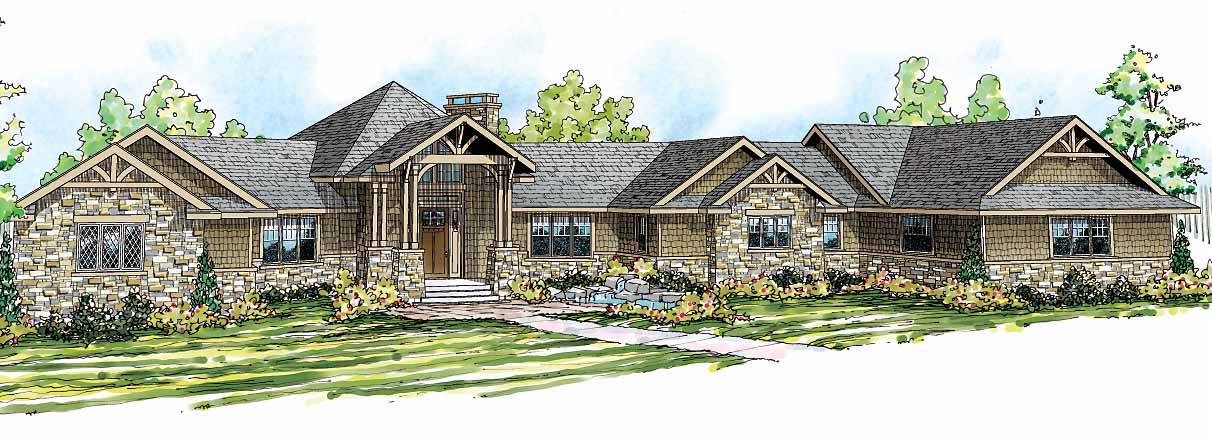

This is an artist's rendering of these Prairie Style House Plans.

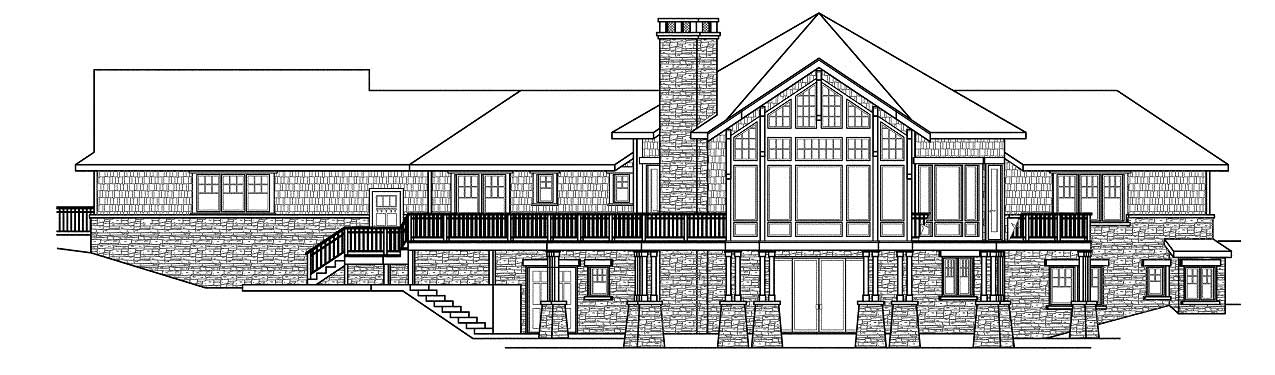

Home Plan Rear Elevation
4-Bedroom, 5110 Sq Ft Craftsman Home Plan - 108-1528 - Main Exterior
Home Plan Rear Elevation

About Plan # 108-1528

About Plan # 108-1528

5110 SQUARE FEET 4 BEDROOMS 3 FULL BATH 2 HALF BATH
1 FLOOR 121' 7" WIDTH 84' 1" DEPTH 3 GARAGE BAY

Chalet home plans. A rhapsody of shapes and textures makes this estate-size contemporary chalet home plan a treat for the eye, inside and out. A kitchen, dining area and living room fill the hexagonal great room at its core. Two bedroom suites extend off to the right and left, and more sleeping areas, along with a huge recreation room and a spacious shop, fill the daylight basement below. A rhapsody of shapes and textures makes this estate-size contemporary chalet a treat for the eye. King posts and gently curved struts highlight the #108-1528's four front-facing gables, while shingles and stone veneer wrap around the entire exterior. Diamond-shaped and Craftsman windows add their sparkle outside, and admit abundant light inside. Arrays of slender posts flank the lofty entry portico. Sidelights and a wide transom wrap around the Craftsman door. Inside, closets line the vaulted entry that leads directly into an expansive hexagonal great room. Drop beams outline the six pie-shaped ceiling panels that meet at a central peak. The three rear walls are richly glassed, and the center section there is almost entirely glass. Its lower windows are crowned by two more levels of gridded glass that highlight the triangular apex. A fireplace graces the right rear section, designated as a living room; the dining area is in the left section. Both offer access to wide decks. A long conversation bar rims the work island in a kitchen that is partly open to the dining area. Its roomy pantry fills one corner. Bedroom suites fit neatly into wings on both sides of the central hexagon. A powder room along the hallway to the guest suite is available for general use. The large utility room further along that hallway also serves as a pass-through to the three-car garage. Luxury features abound in the spacious owners' suite that fills the left wing. A bunk room and yet another bedroom are in the #108-1528's daylight basement below, to the left of a huge recreation room that accesses covered patios on three sides. The roomy workshop on this level also has double door access to the exterior.

Each plan set includes the following:

  • ARTIST'S RENDERING: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Each plan set is drawn at 1/4"=1' scale. Showing the placement and dimensions of all walls, windows, and doors. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • SECOND FLOOR PLAN (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • FOUNDATION PLAN: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • ROOF FRAMING PLAN: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
  • SECTIONS AND DETAILS: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: A schematic layout of all lighting, switches, and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

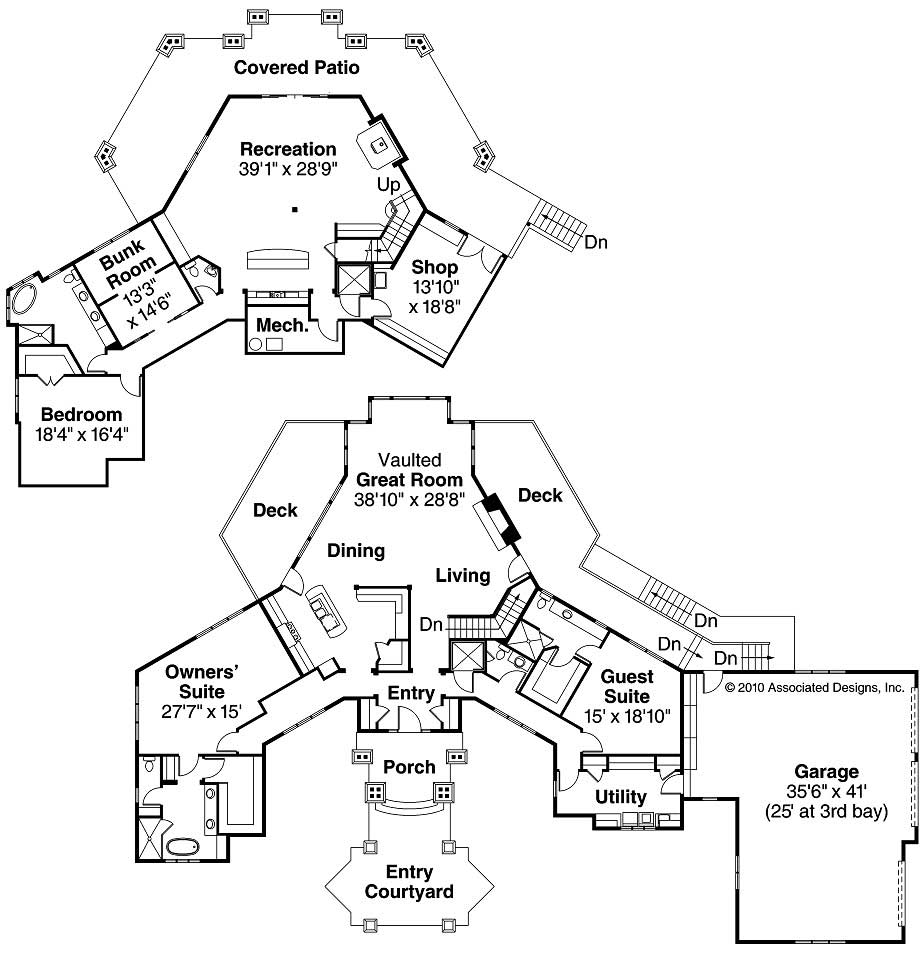

Home Plan: #108-1528 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #108-1528
Home Plan: #108-1528 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #108-1528
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1528
Floors:
1
Bedrooms:
4
Full Baths:
3
Half Baths:
2

Square Footage

Heated Sq Feet:
5110
Main Floor:
2951
Unfinished Sq Ft:
Lower Floor:
2159

Dimensions

Width:
121' 7"
Depth:
84' 1"
Ridge Height:
26' 4"

Architectural Styles

Craftsman
Luxury
Prairie

Exterior Wall Material

Rock/Stone
Shakes

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Fireplace
Guest Room
Main Level Laundry
Mud Room
Vaulted Ceilings
Workshop

Garage Type

Attached Garage
Side Entry

Exterior Wall Framing

2x6

Building Lot Type

Down Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Patio
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
