4-Bedroom, 3990 Sq Ft Mediterranean Plan with Covered Rear Porch

Mediterranean style house (ThePlanCollection: Plan #208-1000)

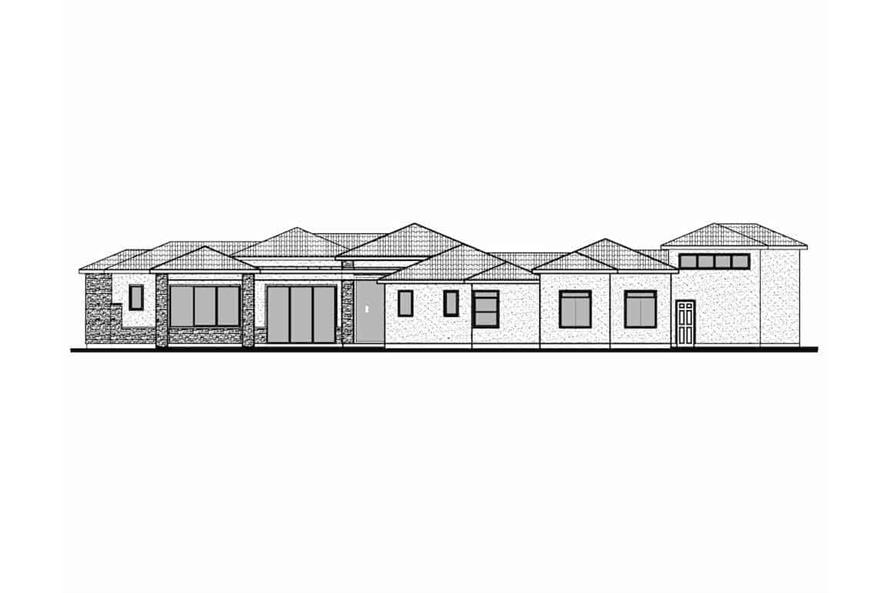

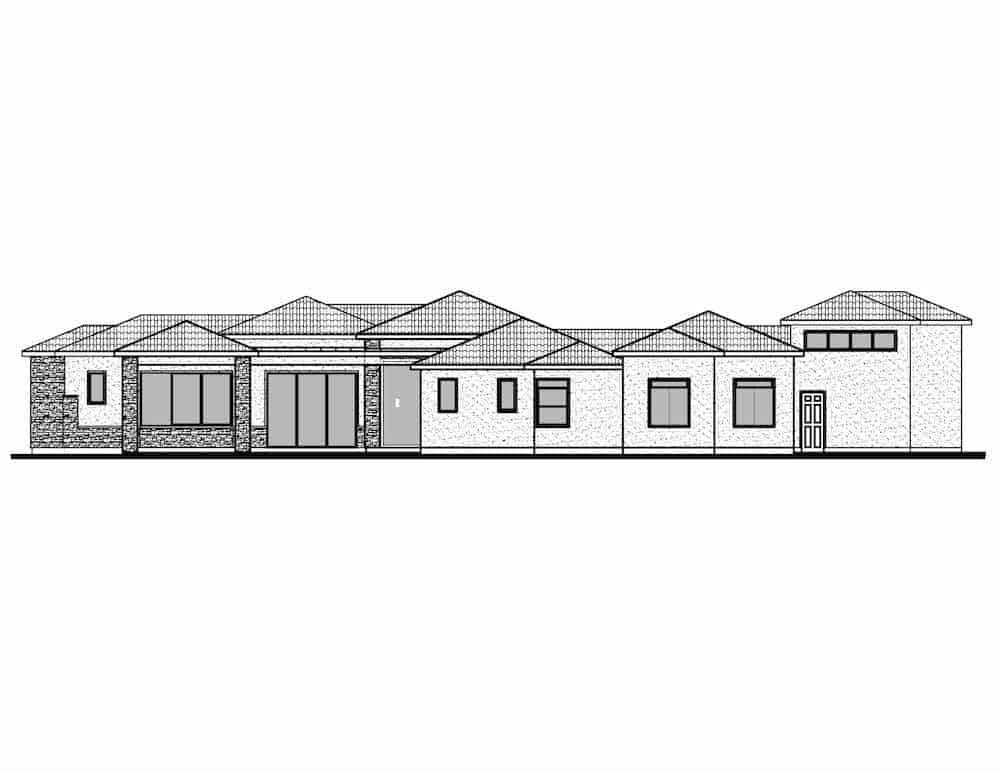

208-1000: Home Plan Rear Elevation

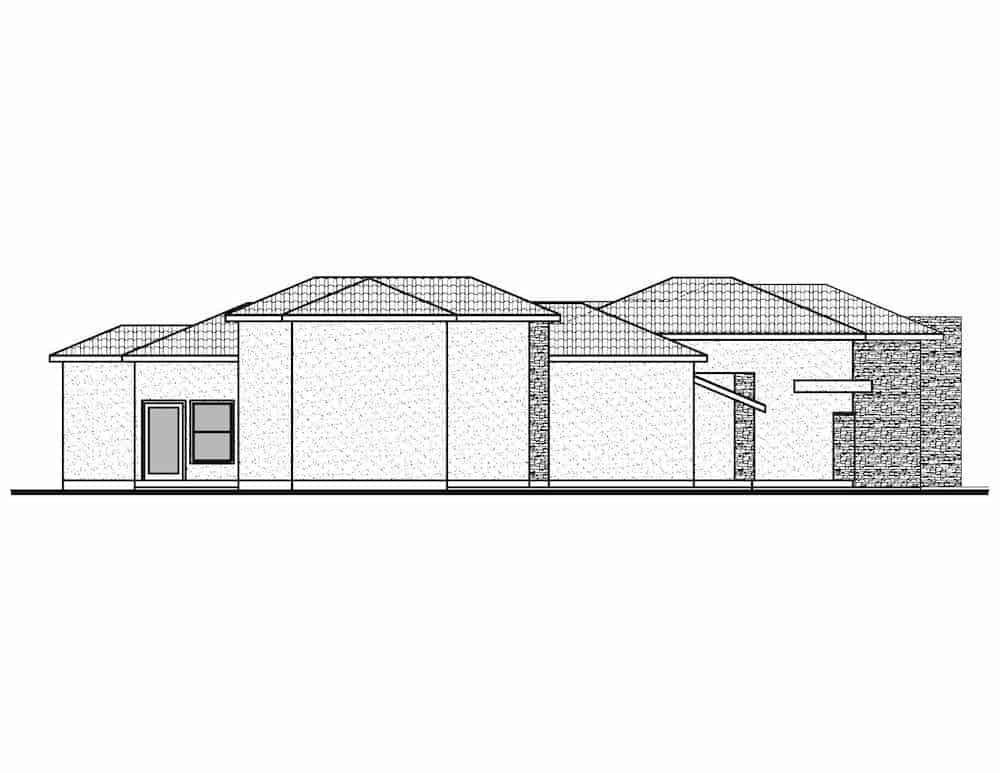

208-1000: Home Plan Left Elevation

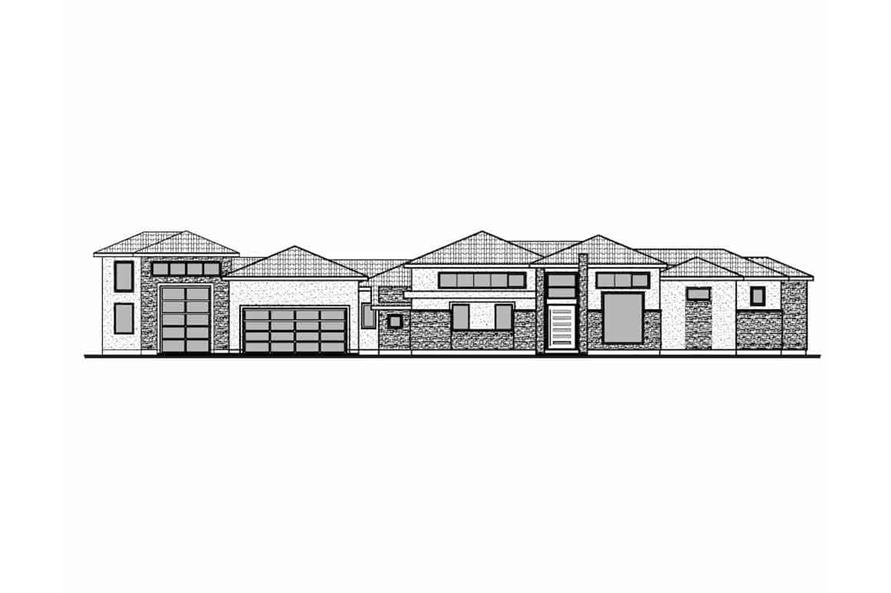

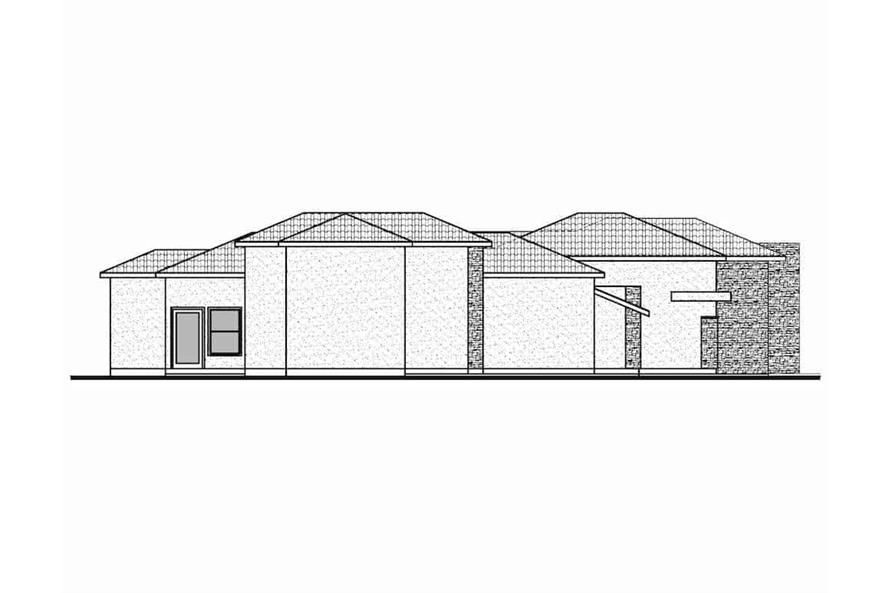

208-1000: Home Plan Right Elevation

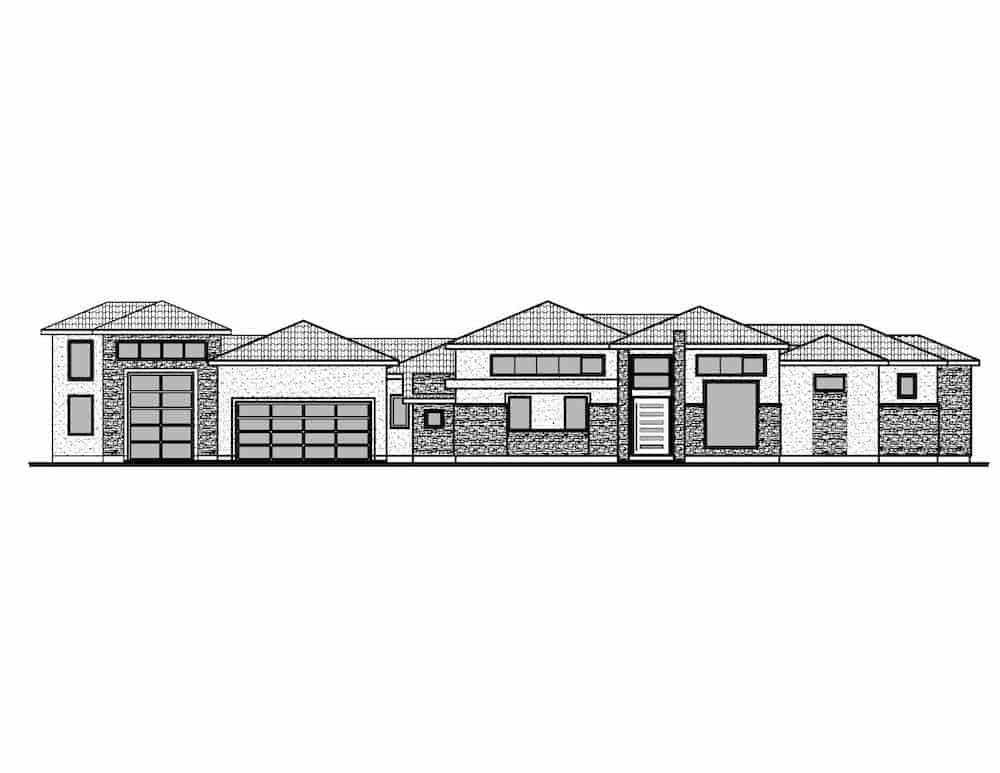

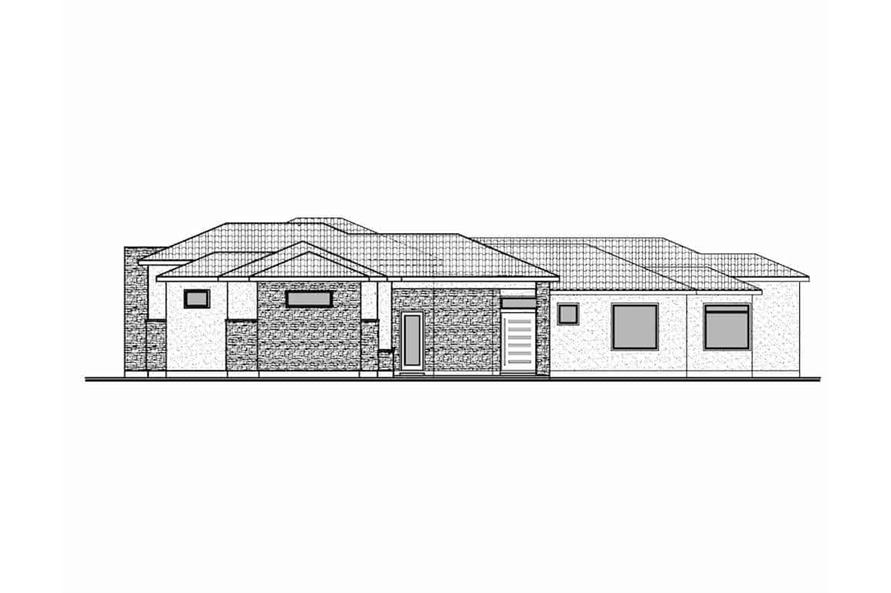

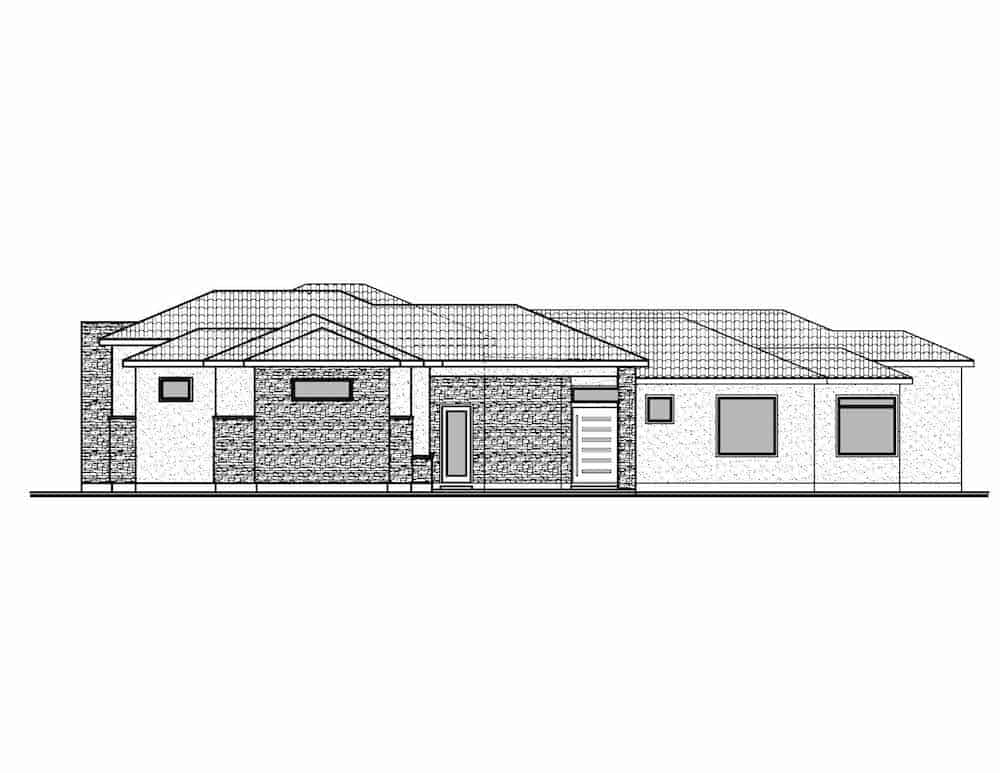

208-1000: Home Plan Front Elevation
4-Bedroom, 3990 Sq Ft Mediterranean Home - Plan #208-1000 - Main Exterior
208-1000: Home Plan Rear Elevation
208-1000: Home Plan Left Elevation
208-1000: Home Plan Right Elevation
208-1000: Home Plan Front Elevation

About Plan # 208-1000

About Plan # 208-1000

3990 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 124' 5" WIDTH 92' 6" DEPTH 3 GARAGE BAY

What a spectacular, luxurious house! This Luxury Mediterranean style home is loaded with charm, comfort, and convenience, featuring a well designed 3990 square-foot floor plan with its many amenities – walk-in kitchen pantry, home theater, Great Room with fireplace, covered rear porch perfect for large families and get-togethers, and more. This may well be the perfect home for you and your family!

Each plan set includes the following:

  • COVER SHEET: Artist’s sketch to provide an idea of what the house would look like once built.
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Includes roof framing plan.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRAMING PLANS: Main and upper floor framing pages (when applicable - please inquire).

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

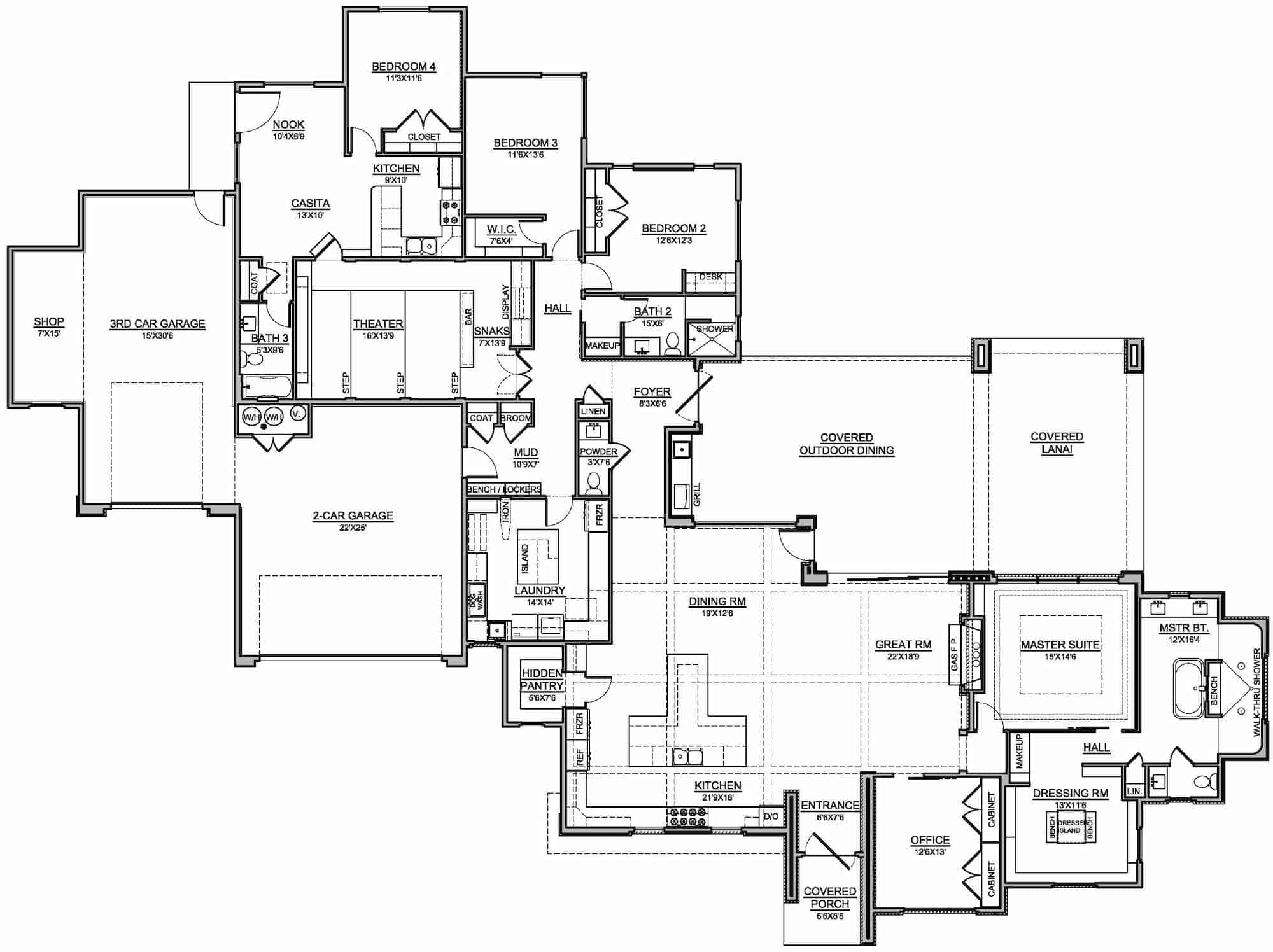

Home Plan: #208-1000 Floor Plan First Story - main level Floor Plan Main Level of Mediterranean Plan #208-1000
