4-Bedroom, 4457 Sq Ft Florida Style Plan with Fireplace in Master

Main image for house plan # 20716
Front View
4-Bedroom, 4457 Sq Ft Florida Style House Plan - 146-1949 - Front Exterior
Front View

About Plan # 146-1949

About Plan # 146-1949

4457 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 104' 0" WIDTH 69' 0" DEPTH 3 GARAGE BAY
This extraordinary home is packed with elegant features, making it a wonderful refuge for your family. The enormous family room at the center of the home boasts a 14-ft. ceiling and a neat wet bar with a serving counter. In the gourmet kitchen, a walk-in pantry, a snack bar and an island workstation with a vegetable sink make the most of this important space.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

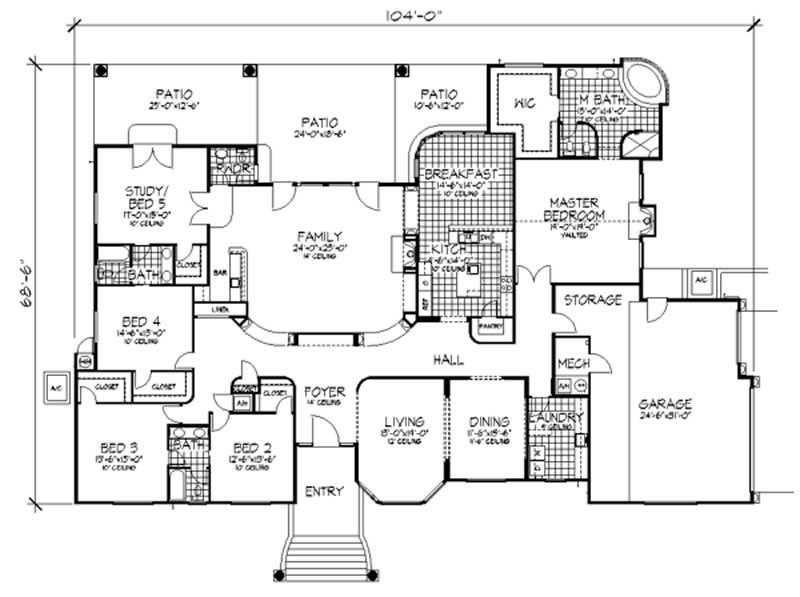

Home Plan: #146-1949 Floor Plan First Story - main level Floor Plan First Story of Florida Style Plan #146-1949
Home Plan: #146-1949 Floor Plan First Story - main level Floor Plan First Story of Florida Style Plan #146-1949
