4-Bedroom, 4373 Sq Ft Mediterranean Plan with Nook/Breakfast Area

Color photo-realistic rendering of Mediterranean home plan (ThePlanCollection: House Plan #117-1122)
117-1122: Home Plan Rendering
117-1122: Home Plan Rendering
117-1122: Home Plan Rendering
117-1122: Home Plan Rendering
117-1122: Home Plan Rendering
117-1122: Home Plan Rendering
4-Bedroom, 4373 Sq Ft Mediterranean Home Plan - 117-1122 - Main Exterior
117-1122: Home Plan Rendering
117-1122: Home Plan Rendering
117-1122: Home Plan Rendering
117-1122: Home Plan Rendering
117-1122: Home Plan Rendering
117-1122: Home Plan Rendering

About Plan # 117-1122

About Plan # 117-1122

4373 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 95' 8" WIDTH 76' 7" DEPTH 2 GARAGE BAY

The architecture of this stunning home brings to mind the hillside villas of Tuscany or perhaps La Rioja. The stucco and stonework, arched windows and Juliet balcony, natural wood timbers and tile roof. All of these come together to create a rustic yet sophisticated style.

Approach the front porch and enter through the double doors to the main foyer. From this viewpoint, you are able to take in the dining room -- so often the hub of joy and celebration in a Mediterranean villa home -- and the view out to the rear lanai. Of course, since inspired by the Mediterranean, there is a wine cellar off the dining room. To your left is the spacious chef's kitchen with a huge island and walk-in pantry. Of special note is the breakfast nook with its circular walls. The open kitchen faces the two-story family room with its fireplace and access to both the terrace and rear lanai.

Returning to the main foyer, on the other side of the home is a circular staircase leading to the second floor. But before making your way upstairs, be sure to visit the study and guest room. And finally, take a peek at the master suite with its vaulted ceiling, master bath with garden tub, separate his-and-her sink vanities, a walk-in shower, and a water closet. There is also a spacious walk-in closet.

Now, head up the "tower" using the spiral staircase to the second floor. Upstairs, you will first find yourself in the game room, which looks out onto the terrace. There is also a computer/desk space, and two more bedrooms - each with its own full bathroom.

Your last stop is the basement with its own game room and private terrace (this option is ideal for sloped lots).

In all, this home has 4373 square feet of living space, 4 bedrooms, 4 full bathrooms, and 1 half-bath.

Each plan set includes the following:

  • FLOOR PLANS: ¼”=1’-0” scale floor plan indicating the location of frame and masonry walls, support members, doors, windows, plumbing fixtures, kitchen appliance locations, cabinet locations, tags to cross-section details, shelving, ceiling conditions, and notes deemed relevant to this plan.
  • EXTERIOR ELEVATIONS: All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate the overall configuration of the home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and the extent to which they are used, and enlargement of any details deemed necessary to explain the construction.
  • BUILDING SECTIONS: ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • FOUNDATION PLAN: ¼” = 1’-0” scale foundation plans. The slab foundation comes with both interior and exterior beams. Dimensioned and noted foundation layout, including references to support walls, excavated and unexcavated areas. Basement foundation plans may show additional walls, grade beams, reinforcing steel, and structural columns. Structural information for all foundation types should be obtained by a locally licensed engineer for your specific site location.
  • FRAMING PLANS: ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted. Includes floor, ceiling, and roof framing schematics.
  • CABINET ELEVATIONS: 3/8” = 1’-0” scale elevations indicating the configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, and appliances.
  • ELECTRICAL PLAN: ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of A/C equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

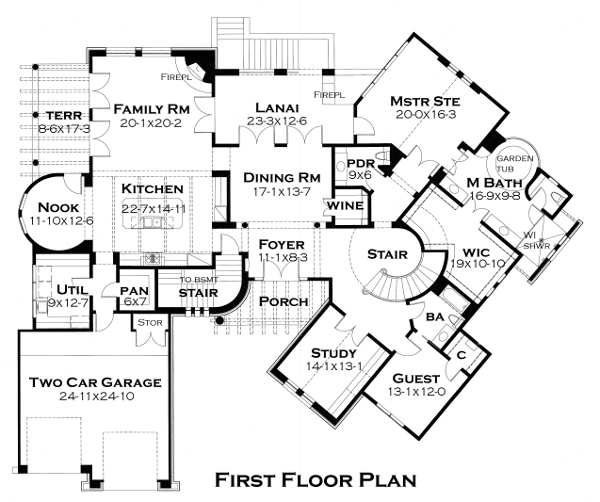

Home Plan: #117-1122 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #117-1122

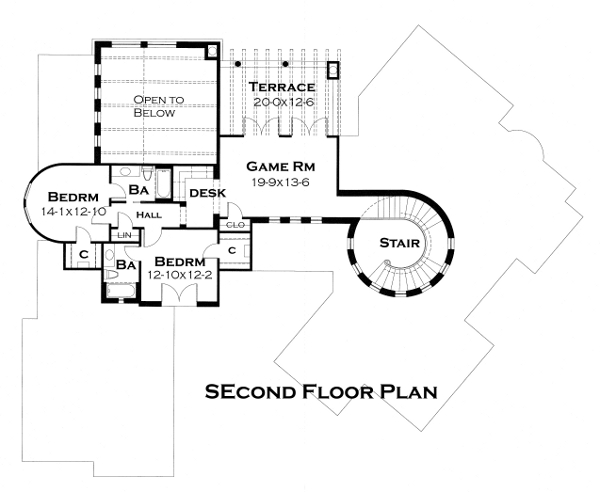

#117-1122 Floor Plan Second Story - upper level Floor Plan Second Story of Mediterranean Plan #117-1122

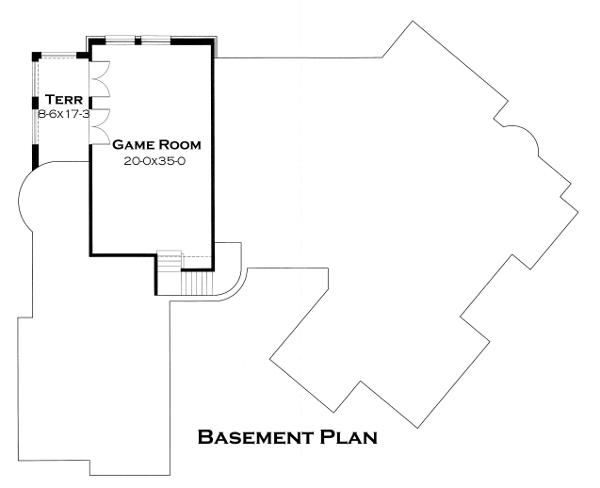

#117-1122 Floor Plan Basement - basement Floor Plan Basement of Mediterranean Plan #117-1122
