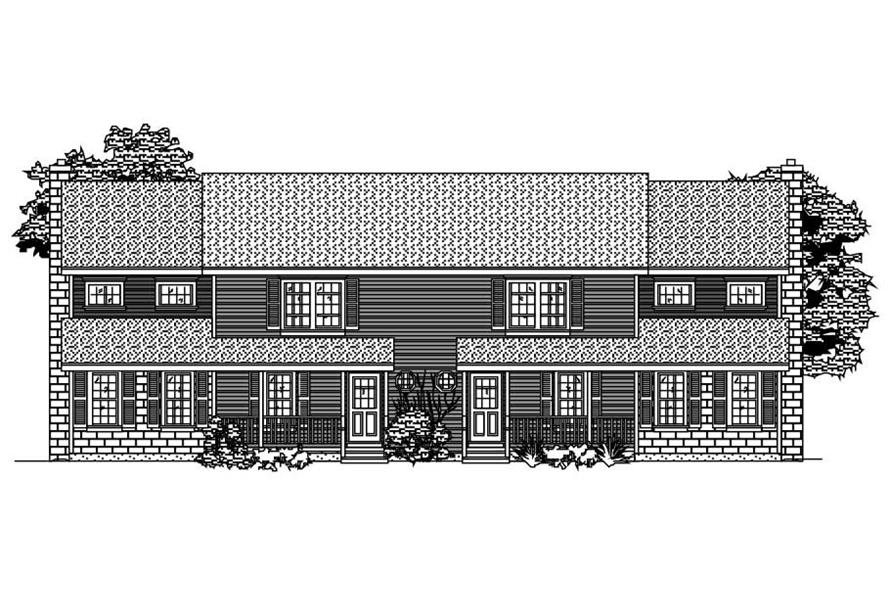

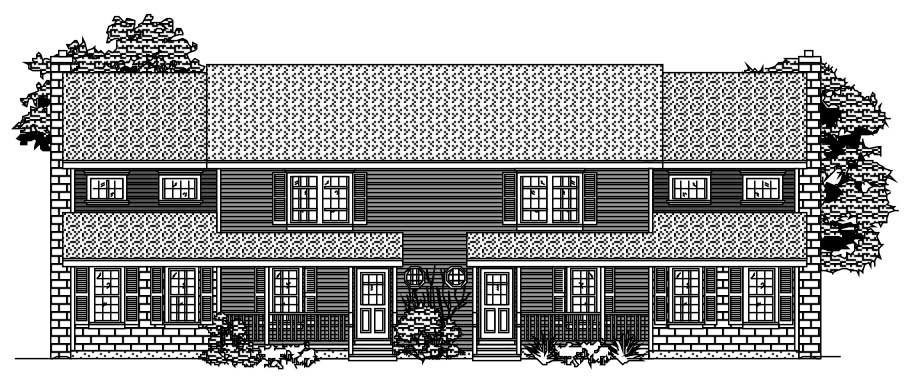

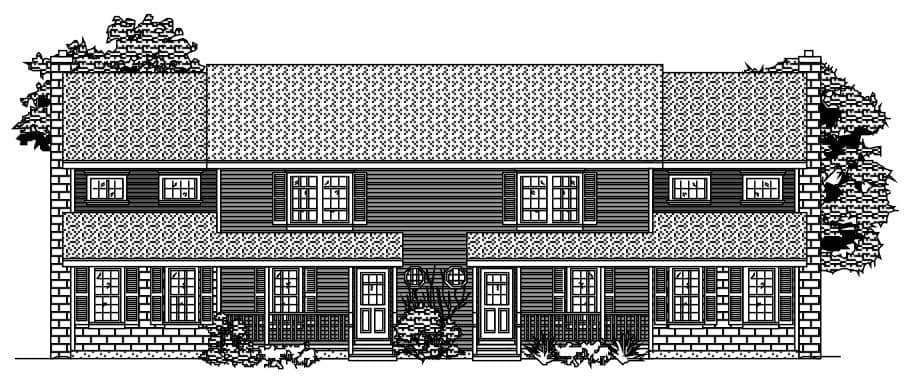

This is the front elevation of these multi-unit house plans.
3-Bedroom, 3652 Sq Ft Multi-Unit Home Plan - 110-1078 - Main Exterior

About Plan # 110-1078

About Plan # 110-1078

3652 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 70' 0" WIDTH 30' 0" DEPTH 0 GARAGE BAY
This charming duplex home with traditional design influences (House Plan #110-1078) has over 3650 square feet of living space (1826 square feet per unit). The two story floor plan includes 3 bedrooms per unit.

Each plan set includes the following:

  • ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window sizes.
  • UPPER FLOOR PLAN (if applicable): Same details as the main floor plan.
  • SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Framing plans.
  • Electrical layout.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

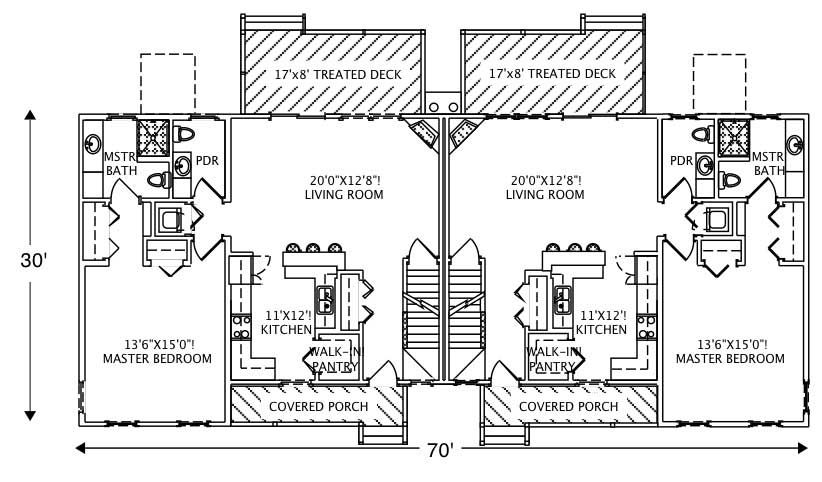

Home Plan: #110-1078 Floor Plan First Story - first story Floor Plan First Story of Multi-Unit Plan #110-1078

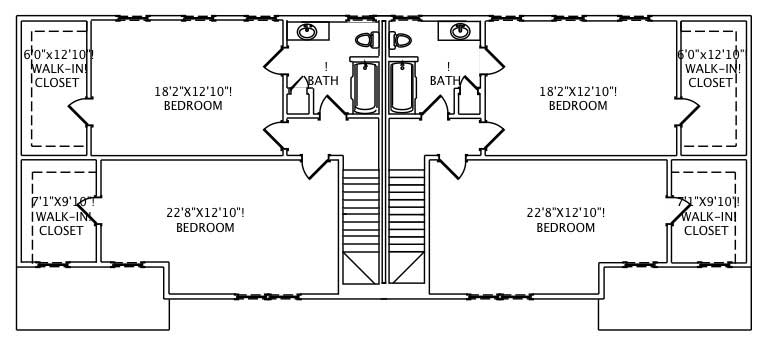

#110-1078 Floor Plan Second Story - second story Floor Plan Second Story of Multi-Unit Plan #110-1078
