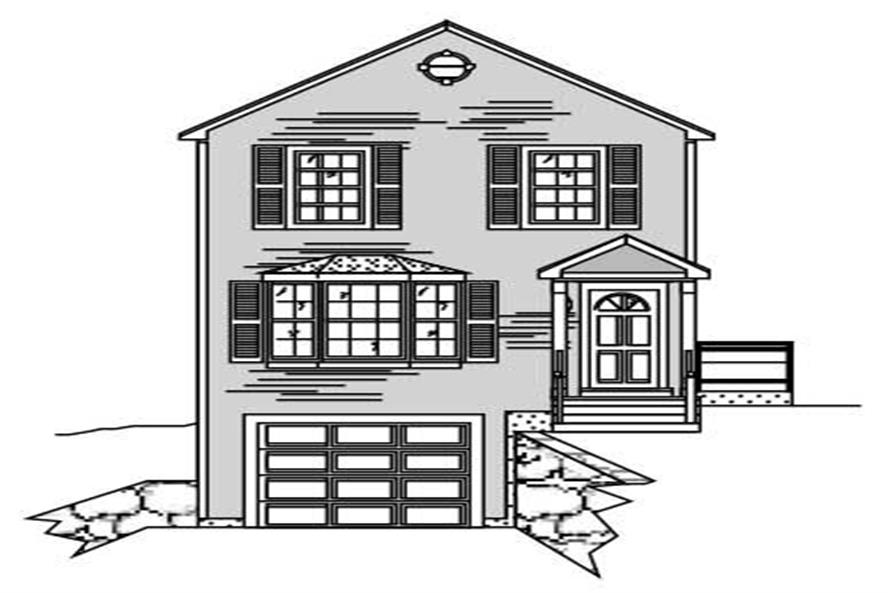

This is a black and white front elevation for these Multi-Unit Homeplans.
3-Bedroom, 3074 Sq Ft Multi-Unit House Plan - 110-1127 - Front Exterior

About Plan # 110-1127

About Plan # 110-1127

3074 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 20' 10" WIDTH 75' 10" DEPTH 1 GARAGE BAY

This duplex would fit perfectly on a narrow building lot.

Each plan set includes the following:

  • ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window sizes.
  • UPPER FLOOR PLAN (if applicable): Same details as the main floor plan.
  • SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Framing plans.
  • Electrical layout.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

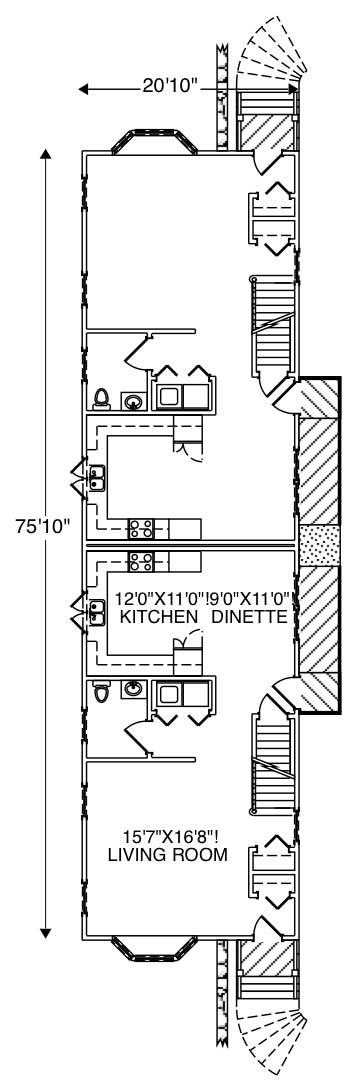

Home Plan: #110-1127 Floor Plan First Story - first story Floor Plan First Story of Multi-Unit Plan #110-1127

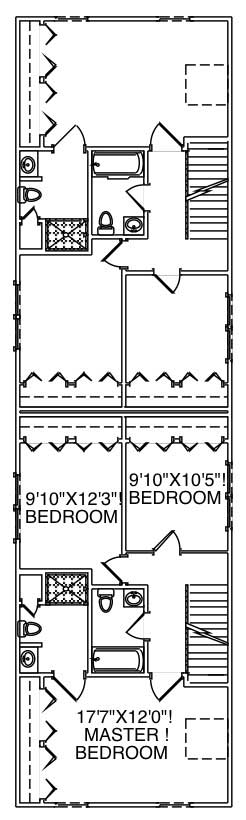

#110-1127 Floor Plan Second Story - second story Floor Plan Second Story of Multi-Unit Plan #110-1127
Home Plan: #110-1127 Floor Plan First Story - first story Floor Plan First Story of Multi-Unit Plan #110-1127
#110-1127 Floor Plan Second Story - second story Floor Plan Second Story of Multi-Unit Plan #110-1127
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 110-1127
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
3074
Main Floor:
789
Upper Floor:
748
Unfinished Sq Ft:

Dimensions

Width:
20' 10"
Depth:
75' 10"
Ridge Height:
25' 8"

Architectural Styles

Duplex/Multi-Unit
Traditional

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Special Feature

Main Level Laundry
Split Bathroom

Garage Type

Attached Garage
Under Main Floor Entry

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Nook/Breakfast Area
Eat-In Kitchen

Porches and Exterior Features

Covered Rear Porch

Master Suite Features

Master Bathroom
Second Floor Master
