3-Bedroom, 3192 Sq Ft Craftsman Plan with Sundeck

Main image for house plan # 13247

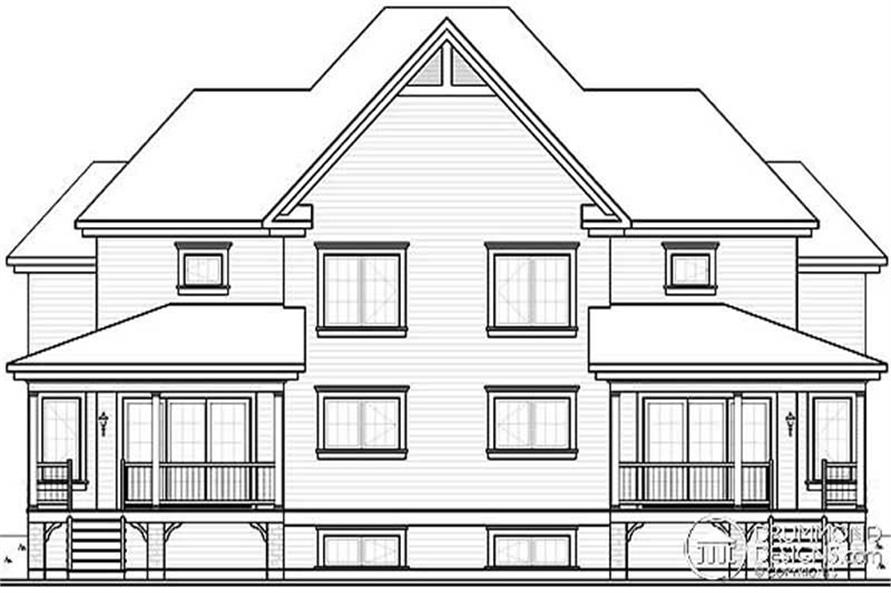

REAR ELEVATION
3-Bedroom, 3192 Sq Ft Craftsman Home Plan - 126-1809 - Main Exterior

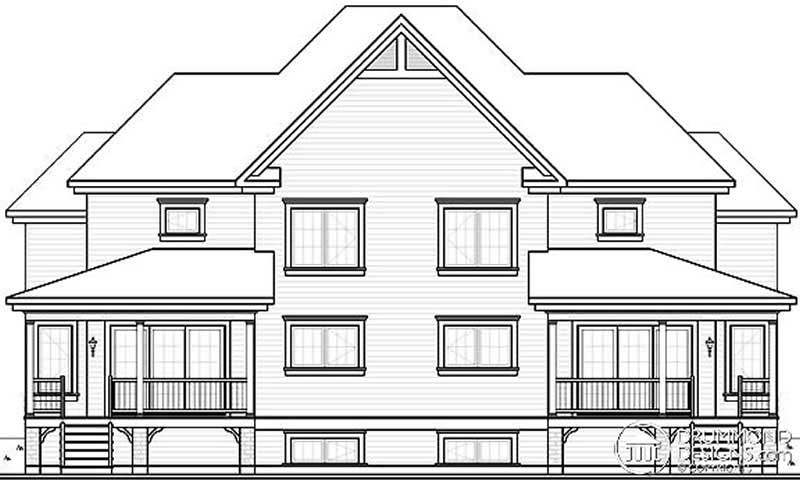

REAR ELEVATION

About Plan # 126-1809

About Plan # 126-1809

3192 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 59' 0" WIDTH 49' 0" DEPTH 2 GARAGE BAY

1st level: Closed foyer, kitchen with island / lunch counter, dining room, family room, half-bath with shower, laundry / mudroom.2nd level: Master bedroom with access to full bathroom, two secondary bedrooms, mezzanine overlooking family room. Covered front and rear balconies. Superb family room with two-story ceiling and original but adequate windowing. Lunch counter island in kitchen. Abundant windowing and triple patio door for plenty of light in dining room. Built-in laundry chute. Three lovely bedrooms on second level with excellent storage and bathroom with closed-in toilet and good-sized shower.

Each plan set includes the following:

  • Exterior elevations
  • Foundation plan
  • Main floor plan
  • Upper floor plan (if applicable)
  • Roof plan
  • Truss diagrams & building sections
  • Construction details
  • Typical wall section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • No Electrical
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

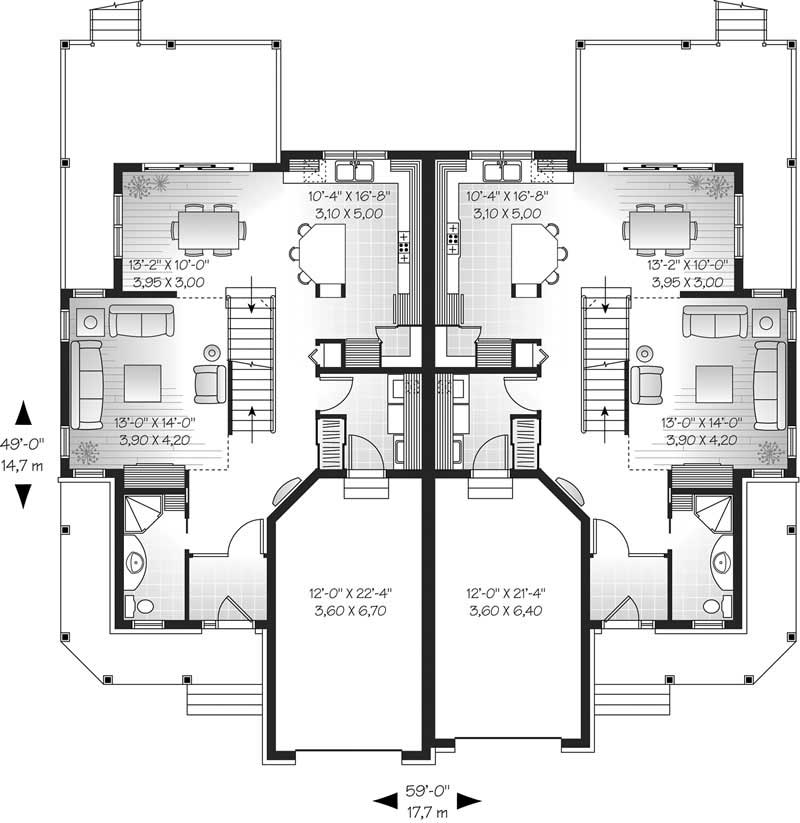

Home Plan: #126-1809 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #126-1809

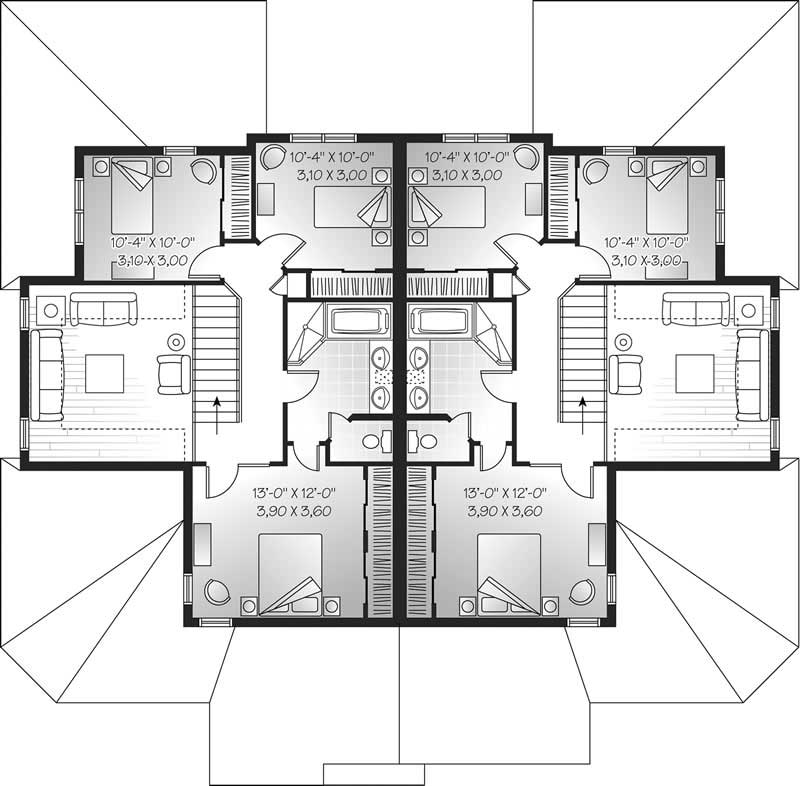

#126-1809 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #126-1809
Home Plan: #126-1809 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #126-1809
#126-1809 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #126-1809
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 126-1809
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
3192
Main Floor:
1760
Upper Floor:
1432
Unfinished Sq Ft:

Dimensions

Width:
59' 0"
Depth:
49' 0"

Architectural Styles

Traditional
Craftsman

Exterior Wall Material

Vinyl Siding
Brick

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room
Family Room

Garage Type

Front Entry

Additional Notes from Designer

BCIN is available for this plan - Please submit a modification request for a FREE quote!


PLEASE NOTE!! This Designer is closed for summer vacation from July 23rd to August 7th, 2022 inclusively. Any orders placed during this time will be processed after August 7th. Due to COVID-19, this designer may take 5-7 additional business days BEFORE plans are sent out, regardless of the type of delivery (express, email, etc). Please keep this in mind when ordering. BCIN is available for this designer - please send in a modification request for cost and timeframe. PLEASE NOTE! This designer's plans do NOT come with an electrical layout. They will provide an electrical layout for an additional fee. Thank you. BCIN is available - Please allow 10 business days to complete!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
