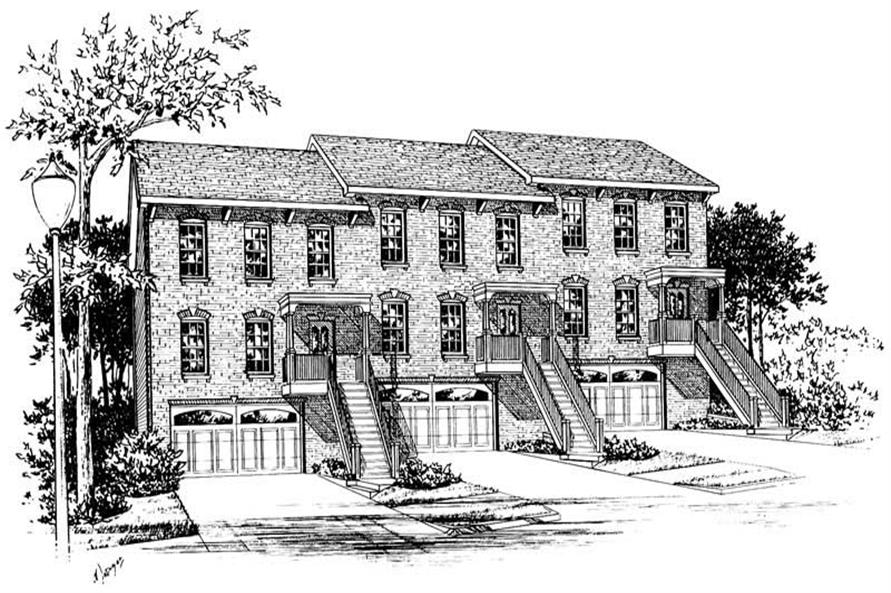

Front elevation of Multi-Unit home (ThePlanCollection: House Plan #120-1836)

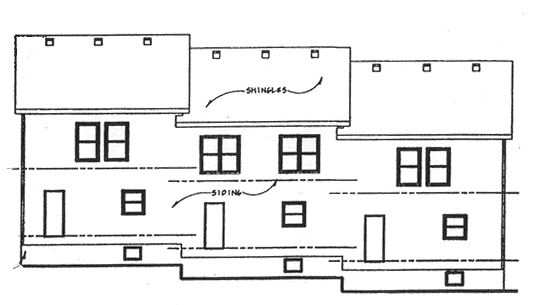

REAR ELEVATION
3-Bedroom, 2929 Sq Ft Multi-Unit Home Plan - 120-1836 - Main Exterior

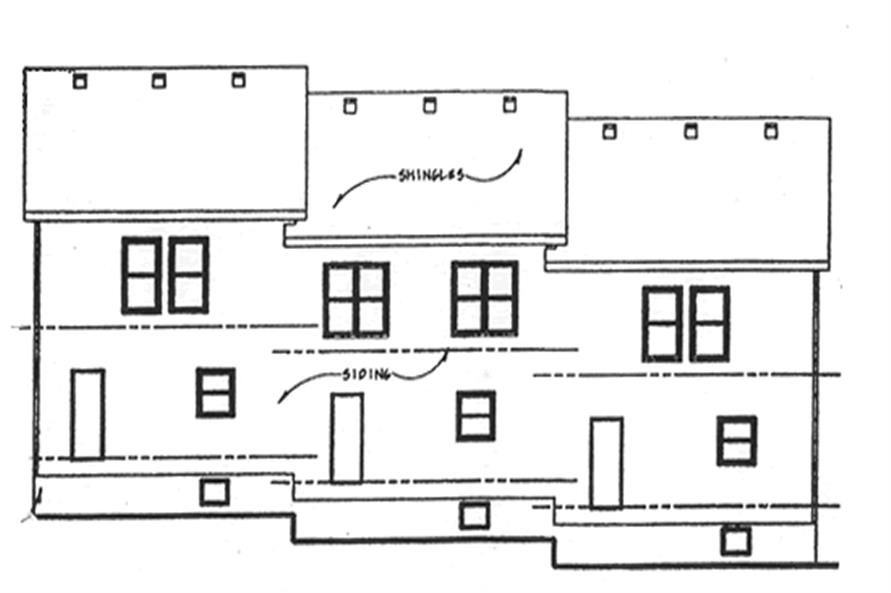

REAR ELEVATION

About Plan # 120-1836

About Plan # 120-1836

2929 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 72' 0" WIDTH 42' 0" DEPTH 2 GARAGE BAY

This well-designed multi-unit design (House Plan #120-1836) has over 2920 square feet of living space. The two story floor plan includes 3 bedrooms.

Most plan sets include the following:

  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are fully engineered for each design, whether slab or basement.
  • Main Level Floor Plan
  • Second Level Floor Plan
  • Electrical layout
  • Wall & Stair Sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

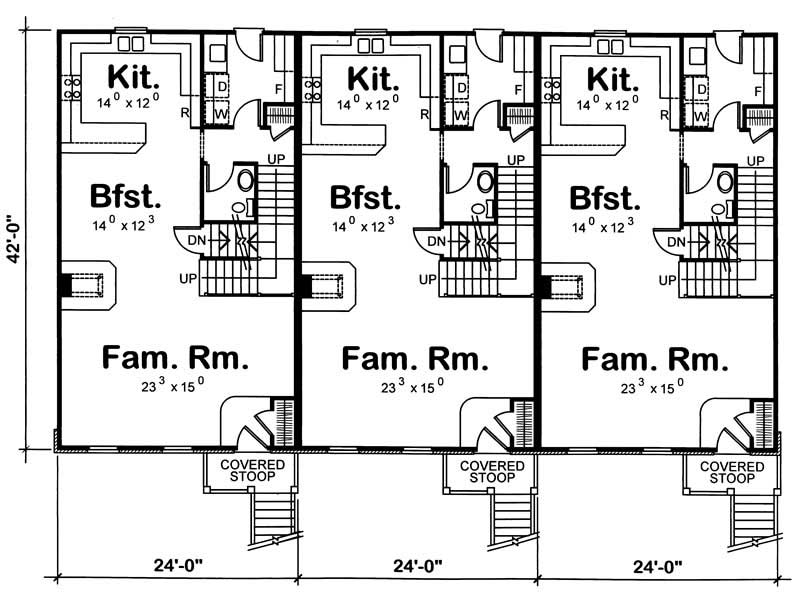

Home Plan: #120-1836 Floor Plan First Story - main Floor Plan First Story of Multi-Unit Plan #120-1836

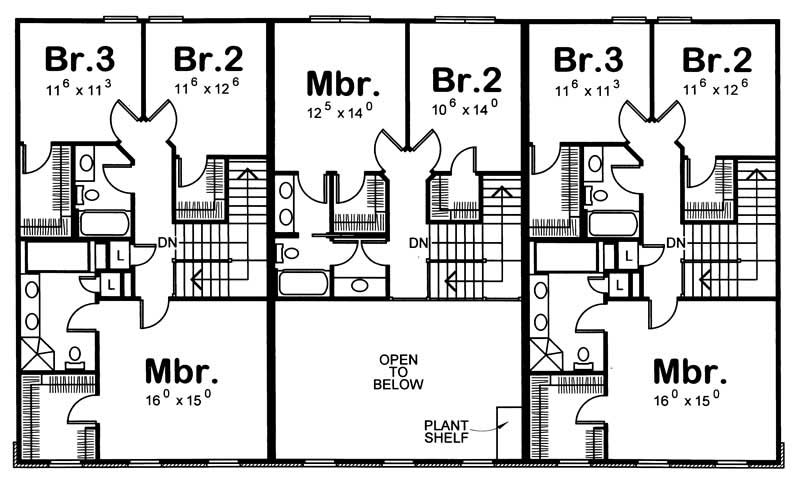

#120-1836 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #120-1836

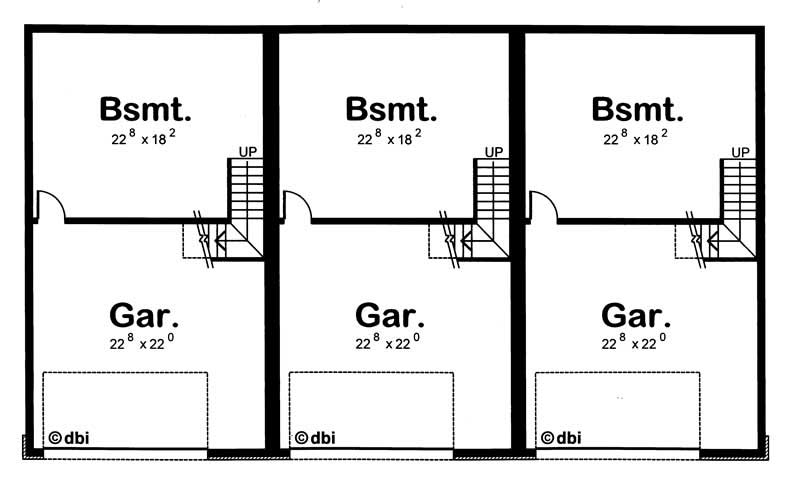

#120-1836 Floor Plan Basement - lower level Floor Plan Basement of Multi-Unit Plan #120-1836
Home Plan: #120-1836 Floor Plan First Story - main Floor Plan First Story of Multi-Unit Plan #120-1836
#120-1836 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #120-1836
#120-1836 Floor Plan Basement - lower level Floor Plan Basement of Multi-Unit Plan #120-1836
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 120-1836
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
2929
Main Floor:
1008
Upper Floor:
1921
Unfinished Sq Ft:

Dimensions

Width:
72' 0"
Depth:
42' 0"

Architectural Styles

Duplex/Multi-Unit
Traditional

Exterior Wall Material

Brick

Roofing Type

Gable

Garage Type

Attached Garage

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
