4-Bedroom, 3447 Sq Ft Contemporary Plan with Fireplace and Mud Room

Contemporary home (ThePlanCollection: Plan #193-1121)
193-1121: Home Plan Rendering
4-Bedroom, 3447 Sq Ft Contemporary House - Plan #193-1121 - Front Exterior
193-1121: Home Plan Rendering

About Plan # 193-1121

About Plan # 193-1121

3447 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 89' 8" WIDTH 71' 9" DEPTH 2 GARAGE BAY

This lovely Contemporary style home with Prairie influences (Plan #193-1121) has 3447 square feet of living space. The 1 story floor plan includes 4 bedrooms, 2 full bathrooms, and 1 half bath.

Each plan set includes the following:

  • FLOOR PLAN(S): Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF OVERVIEW PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • BUILDING SECTIONS AND MISCELLANEOUS DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • KITCHEN AND BATH ELEVATIONS: Showing the kitchen and bath details such as cabinets.
  • ELECTRICAL DIAGRAM: Bird's-eye view of rooms defining the location of lights, fans, switches, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

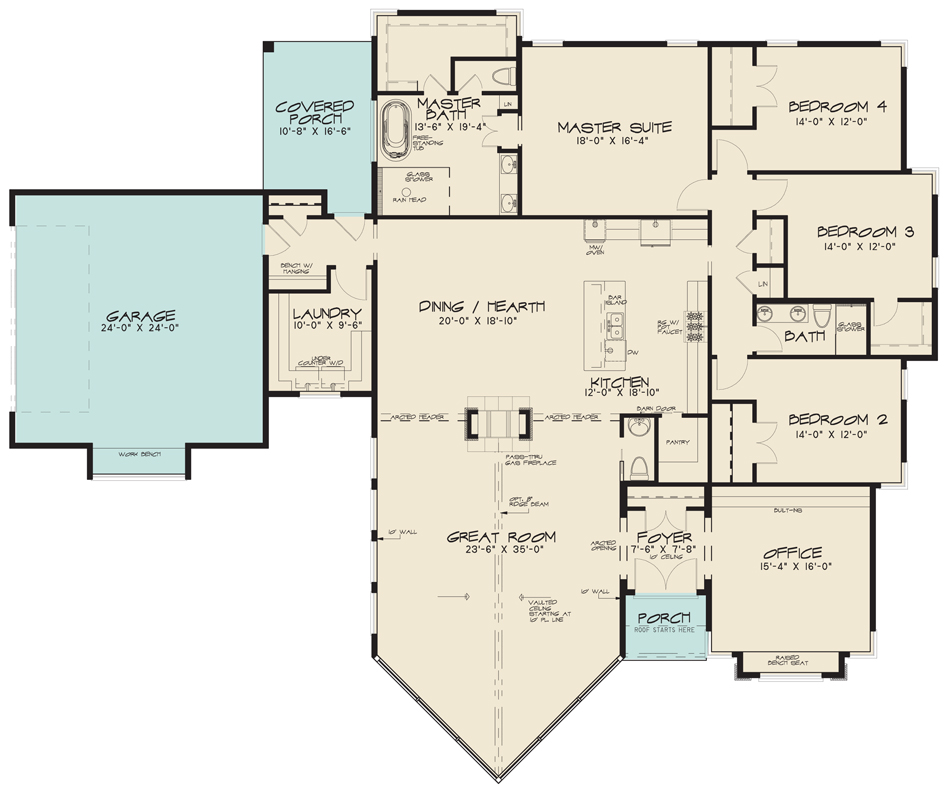

Home Plan: #193-1121 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #193-1121
Home Plan: #193-1121 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #193-1121
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 193-1121
Floors:
1
Bedrooms:
4
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
3447
Main Floor:
3447
Unfinished Sq Ft:
Garage :
645

Dimensions

Width:
89' 8"
Depth:
71' 9"
Ridge Height:
15' 0"

Architectural Styles

California Style
Contemporary
Passive Solar
Prairie
Ranch
Transitional

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

3/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Family Room
Fireplace
Main Level Laundry
Mud Room
Open Floor Plan
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. if you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
