5-Bedroom, 3397 Sq Ft Coastal Plan with Walk In Closet

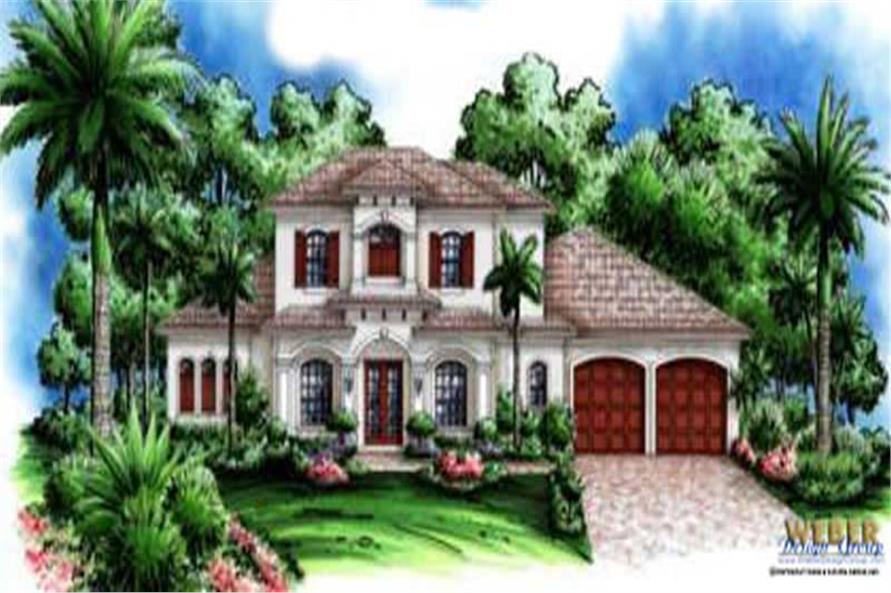

Color Rendering of this house plan
5-Bedroom, 3397 Sq Ft Coastal House Plan - 133-1004 - Front Exterior

About Plan # 133-1004

About Plan # 133-1004

3397 SQUARE FEET 5 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 79' 4" WIDTH 64' 8" DEPTH 3 GARAGE BAY

This 2-story coastal house plan has much to offer; designed with your active lifestyle in mind, the Palermo house plan is open and very livable. The master suite, tucked away and private, is located on the main floor and offers walk-in closets, dual sinks and a large shower. Featuring a pool and spa, the covered and screened lanai provides an area for outdoor family activities and includes convenient entry to the pool bath. This outdoor area of this coastal house plan is accessed from the master suite, breakfast nook and a great room with volume ceilings. A spacious island kitchen, with eating bar, offers beautiful views to the outdoors. Upstairs, you will find a loft with convenient wet bar, 2 additional bedrooms and a shared bath. An extra large garage, perfect for RV parking or a workshop, completes this functional design. A perfect coastal house plan for your coastal lot.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

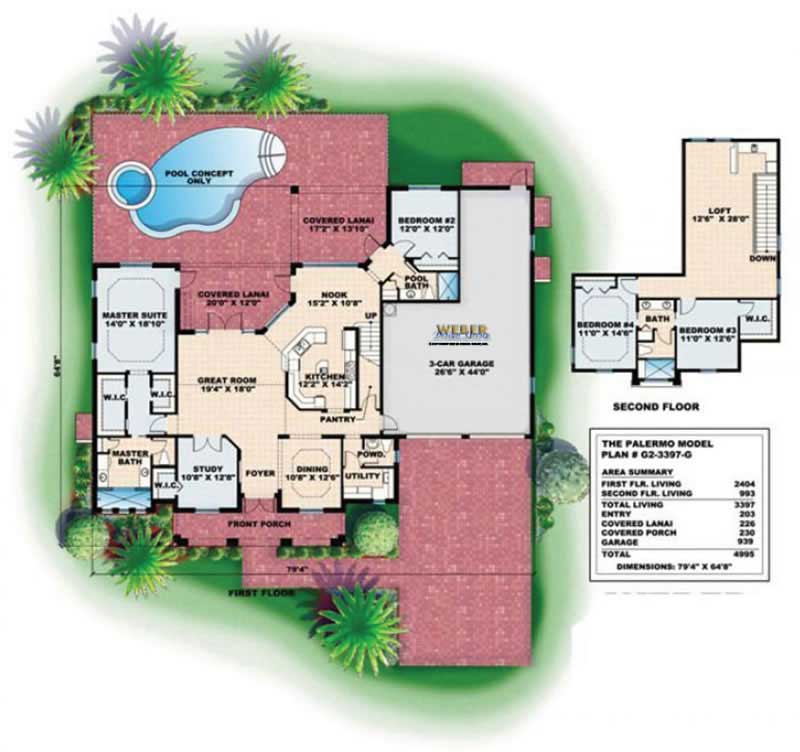

FLOOR PLANS Flip Images

Home Plan: #133-1004 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #133-1004
Home Plan: #133-1004 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #133-1004
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 133-1004
Floors:
2
Bedrooms:
5
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
3397
Main Floor:
2404
Upper Floor:
993
Unfinished Sq Ft:
Garage :
939

Dimensions

Width:
79' 4"
Depth:
64' 8"
Ridge Height:
27'6"' 0"

Architectural Styles

Beachfront
Coastal
Concrete Block/ ICF Design
Mediterranean

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

5/12

Special Feature

Library
Loft
Main Level Laundry

Garage Type

Front Entry

Exterior Wall Framing

Concrete

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
