5-Bedroom, 3522 Sq Ft Luxury Plan with Kitchen Island

This is an artist's colored rendering of these Mediterranean House Plans.
5-Bedroom, 3500 Sq Ft Luxury Home Plan - 100-1013 - Main Exterior

About Plan # 100-1013

About Plan # 100-1013

3500 SQUARE FEET 5 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 70' 4" WIDTH 75' 8" DEPTH 3 GARAGE BAY

The #100-1013 is truly a one-of-a-kind Luxury plan with a very smart layout and sprawling 2-story living spaces. You really ought to check it out!

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

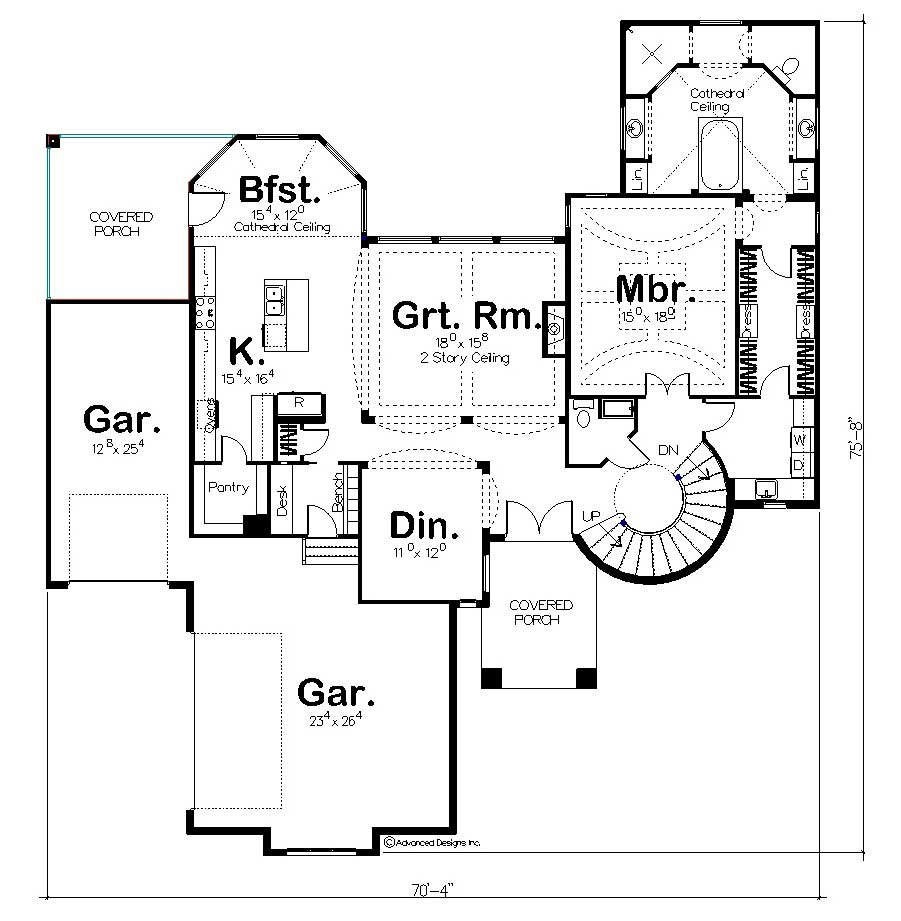

Home Plan: #100-1013 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #100-1013

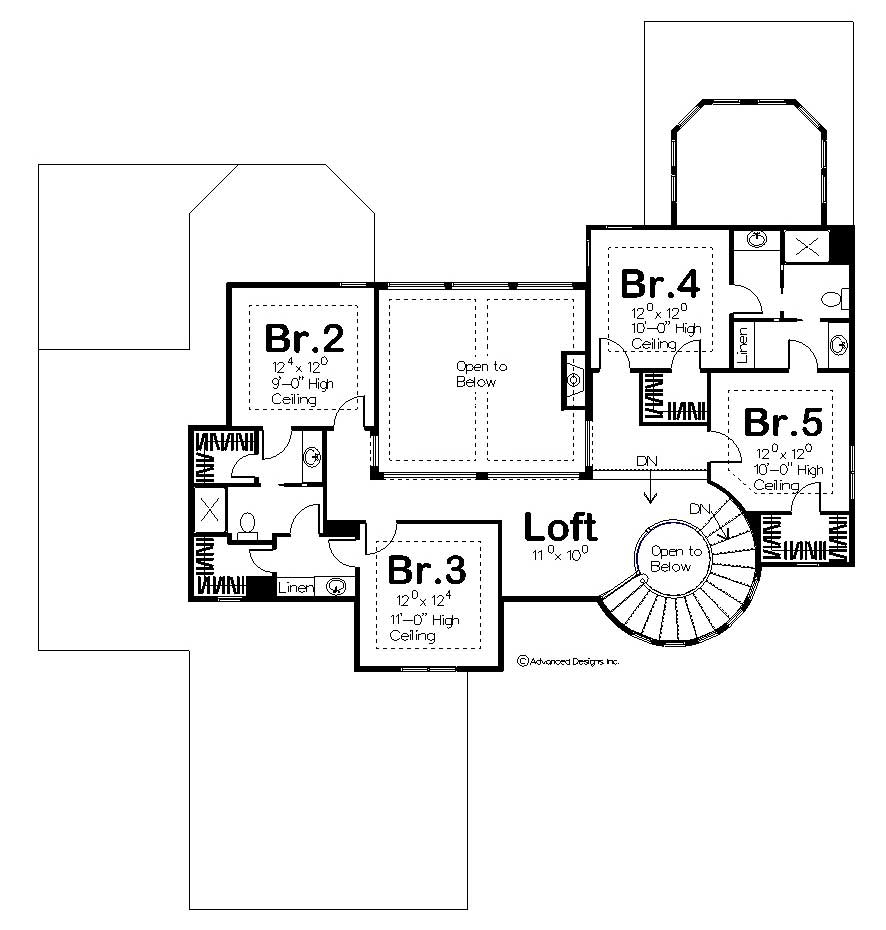

#100-1013 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #100-1013
Home Plan: #100-1013 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #100-1013
#100-1013 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #100-1013
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 100-1013
Floors:
2
Bedrooms:
5
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
3500
Main Floor:
2156
Upper Floor:
1344
Unfinished Sq Ft:

Dimensions

Width:
70' 4"
Depth:
75' 8"
Ridge Height:
29' 0"

Architectural Styles

Mediterranean
Luxury

Exterior Wall Material

Stucco
Rock/Stone

Roofing Material

Asphalt Shingles

Roof Pitch

4/12
6/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Fireplace
Dining Room
Mud Room
Main Level Laundry
Loft
Split Bathroom
Vaulted Ceilings

Garage Type

Attached Garage
Courtyard Entry
Front Entry

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

The CAD File formats are drawn in SoftPlan. PLEASE NOTE: Plans by this designer do NOT come with FRAMING!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.
