4-Bedroom, 3291 Sq Ft Colonial Plan with Sitting Area

Main image for house plan # 17071
101-1045: Home Exterior Photograph
101-1045: Home Exterior Photograph
101-1045: Home Interior Photograph
101-1045: Home Interior Photograph-Dining Room
101-1045: Home Interior Photograph-Kitchen
101-1045: Home Interior Photograph-Living Room
101-1045: Home Interior Photograph
101-1045: Home Interior Photograph-Master Bedroom
4-Bedroom, 3291 Sq Ft Colonial House Plan - 101-1045 - Front Exterior
101-1045: Home Exterior Photograph
101-1045: Home Exterior Photograph
101-1045: Home Interior Photograph
101-1045: Home Interior Photograph-Dining Room
101-1045: Home Interior Photograph-Kitchen
101-1045: Home Interior Photograph-Living Room
101-1045: Home Interior Photograph
101-1045: Home Interior Photograph-Master Bedroom

About Plan # 101-1045

About Plan # 101-1045

3291 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 79' 0" WIDTH 55' 0" DEPTH 4 GARAGE BAY

This beautiful two-story luxury home has a delightful combination of brick, stone and siding facade. The kitchen has an island great for eating a quick meal on, and opens into a spacious nook. The great room is large with two-story ceiling and huge windows that allow an abundance of light in. To the left of the great room is the sunroom or den, a great atmosphere for relaxing or for after hour work. The master bedroom is located on the main floor and offers a walk in closet with full bathroom. When walking up stairs you will be taken back by the breathtaking view of the great room and the entrance below. While touring upstairs you will enjoy three sizable bedrooms and a full bathroom, great for the children or overnight guests.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.

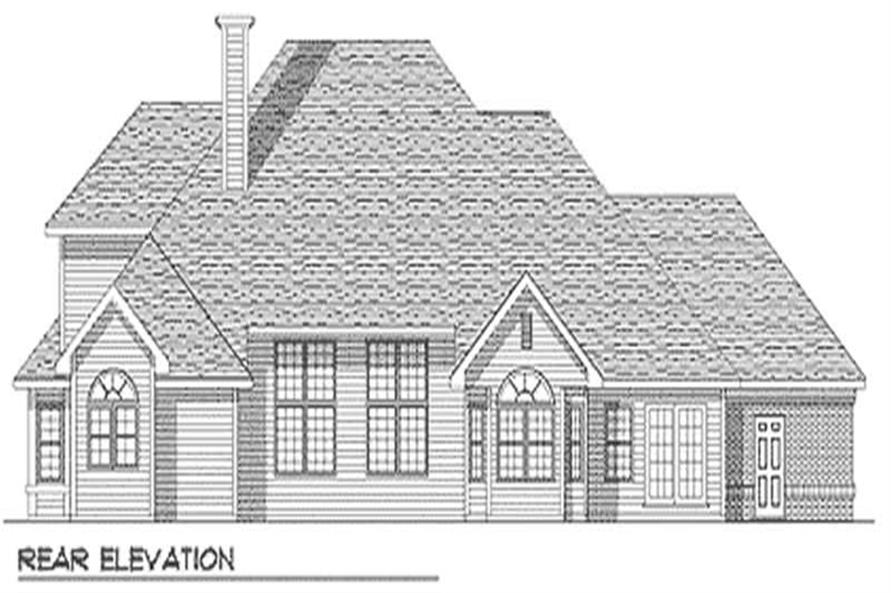

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

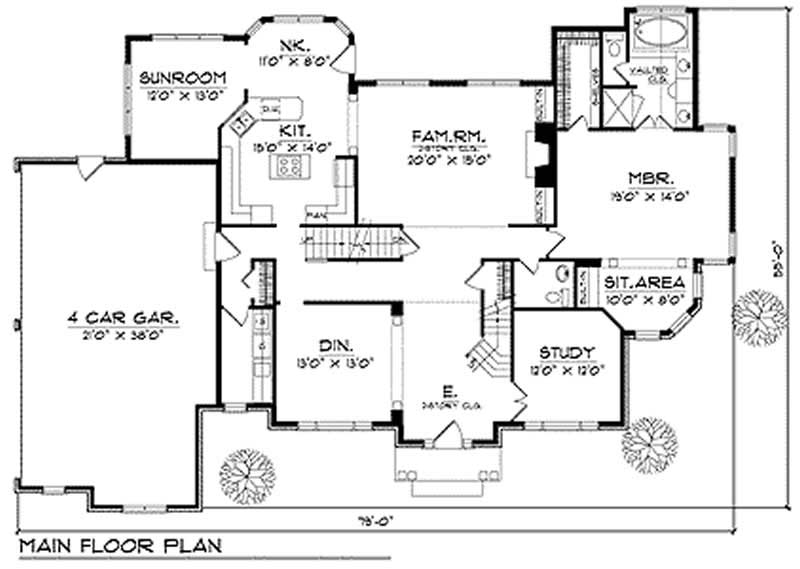

Home Plan: #101-1045 Floor Plan First Story - main Floor Plan First Story of Colonial Plan #101-1045

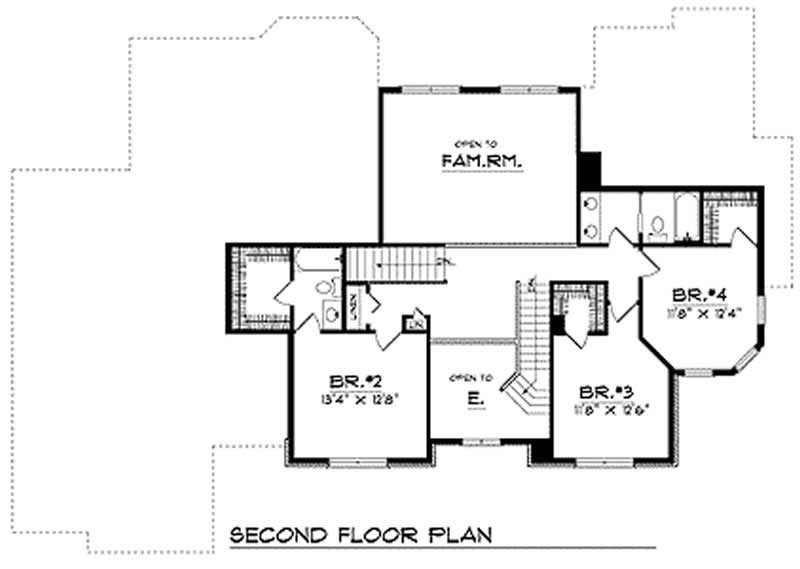

#101-1045 Floor Plan Second Story - second Floor Plan Second Story of Colonial Plan #101-1045
