4-Bedroom, 3276 Sq Ft Florida Style Plan with Nook/Breakfast Area

Front elevation of Florida Style home (ThePlanCollection: House Plan #107-1019)

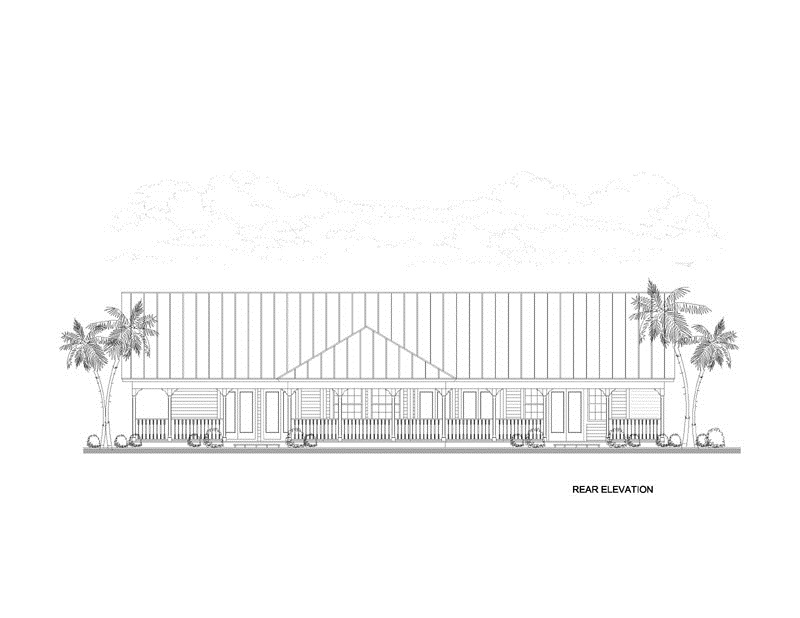

107-1019: Home Plan Rear Elevation

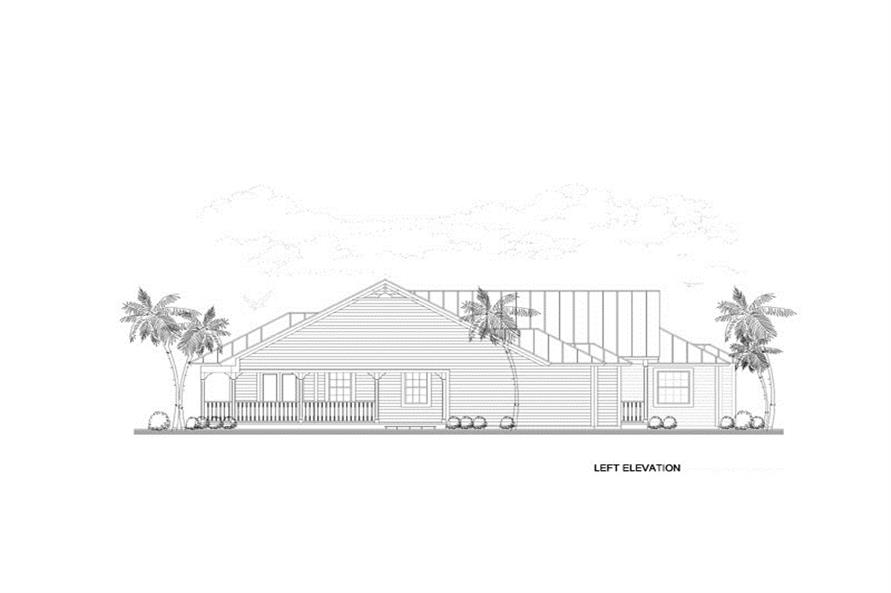

107-1019: Home Plan Left Elevation

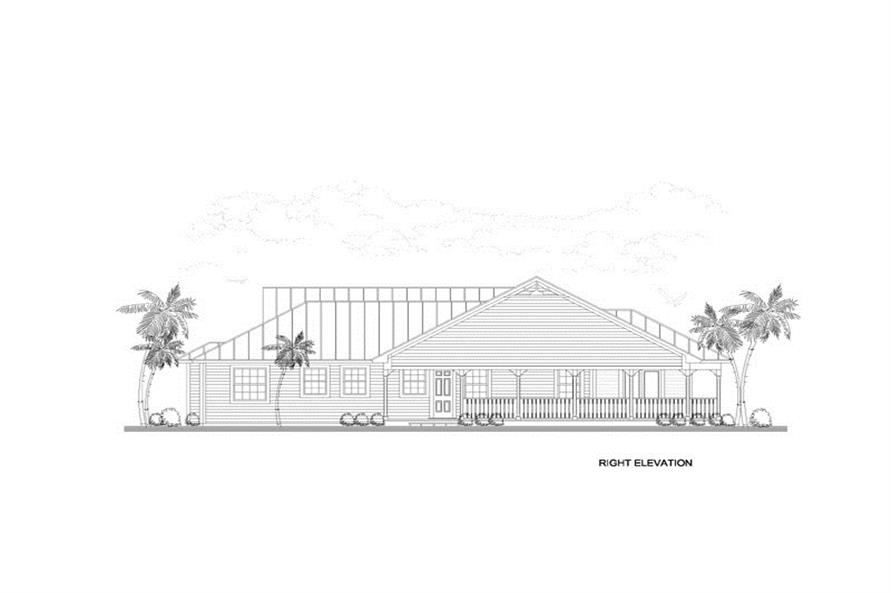

107-1019: Home Plan Right Elevation

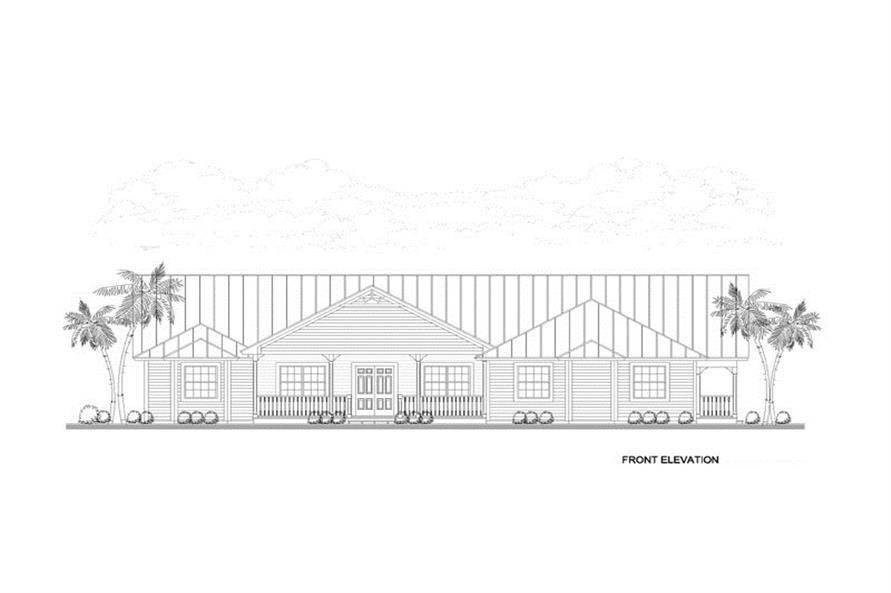

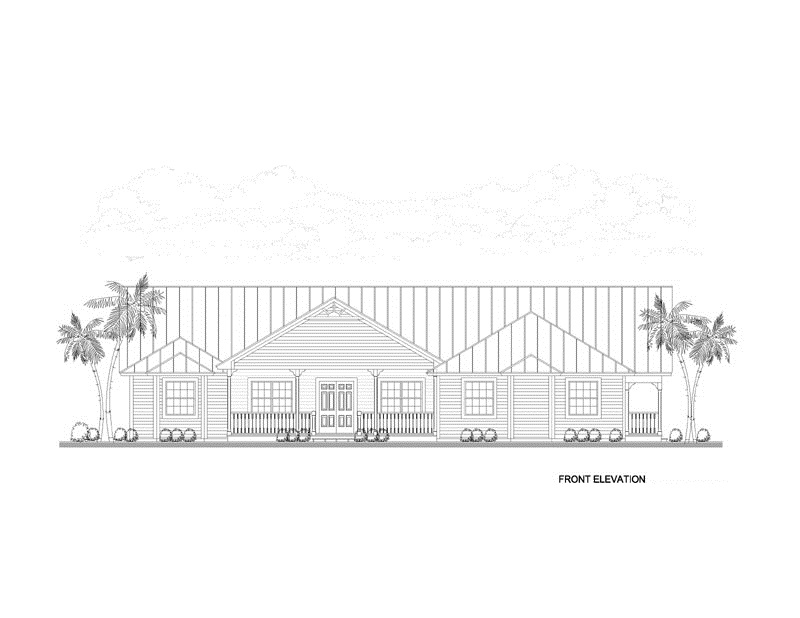

107-1019: Home Plan Front Elevation
4-Bedroom, 3276 Sq Ft Florida Style House Plan - 107-1019 - Front Exterior

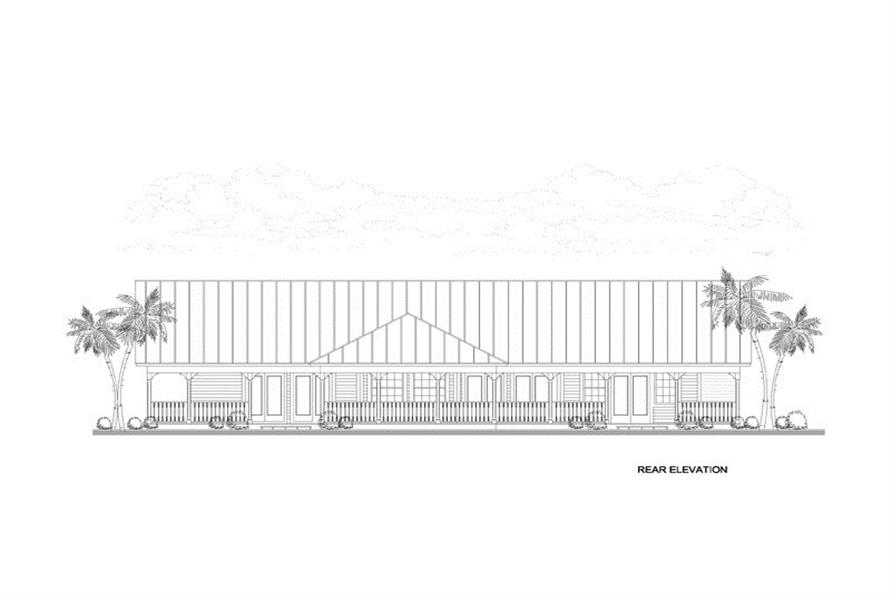

107-1019: Home Plan Rear Elevation
107-1019: Home Plan Left Elevation

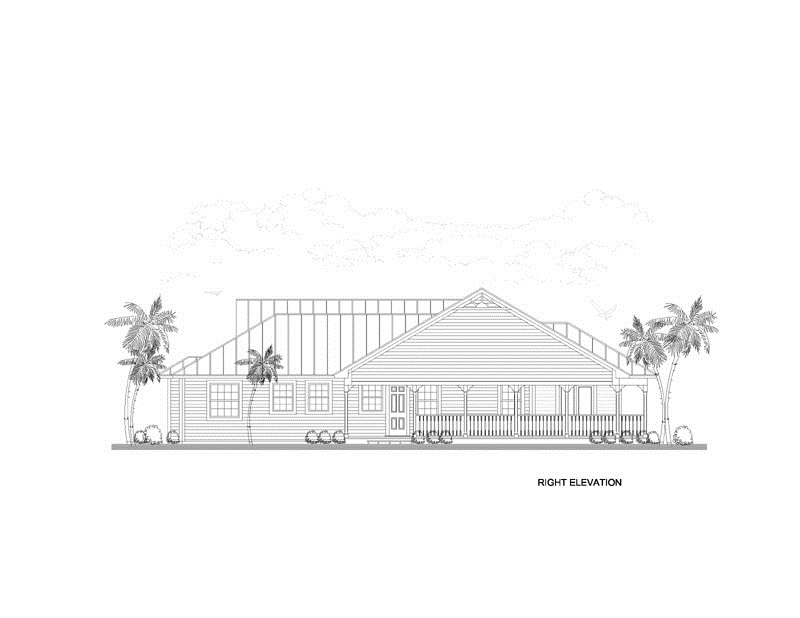

107-1019: Home Plan Right Elevation
107-1019: Home Plan Front Elevation

About Plan # 107-1019

About Plan # 107-1019

3276 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 82' 2" WIDTH 73' 10" DEPTH 0 GARAGE BAY

A stunning Florida style luxury house plan. There are many walk-in closets and other areas for storage. Also, the front and back patios allow for grilling and other outdoor entertainment.

Home Plan Features: Concrete block exterior construction; Covered Porch with columns; Foyer and open to Dining and Living Rooms; Dining Room; Living Room with vaulted ceiling and French doors to Rear Porch; Kitchen with island counter and open to Cafe - both with vaulted ceilings; Family Room with vaulted ceiling and French doors to Rear Porch; Den with French doors; Master suite with pocket door entry from Den, two walk-in closets and access to Rear Porch; Master Bath with corner shower, whirlpool tub and split vanities; Play Room; Bedrooms 2, 3, and 4 with walk-in closets and private bath access.

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

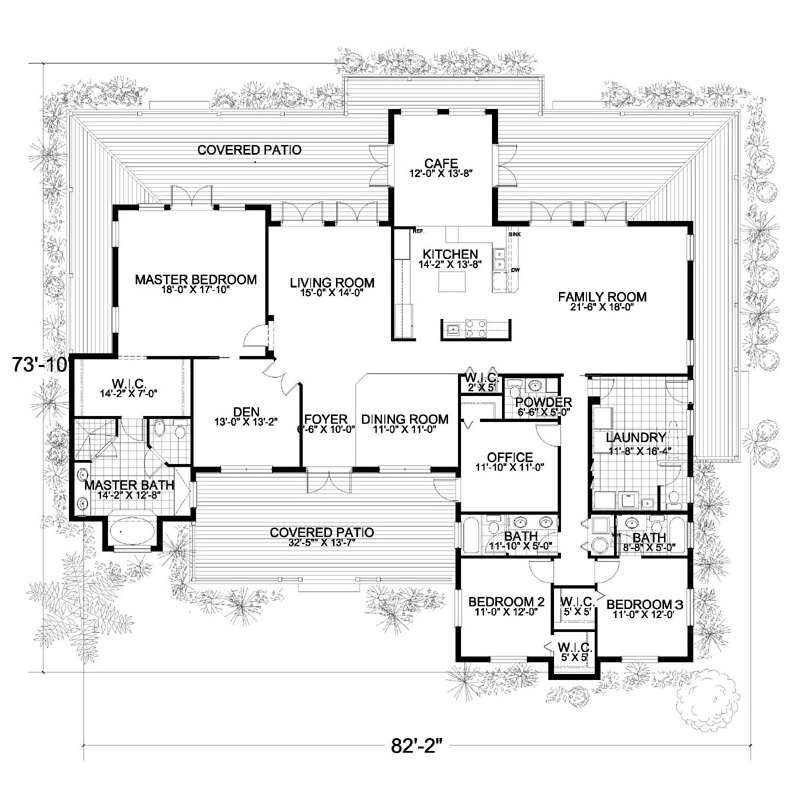

Home Plan: #107-1019 Floor Plan First Story - main level Floor Plan First Story of Florida Style Plan #107-1019
