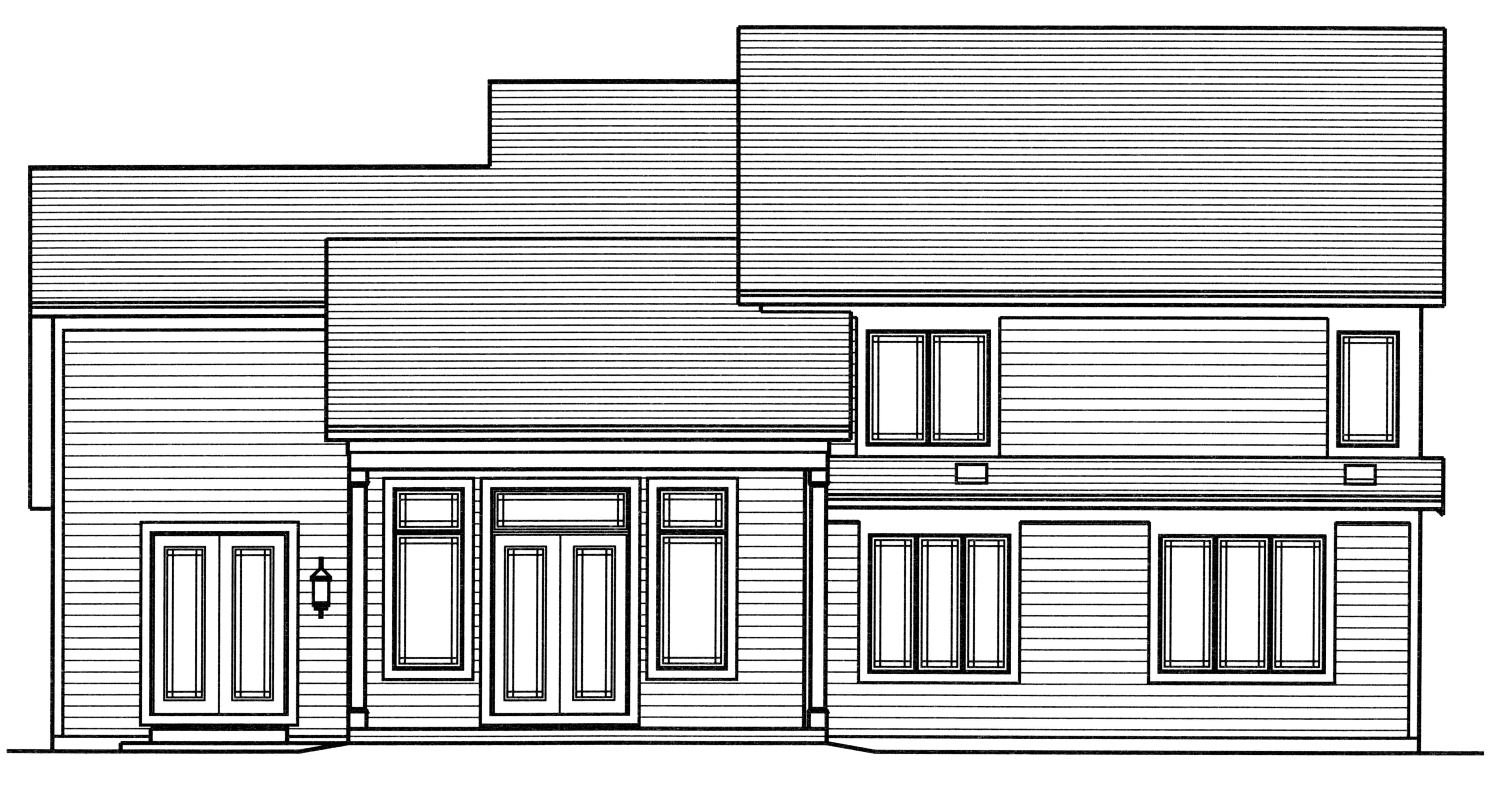

169-1114: Home Plan Rear Elevation

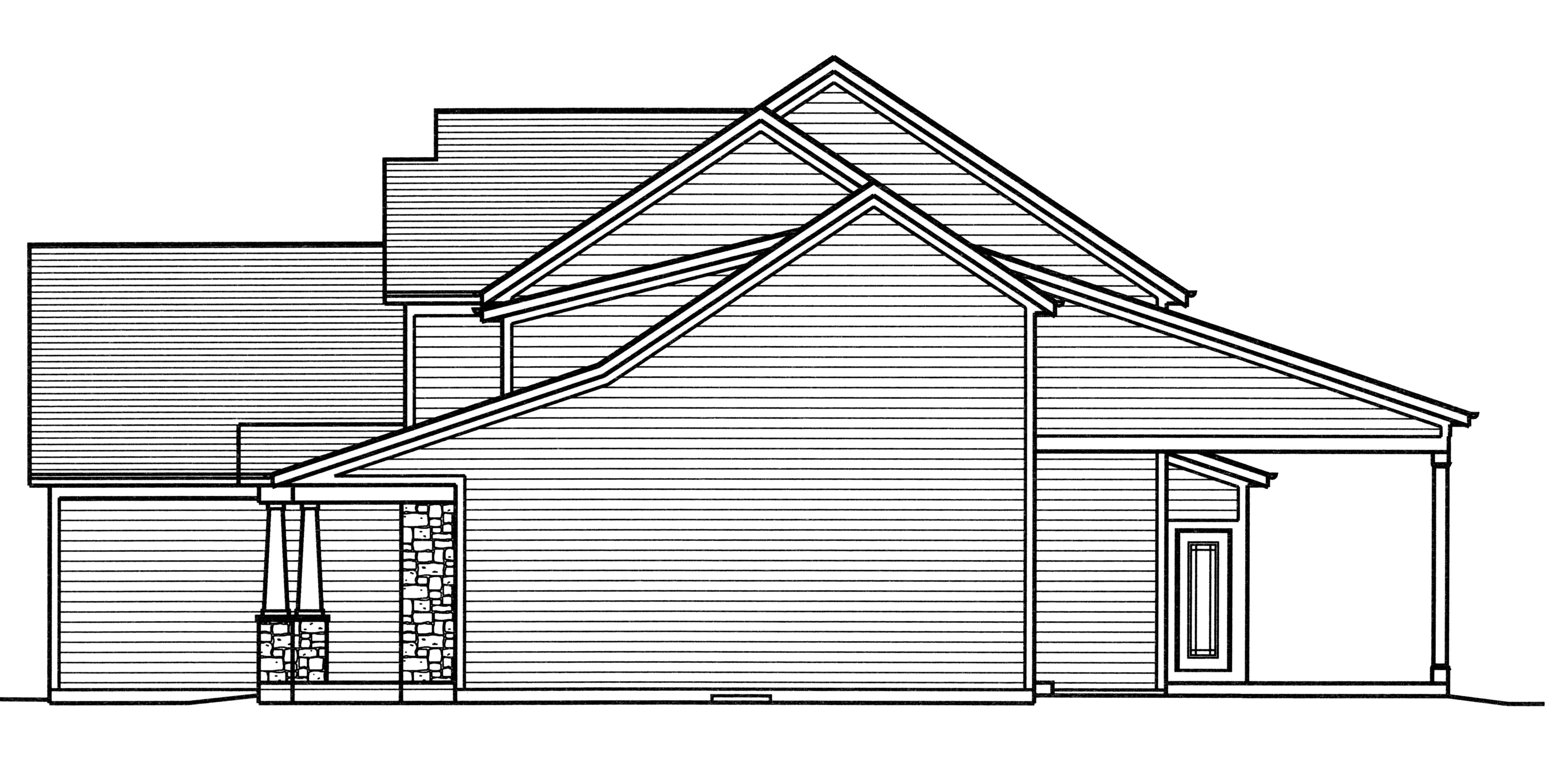

169-1114: Home Plan Left Elevation

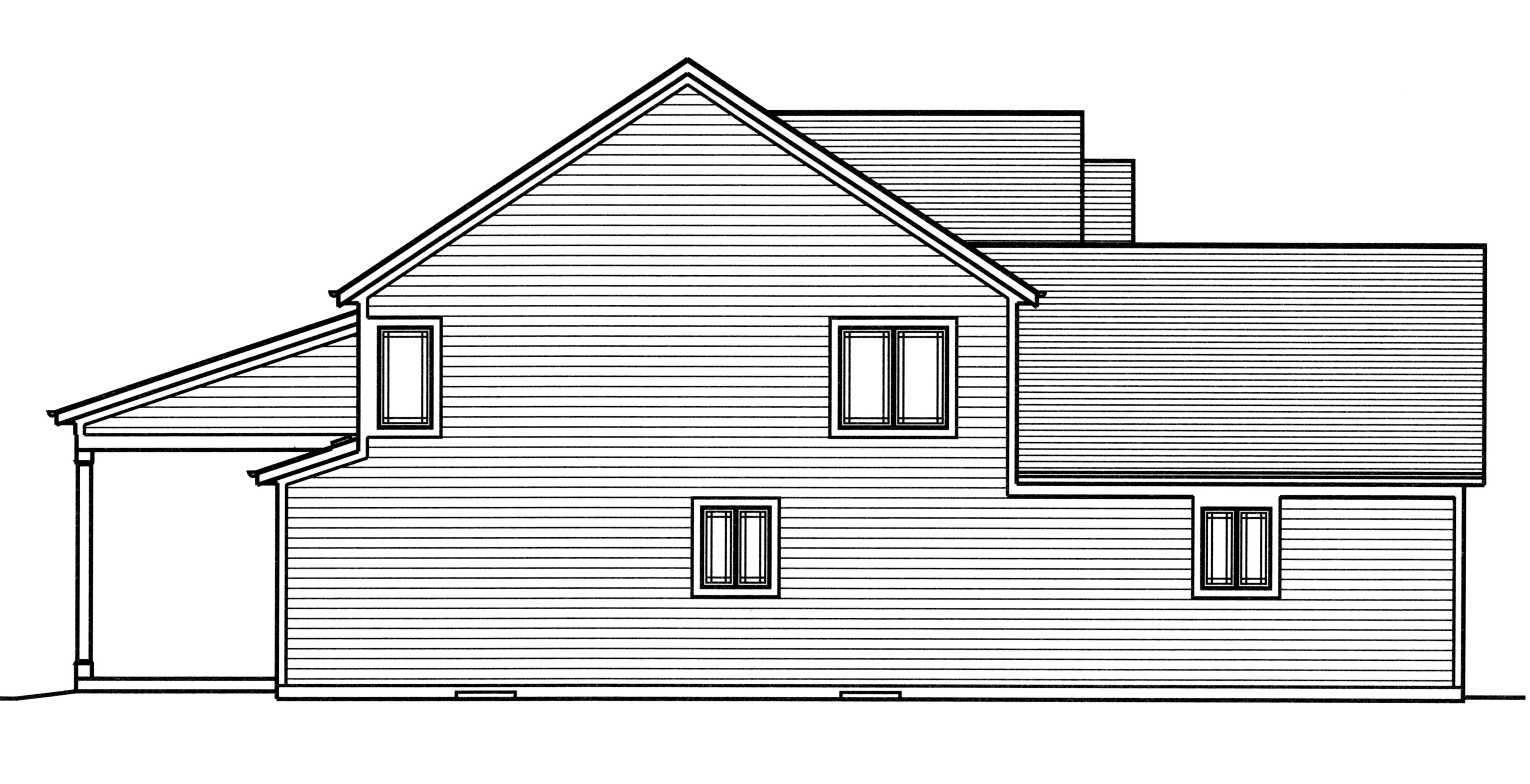

169-1114: Home Plan Right Elevation
4-Bedroom, 3250 Sq Ft Luxury House Plan - 169-1114 - Front Exterior
169-1114: Home Plan Rear Elevation
169-1114: Home Plan Left Elevation
169-1114: Home Plan Right Elevation

About Plan # 169-1114

About Plan # 169-1114

3250 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 60' 0" WIDTH 69' 0" DEPTH 2 GARAGE BAY

This lovely Luxury style home with Craftsman influences (House Plan #169-1114) has 3250 square feet of living space. The 2 story floor plan includes 4 bedrooms.

Each plan set includes the following:

  • General notes and specifications
  • Front, rear and side elevations (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction method
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

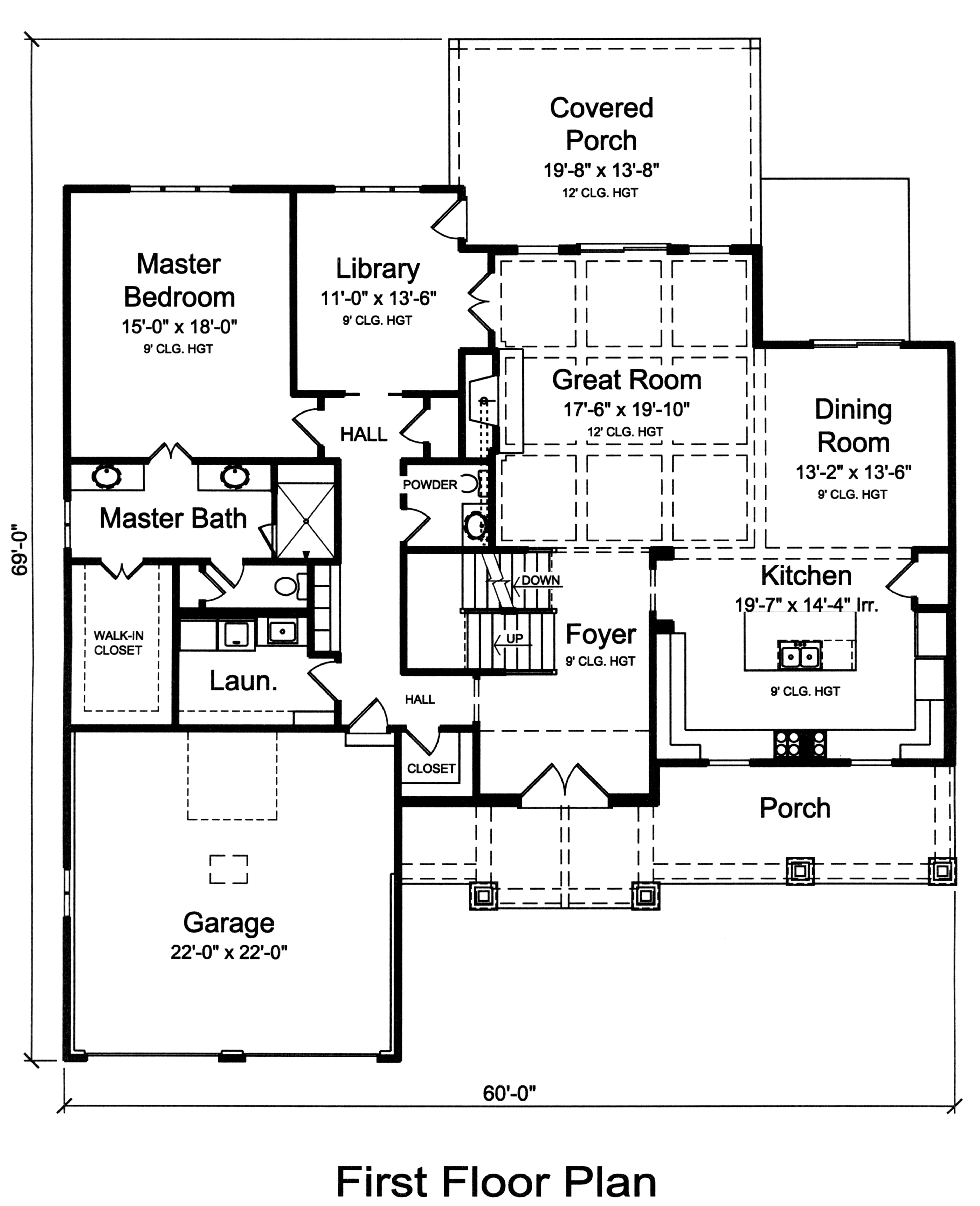

Home Plan: #169-1114 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #169-1114

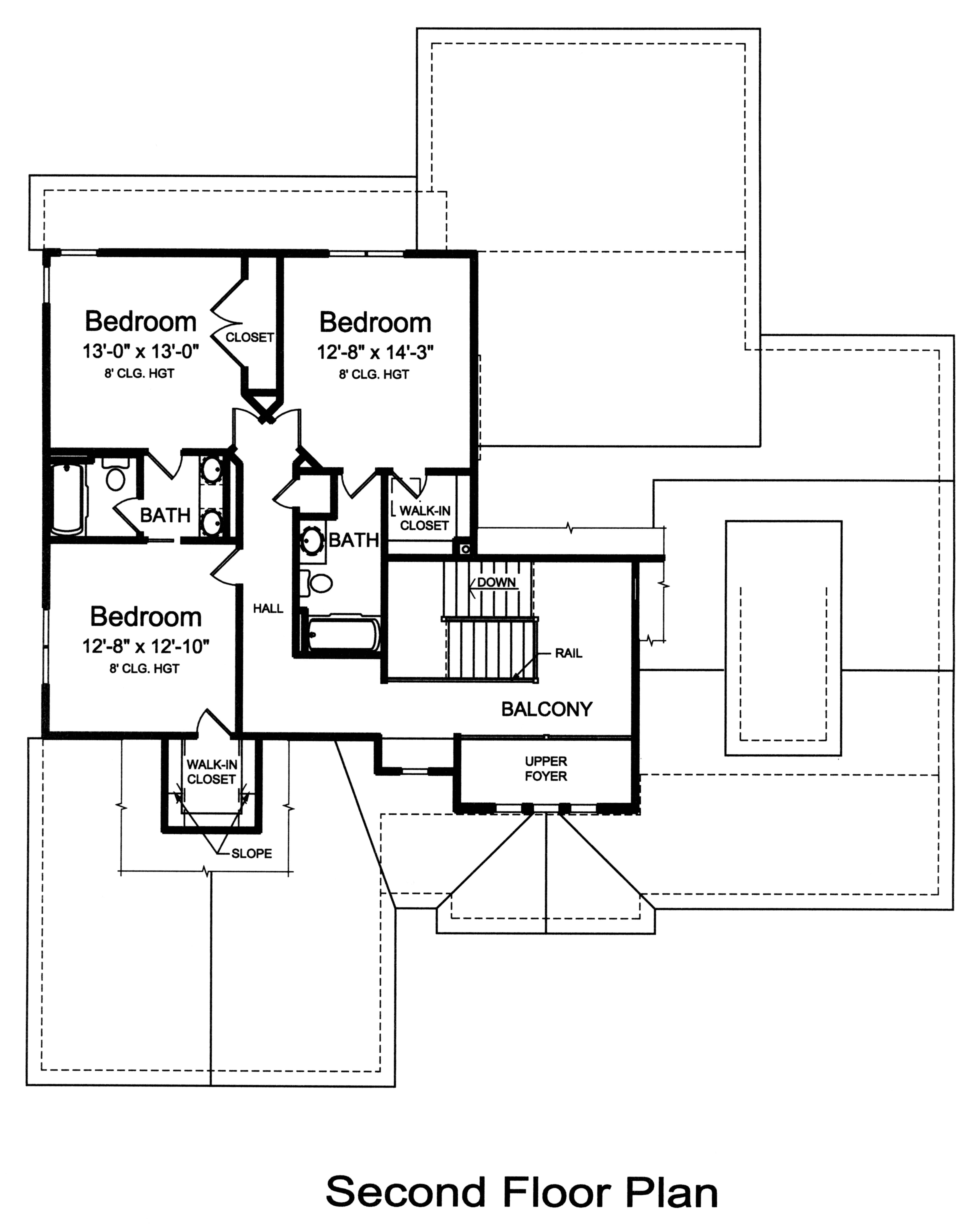

#169-1114 Floor Plan Second Story - upper level Floor Plan Second Story of Luxury Plan #169-1114

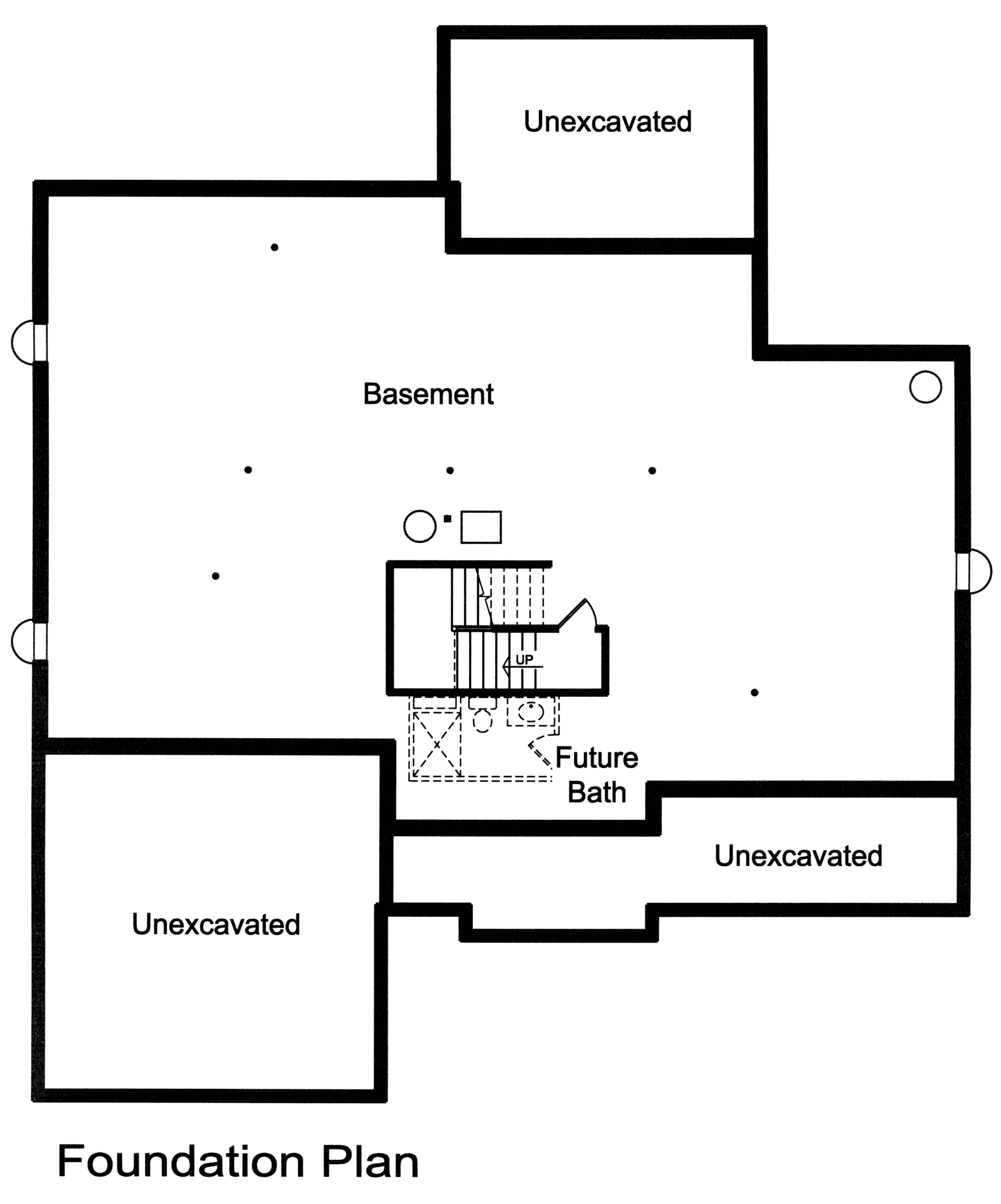

#169-1114 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #169-1114
Home Plan: #169-1114 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #169-1114
#169-1114 Floor Plan Second Story - upper level Floor Plan Second Story of Luxury Plan #169-1114
#169-1114 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #169-1114
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 169-1114
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
3250
Main Floor:
2116
Upper Floor:
1134
Lower Floor:
2116
Unfinished Sq Ft:
Porch :
565

Dimensions

Width:
60' 0"
Depth:
69' 0"
Ridge Height:
32' 0"

Architectural Styles

Country
Luxury
Craftsman

Exterior Wall Material

Rock/Stone

Roof Pitch

8/12
11/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling
12 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Library
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE: 5 sets and 8 sets include a PDF as well.

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

For use by design professionals. This file may be available. Please call or email us first so we can confirm for you. This set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
