4-Bedroom, 3091 Sq Ft Craftsman Plan with Master Bathroom
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 3091 SQUARE FEET | 4 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 77' 8" WIDTH | 72' 4" DEPTH | 3 GARAGE BAY |
Elegance shines from this two-story, four-bedroom home. A cozy fireplace surrounded by built-in cabinets and a wall of windows brighten the living room. The efficient kitchen features an island and an eating bar and is open to both the fireplace-warmed nook/sunroom and the formal dining room. A laundry room, half bath, and three-car garage are located just off the kitchen. When you have work to do, retire to the secluded study. The main-floor master suite boasts a cathedral ceiling, two walk-in closets, and a luxurious private bath. There are three additional bedrooms in the home; the two upstairs share a bath and the one on the main floor has its own private bath.
Each plan set includes the following:
- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

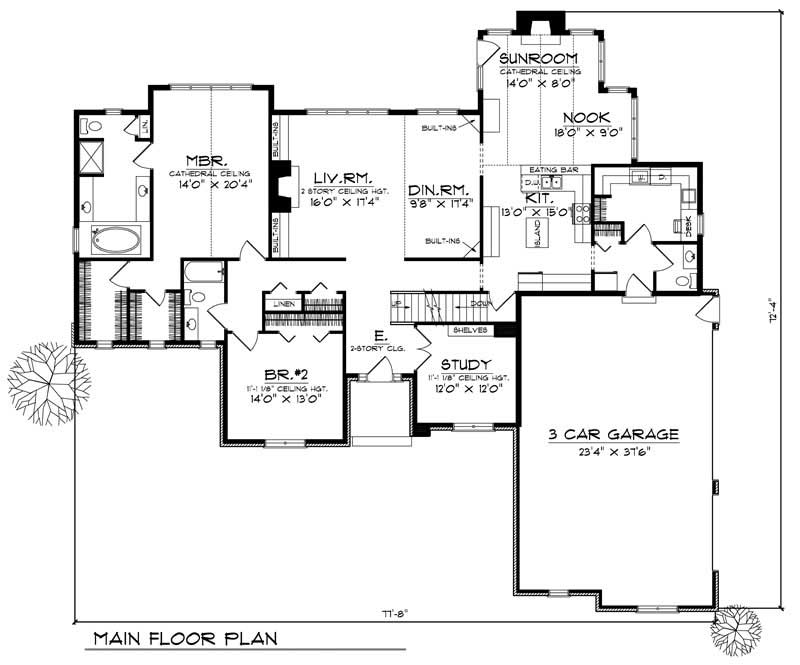

Home Plan: #101-1618 Floor Plan First Story
-
main
![Floor Plan First Story of Craftsman Plan #101-1618]( "MAIN FLOOR PLAN")

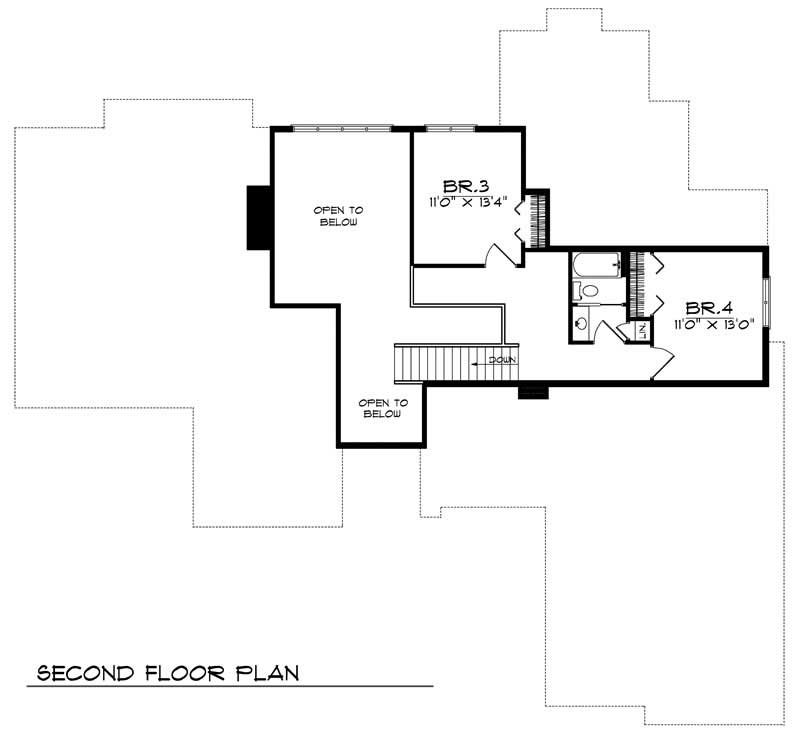

#101-1618 Floor Plan Second Story
-
