4-Bedroom, 3078 Sq Ft Ranch Plan with Sitting Area

About House Plan #156-1066

3078

Sq Ft

4

Bedrooms

3

Baths

0

Half Baths

2

Cars

1

Stories

50' 0'

Width

106

Depth

Starting at$1000.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

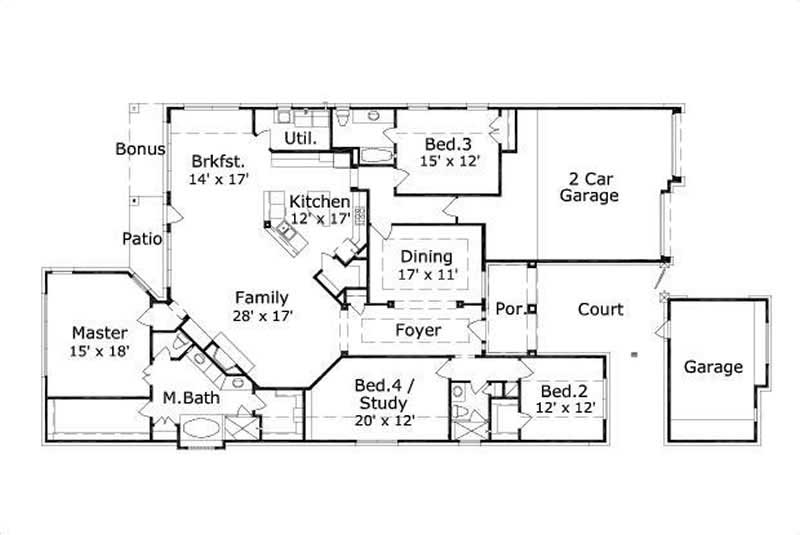

FIRST STORY FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

CAD files may take up to 3 business days to receive - please contact us for availability.

House Plan Description

Home plan number 40930 is a single story, Traditional style home with a total square footage of 3,078. There are 4 bedrooms and 3 bathrooms, along with a split entry, front loading, 3 car garage. The master bedroom includes a sitting area and seperate closets. Plan number 40930 has a covered front porch and rear porch. Special features include an entry courtyard, garden court, morning room, unfinished storage and a foyer.

Home Details

Summary

Plan #:156-1066

Starting at:$1000.00

Floors:1

Bedrooms:4

Full Baths:3

Half Baths:0

Garage:

Square Footage

Heated Area:3078 Sq. Ft.

First Floor:3078 Sq. Ft.

Unheated Area:

Dimensions

Ridge Height:29' 0''

Architectural Styles

Traditional Texas Style

Exterior Wall Material

BrickStucco

Ceiling Height

10 Foot Ceiling

Garage Type

Attached GarageSide EntryFront Entry

Porches and Exterior Features

CourtyardCovered Front Porch

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Exterior,

Elevations

Floor Plans

Electrical Layout

Building Sections

Roofing Plan

Interior Elevations

General Details

Wall Sections

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
