4-Bedroom, 2869 Sq Ft Craftsman Plan with Master Bathroom

This is a colorful rendering of these Tudor Craftsman Homeplans.

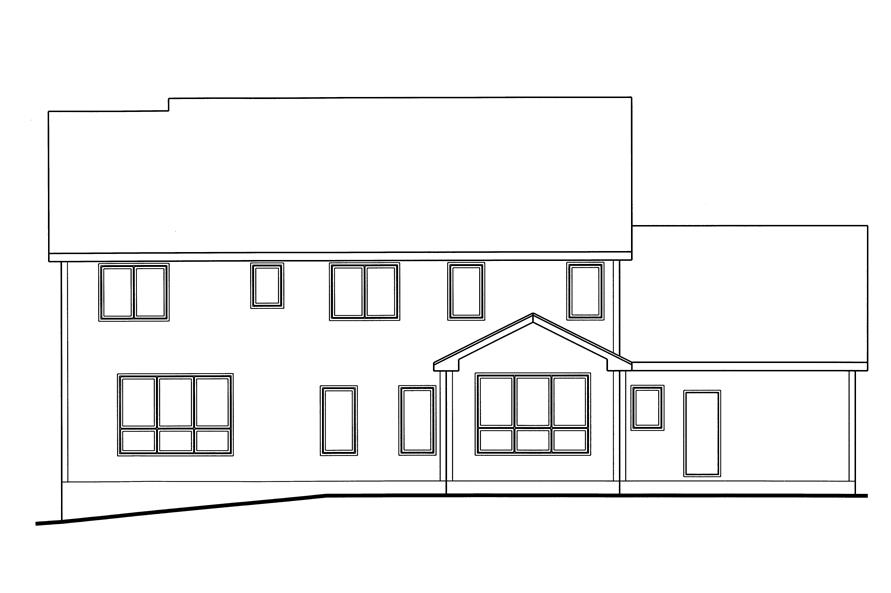

Home Plan Rear Elevation
4-Bedroom, 2869 Sq Ft Craftsman House Plan - 100-1170 - Front Exterior
Home Plan Rear Elevation

About Plan # 100-1170

About Plan # 100-1170

2869 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 64' 0" WIDTH 55' 0" DEPTH 3 GARAGE BAY

We've all heard the old adage, "Don't judge a book by its cover." That is usually sound advice, but when you are choosing a home plan, you should be very aware of the exterior aesthetics. Don't ignore the "cover" of this set of House Plans. #100-1170 is amazing!

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

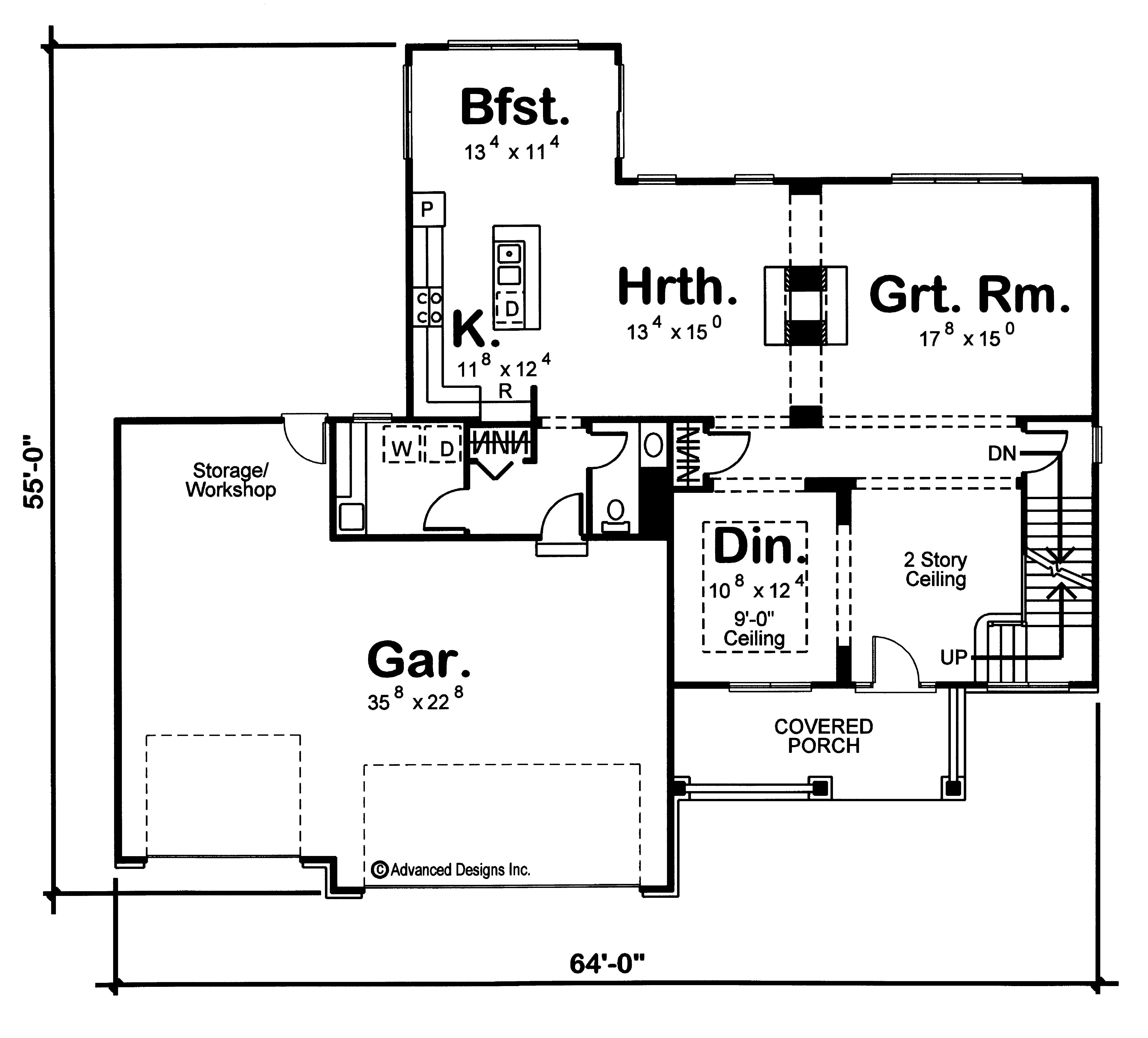

Home Plan: #100-1170 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #100-1170

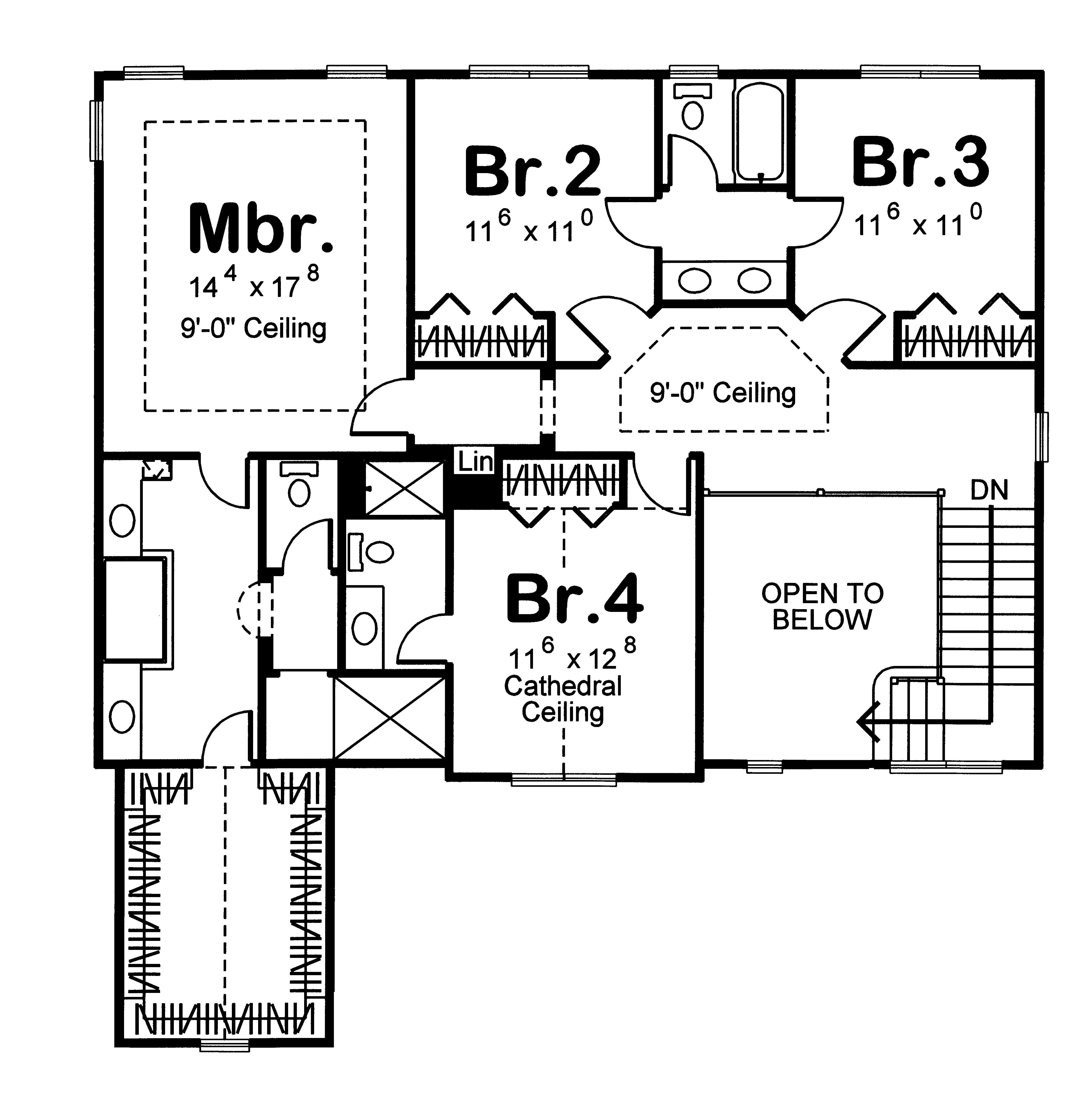

#100-1170 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #100-1170
