4-Bedroom, 3411 Sq Ft Rustic Mountain Home with Photos

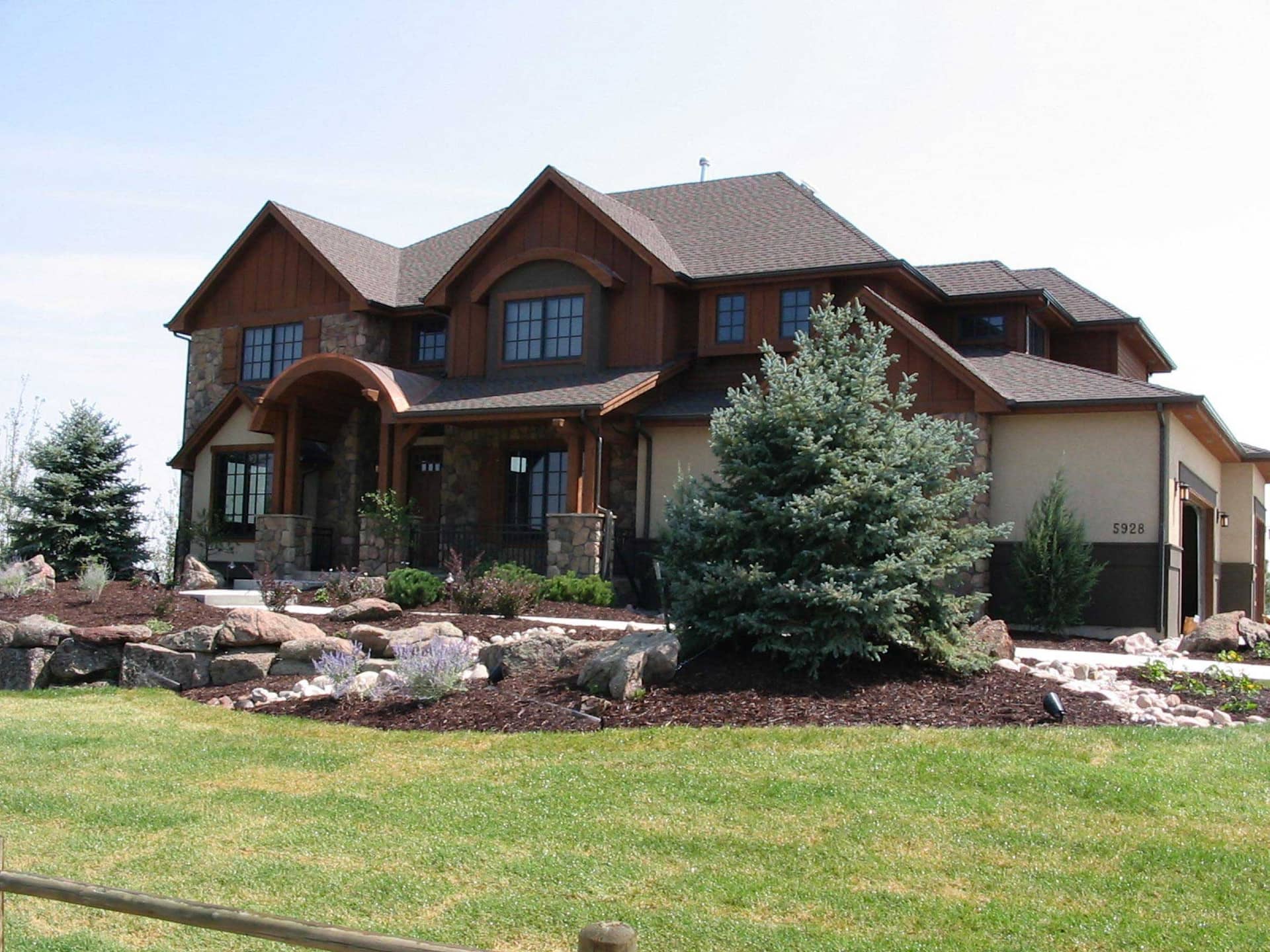

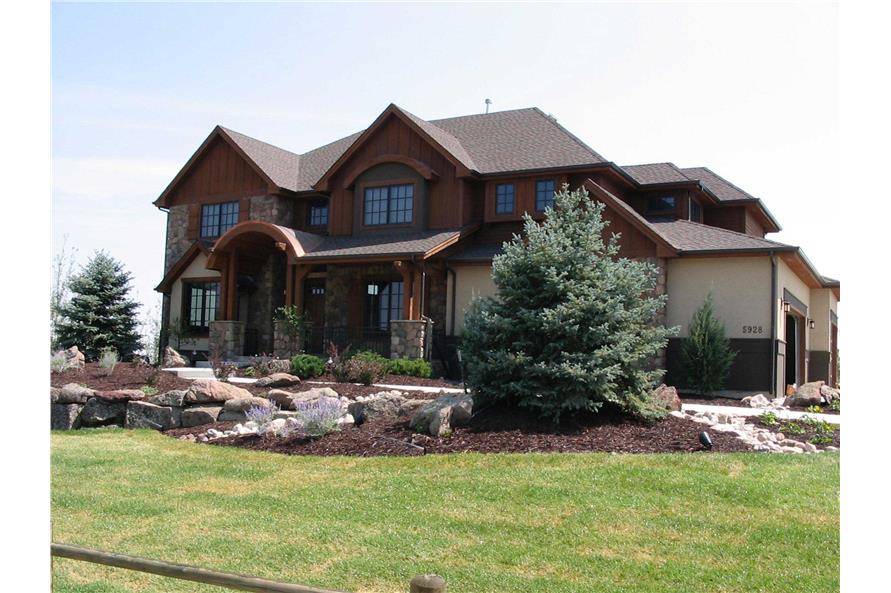

This is the front elevation photo for these Mountain House Plans.
Home Interior Photograph

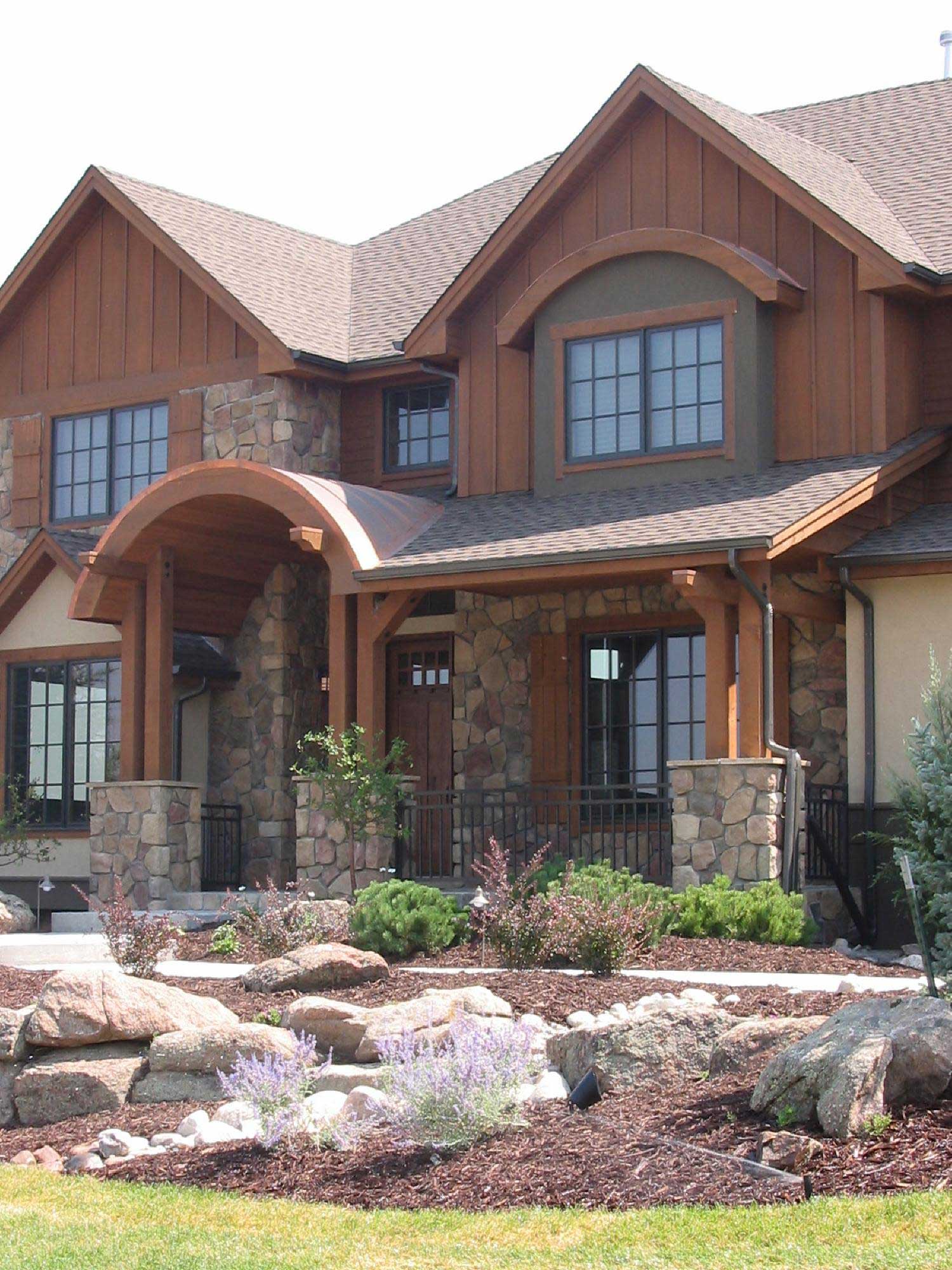

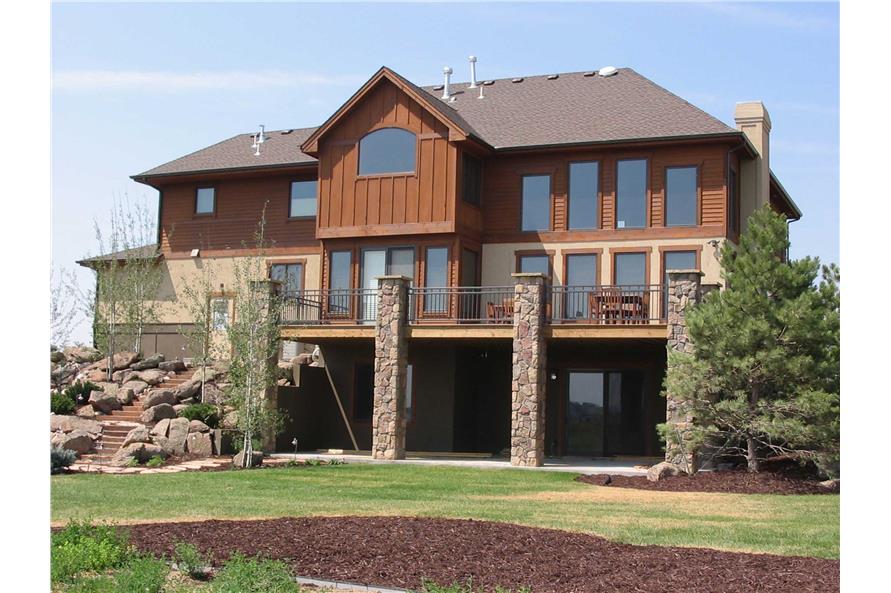

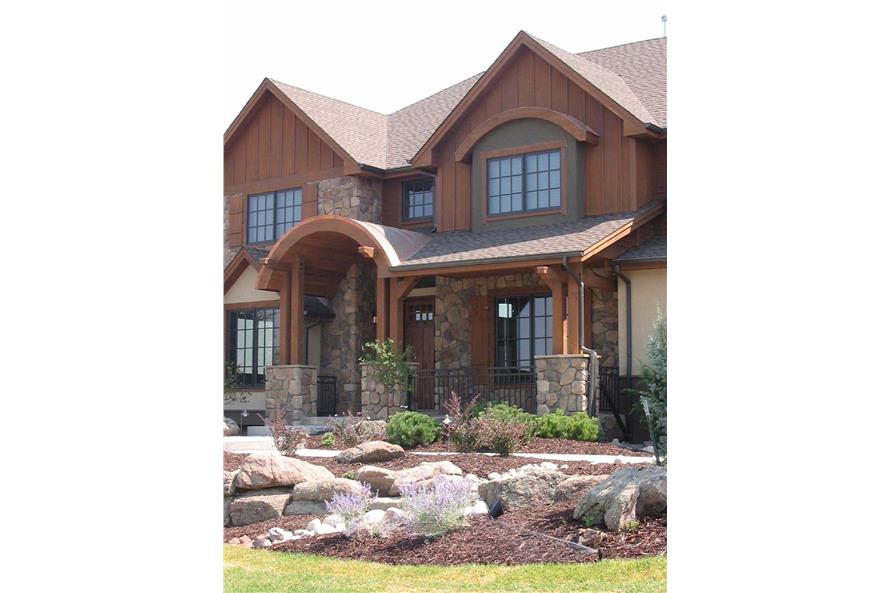

Home Exterior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
4-Bedroom, 3411 Sq Ft Craftsman Home Plan - 161-1036 - Main Exterior
Home Interior Photograph

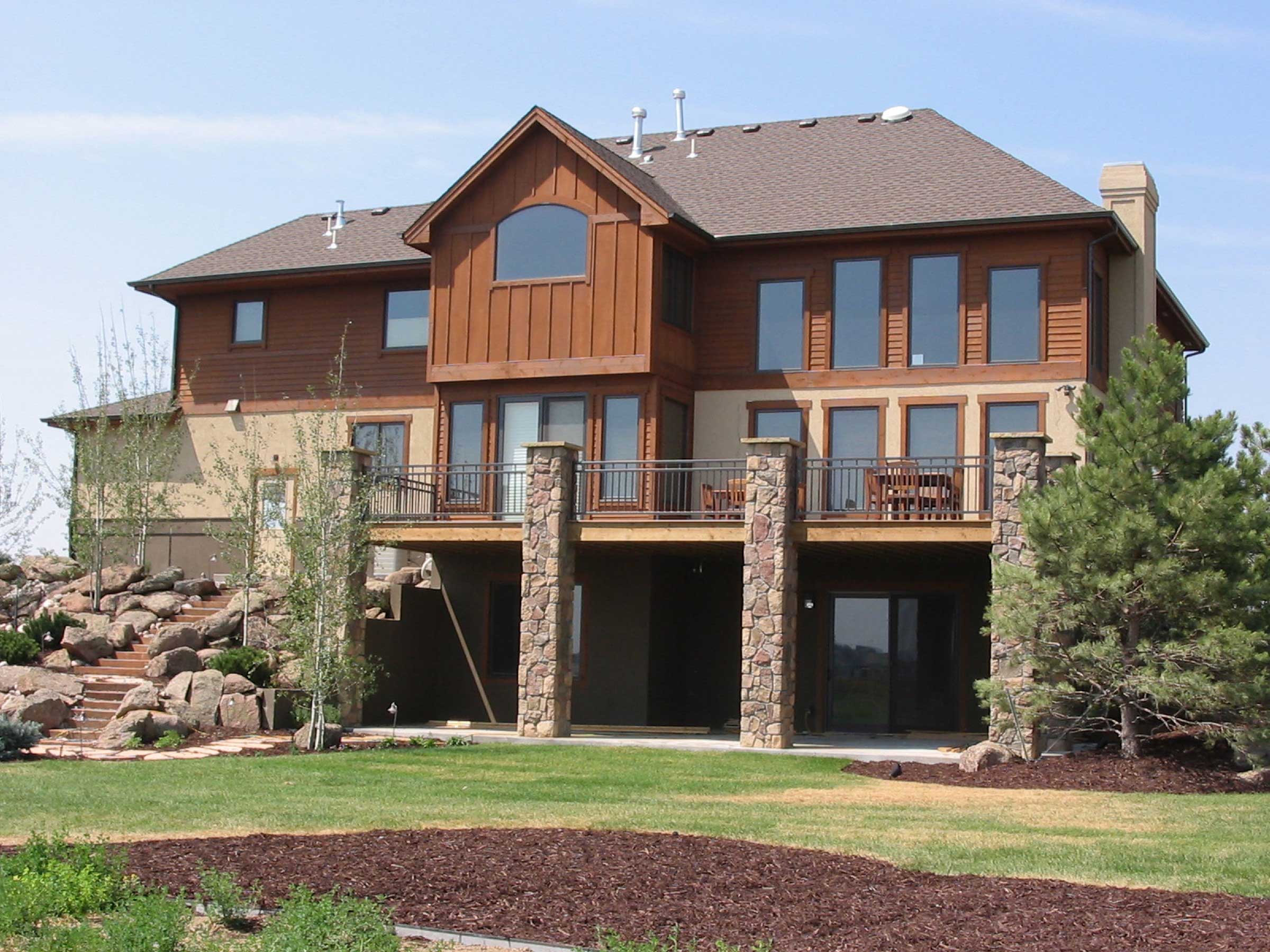

Home Exterior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph

About Plan # 161-1036

About Plan # 161-1036

3411 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 74' 6" WIDTH 57' 9" DEPTH 3 GARAGE BAY

Colorado Mountain House Plans: Satisfy your cravings for beautiful views, nature walks, or solitude with this Colorado rustic mountain house plan. A home that blends natural and historic beauty, it also features open gathering spaces, walls of windows to take in views, and a cozy fireplace for the cold season.

Each plan set includes the following:

  • COVER SHEET
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • TYPICAL WALL SECTION & DETAILS: Explain certain special conditions more appropriately. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

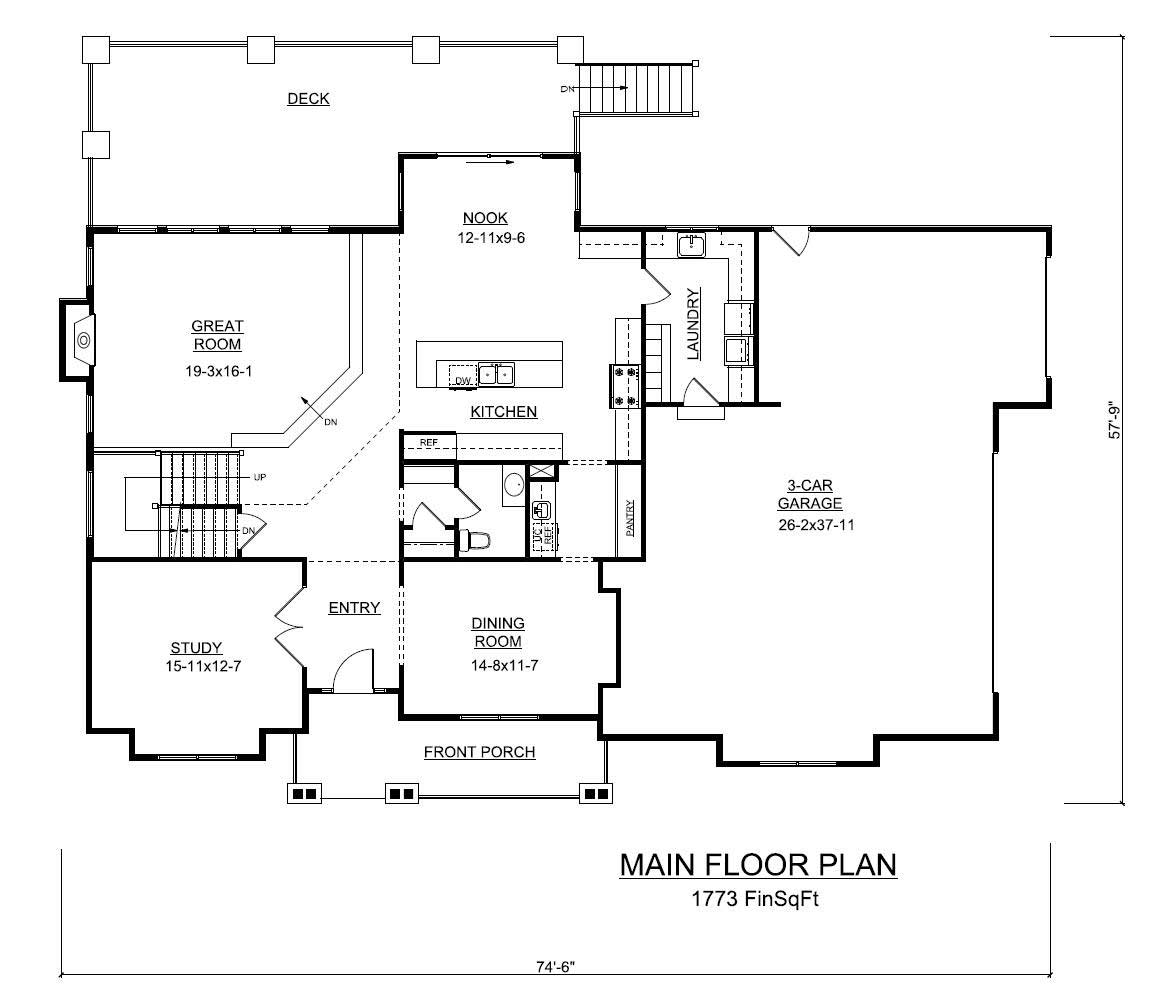

Home Plan: #161-1036 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #161-1036

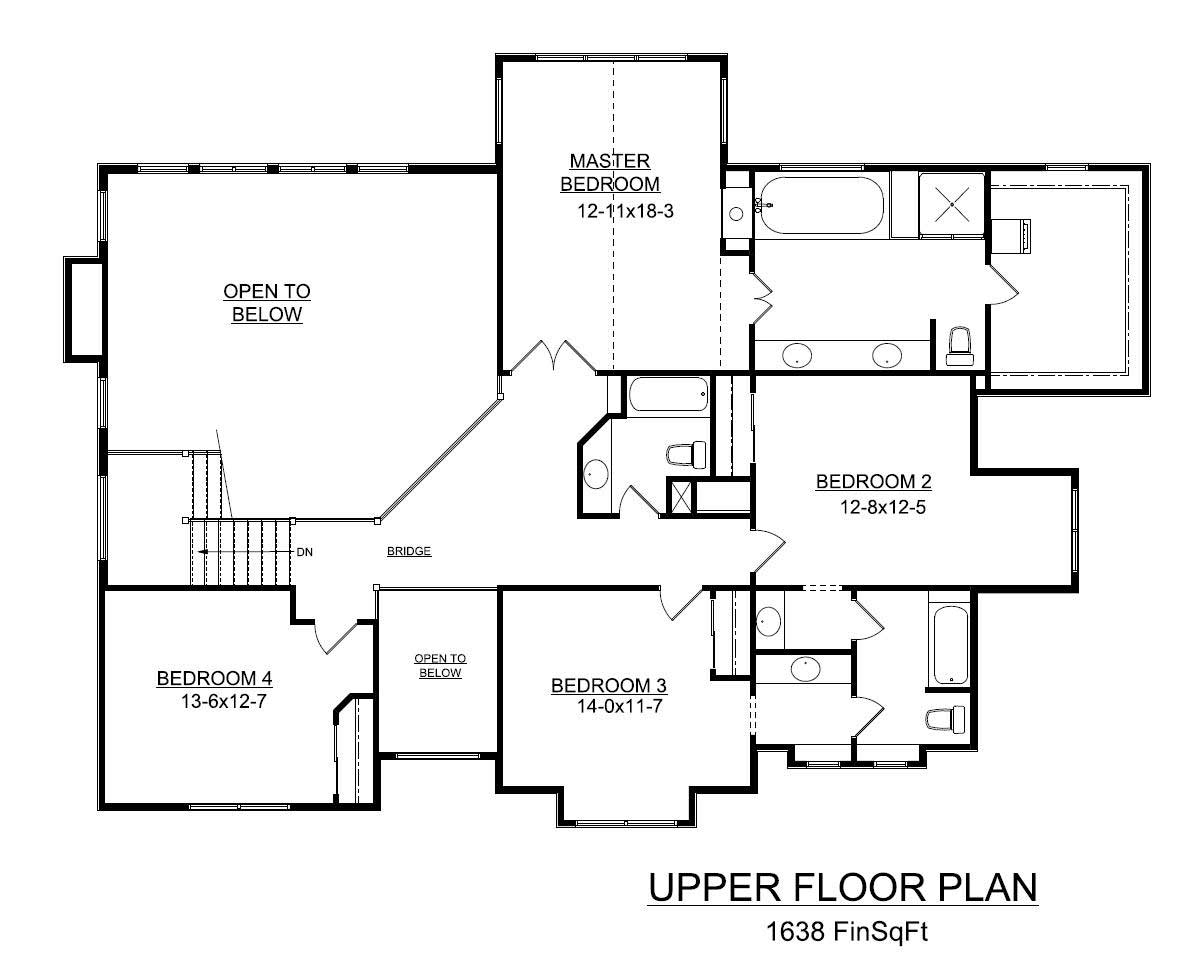

#161-1036 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #161-1036
Home Plan: #161-1036 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #161-1036
#161-1036 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #161-1036
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 161-1036
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
3411
Main Floor:
1173
Upper Floor:
1638
Unfinished Sq Ft:
Lower Floor:
1773
Garage :
1032

Dimensions

Width:
74' 6"
Depth:
57' 9"
Ridge Height:
34' 2"

Architectural Styles

Craftsman
Traditional

Exterior Wall Material

Rock/Stone
Stucco

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

9/12

Ceiling Height

9 Foot Ceiling

Special Feature

Balcony
Color Photos
Den

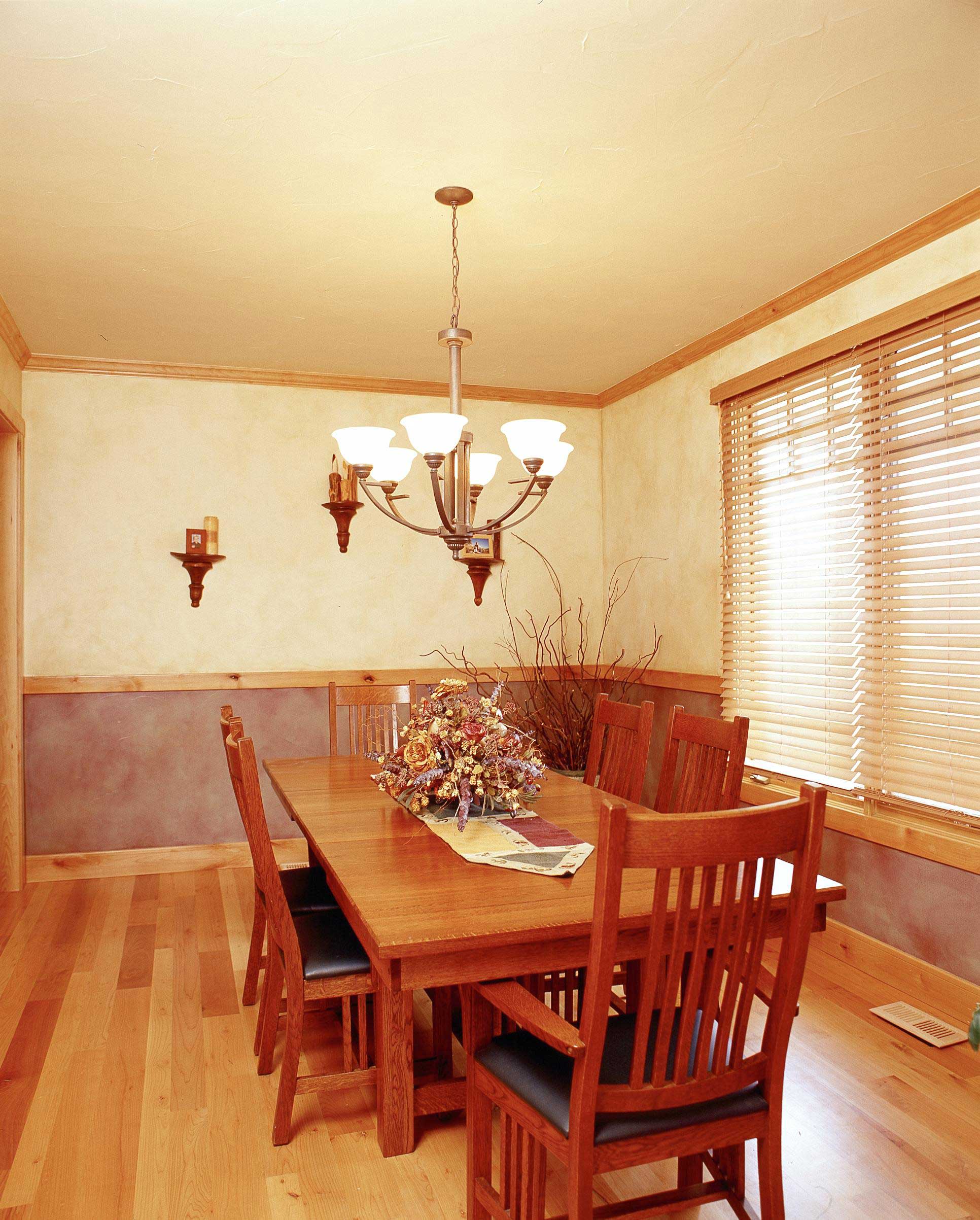

Dining Room
