4-Bedroom, 2758 Sq Ft Ranch Plan with Vaulted Great Room

Front elevation of Ranch home (ThePlanCollection: House Plan #138-1078)

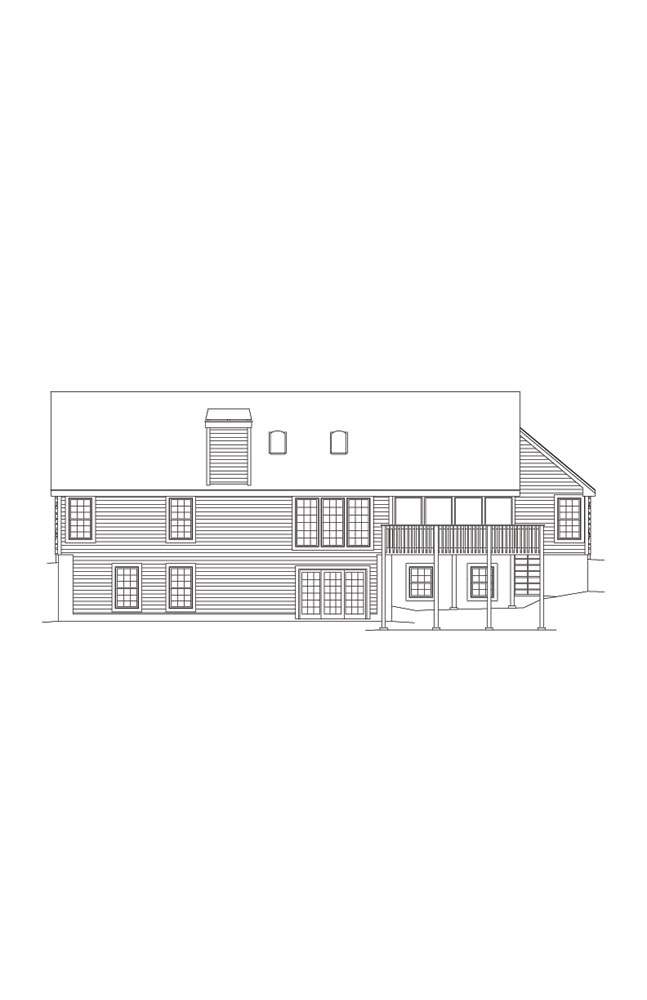

138-1078: Home Plan Rear Elevation

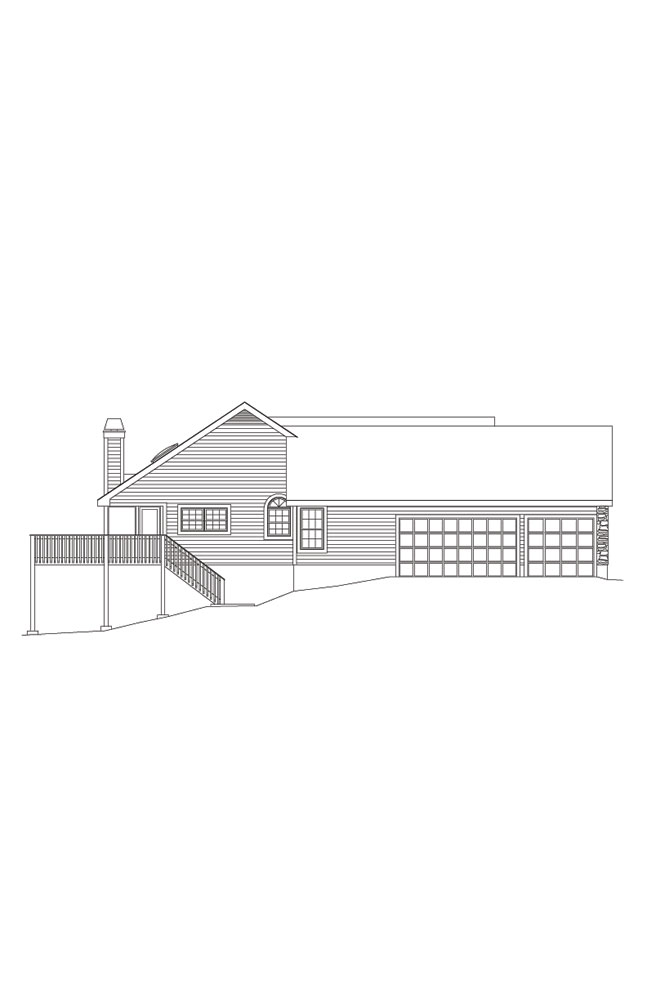

138-1078: Home Plan Left Elevation

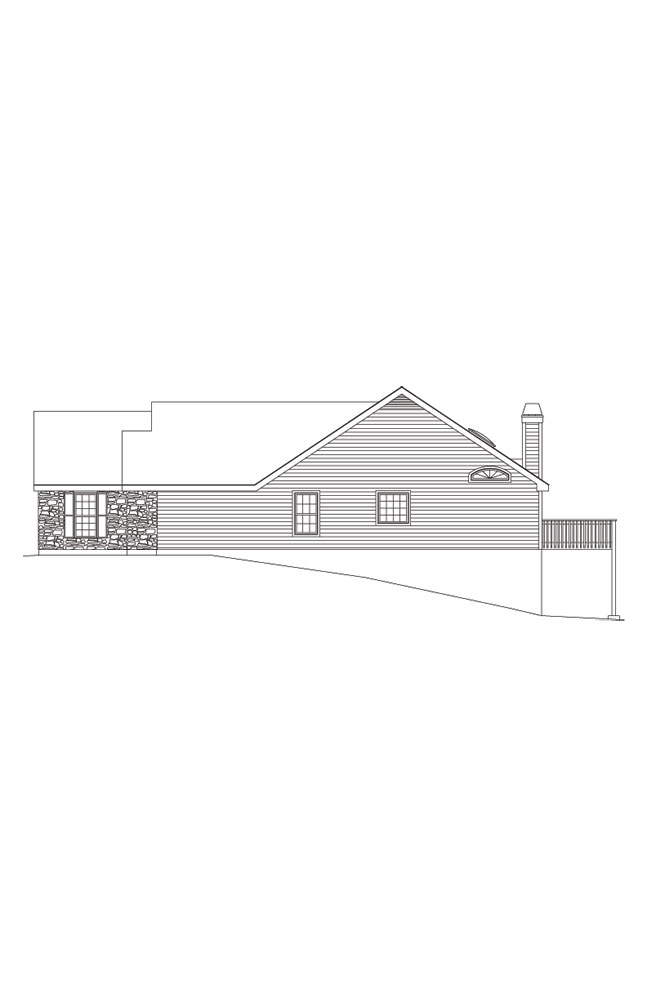

138-1078: Home Plan Right Elevation
4-Bedroom, 2758 Sq Ft Ranch Home Plan - 138-1078 - Main Exterior
138-1078: Home Plan Rear Elevation
138-1078: Home Plan Left Elevation
138-1078: Home Plan Right Elevation

About Plan # 138-1078

About Plan # 138-1078

2758 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 72' 8" WIDTH 68' 4" DEPTH 3 GARAGE BAY

With 2758 square feet of living space, this impressive country ranch (Plan #138-1078) is sure to get your attention. The well-designed, 1-story floor plan includes 4 bedrooms.

Each plan set includes the following:

  • COVER SHEET
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings and other elements.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

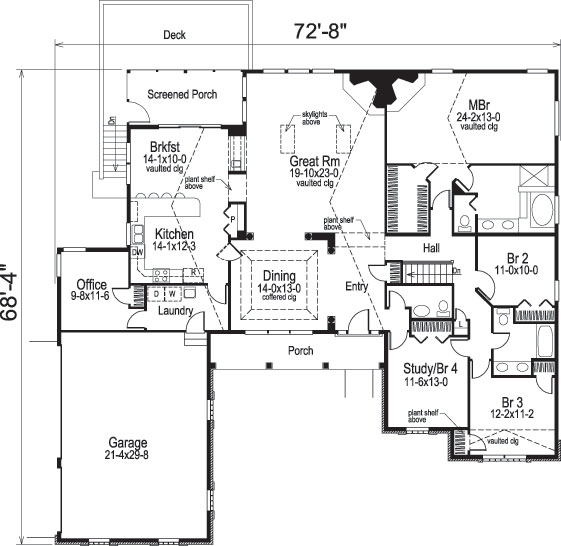

Home Plan: #138-1078 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #138-1078
