4-Bedroom, 2755 Sq Ft Ranch Plan with Covered Rear Porch

This is an artist's rendering of these Traditional Ranch House Plans.
4-Bedroom, 2755 Sq Ft Ranch Home Plan - 159-1040 - Main Exterior

About Plan # 159-1040

About Plan # 159-1040


With separate formal and informal meeting spaces, this traditional Ranch house plan caters to both social engagements and personal exchange with equal flair. The shaded entrance opens up into an open-planned formal reception space with living and dining areas, capped with generous 11-foot-high ceilings. An attached den brings further purpose and character to this space.

The more private family room is located to the rear of the house, where it is further invigorated by the activities in the kitchen and shaded lanai adjoining it. Its open plan lends fluidity and versatility to the layout and arrangement of different family schedules, activities, and events here.

The bedrooms are arranged across the house, taking on different tones and purpose depending on their location. The master bedroom and attached suite are accessed directly off the formal reception area, and comes with a generous split bathroom and separate his and her walk-in closets. Two of the other three bedrooms are on the other side of the formal core, where they share a bathroom among them. The fourth bedroom is tucked away at the back and is reached via the bustling family room. In addition, the plan also offers a spacious three-car garage and a main-level laundry room.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: A bird's eye view. Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

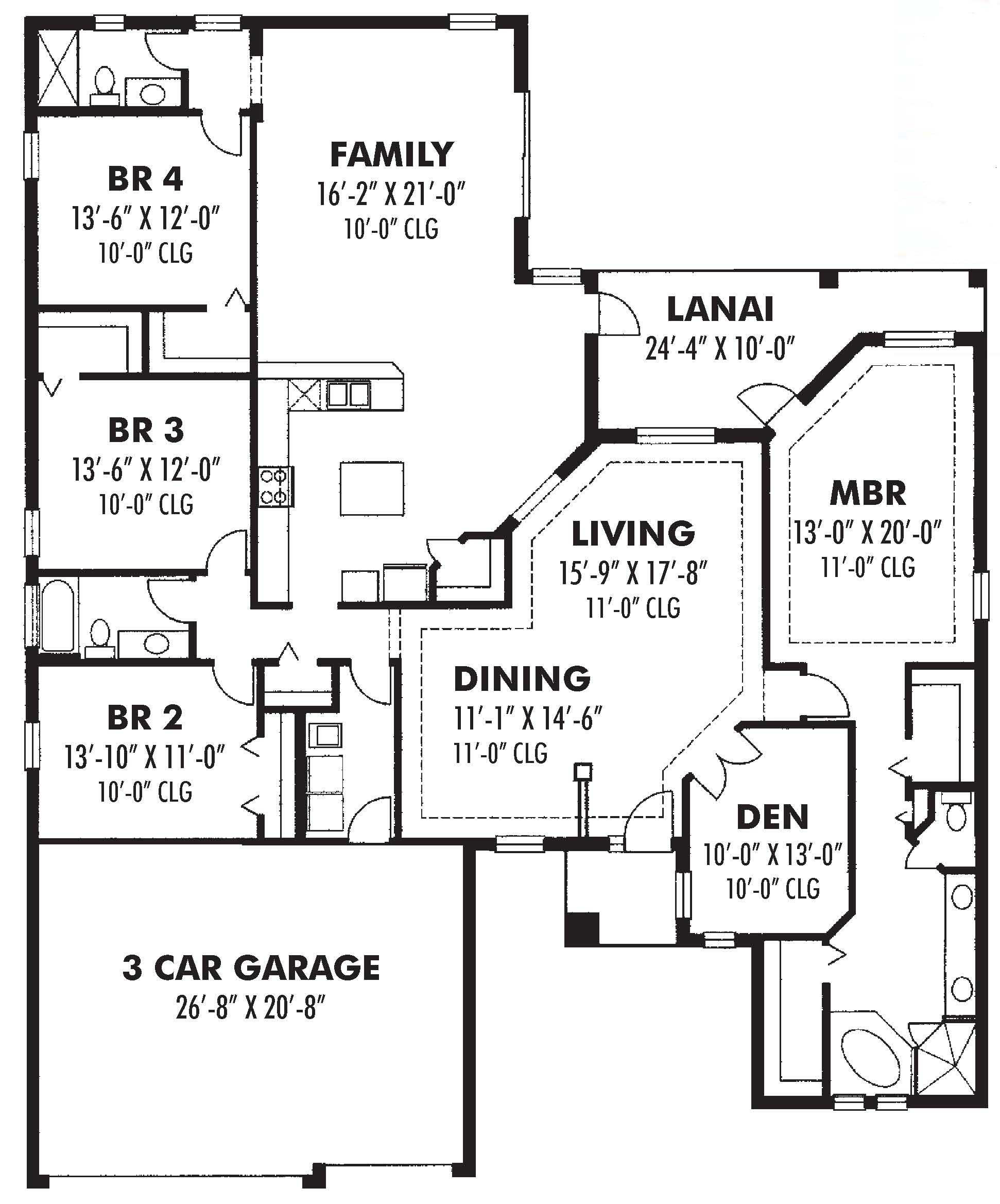

Home Plan: #159-1040 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #159-1040
Home Plan: #159-1040 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #159-1040
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 159-1040
Full Baths:

Square Footage

Heated Sq Feet:
Main Floor:
Unfinished Sq Ft:


60' 0"
73' 4"

Architectural Styles


Exterior Wall Material


Roofing Type


Roofing Material

Asphalt Shingles

Special Feature

Dining Room
Family Room
Main Level Laundry
Mud Room

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing


Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

All slab foundations from this designer are monolithic slab foundations.


A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.


All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
