3-Bedroom, 1704 Sq Ft Mediterranean Plan with Walk In Closet

Front elevation for this Traditional Home Plan 159-1004.
3-Bedroom, 1704 Sq Ft Mediterranean House Plan - 159-1004 - Front Exterior

About Plan # 159-1004

About Plan # 159-1004

1704 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 49' 9" WIDTH 54' 10" DEPTH 2 GARAGE BAY

Bring a touch of subtropical charm into your life with this lovely Traditional home plan for a single-story three-bedroom house. From its stucco exterior to the covered front porch—and beyond—this house is the perfect address for a close-knit family. Featuring a mudroom, the house offers you a moment to pause and relax before stepping into its inviting interior.

The living room offers generous 10-foot-high ceilings, which extend out onto the stylish dining area that flanks it. A semi-partitioned kitchen connects with the life and bustle of the living space, weaving core social activities into an impressive open-plan space; a cozy breakfast nook lies tucked under vaulted ceilings at the back. Further, the living area gracefully spills out into a covered lanai to its rear—ideal for engaging with the beauty outdoors.

The master suite claims a commanding position, occupying an entire side elevation. Featuring dramatic 10-foot-high ceilings and overlooking the shaded lanai, the master bedroom here comes with a split bathroom as well as separate his and her walk-in closets. The other two bedrooms, located on the opposite side of the house, are neatly tucked under vaulted ceilings and share a bathroom between them.

The attached garage is reached from the front of the house or via the laundry room indoors.

Each plan set includes the following:

  • Foundation Plan
  • Floor Plan
  • Electrical Layout
  • Exterior Elevations
  • Construction Details
  • Roof Plan (Birdseye View)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

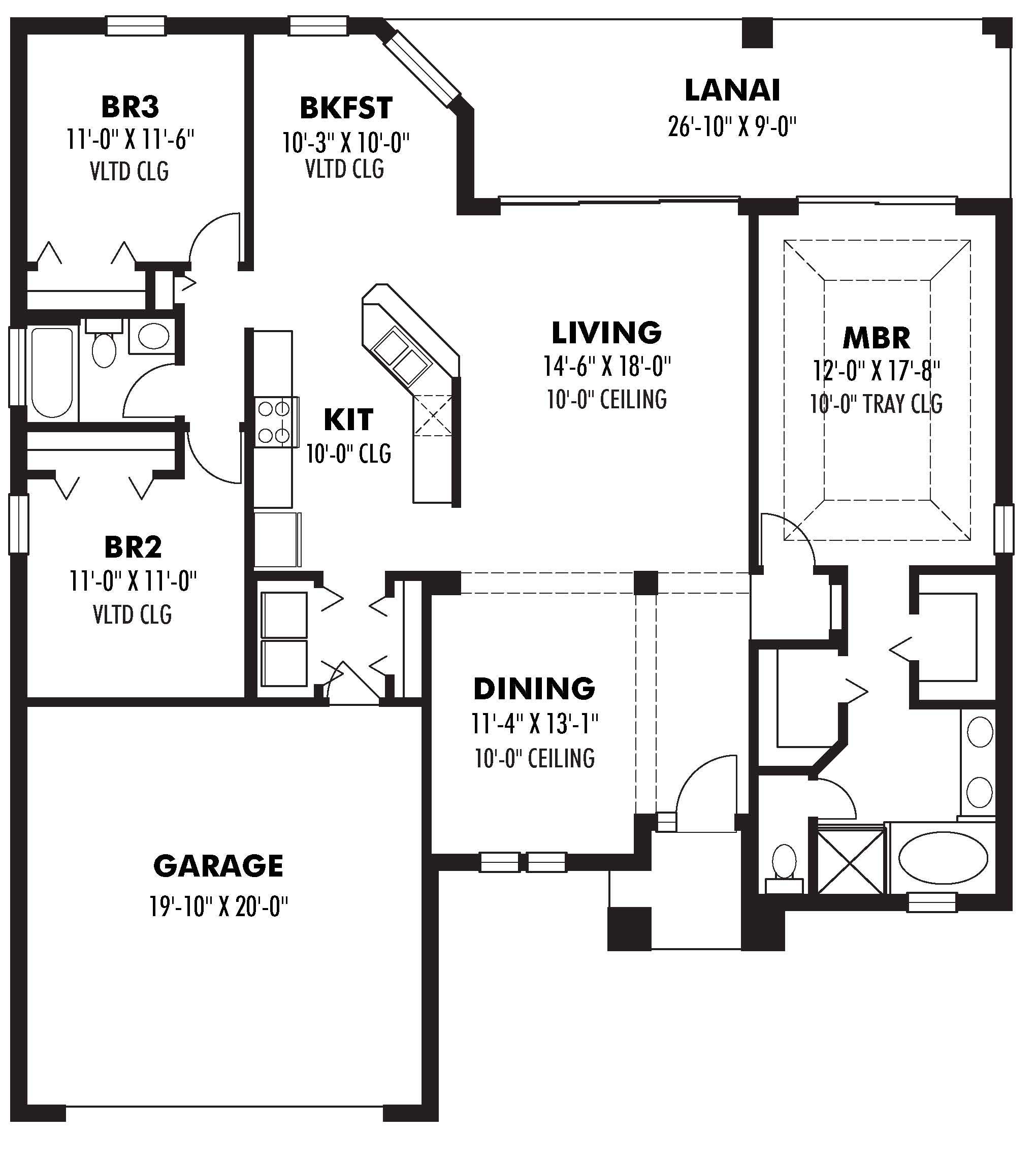

Home Plan: #159-1004 Floor Plan First Story - first story Floor Plan First Story of Mediterranean Plan #159-1004
