Main image for house plan # 5346

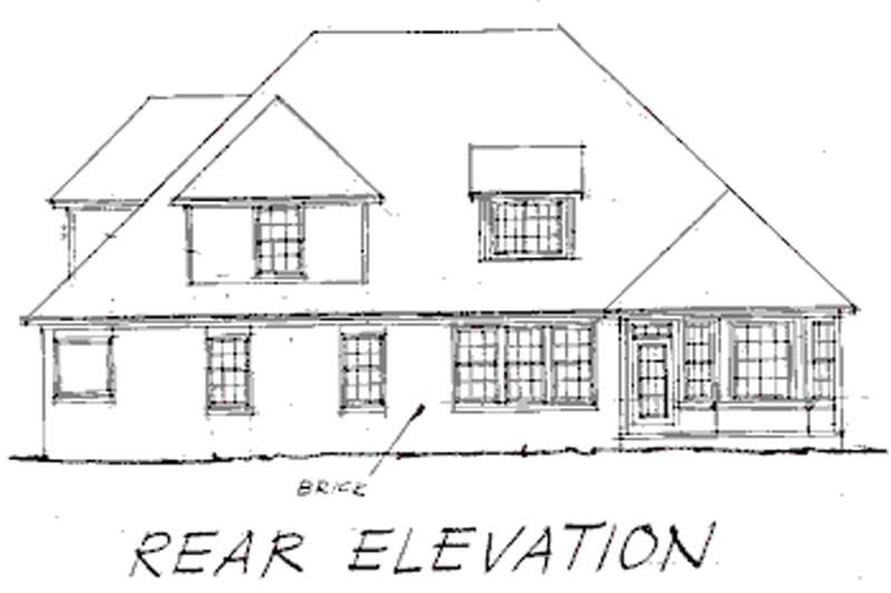

REAR ELEVATION

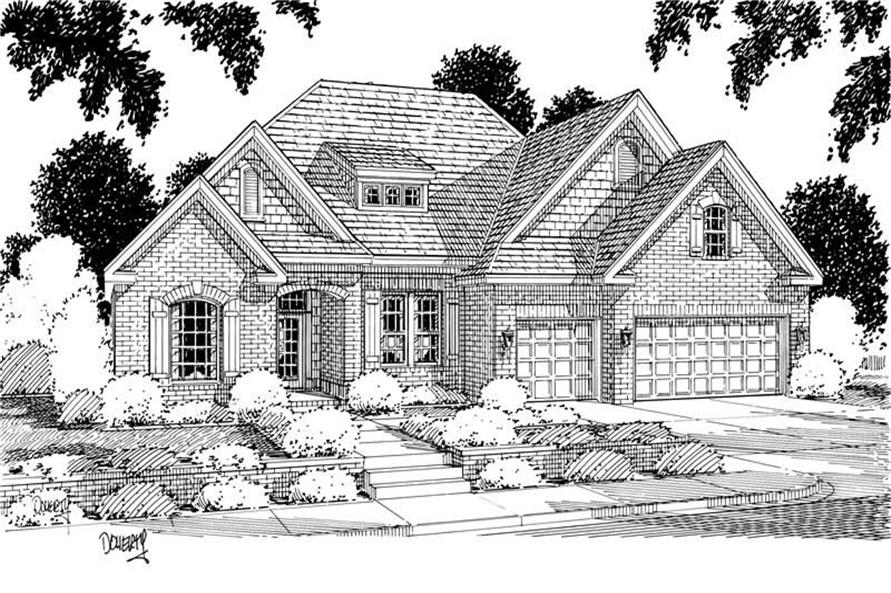

4-Bedroom, 2606 Sq Ft Traditional Home Plan - 178-1123 - Main Exterior
REAR ELEVATION

About Plan # 178-1123

About Plan # 178-1123

2606 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 58' 0" WIDTH 50' 0" DEPTH 3 GARAGE BAY
This two story 2606 square foot total living area House Plan is Traditional Style Home Design at its best. The Living Room and optional fireplace will be sure to bring warmth into any gathering, while the study is great for quiet contemplation. The Breakfast Area overlooking the covered rear porch will soon be a favorite for the whole family, and the optional upstairs gameroom gives you the freedom to do what you want.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan
  • Full building section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

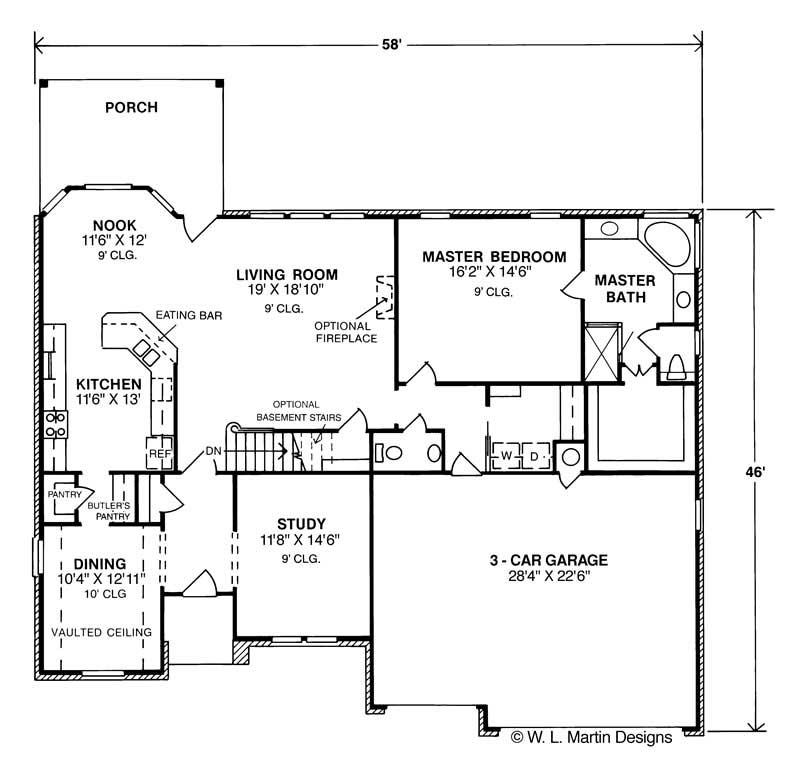

Home Plan: #178-1123 Floor Plan First Story - main Floor Plan First Story of Traditional Plan #178-1123

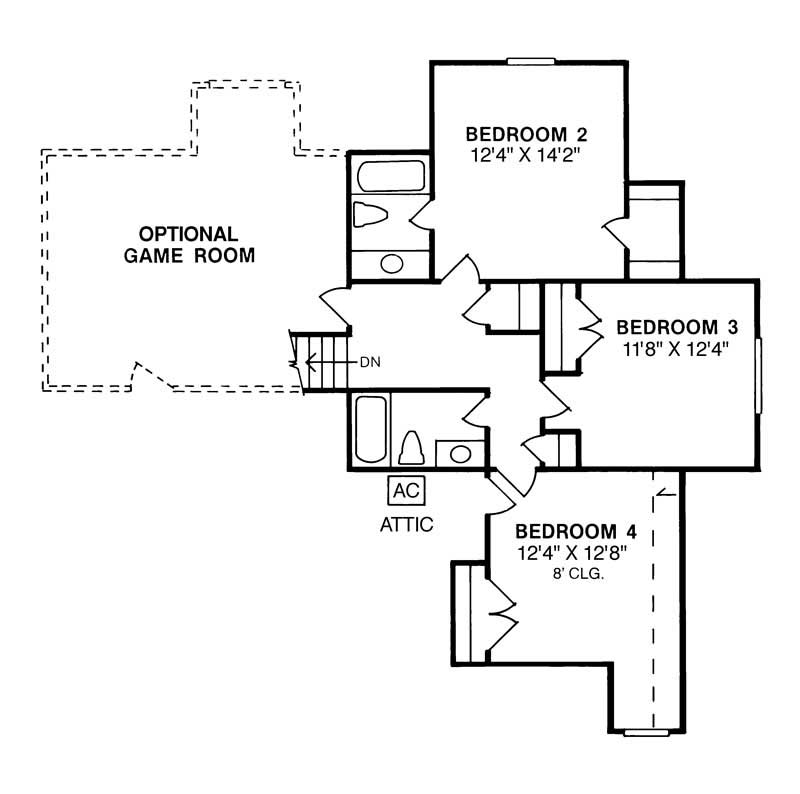

#178-1123 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #178-1123
Home Plan: #178-1123 Floor Plan First Story - main Floor Plan First Story of Traditional Plan #178-1123
#178-1123 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #178-1123
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 178-1123
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
2606
Main Floor:
1793
Upper Floor:
813
Unfinished Sq Ft:

Dimensions

Width:
58' 0"
Depth:
50' 0"

Architectural Styles

Traditional

Exterior Wall Material

Brick

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Special Feature

Fireplace
Dining Room
Home Office
Bonus Room
Game Room
Main Level Laundry

Garage Type

Attached Garage
Front Entry

Fireplaces

Optional Fireplace

Building Lot Type

Flat Site

Kitchen Features

Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master

Additional Notes from Designer

Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like. PLEASE NOTE!! When purchasing a CAD file, the designer will also send the PDF. Duplex and Triplex Plans are Slab & 2x4 ONLY!! If you need to change either, please send in a modification request.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
