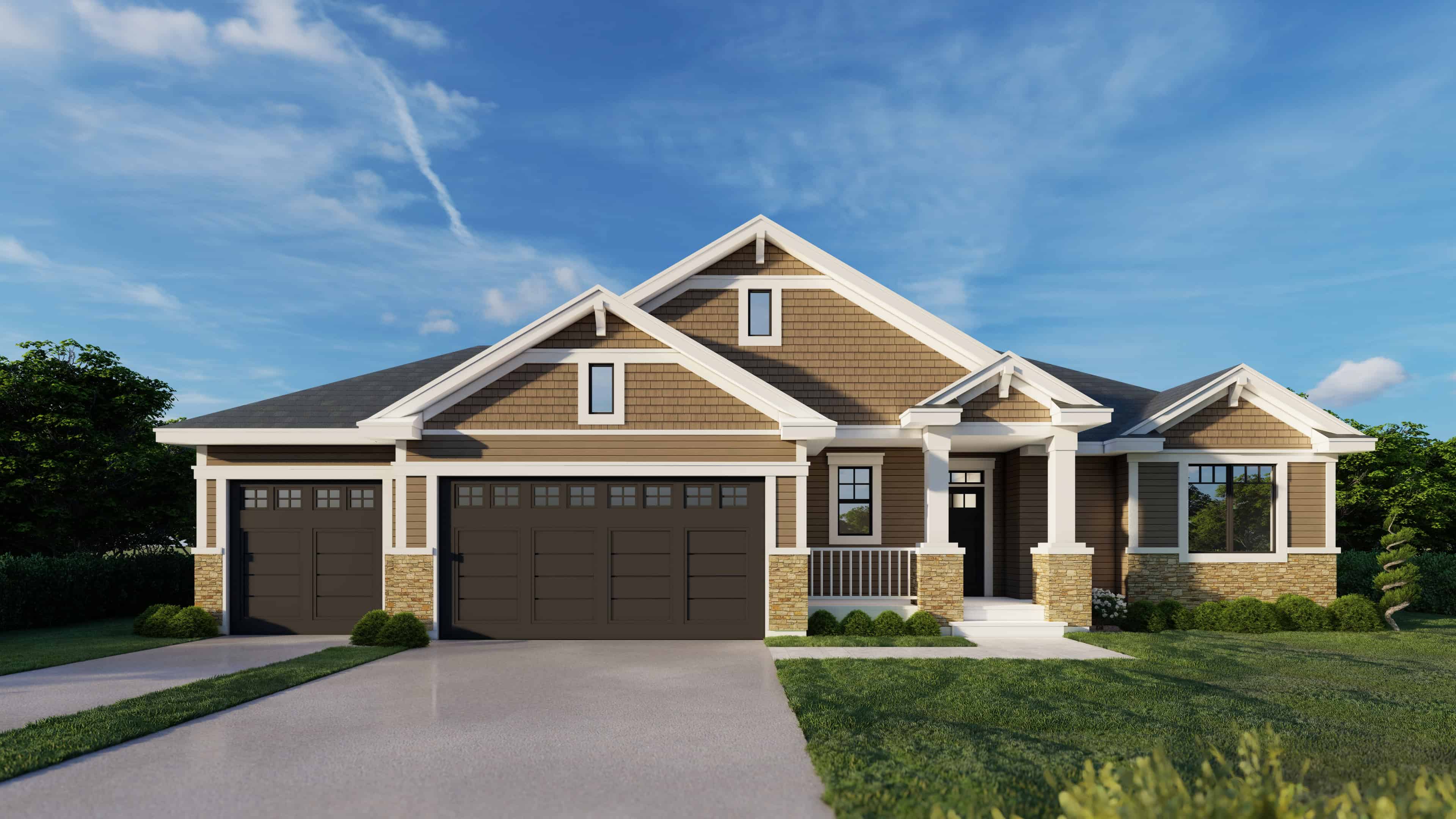

4-Bedroom, 2603 Sq Ft Craftsman Plan with Flex Space
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #162-1065
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.

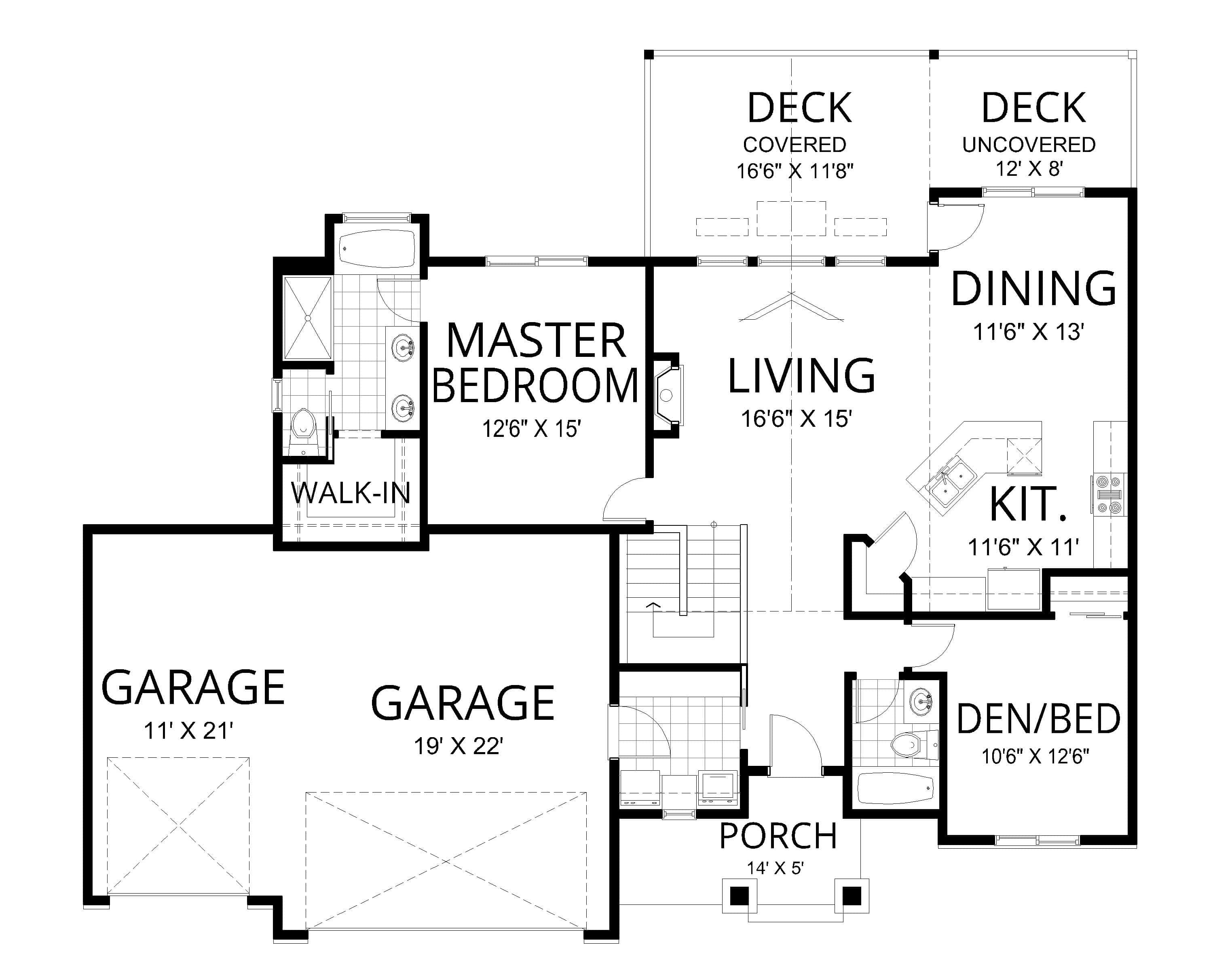

Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
Ceiling Heights:
- Main Floor: 9’-0”

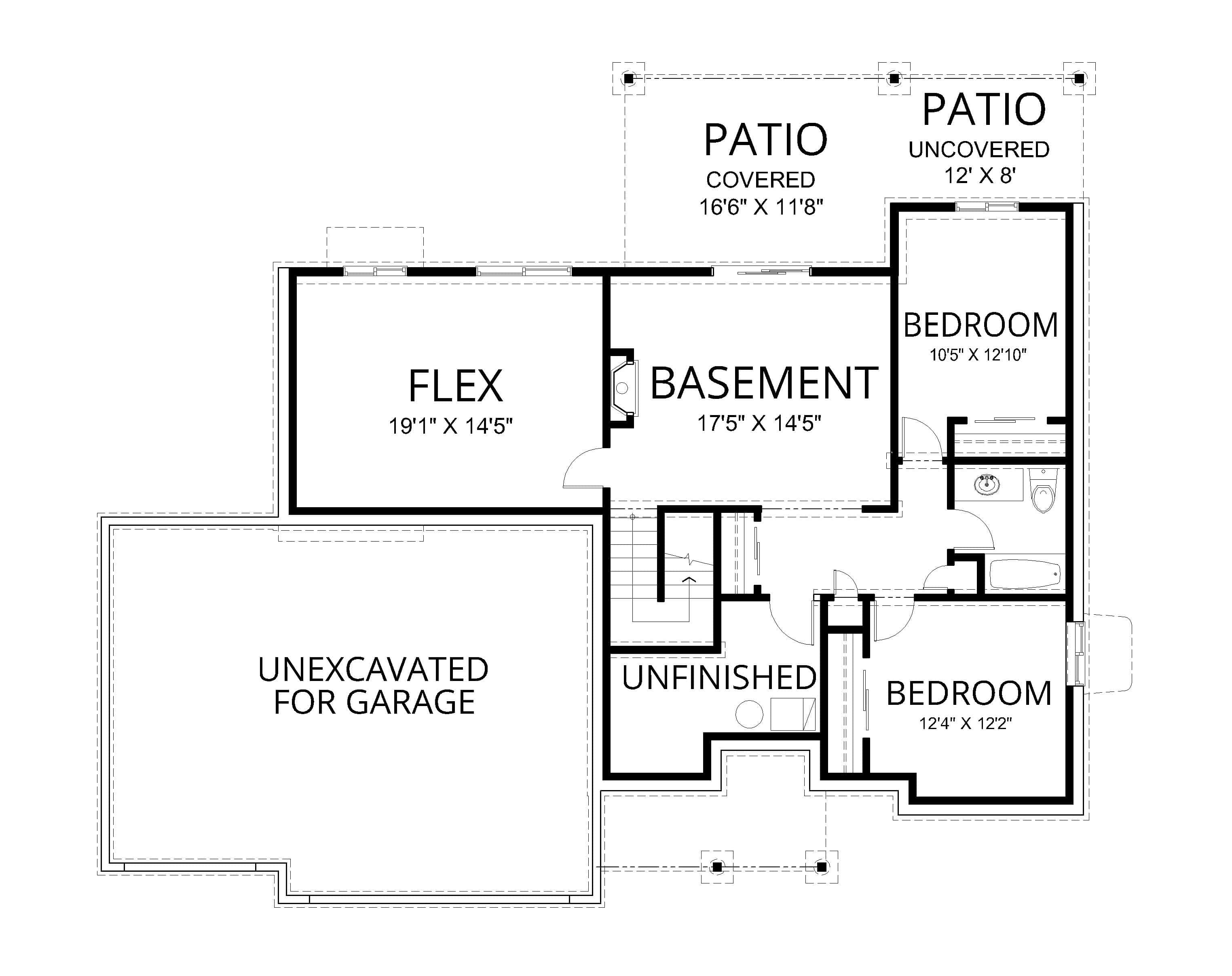

- Basement: 8’-0”
- Garage: 10’-6”
- Great Room: 9’-0” at walls sloping to 13’-6” at interior ridge.
House Plan Description
This 4-bedroom, 2,603 sq ft Craftsman plan features a vaulted living room with fireplace, open-concept kitchen with island and pantry, a large covered porch and deck, den/home office, basement family room, flex space, and 3-car garage.

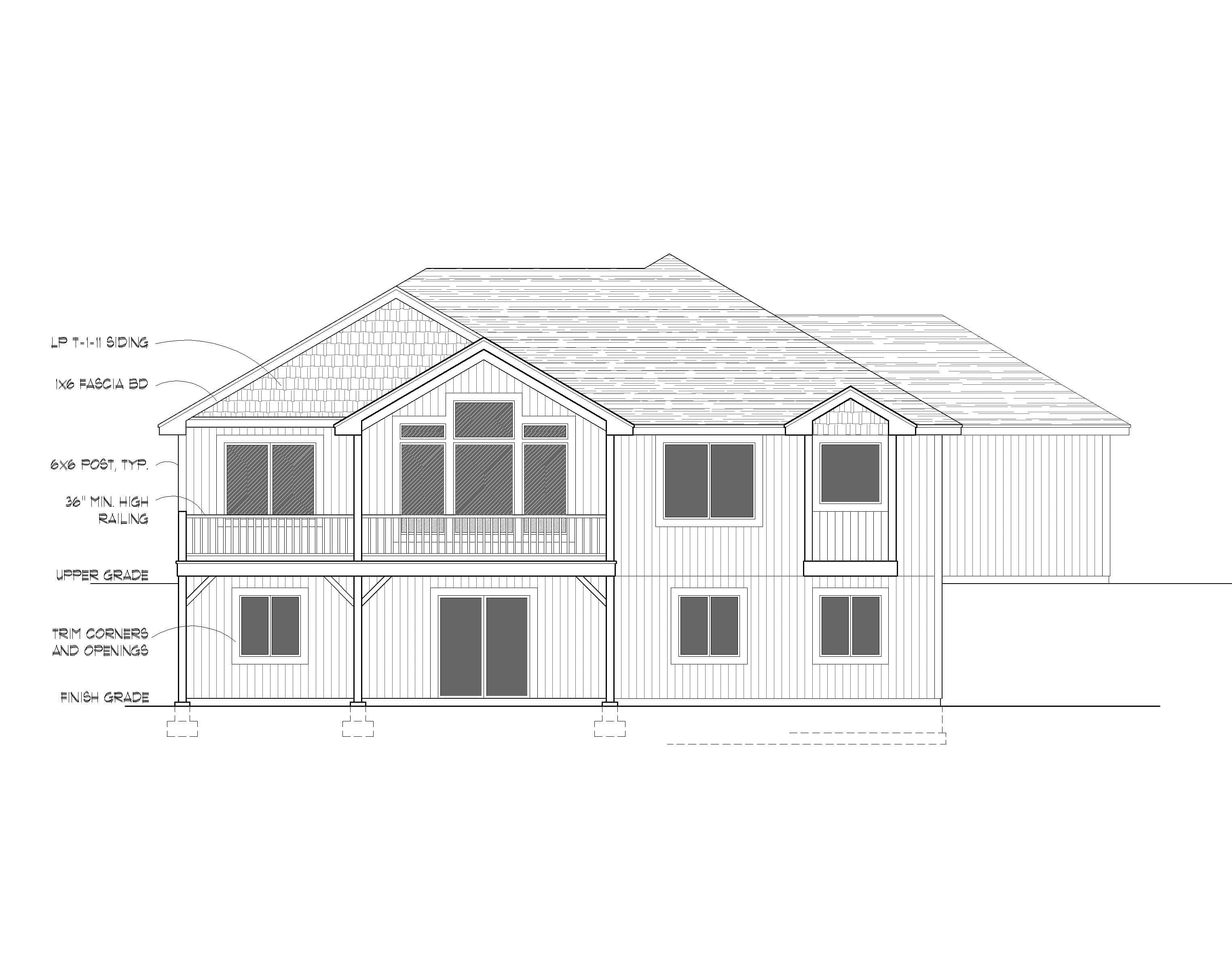

- Overall Height: Front: 21’-8” Rear: 29’-8”
- Front Porch: 84 sq ft
- Deck: 292 sq ft
- Patio: 292 sq ft
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included
Exterior ElevationsFloor PlansFoundation PlanRoof Framing PlanBuilding SectionsWall SectionsStair DetailCabinet ElevationsNotesElectrical LayoutDoor & Window SizesWhat’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Additional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
