3-Bedroom, 2059 Sq Ft European Plan with Master Bathroom

Main image for house plan # 18677

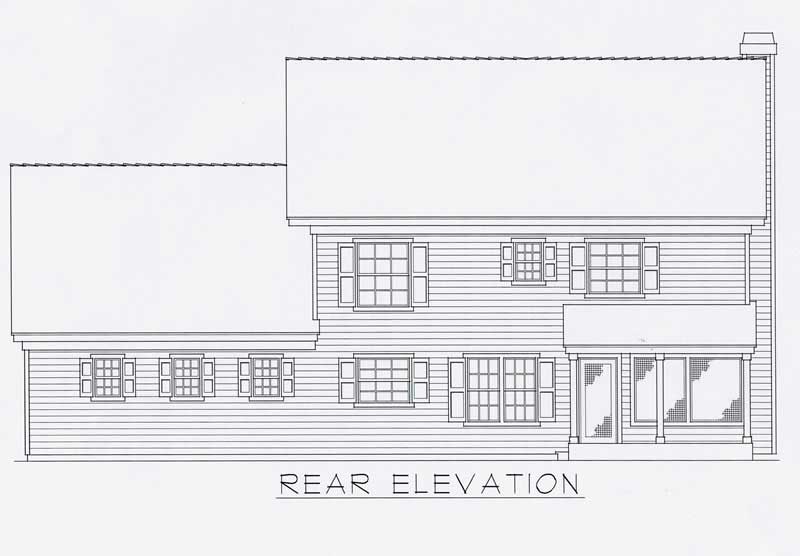

House Plan RDI-2059TS1-B Rear Elevation
3-Bedroom, 2059 Sq Ft European Home Plan - 162-1028 - Main Exterior
House Plan RDI-2059TS1-B Rear Elevation

About Plan # 162-1028

About Plan # 162-1028

2059 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 56' 6" WIDTH 40' 0" DEPTH 2 GARAGE BAY

Home Plan RDI-2059TS1-B is a sensible design that's great for entertaining. The second floor bedrooms together with the bonus room above the garage create privacy and leave the main floor ready for company. The rooms are spacious, the kitchen is functional, and the master suite is generous.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

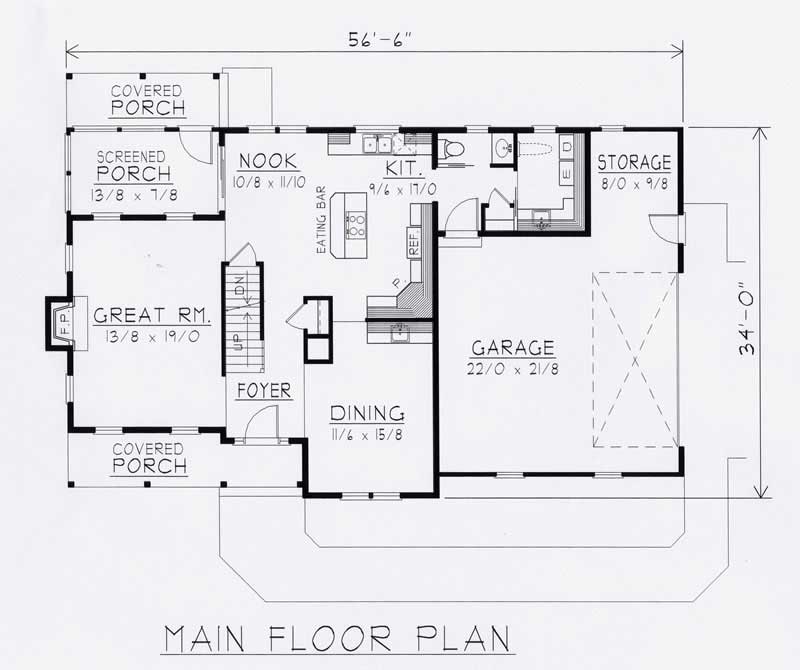

Home Plan: #162-1028 Floor Plan First Story - main Floor Plan First Story of European Plan #162-1028

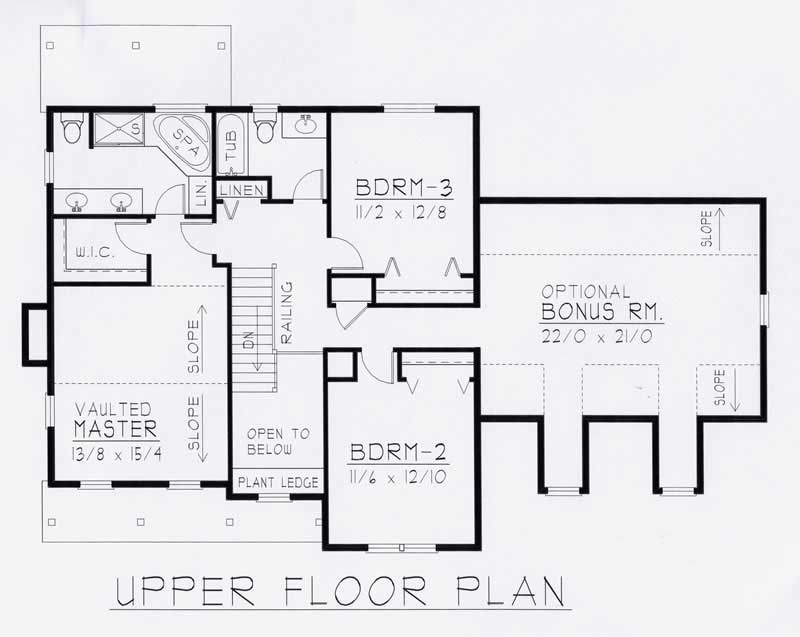

#162-1028 Floor Plan Second Story - second Floor Plan Second Story of European Plan #162-1028
Home Plan: #162-1028 Floor Plan First Story - main Floor Plan First Story of European Plan #162-1028
#162-1028 Floor Plan Second Story - second Floor Plan Second Story of European Plan #162-1028
