4-Bedroom, 2570 Sq Ft Craftsman Plan with Master Bathroom

Main image for house plan # 13645

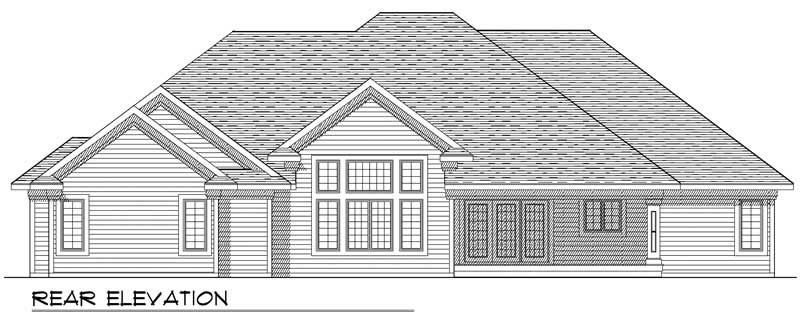

REAR ELEVATION
4-Bedroom, 2570 Sq Ft Craftsman House Plan - 101-1432 - Front Exterior

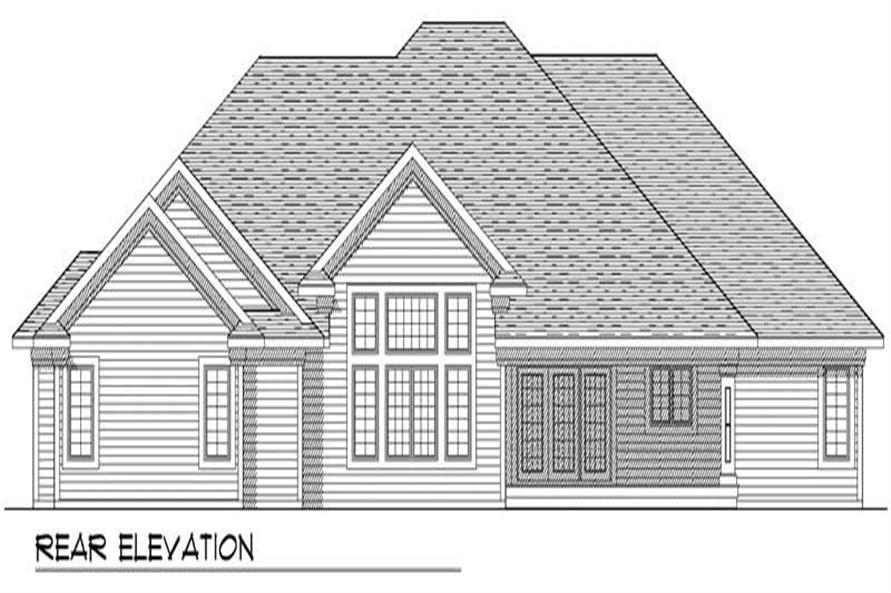

REAR ELEVATION

About Plan # 101-1432

About Plan # 101-1432

2570 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 79' 0" WIDTH 63' 0" DEPTH 3 GARAGE BAY
This appealing ranch-style home has four bedrooms and plenty of space for your family and guests. An eleven-foot ceiling in the foyer creates a sense of openness; it leads straight to the spacious great room. The great room features a striking twelve-foot ceiling as well as a fireplace surrounded by built-ins and a wall of windows. The island kitchen/nook has a built-in planning desk and is open to the great room, making it easy for you to chat while you prepare meals; you can also serve meals in the formal dining room. The master bedroom has two walk-in closets and a private bath while the three additional bedrooms share a full bath with a separated double vanity that makes getting ready in the morning less hectic. The home office is near another bathroom and access to the three-car garage.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

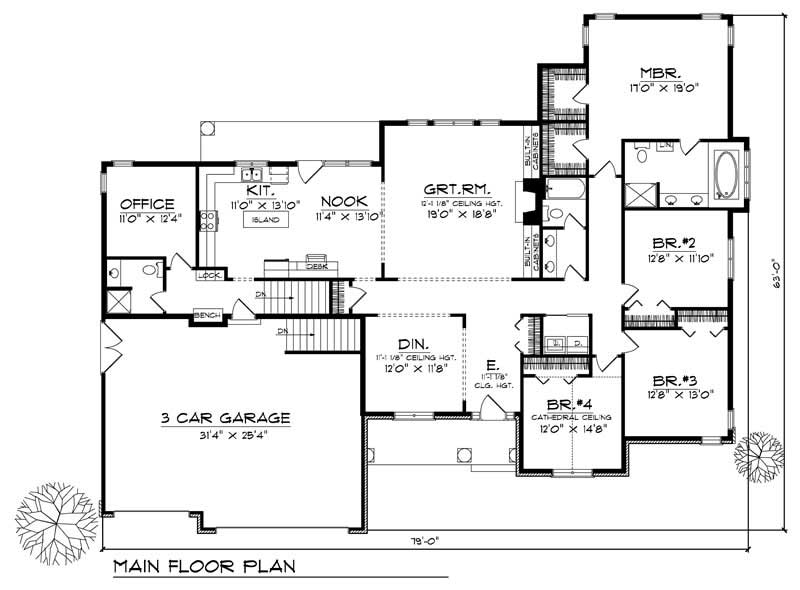

Home Plan: #101-1432 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1432
Home Plan: #101-1432 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1432
