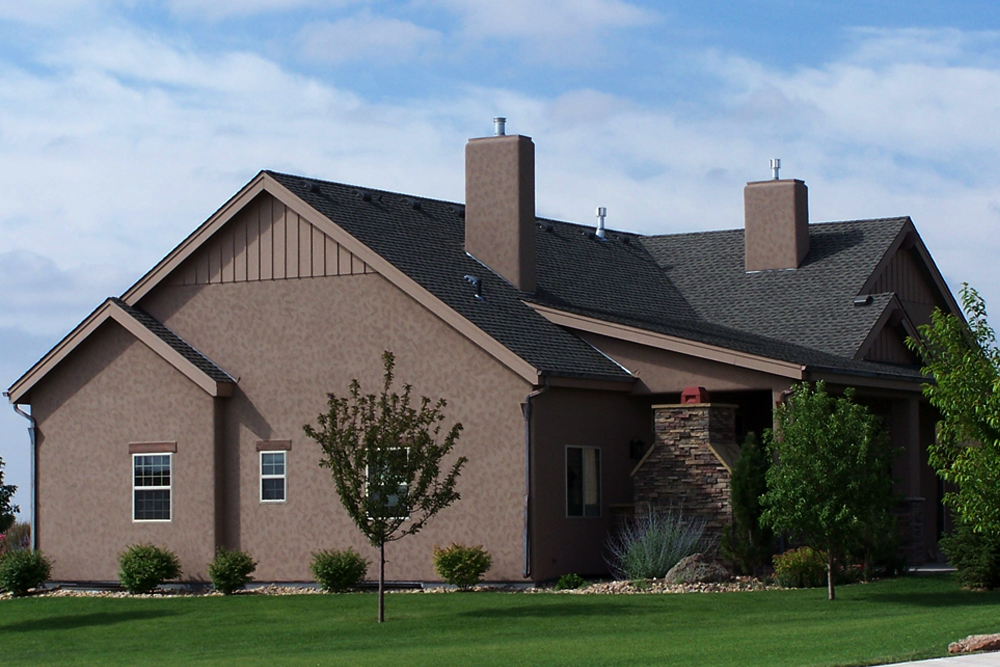

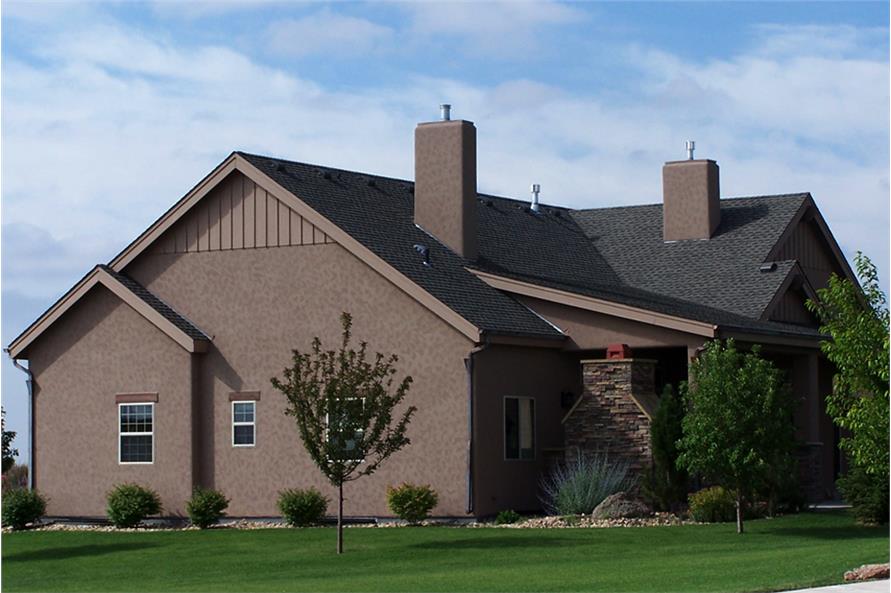

194-1019: Home Exterior Photograph-Right Side View

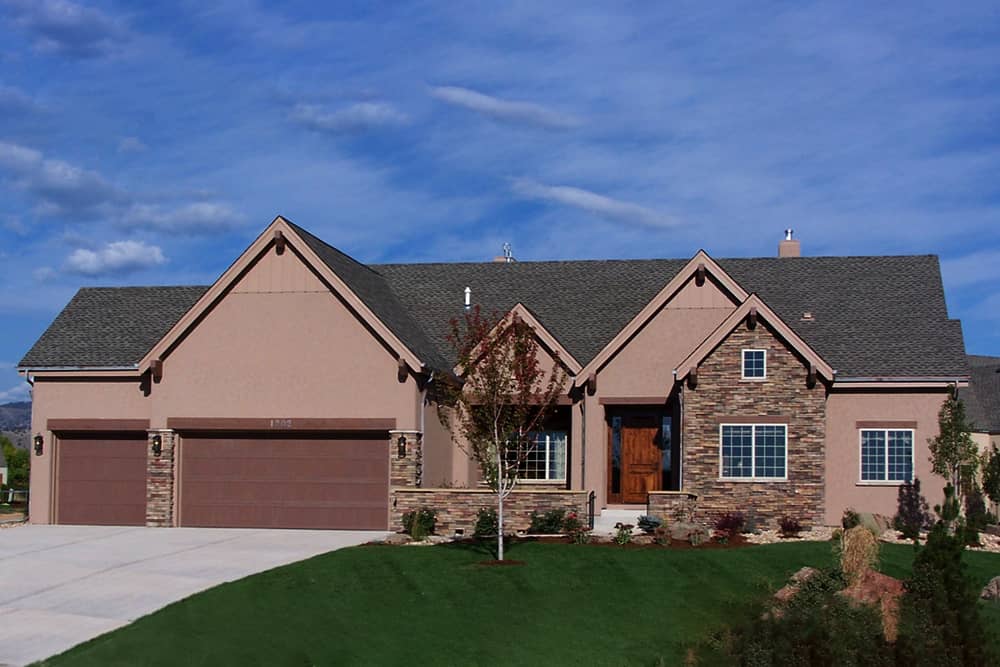

3-Bedroom, 2570 Sq Ft Craftsman Home Plan - 194-1019 - Main Exterior

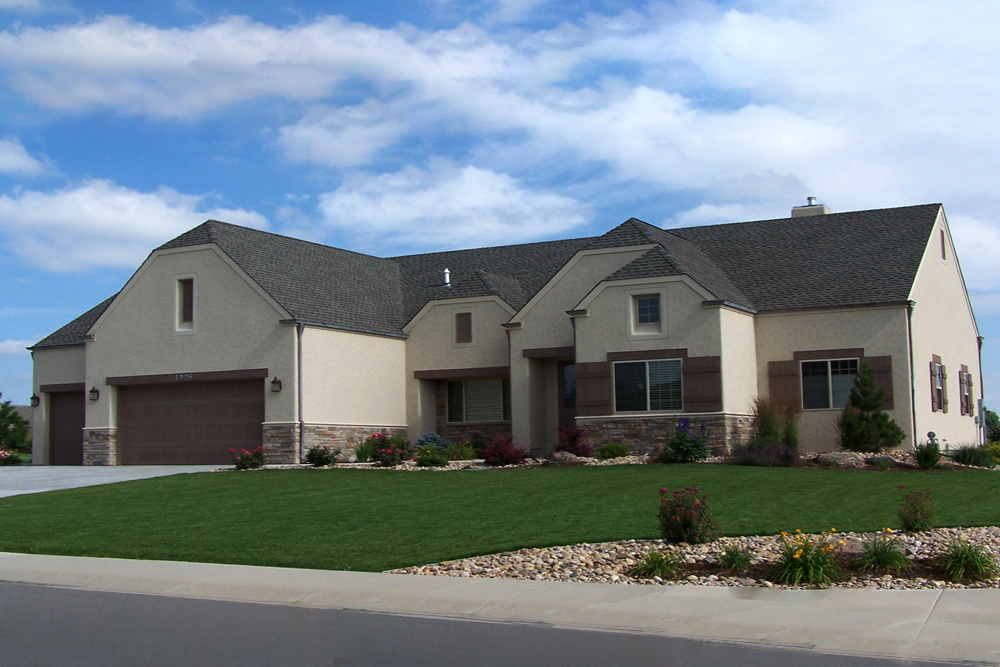

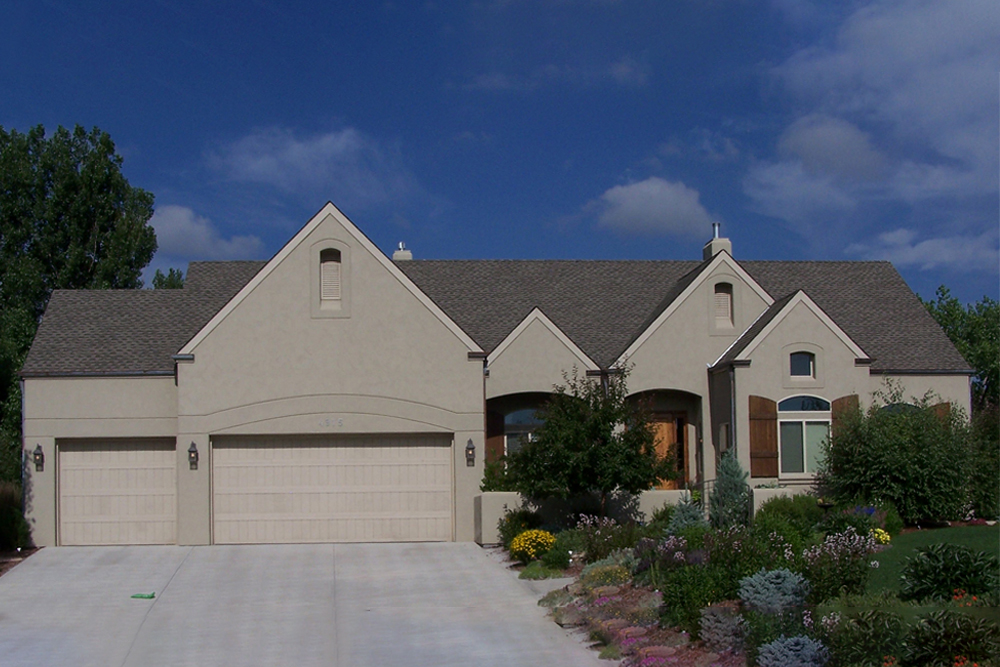

194-1019: Home Exterior Photograph
194-1019: Home Exterior Photograph

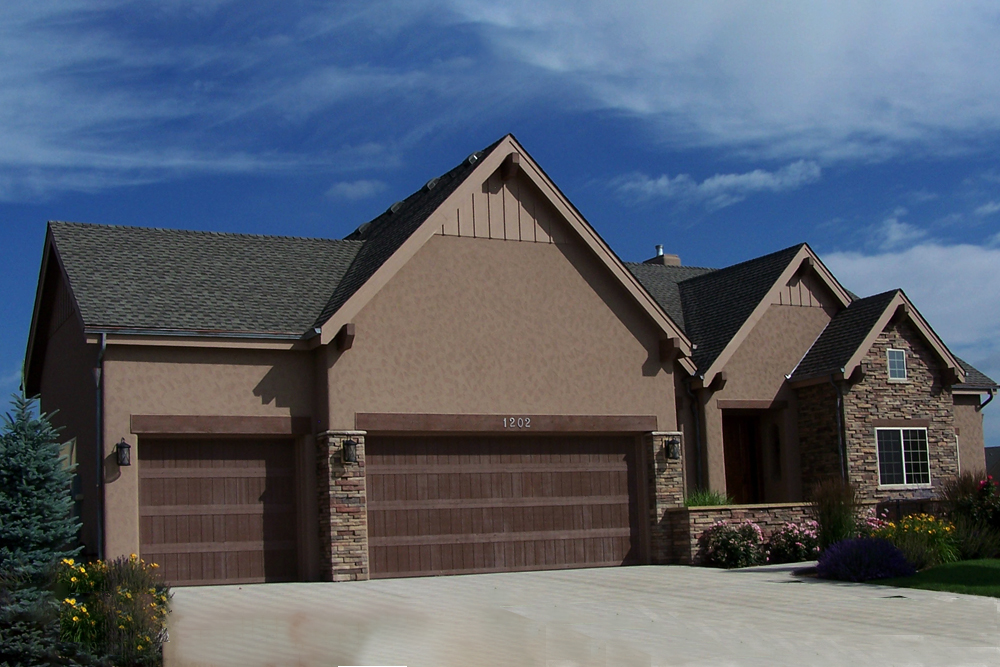

194-1019: Home Exterior Photograph
194-1019: Home Exterior Photograph-Right Side View

About Plan # 194-1019

About Plan # 194-1019

2570 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 77' 0" WIDTH 68' 0" DEPTH 3 GARAGE BAY

This lovely Craftsman style home with Farmhouse influences (House Plan #194-1019) has 2570 square feet of living space. The 1 story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • Cover Sheet - project statistics, including square footage, 3D images (typically), general notes, and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts, joist direction, and often electrical outlets, switches, and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations, and other general notes.
  • Upper-Level Plan (if needed) - same information as Main Level.
  • Main Level Electrical Plan - electrical outlets, switches, and light locations shown.
  • Upper-Level Electrical Plan (if needed) - electrical outlets, switches, and light locations shown. (sometimes just the lighting is shown)
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions, and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

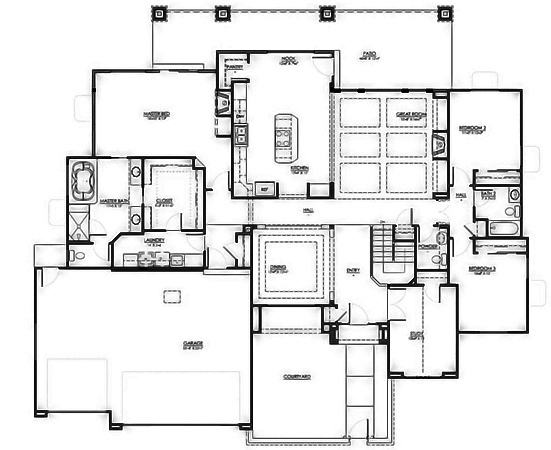

Home Plan: #194-1019 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #194-1019

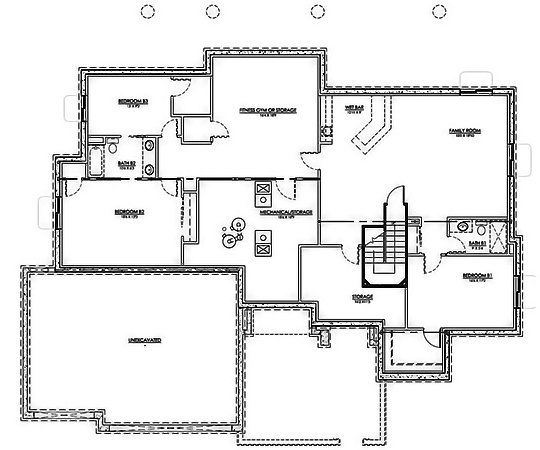

#194-1019 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #194-1019
Home Plan: #194-1019 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #194-1019
#194-1019 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #194-1019
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 194-1019
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
2570
Main Floor:
2570
Unfinished Sq Ft:
Lower Floor:
2415
Garage :
775
Porch :
769

Dimensions

Width:
77' 0"
Depth:
68' 0"
Ridge Height:
23' 6"

Architectural Styles

Farmhouse
Craftsman
Cottage

Exterior Wall Material

Vinyl Siding
Stucco
Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
8/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

In Home Gym
Fireplace
Dining Room
Mud Room
Family Room
Main Level Laundry
Library
Storage
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Courtyard
Covered Rear Patio

Master Suite Features

Main Floor Master
Fireplace in Master
Master Bathroom
Walk In Closet
Split Master Bedroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.
