4-Bedroom, 2543 Sq Ft Transitional Plan with Covered Front Porch

Color rendering of Transitional home plan (ThePlanCollection: House Plan #169-1124)
169-1124: Home Plan Rear Elevation

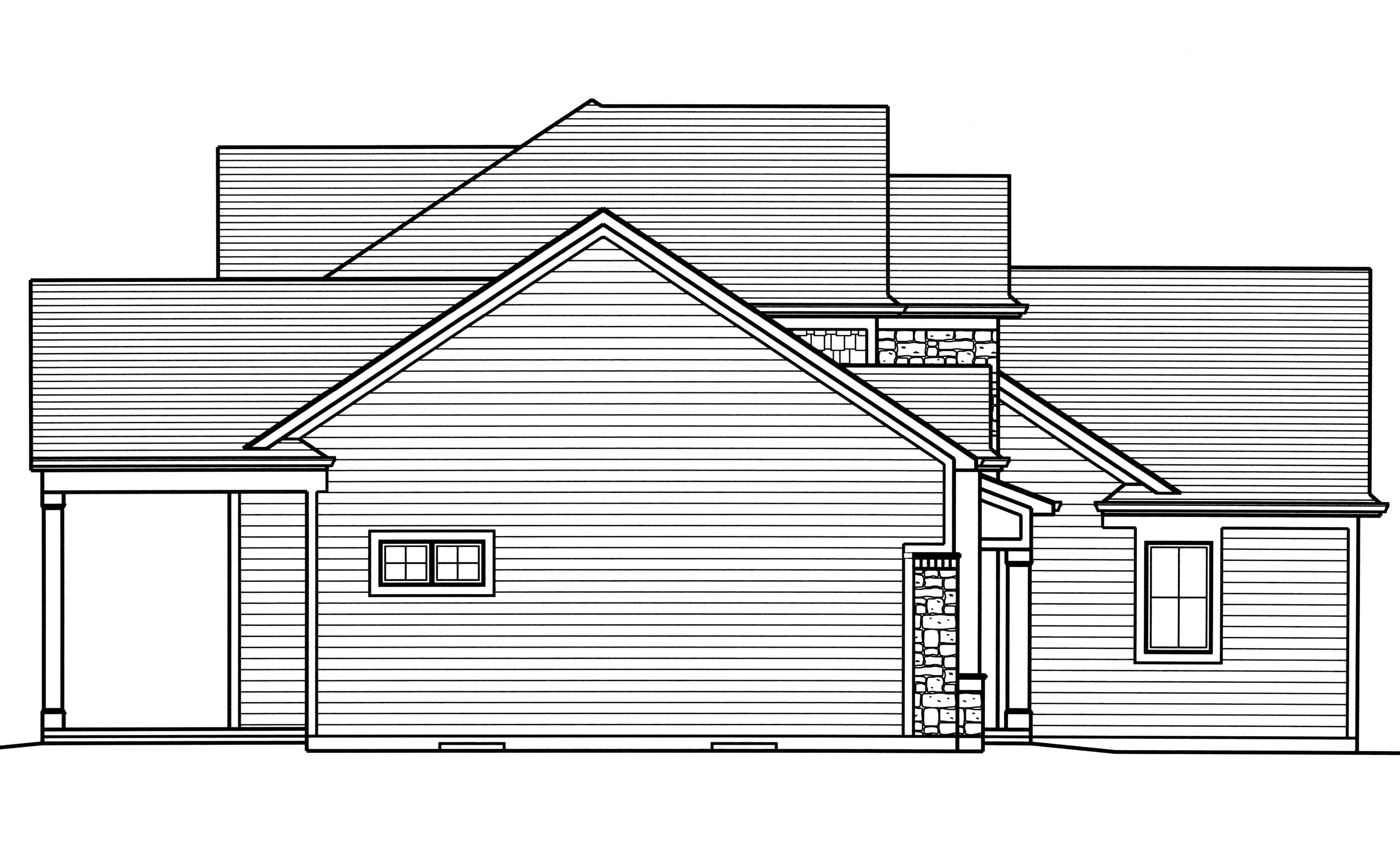

169-1124: Home Plan Left Elevation
169-1124: Home Plan Right Elevation
4-Bedroom, 2543 Sq Ft Transitional Home Plan - 169-1124 - Main Exterior

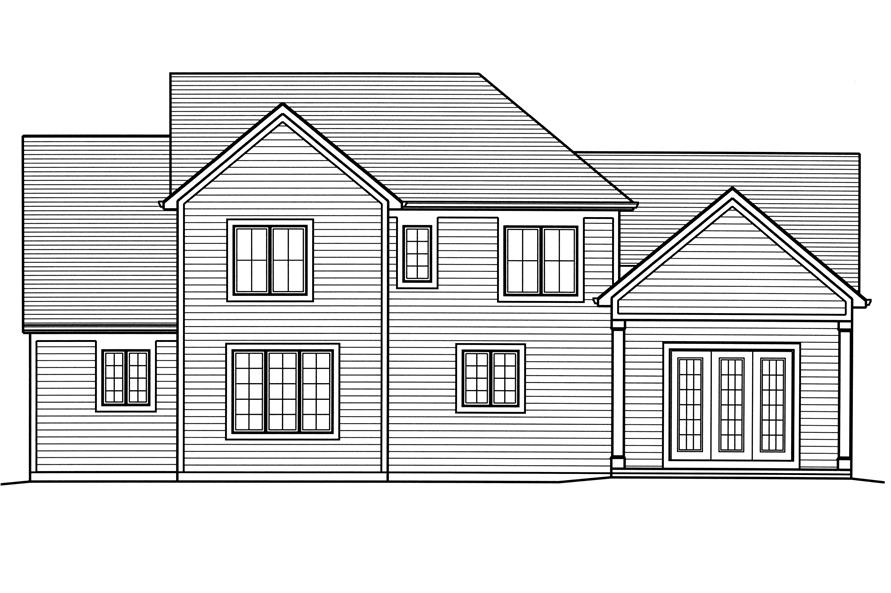

169-1124: Home Plan Rear Elevation

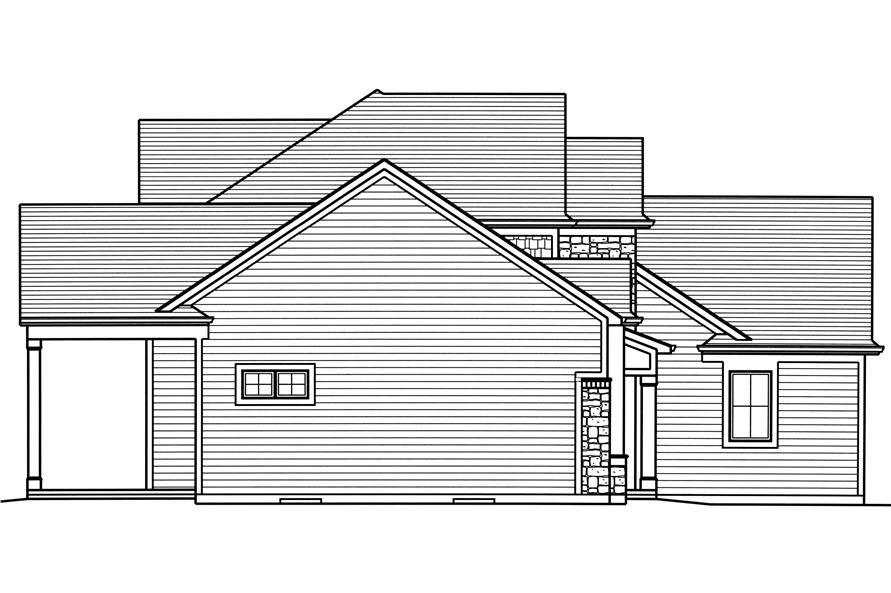

169-1124: Home Plan Left Elevation

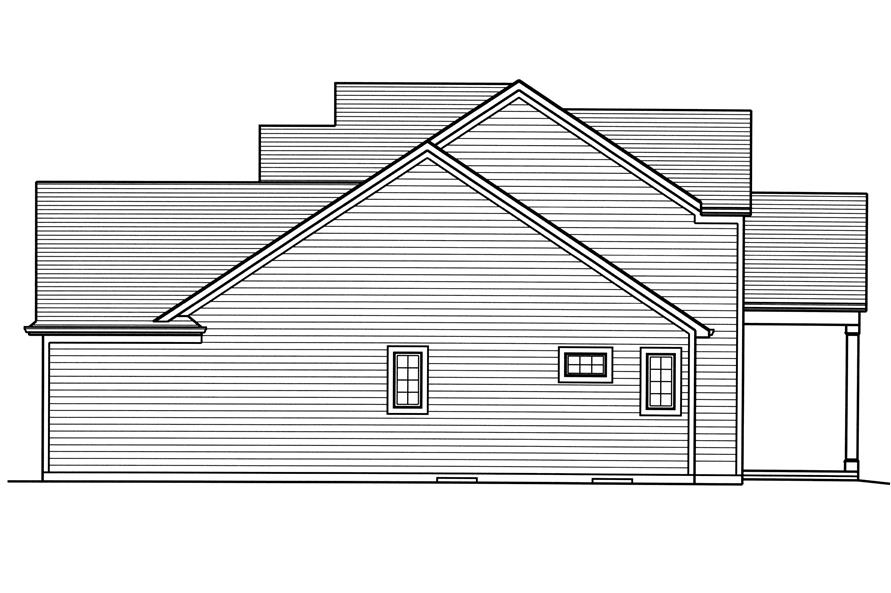

169-1124: Home Plan Right Elevation

About Plan # 169-1124

About Plan # 169-1124

2543 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 59' 4" WIDTH 59' 8" DEPTH 2 GARAGE BAY

This lovely Transitional style home plan with Craftsman influences (House Plan #169-1124) has 2543 square feet of living space. The 2 story floor plan includes 4 bedrooms, 3 ful bathrooms, and 1 half bath.

Each plan set includes the following:

  • General notes and specifications
  • Front, rear and side elevations (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction method
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #169-1124 Floor Plan First Story - main level Floor Plan First Story of Transitional Plan #169-1124

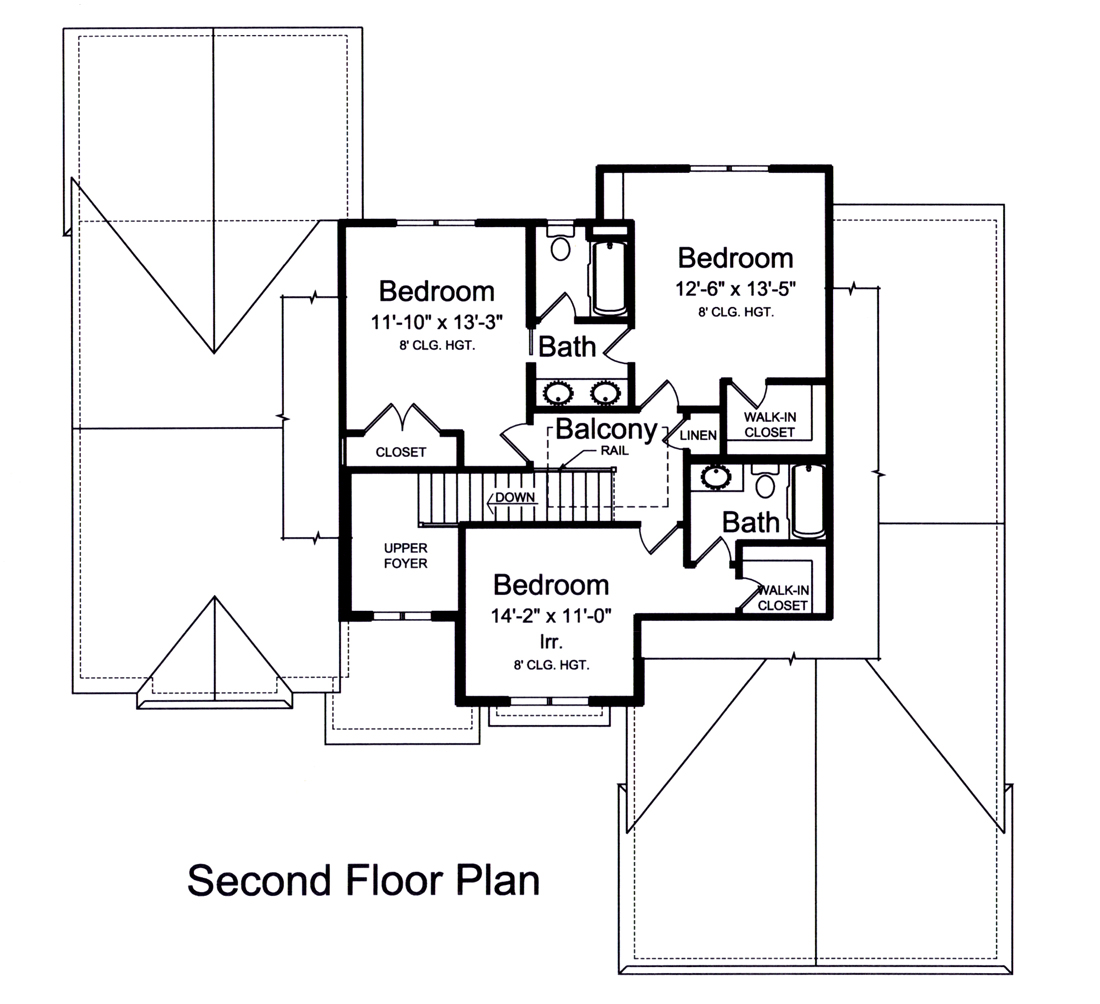

#169-1124 Floor Plan Second Story - upper level Floor Plan Second Story of Transitional Plan #169-1124

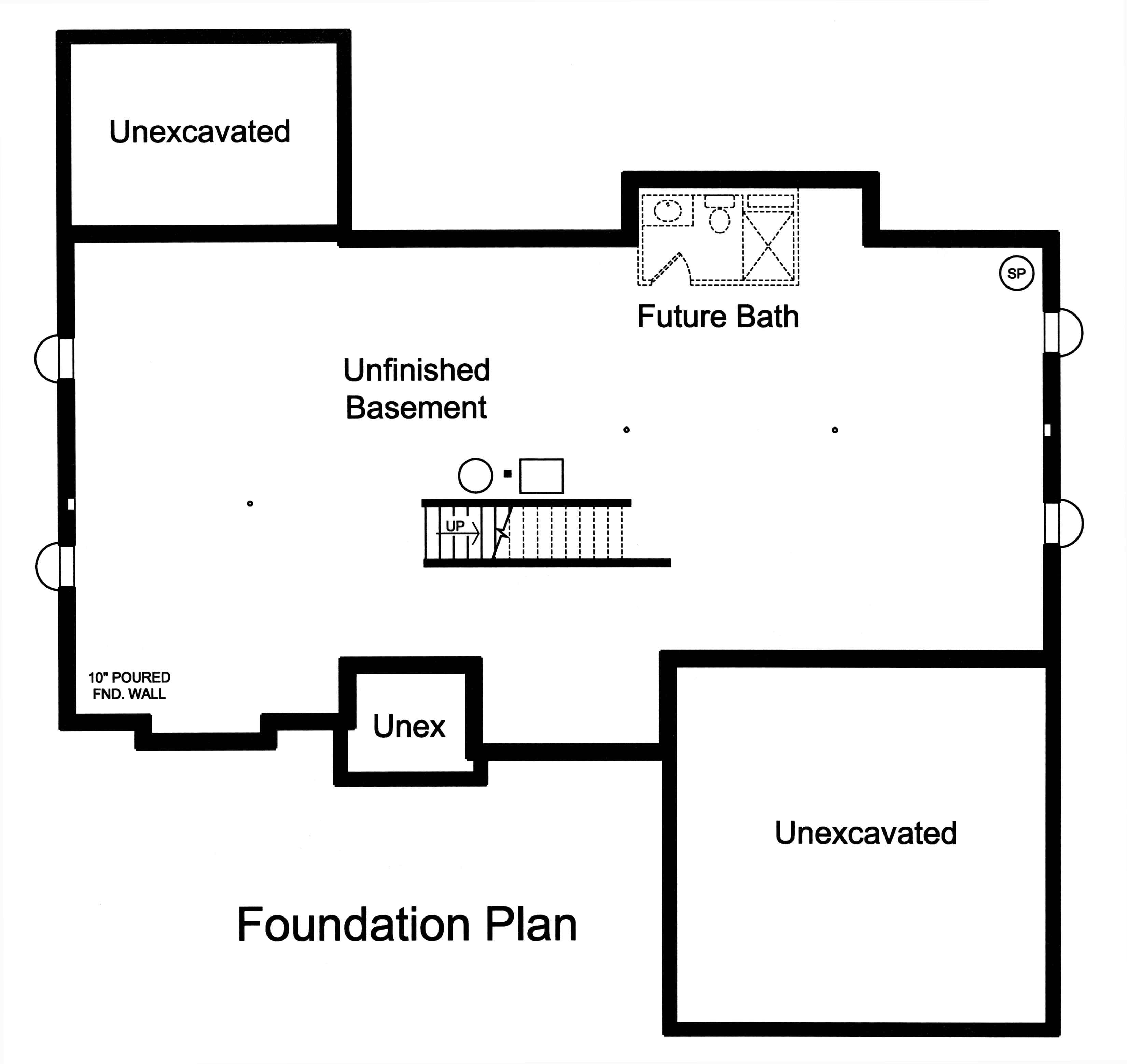

#169-1124 Floor Plan Basement - basement Floor Plan Basement of Transitional Plan #169-1124
