4-Bedroom, 2490 Sq Ft Beachfront Plan with Walk-in Pantry

Color rendering of Beachfront home plan (ThePlanCollection: House Plan #116-1094)
116-1094: Home Plan Rear Elevation
116-1094: Home Plan Left Elevation
116-1094: Home Plan Right Elevation
116-1094: Home Plan 3D Image
116-1094: Home Plan 3D Image
116-1094: Home Plan 3D Image
116-1094: Home Plan Rendering
116-1094: Home Plan Rendering
4-Bedroom, 2490 Sq Ft Beachfront Home Plan - 116-1094 - Main Exterior
116-1094: Home Plan Rear Elevation
116-1094: Home Plan Left Elevation
116-1094: Home Plan Right Elevation
116-1094: Home Plan 3D Image
116-1094: Home Plan 3D Image
116-1094: Home Plan 3D Image
116-1094: Home Plan Rendering
116-1094: Home Plan Rendering

About Plan # 116-1094

About Plan # 116-1094

2490 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 70' 0" WIDTH 47' 0" DEPTH 0 GARAGE BAY

With floor-to-ceiling windows, this 2490 sq ft home has spaciousness to it we love (Plan #116-1094). The foyer leads to the massive family area offering fantastic views, a fireplace and plenty of natural light. Just steps away, the kitchen offers an eating bar. The wrap-around balcony and sliding glass doors invite the outdoors inside. This plan has 4 bedrooms, 3 baths and a home office.

Each plan set includes the following:

  • FLOOR PLAN: Showing views of each floor, looking down from above. The plans show window and door locations, room sizes, cabinets and fixtures.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings and concrete slabs.
  • ROOF & FLOOR STRUCTURE LAYOUTS: Shows the outline of the floor truss systems and slopes, valleys, ridges and hips on the roof.
  • ELECTRICAL LAYOUT: Shows the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

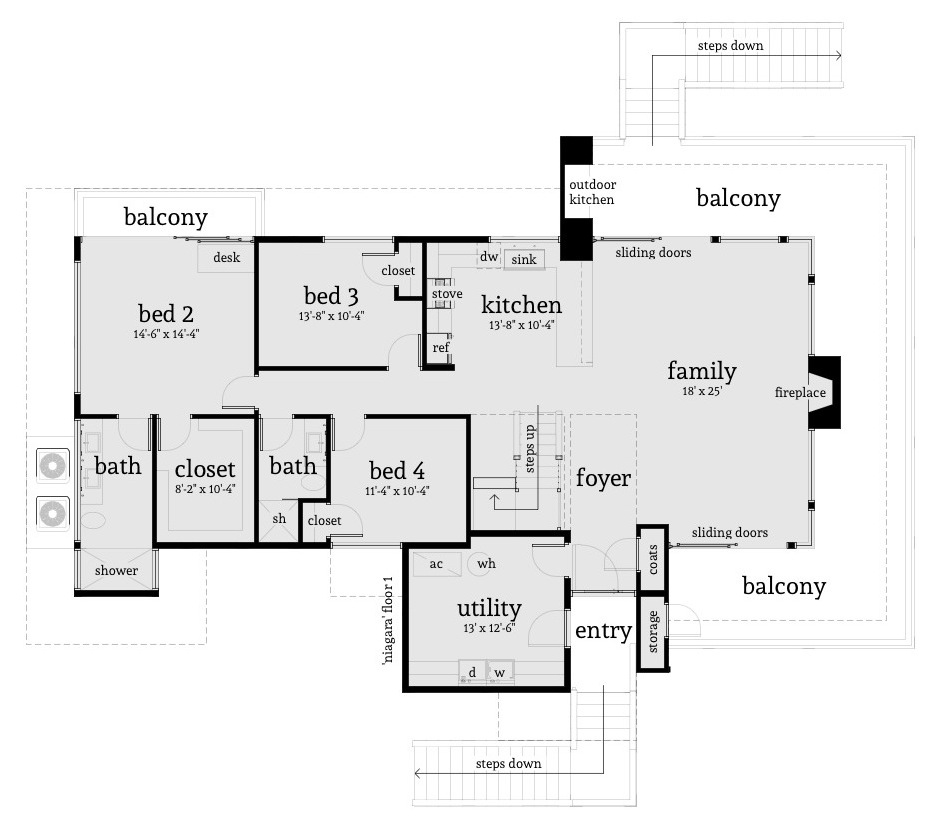

Home Plan: #116-1094 Floor Plan First Story - main level Floor Plan First Story of Beachfront Plan #116-1094

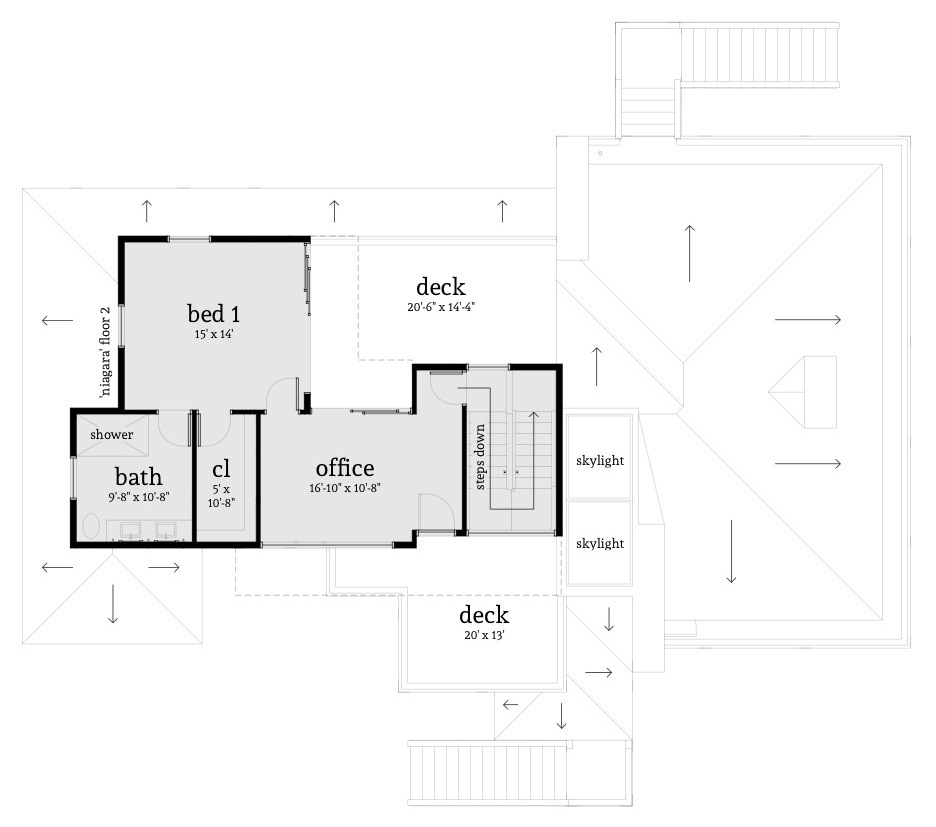

#116-1094 Floor Plan Second Story - upper level Floor Plan Second Story of Beachfront Plan #116-1094
Home Plan: #116-1094 Floor Plan First Story - main level Floor Plan First Story of Beachfront Plan #116-1094
#116-1094 Floor Plan Second Story - upper level Floor Plan Second Story of Beachfront Plan #116-1094
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1094
Floors:
2
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
2490
Main Floor:
1866
Upper Floor:
624
Unfinished Sq Ft:

Dimensions

Width:
70' 0"
Depth:
47' 0"
Ridge Height:
34' 0"

Architectural Styles

Beachfront
California Style
Coastal
Modern
Multi-Level

Exterior Wall Material

Stucco
Vinyl Siding
Wood Siding

Roofing Type

Flat

Roofing Material

Metal

Ceiling Height

9 Foot Ceiling

Special Feature

Balcony
Family Room
Fireplace
Main Level Laundry
Mud Room
Open Floor Plan
Storage

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Eat-In Kitchen
Outdoor Kitchen
Peninsula/Eating Bar

Porches and Exterior Features

Sundeck
Wrap Around Porch

Master Suite Features

Main Floor Master
Master Bathroom
Private Deck
Second Floor Master
Split Master Bedroom
Two or More Master Suites
Walk In Closet

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
