3-Bedroom, 2417 Sq Ft Ranch Plan with Family Room

Front elevation of Ranch home (ThePlanCollection: House Plan #108-1342)
3-Bedroom, 2417 Sq Ft Ranch Home Plan - 108-1342 - Main Exterior

About Plan # 108-1342

About Plan # 108-1342

2417 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 73' 7" WIDTH 79' 3" DEPTH 2 GARAGE BAY

The #108-1342 home plan is a single story, cape cod style house plan with 2417 total living square feet. This Cape Cod home plan is an essentially star-shaped home with a windowed cupola at its apex. Walls bound the dining area on the bedroom side and columns are on the other. The wide deck is accessible from the family room and the spacious master suite.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

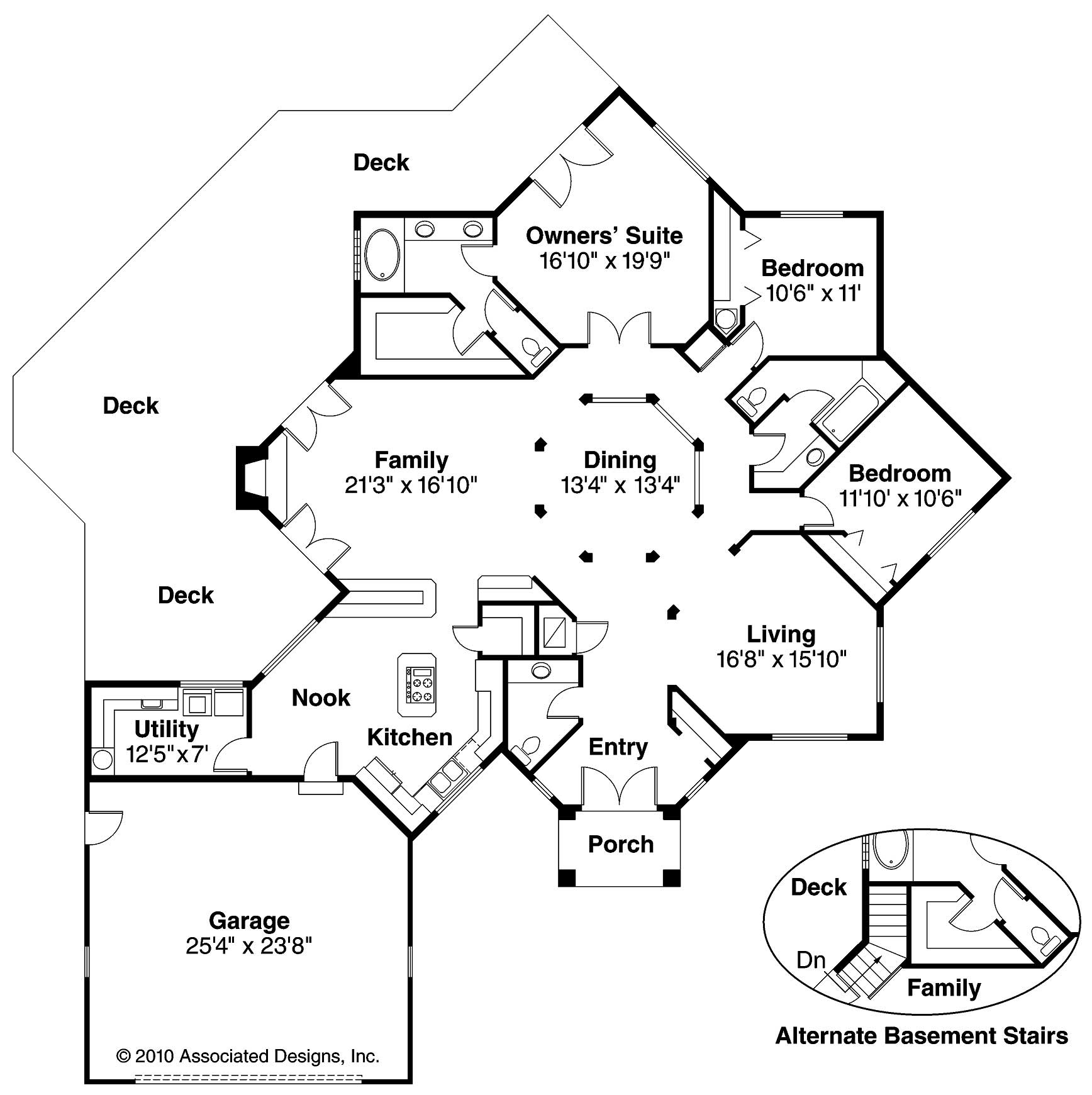

Home Plan: #108-1342 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #108-1342
Home Plan: #108-1342 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #108-1342
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1342
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2417
Main Floor:
2417
Unfinished Sq Ft:
Garage :
612

Dimensions

Width:
73' 7"
Depth:
79' 3"
Ridge Height:
27' 0"

Architectural Styles

Ranch
Vacation Homes
Florida Style

Exterior Wall Material

Shakes

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Family Room

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Additional Notes from Designer

The office will be closed from October 10-17, 2022 PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
