3-Bedroom, 2383 Sq Ft Ranch Plan with Outdoor Kitchen
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 2383 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 83' 0" WIDTH | 56' 0" DEPTH | 3 GARAGE BAY |
This traditional ranch home features a rear design with European flair with its two-story turret and a lovely Palladian window. Enter under a keystone arch into a foyer opens on the left through French doors, revealing a den or formal dining room. The great room boasts a cathedral ceiling, deck views and a fireplace framed by built-ins. The kitchen is ready to serve, with a snack bar that seats six, an island and easy access to the bayed casual nook. The master suite is tucked away for privacy accented by a tray ceiling and a dazzling bath with a corner tub. Two secondary bedrooms share a full bath on the far right.
Each plan set includes the following:
- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

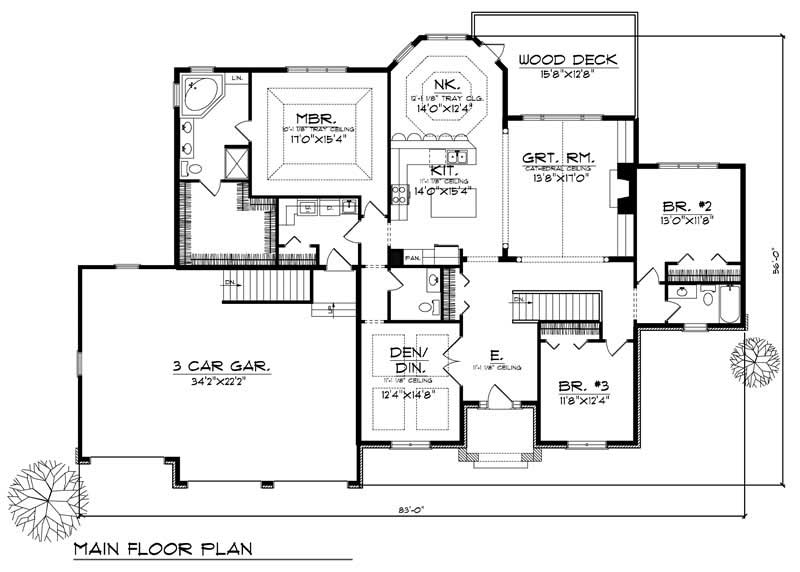

Home Plan: #101-1123 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #101-1123]( "MAIN FLOOR PLAN")
Home Plan: #101-1123 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #101-1123]( "MAIN FLOOR PLAN")
