3-Bedroom, 2380 Sq Ft Country Plan with Walk-in Pantry

Main image for house plan # 5875

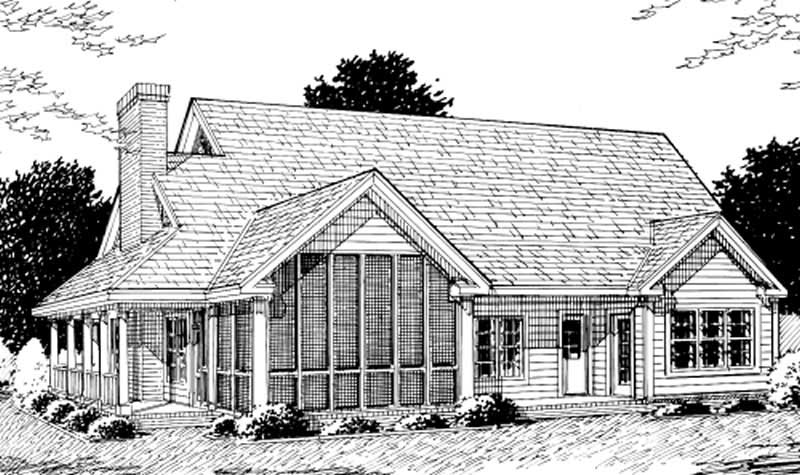

REAR ELEVATION

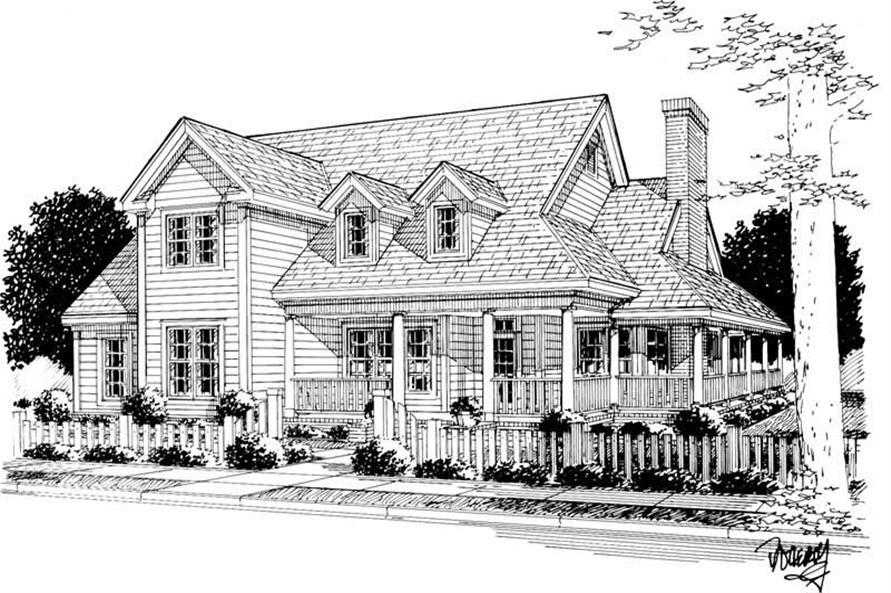

3-Bedroom, 2380 Sq Ft Country House Plan - 178-1142 - Front Exterior

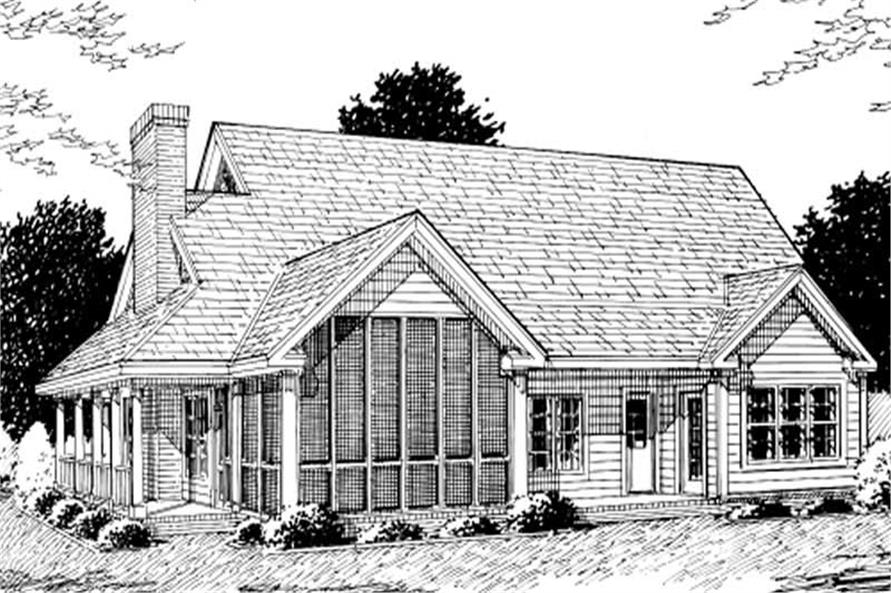

REAR ELEVATION

About Plan # 178-1142

About Plan # 178-1142

2380 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 58' 0" WIDTH 58' 0" DEPTH 2 GARAGE BAY
Plan 24152, the Hudson, is a Country Farmhouse with lots of covered porch. The 18'X14' screened in porch provides an outdoor living space like no other and connects this house to the surrounding landscape. The large kitchen is at the center of this household, with the dining, living, and nook areas surrounding. The master suite is secluded behind the kitchen and stairs and featuers a large bath and closet. The upper floor houses three more bedrooms, attic space for storage, and a bonus area.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, floor joist span directions, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

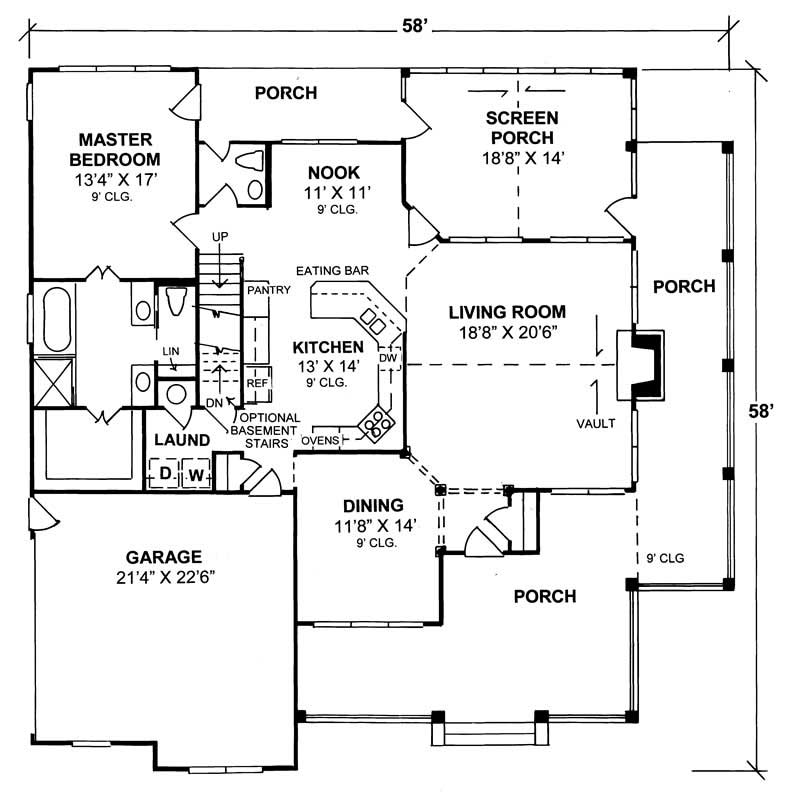

Home Plan: #178-1142 Floor Plan First Story - main Floor Plan First Story of Country Plan #178-1142

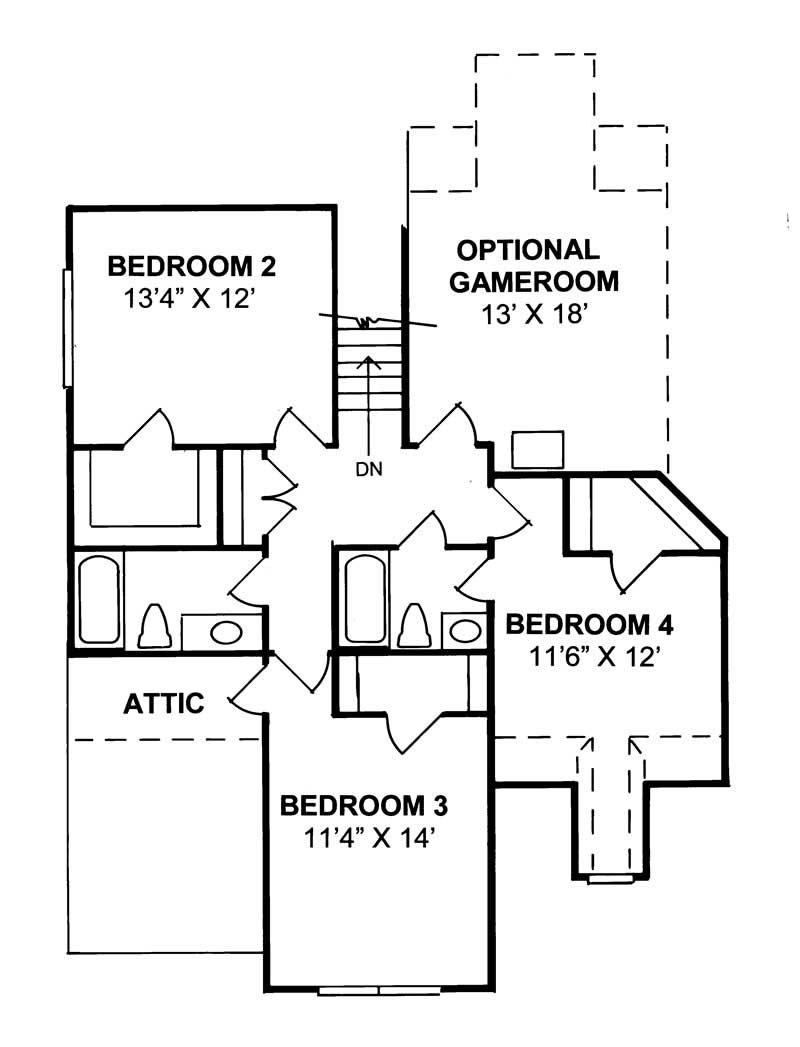

#178-1142 Floor Plan Second Story - upper level Floor Plan Second Story of Country Plan #178-1142
